CRL Mill 3/4" x 7/16" Roll Formed Aluminum Screen Frame - 144"

• Typical Applications Include Sliding Windows and Casement Windows
• .020" (.51 mm) Wall Thickness
• Several Finishes Available

This

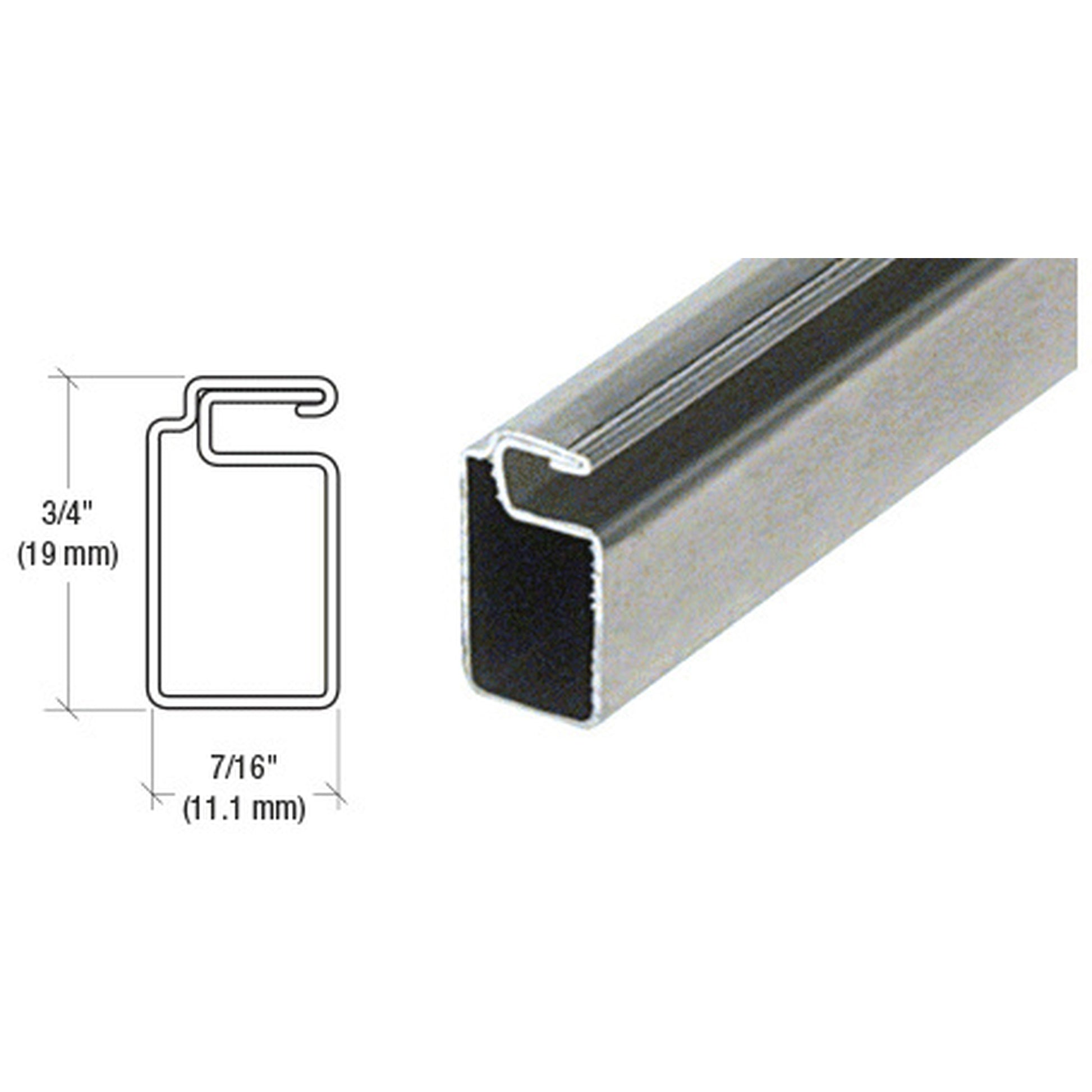

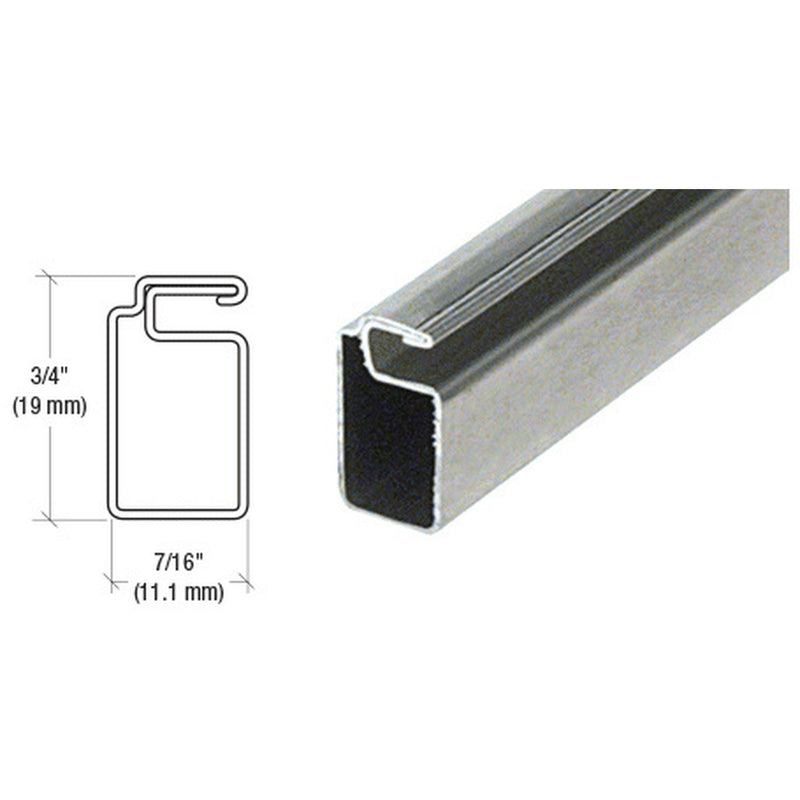

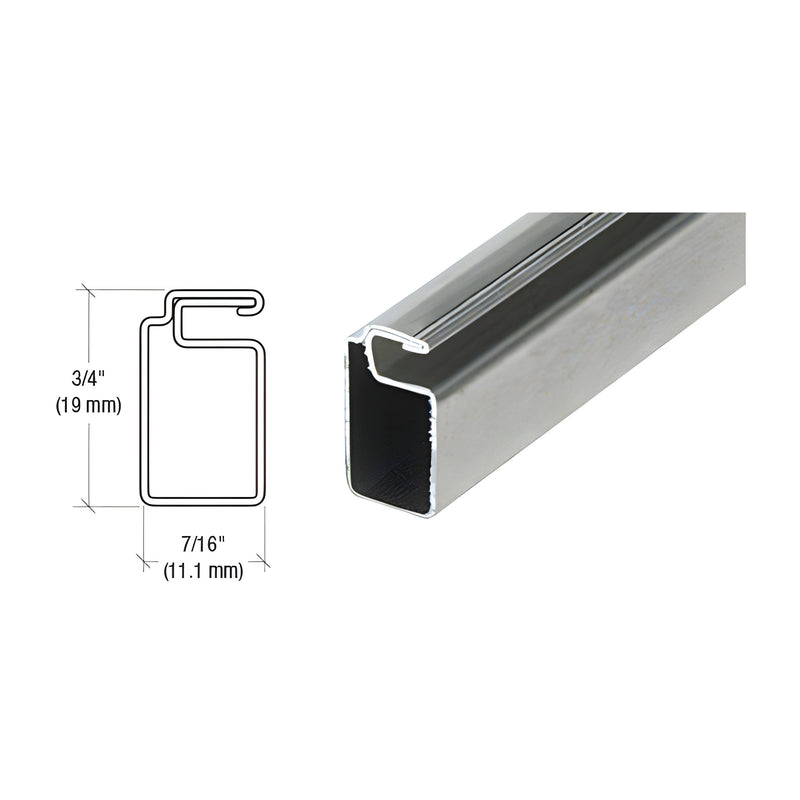

CRL 3/4" x 7/16" (19 x 11 mm) Screen Frame

is made of .020 mil thick roll formed aluminum. It is cambered (slightly bowed) to retain screen tension when installed. It will accept CRL .165" Spline. You can use either WSC107 Aluminum Corners or WSPC107 Plastic Corners for mitered frame corners or SWSC716 Series Square Cut Plastic Corners for a square cut frame application.

Material: Roll Formed Aluminum

Wall Thickness: .020" (.51 mm)

Uses Spline Size: .165" (4.2 mm)

Uses Corners: WSC107 or WSPC107 for Mitered Corners;

SWSC716 for Square Cut Corners

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
