CRL Mill 400 Series Top Cap 90º Corner

• U.S. Patent No. 8,167,274/Commonwealth of Australia Patent No. 2009201412
• Welded and Finished
• Matches Shape of Top Rail
• Seven Standard Powder Coated Finishes, Plus Unfinished Chromate
• Includes Aluminum Connector Splice Plates
• 6005 Alloy Aluminum/T5 Temper
• Custom Angle Corners Also Available

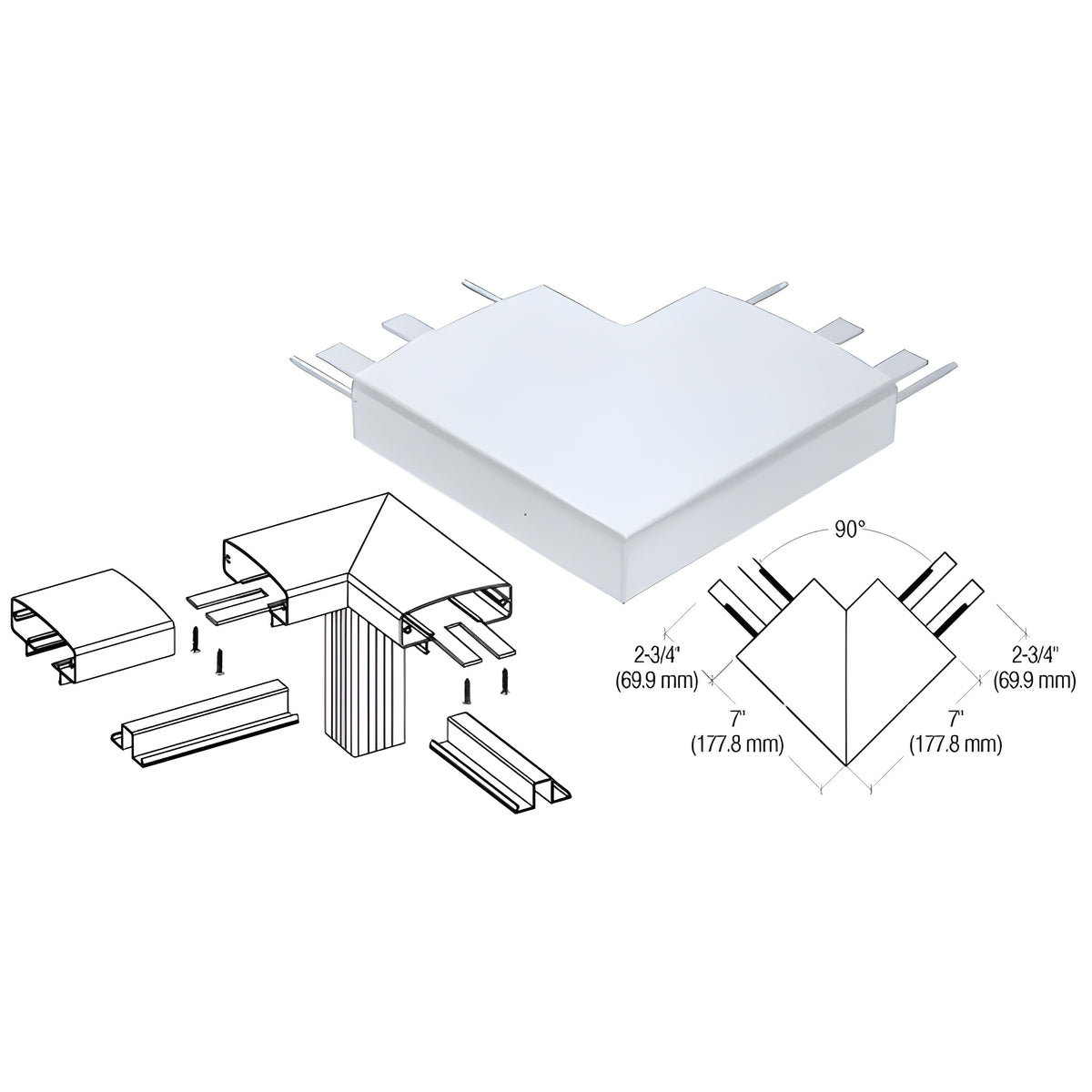

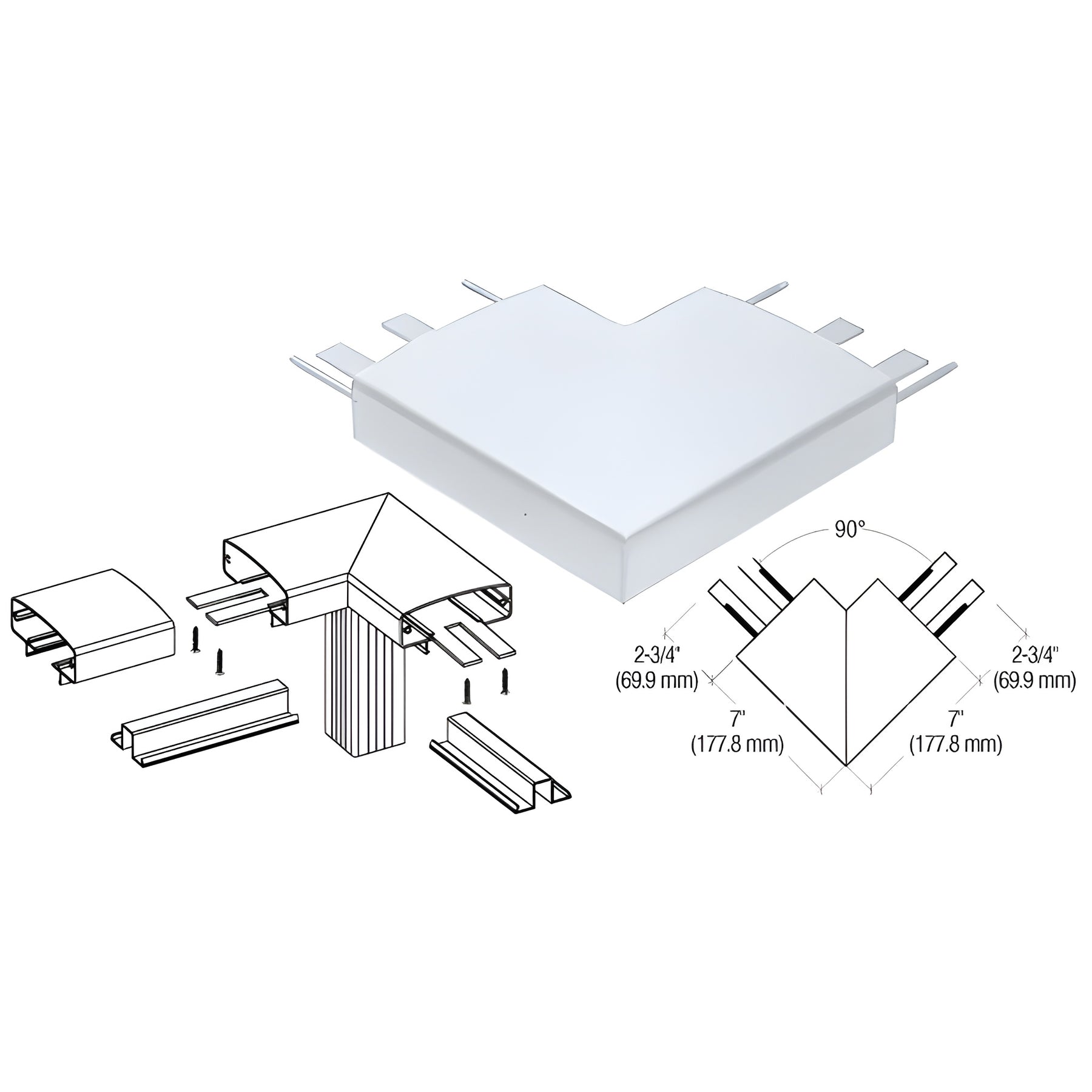

CRL 400 Series Horizontal Corners

are fabricated, finished, powder coated and individually packaged. This interior slip-fit corner is designed for 90 degree corner conditions that allow for a hairline joint in the straight sections of the railing without having to miter cut angles in the field. Attach the Corners using CRL Cat. No. TEK1 Tek Screws.
