CRL Mill 48 in Heavy-Duty Windscreen Post - Replacement Glass Post
CRL Mill 48 in Heavy-Duty Windscreen Post - Replacement Glass Post
Regular price
$264.54 CAD
Regular price
Sale price
$264.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD48M
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

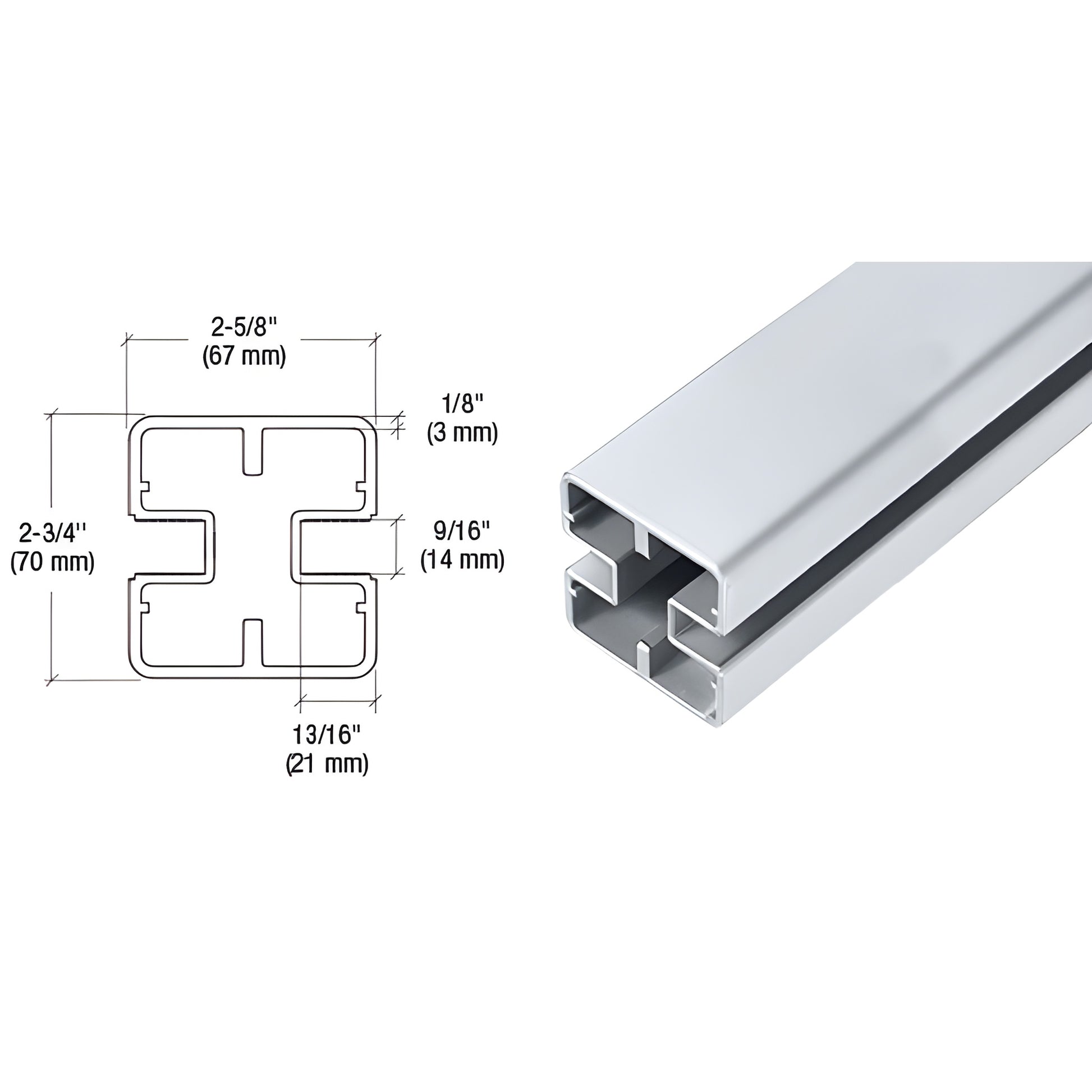

Description
Depth
13/16 in. (21 mm)
Finish/Color
Mill
Glazing Thickness
1/4 in. & 3/8 in. (6 mm & 10 mm)
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
48 in. (1219 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as posts only or in kits containing post, flat top cap, and glazing vinyl
- Seven standard colors plus mill aluminum; custom colors available on request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass dry glazed with vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass wet glazed with structural silicone
- Kits come complete with post, flat top cap, and glazing vinyl
SKU: HD48M
HD posts (SKU HD48M) are engineered for heavy-duty glass railing and barrier fabrication—use at the end of a barrier or to join two panels at 180°. Supports both dry-glazed and wet-glazed glass panels, offering flexible installation for residential and commercial glass railing projects. Available in multiple finish options and supplied as individual posts or complete kits for faster installation.
Performance limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area should not exceed 24 sq ft.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
Order HD48M heavy-duty glass railing posts or request a custom color quote today.
Specifications
CAD Drawings - pdf
