CRL Mill 60 in Heavy-Duty Windscreen Post - Replacement
CRL Mill 60 in Heavy-Duty Windscreen Post - Replacement
Regular price
$320.49 CAD
Regular price
Sale price
$320.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD60M
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

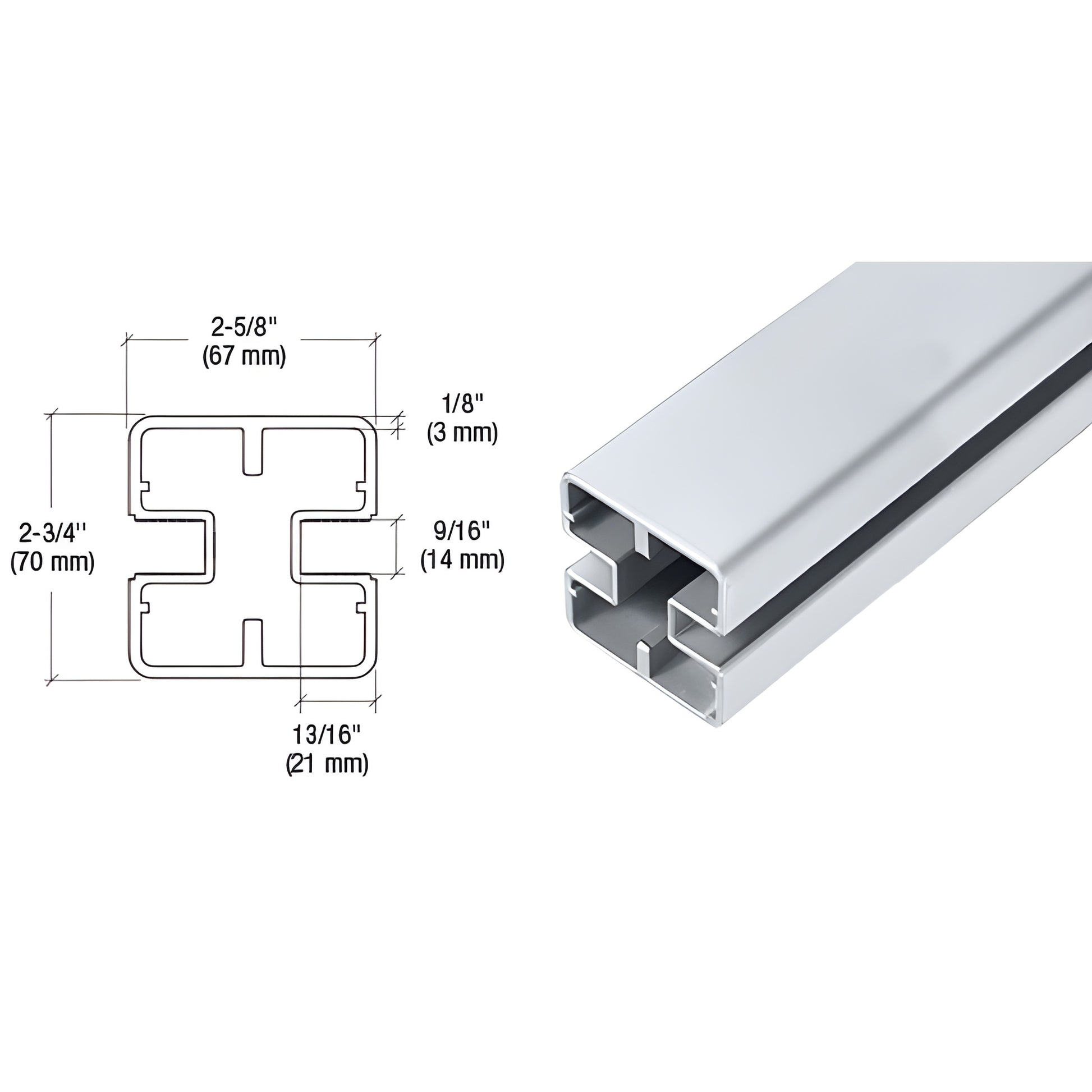

Description
Depth
13/16 in. (21 mm)
Finish/Color
Mill
Glazing Thickness
1/4 in. & 3/8 in. (6 mm & 10 mm)
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
60 in. (1524 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as Posts Only or in Kits Containing Post, Flat Top Cap, and Glazing Vinyl
- Seven Standard Colors, Plus Mill Aluminum; Custom Colors Available Upon Request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass — dry glazed with vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass — wet glazed with structural silicone
- Kits include post, flat top cap, and glazing vinyl for easy glass railing installation
Model: HD60M — Heavy-duty glass railing posts for end-of-run or 180° panel joins. Designed for glass panel balustrade systems, these heavy-duty posts support 1/4"–3/8" panels when dry glazed and 1/2"–9/16" panels when wet glazed with structural silicone. Available in seven standard finishes plus mill aluminum, with custom color options on request. Key installation limits: maximum post spacing 72" (1829 mm) on center; maximum panel area not to exceed 24 sq ft.
Differentiators: Kits arrive complete with post, flat top cap, and glazing vinyl to streamline glass railing assembly. Suitable for both dry-glazed vinyl installations and wet-glazed installations using structural silicone—ideal for commercial and residential glass balustrade projects.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
Need pricing or lead time for HD60M heavy-duty glass railing posts and kits? Contact CRL Customer Service to request quotes, exact weights, or custom color options.
Specifications
CAD Drawings - pdf
