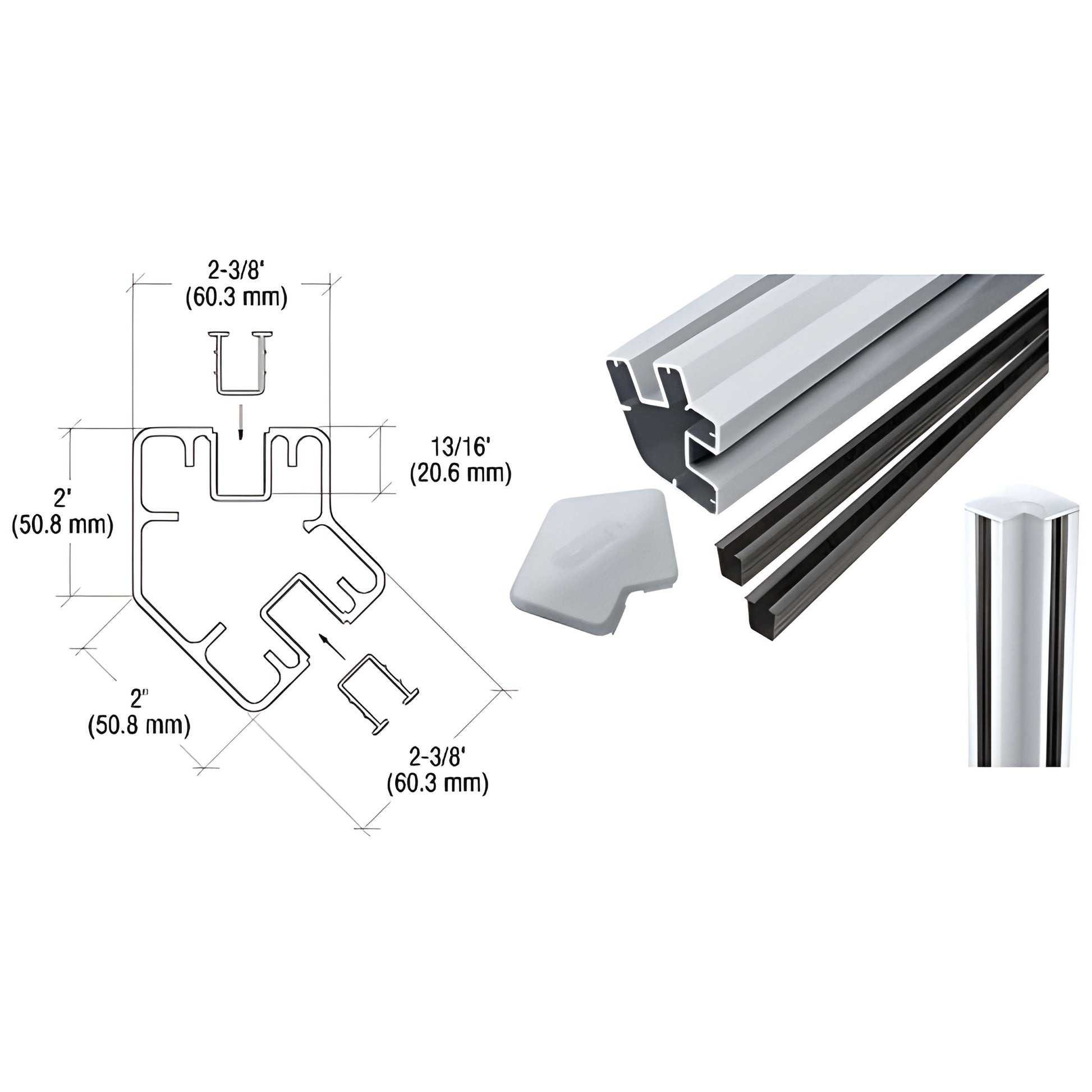

CRL Mill 60" 2" x 2-3/8" Rectangular 135° Corner Post Kit
CRL Mill 60" 2" x 2-3/8" Rectangular 135° Corner Post Kit
Regular price
$243.38 CAD
Regular price
Sale price
$243.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S605KM
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Centerline
1/2 in. Glass (Wet Glazed) (12 mm Glass (Wet Glazed))
Configuration
Corner
Degree
135
Finish/Color
Mill
Glazing Thickness
1/4 in. To 3/8 in. Glass (Dry Glazed) (6 mm To 10 mm Glass (Dry Glazed))
Length
2 in. (51 mm)
Material
Aluminum
Profile
Rectangular
Width
60 in. (1524 mm)
Overview
- Standard kit includes post, top cap, and vinyl
- Fits 135° joins for two glass panels — ideal for glass partition and shower enclosure projects
- Accommodates 1/4" to 3/8" (6–10 mm) glass when dry-glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet-glazed
- Available in several attractive colors; custom colors available upon request
- SKU: S605KM
These CRL Kits are engineered for fabricating posts that join two glass panels at a 135° angle. Designed for commercial and residential glass partition, shower, and storefront applications, the S605KM supports both dry-glazed (vinyl) 6–10 mm panels and wet-glazed 12 mm panels, providing flexible installation options.
Key specifications: Maximum post spacing — 72" (1.83 m) on center. Maximum panel size — 24 sq ft (per panel).
Note: All ARS/AWS products are painted to order; painted items are non-refundable and non-returnable. Custom color matching available — contact CRL for options.
Product warning: Painted-to-order items are non-refundable/non-returnable.
Order SKU S605KM or contact CRL Customer Service for custom colors and installation guidance.
Specifications
CAD Drawings - pdf
