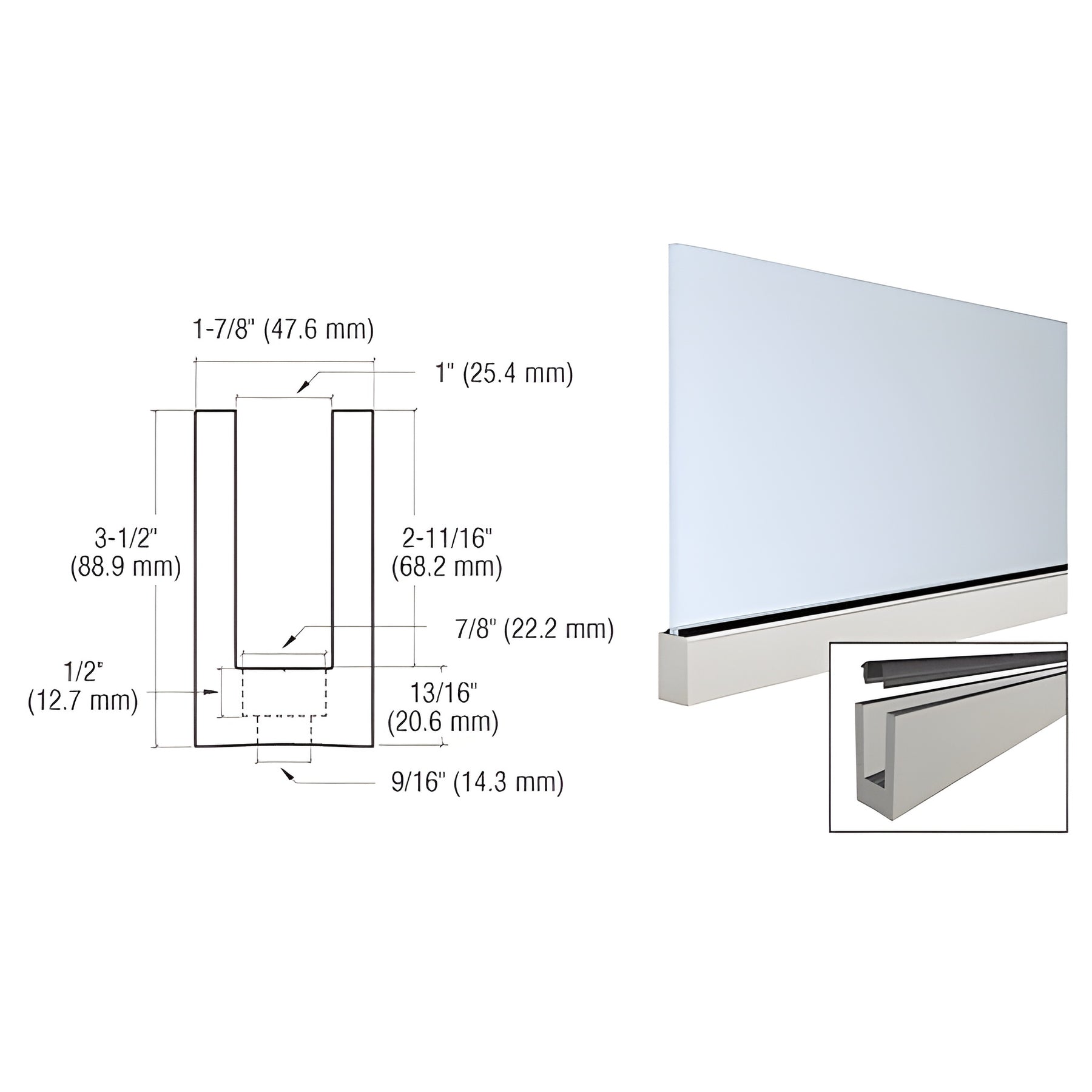

CRL Mill Aluminum 240" Windscreen Base Shoe for 3/4" Glass, Predrilled
Item# W7B20D
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Drilling Center To Center
12 in. (305 mm)
Finish/Color
Mill
Glazing Thickness
3/4 in. (19 mm)
Height
3-1/2 in. (89 mm)
Length
240 in. (6096 mm)
Material
Aluminum
Profile
With Drilled Holes
Width
1-7/8 in. (48 mm)
- Ideal for windscreens and privacy partitions
- Drilled and counter bored; custom drilling available to your specifications
- Custom fabrication services available
- Not designed for use with TAPER-LOC®
- Designed for wet-glaze installs only
CRL Heavy-Duty Small Profile Windscreen Base Shoe (SKU: W7B20D) for 3/4" (19 mm) tempered glass is commonly used as the base channel for windscreens and privacy partitions. Each glass panel is secured in the base shoe using CRL's wet glaze method for a secure, weather-resistant finish.
Extruded aluminum heavy-duty small profile base shoe can be clad in six architectural finishes to match existing hardware. A printed instruction sheet with installation hints plus a cleaning and refinishing brochure is available. This product is ideal when you need a durable, low-profile windscreen base shoe for commercial and residential glazing projects.
Installation Note: Ensure the base shoe is attached firmly with approved fasteners to a secure substrate. Proper anchoring is critical for long-term performance; contact CRL Technical Sales for fastener selection assistance.
Shipping Notice: Due to packaging and handling concerns with 240" (6.10 m) stock lengths, CRL recommends pickup at a regional distribution center. If shipment is required, packaging and handling arrangements must be agreed to by CRL and the customer prior to shipping and will be documented on your quotation.
Product Warning:
All heavy base shoes have a stock length tolerance of ±3/4" (19 mm).
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to ordering by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Why choose this base shoe? Heavy-duty extruded aluminum, wet-glaze compatibility, custom drilling and fabrication services, and multiple architectural finishes make this an excellent choice for durable windscreens and privacy partitions.
Contact CRL for pricing, custom drilling, or to request a quotation — order SKU W7B20D today.
