CRL Mill Aluminum Cladding 120" for B5S Series Standard Square Aluminum Base Shoe

CRL Mill Aluminum Cladding 120" for B5S Series Standard Square Aluminum Base Shoe
CRL Mill Aluminum Cladding 120" for B5S Series Standard Square Aluminum Base Shoe

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUBSCMA10
Pack Size1
Shipping LimitationsShipping Quote Required
Finish/Color:Mill Aluminum
Height4-1/4 in. (108 mm)
Length120 in. (3048 mm)
MaterialAluminum
Thickness.120 in. (3.05 mm)
Width15/16 in. (23.8 mm)

Description

Product Details

  • Adhere with Cladding Tape or Silicone Sealant
  • Available in Eight Architectural Finishes
  • Custom Cutting and Mitering Service Available
  • Use Monolithic Tempered Glass

CRL Cladding allows the user to match any of six architectural finishes offered in Cap Railing. It can be secured to the Base Shoe using Cladding Tape or Silicone Sealant. CRL Cladding Tape and Silicone Sealant come with attachment instructions.

NOTE: Sold by individual pieces. Base Shoe requires two pieces for coverage on both sides.

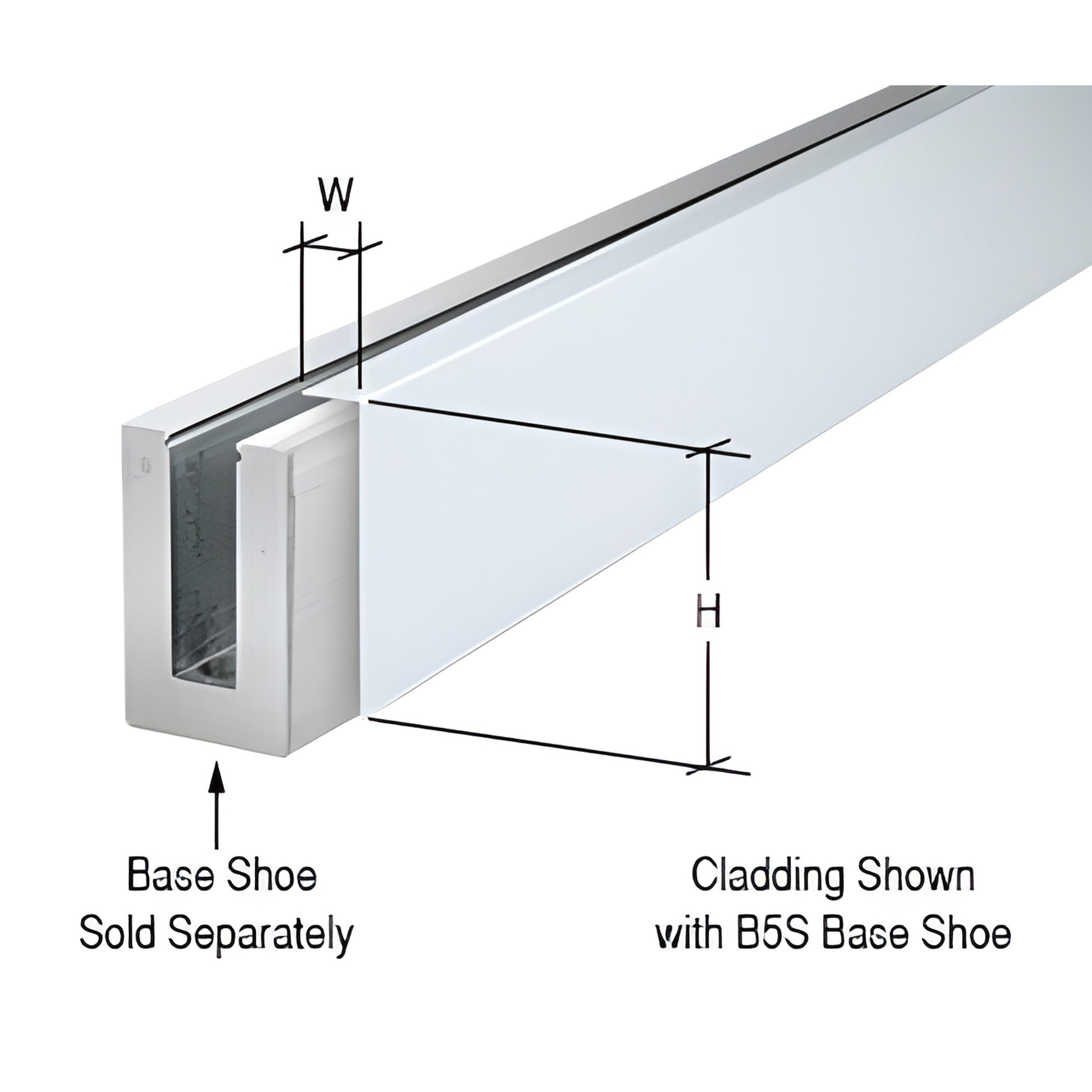

W: 7/8" (22.2 mm)

H: 4-3/16" (106.4 mm)

Specifications

Technical Resources

Brochures & Literature

PDF
Architectural Glass Railing Systems and Hardware CatalogOpen PDF ↗
PDF
Windscreen and Pool Fencing Systems Product InformationOpen PDF ↗

Installation Instructions

PDF
TL5X10 Taper-Loc Monolithic Installation InstructionsOpen PDF ↗

Quote Request Forms

PDF
GRS Base Shoe Quote Request FormOpen PDF ↗
PDF
GRS Cap Railing System Quote Request FormOpen PDF ↗
