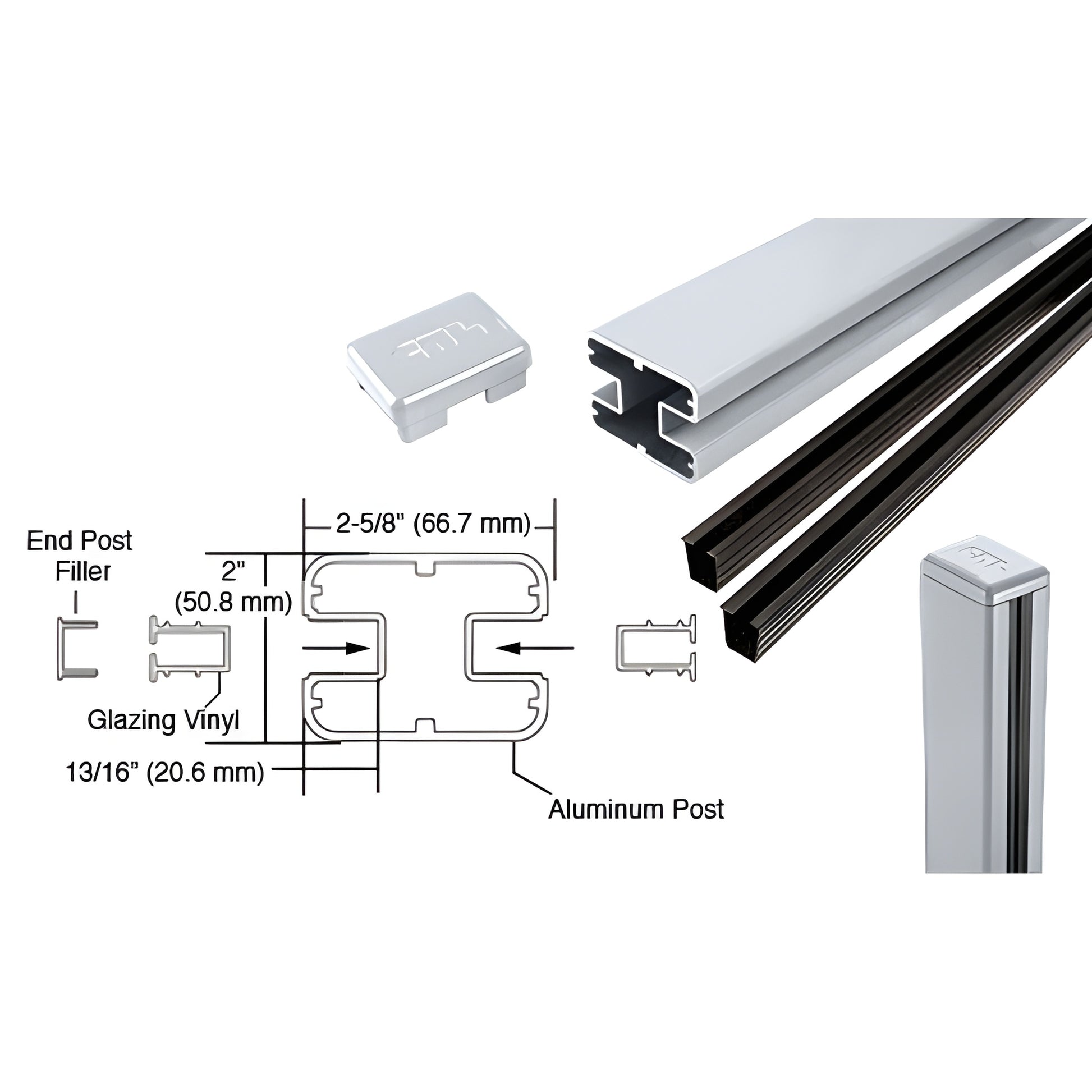

CRL AWS 36in 180 Rectangular Glass Door Center Post Kit 2x2-5/8in
Item# S36CKM
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
Center
Degree
180
Depth
2-5/8 in. (67 mm)
Finish/Color
Mill
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
36 in. (914 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
- Standard glass railing post kit includes post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- Accommodates 1/4" to 3/8" (6–10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
SKU: S36CKM. Use these glass railing post kits to terminate a barrier or to join two panels at 180°. Designed for residential and commercial glass panel systems, they accept dry-glazed or wet-glazed glass and are finished in multiple colors with custom-color options for matching your project.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel size should not exceed 24 square feet.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate. If you need exact weight for shipping cost estimates, contact CRL Customer Service before ordering. Product images are representative; final colors may vary with monitor settings.
Order SKU S36CKM today to get a customizable glass railing post kit that supports 6–12 mm glass — contact us for custom color options.
CAD Drawings - pdf
