CRL Mill AWS 48" 2" x 2-5/8" 180° Glass Door Center Post Kit
CRL Mill AWS 48" 2" x 2-5/8" 180° Glass Door Center Post Kit
Regular price
$181.39 CAD
Regular price
Sale price
$181.39 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S48CKM
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Center
Degree
180
Depth
48 in. (1219 mm)
Finish/Color
Mill
Glazing Thickness
1/4 in. To 3/8 in. Glass (Dry Glazed) (6 mm To 10 mm Glass (Dry Glazed))
Length
1/2 in. Glass (Wet Glazed) (12 mm Glass (Wet Glazed))
Material
Aluminum
Profile
Rectangular
Overview
- Standard kit includes post, top cap, and vinyl
- Available in several attractive factory finishes
- Custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass panels dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass panels wet glazed

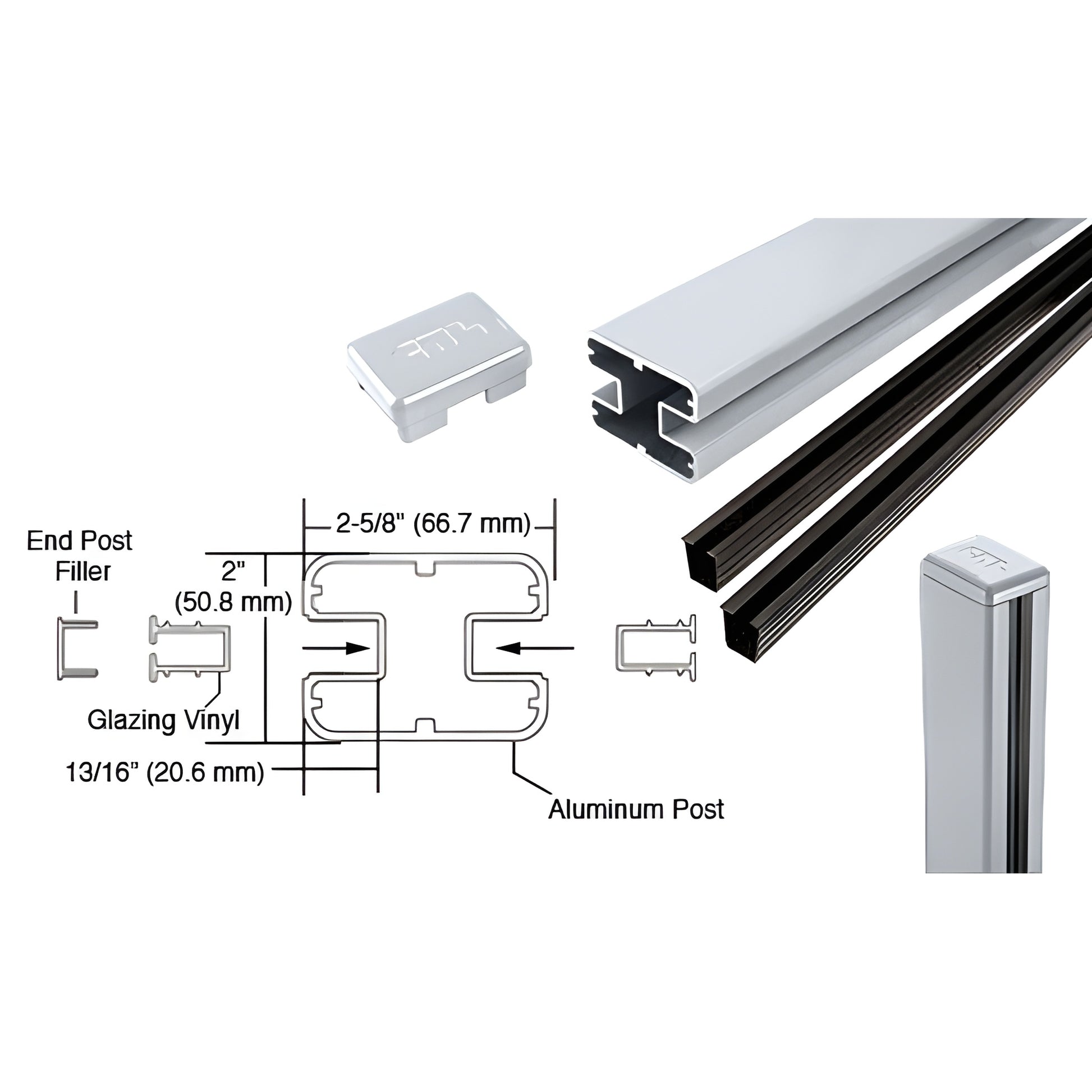

These CRL kits (SKU S48CKM) serve as versatile glass railing post kits for end-of-barrier installations or to join two glass panels at 180°. Designed for both dry-glazed vinyl installations and wet-glazed applications, these post kits support multiple glass thicknesses and come in several attractive finishes. Custom painted colors are available to match project specifications.
Performance limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel size should not exceed 24 sq. ft. per panel.
Product warning:
All ARS/AWS painted-to-order products are non-refundable and non-returnable.
Order this CRL glass railing post kit (S48CKM) or contact us for custom color options and project support.
Specifications
CAD Drawings - pdf
