CRL Mill AWS 2 x 2-5/8in Rectangular 180° 48in Glass End Post Kit
Item# S48EKM
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
End
Degree
180
Depth
48 in. (1219 mm)
Finish/Color
Mill
Glazing Thickness
1/4 in. To 3/8 in. Glass (Dry Glazed) (6 mm To 10 mm Glass (Dry Glazed))
Length
2 in. (51 mm)
Material
Aluminum
Profile
Rectangular
Width
1/2 in. Glass (Wet Glazed) (12 mm Glass (Wet Glazed))

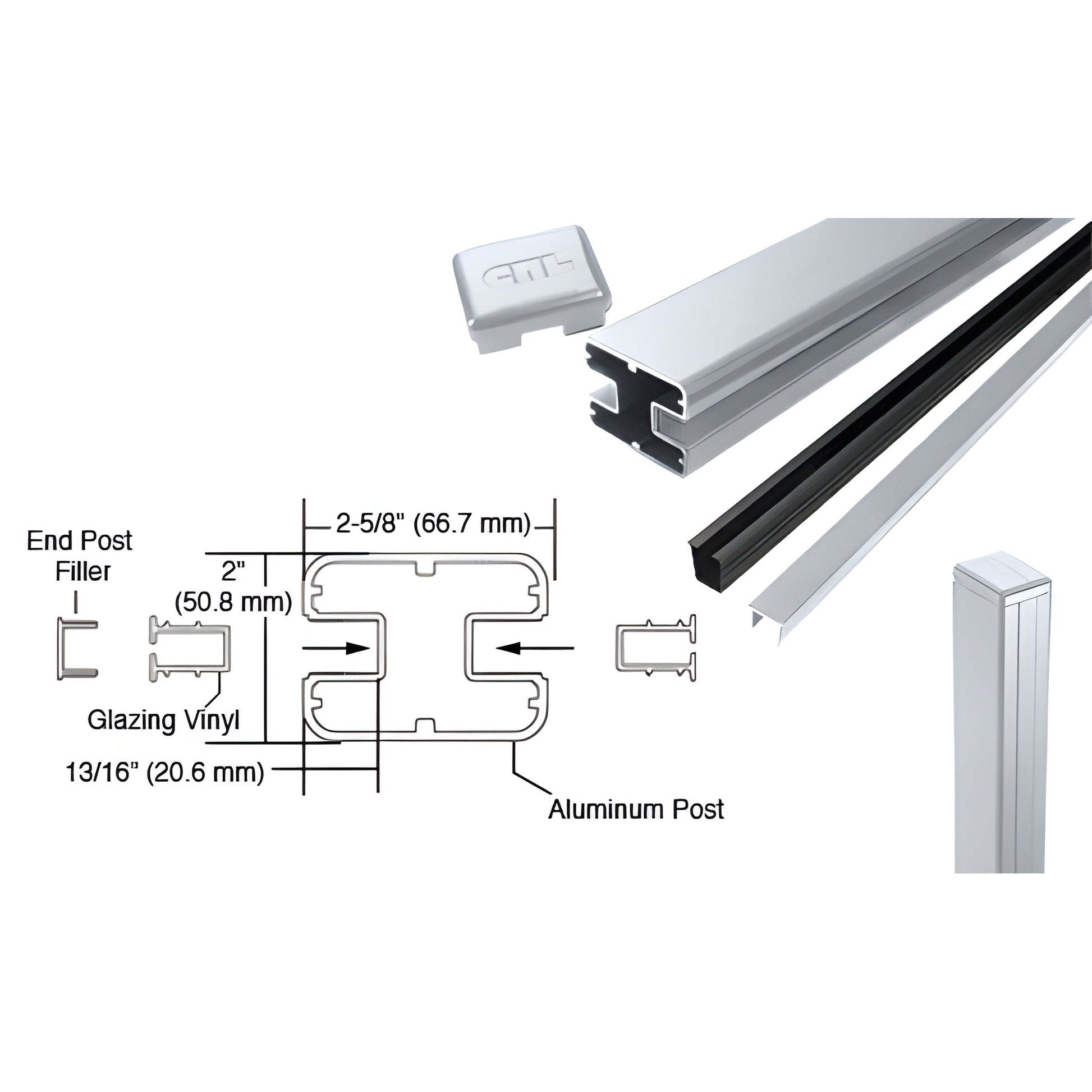

- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- Accommodates 1/4"–3/8" (6–10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
CRL Kit (SKU: S48EKM) — Fabricate end posts for glass barrier and railing systems. These glass railing post kits support both dry-glazed vinyl applications (6–10 mm) and wet-glazed 12 mm panels. Available in multiple finishes with custom color options for matching architectural and commercial glass railing projects.
Installation limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area should not exceed 24 sq ft per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If you need an exact weight to determine shipping costs before ordering, contact CRL Customer Service. Product images represent the actual product or a close match; colors may vary depending on your monitor and video card.
Shop CRL glass railing post kits for durable, customizable end posts — order or request color samples today.
CAD Drawings - pdf
