CRL Mill AWS 180° Glass Door Center Post Kit 2 x 2-5/8in 60in
Item# S60CKM
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
Center
Degree
180
Depth
60 in. (1524 mm)
Finish/Color
Mill
Glazing Thickness
2-5/8 in. (67 mm)
Length
2 in. (51 mm)
Material
Aluminum
Profile
Rectangular
Width
1/2 in. Glass (Wet Glazed) (12 mm Glass (Wet Glazed))

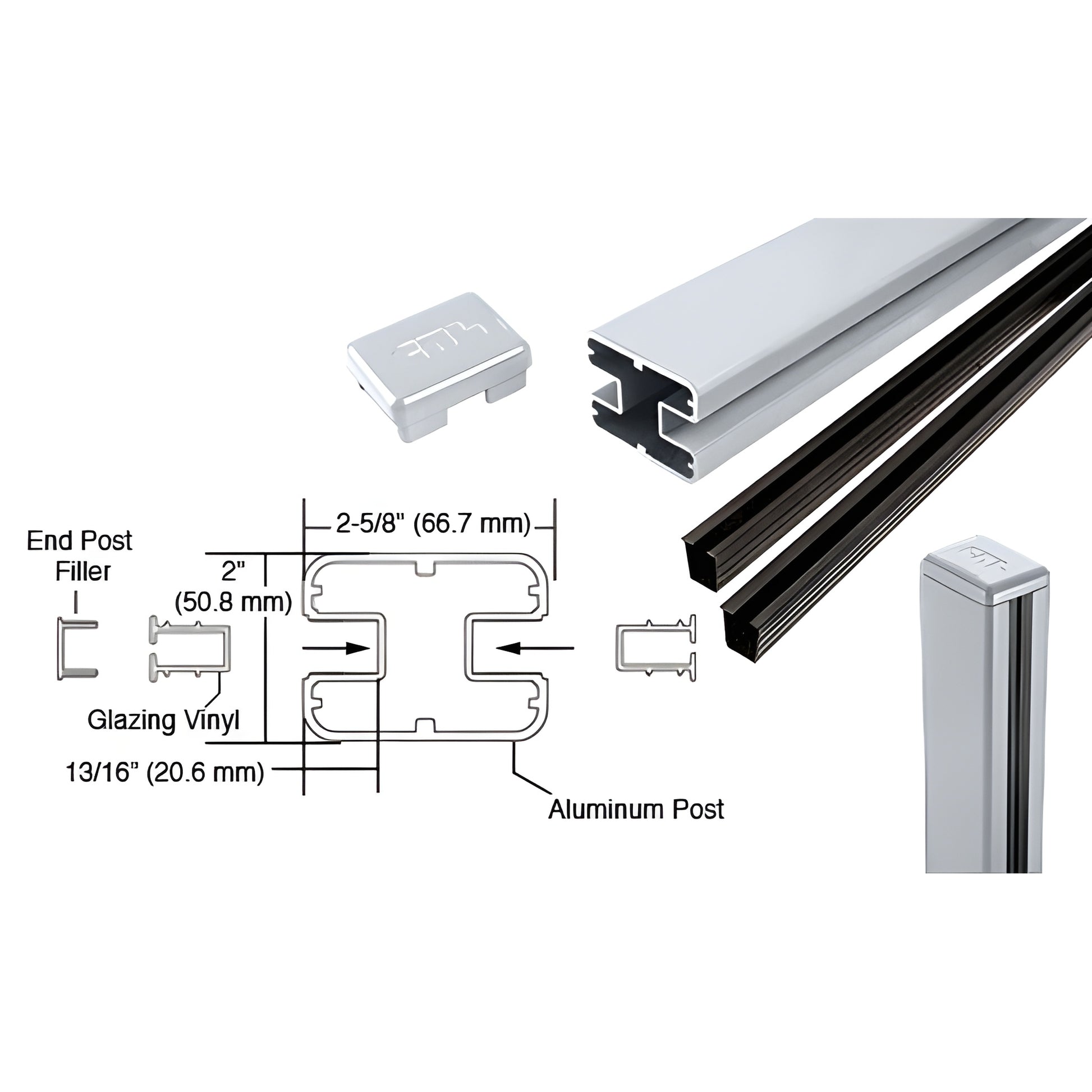

- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry-glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet-glazed
These CRL kits (SKU: S60CKM) are glass railing post kits designed for end-of-barrier installations or to join two panels at 180°. Ideal for frameless glass railing and glass balcony systems, the kit supports dry-glazed vinyl mounting for 6–10 mm glass and wet-glazed installation for 12 mm glass. Available in multiple finishes with custom color options to match architectural and residential projects.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel size should not exceed 24 sq ft.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate. If exact weight is required to calculate shipping costs, contact CRL Customer Service before placing your order. Product images represent the actual product or a close representation; colors may vary by monitor and video card settings.
Order SKU S60CKM now to complete your frameless glass railing installation—contact customer service for custom colors or exact shipping weight.
CAD Drawings - pdf
