CRL Mill AWS 72" 180° Rectangular Glass Center Post Kit 2" x 2-5/8"
Item# S72CKM
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
Center
Degree
180
Depth
72 in. (1829 mm)
Finish/Color
Mill
Glazing Thickness
2-5/8 in. (67 mm)
Length
2 in. (51 mm)
Material
Aluminum
Profile
Rectangular
Width
1/2 in. Glass (Wet Glazed) (12 mm Glass (Wet Glazed))

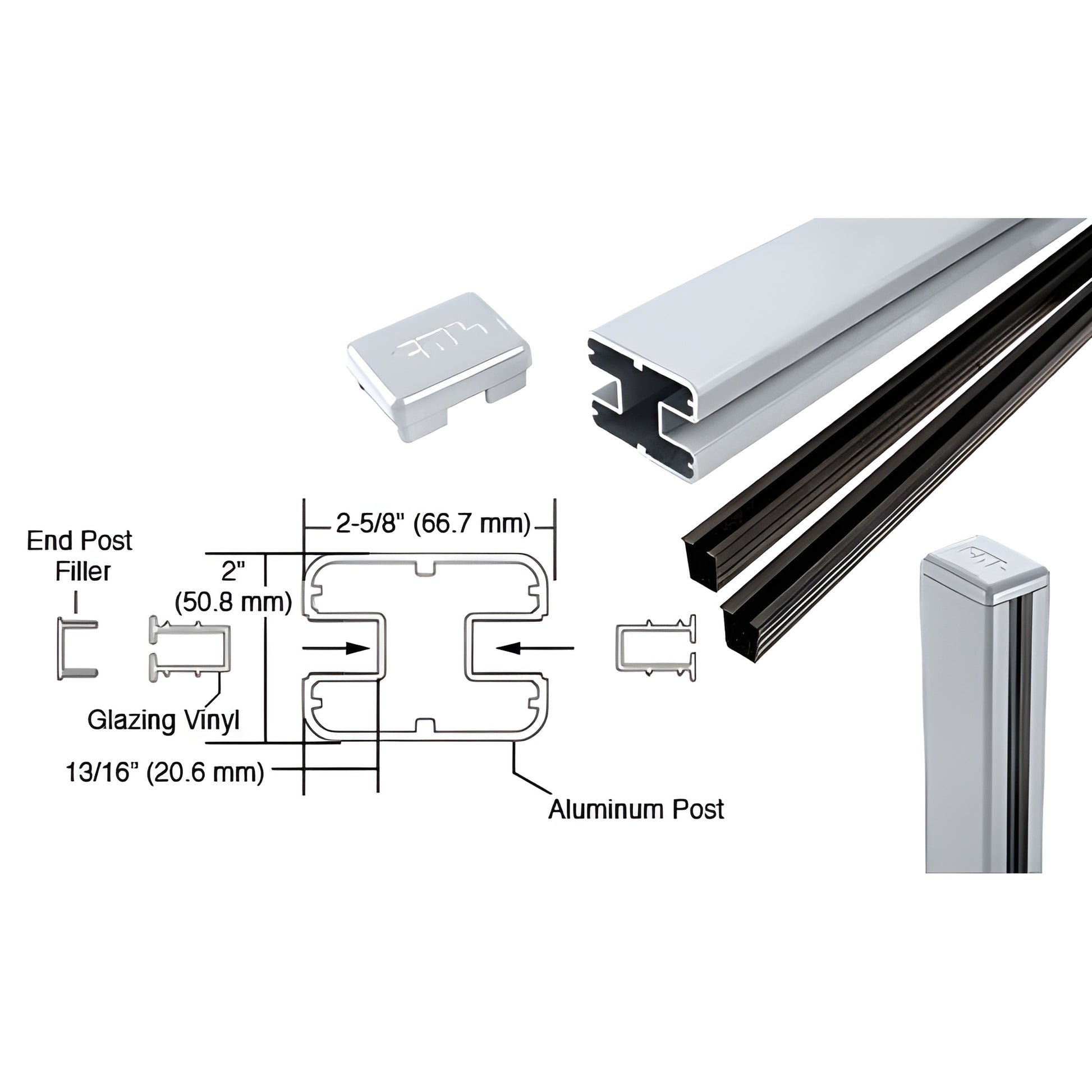

- Standard kit includes post, top cap, and vinyl
- Uses: end post or 180° join for glass panels
- Glass compatibility: 1/4"–3/8" (6–10 mm) dry glazed with vinyl; 1/2" (12 mm) wet glazed
- Available in several attractive colors; custom colors available on request
These CRL Kits (SKU: S72CKM) are glass railing post kits designed for fabricating posts at the end of a barrier or to join two panels at 180°. They accept 1/4"–3/8" (6–10 mm) glass when dry glazed with vinyl and 1/2" (12 mm) glass when wet glazed. Paint-to-order finishes and custom color options make these kits ideal for bespoke balustrade and glass railing projects.
Installation limits: Maximum post spacing: 72" (1.83 m) on center. Maximum panel area: 24 sq ft per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.
Order the S72CKM glass railing post kit today to get custom color options and precise glass compatibility for your project.
CAD Drawings - pdf
