Shipping weights are approximate. If exact weight is required to calculate shipping costs before ordering, please contact CRL Customer Service. For questions about S36CRKM or custom color options, contact CRL for a quote and lead time.
CRL

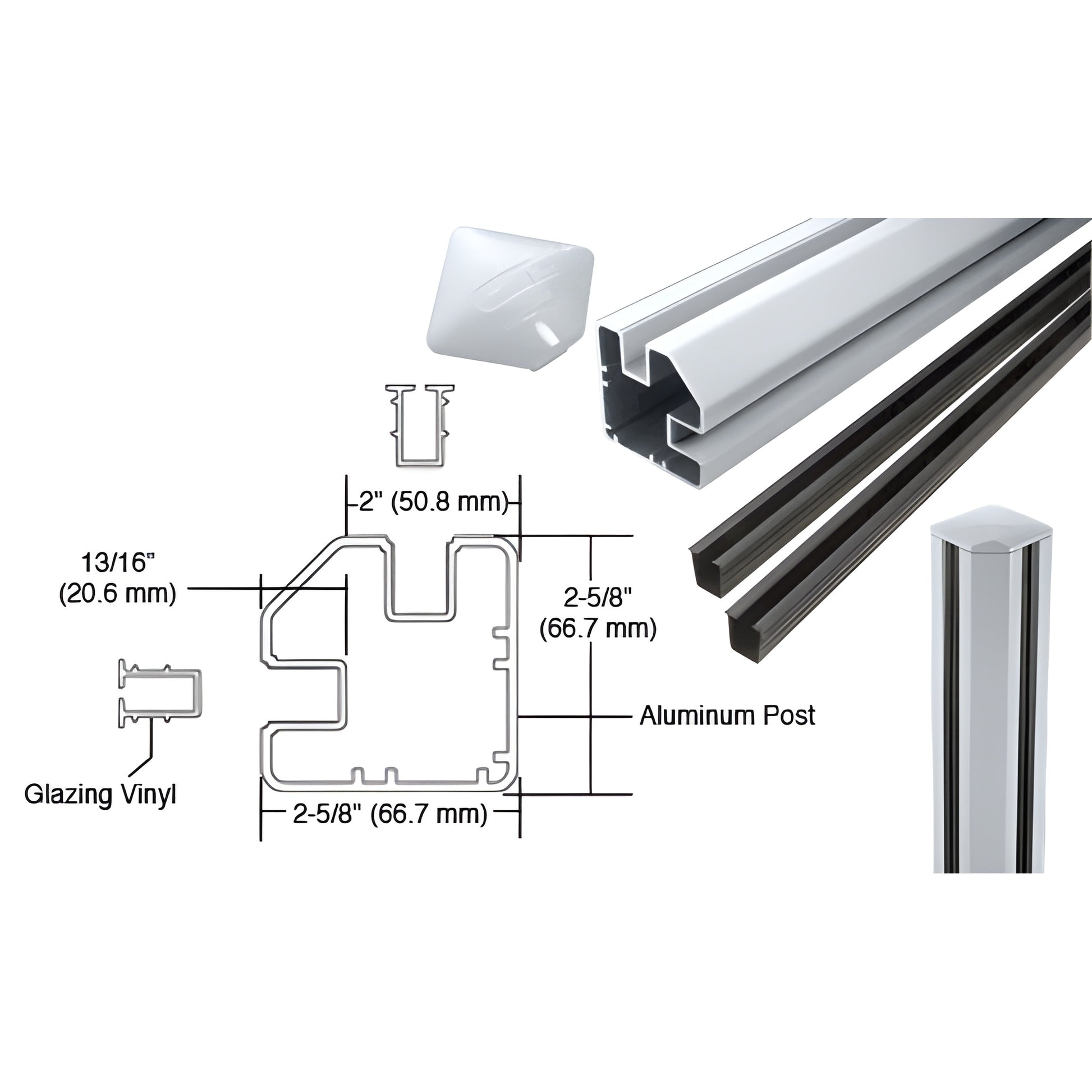

CRL Mill AWS 36" 2" x 2-5/8" Rectangular 90° Corner Post Kit
CRL Mill AWS 36" 2" x 2-5/8" Rectangular 90° Corner Post Kit
Regular price
$148.13 CAD
Regular price
Sale price
$148.13 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S36CRKM
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Corner
Degree
90
Depth
36 in. (914 mm)
Finish/Color
Mill
Glazing Thickness
1/4 in. To 3/8 in. Glass (Dry Glazed) (6 mm To 10 mm Glass (Dry Glazed))
Length
1/2 in. Glass (Wet Glazed) (12 mm Glass (Wet Glazed))
Material
Aluminum
Profile
Rectangular
Width
2-5/8 in. (67 mm)
Overview
- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- Designed for 90° panel joins — ideal glass partition corner post kit (SKU: S36CRKM)
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
CRL Kits provide a durable corner post solution for joining two glass panels at 90°. Use S36CRKM for glass partition applications that require dry-glazed vinyl (1/4"–3/8" / 6–10 mm) or wet-glazed 1/2" (12 mm) panels. Available in multiple finishes with custom color matching on request—perfect for commercial storefronts, office glass partitions, and interior glazing projects.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel size should not exceed 24 sq. ft. per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable. Colors shown may vary by monitor; product images are actual or close representations.
Ready to order S36CRKM? Contact CRL Customer Service to confirm color availability and shipping details.
Specifications
CAD Drawings - pdf
