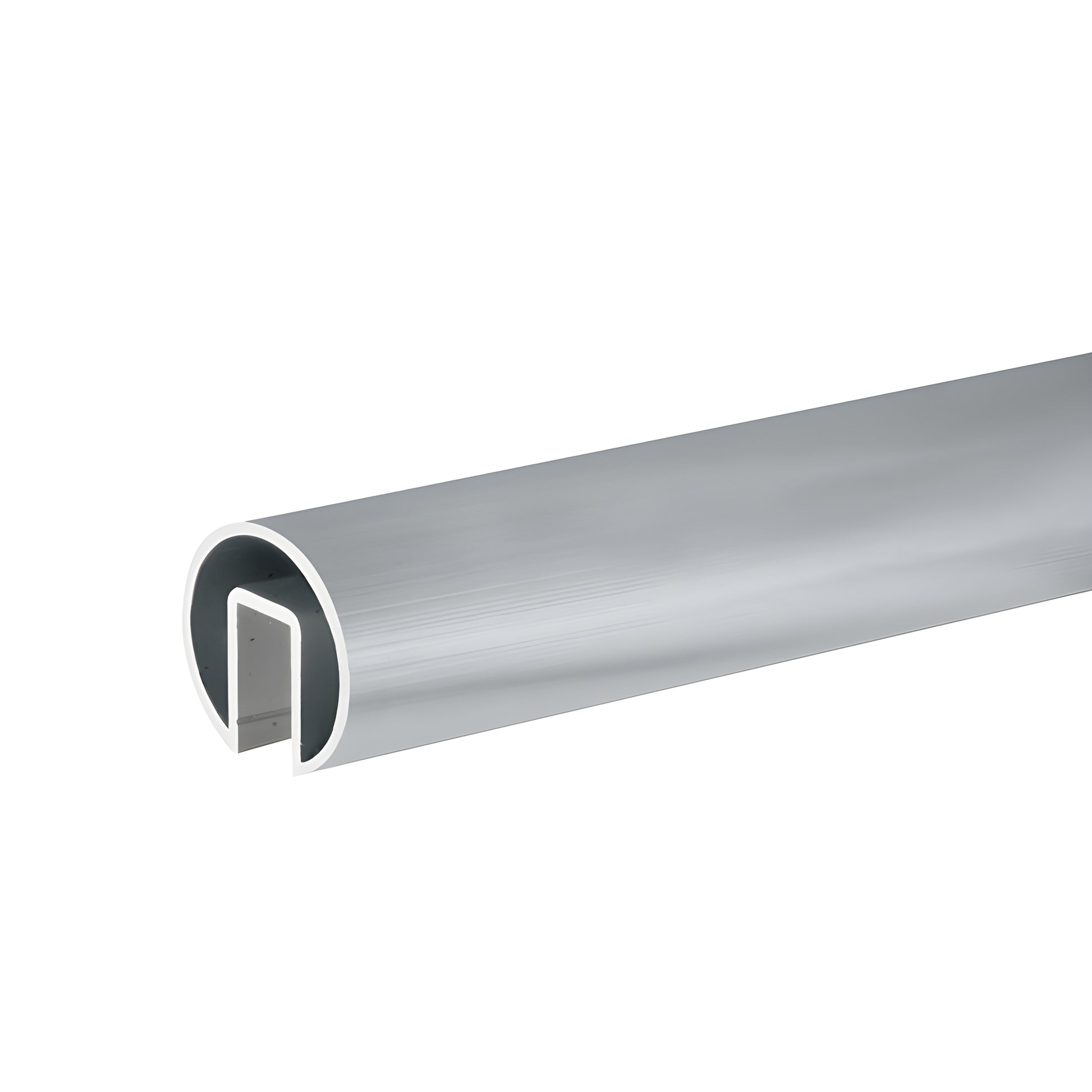

CRL 1.9" Mill Finish Aluminum Cap Rail for 1/2"-5/8" Glass, 20 ft

• Available for 1/2" or 5/8" monolithic glass (12 mm or 16 mm) and 9/16" (13.52 mm) laminated glass
• Connects to a variety of fabricated corners and end caps
• Custom shapes and sizes available — use sleeve number GR19CSM
• SKU: GR19M

CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6 for strength and consistent profile. The alloy accepts custom finishes including anodizing and powder coating, making these cap rails ideal for glass balustrades, shower enclosures, storefronts, and architectural glazing projects. Use CRL Metal Contact Cement (Cat. No. 32629) to achieve a secure, permanent bond at all connections, and Connector Sleeves to join cap rails cleanly on-site.

Please contact CRL Technical Sales for more information, lead times, or a custom quote.

NOTE: Use Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone to secure 1/2" (12 mm) glass; use Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL to secure 9/16" (13.52 mm) laminated glass; use 95CBL Silicone and shims to secure 5/8" (16 mm) glass.

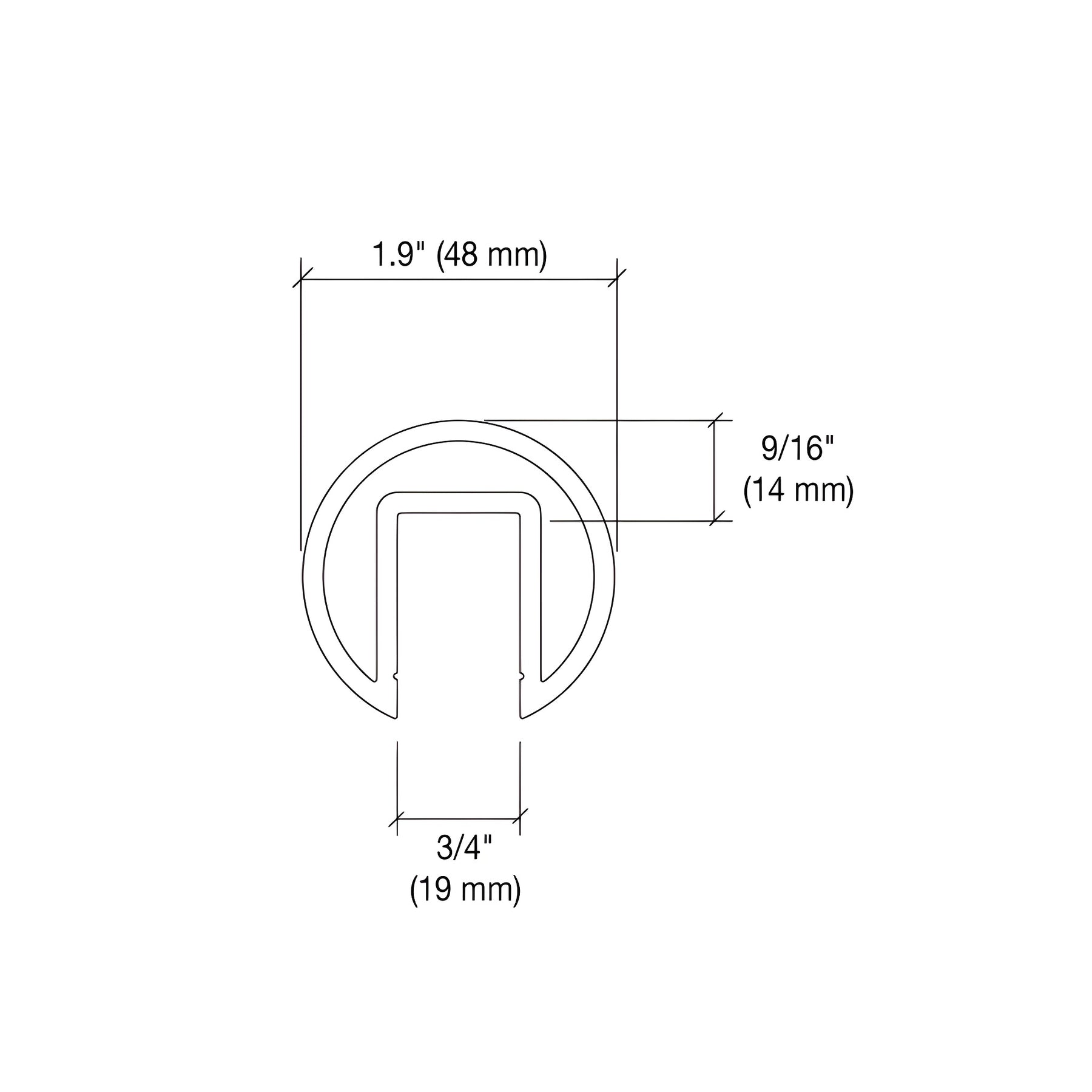

This cap rail dimension is used to calculate glass size. Add the clearance you require, or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
