CRL Mill 3/4" x 7/16" Roll Formed Screen Frame 146"

• Typical Applications Include Sliding Windows and Storm Windows
• 0.017" (0.43 mm) Wall Thickness
• Several Finishes Available

This

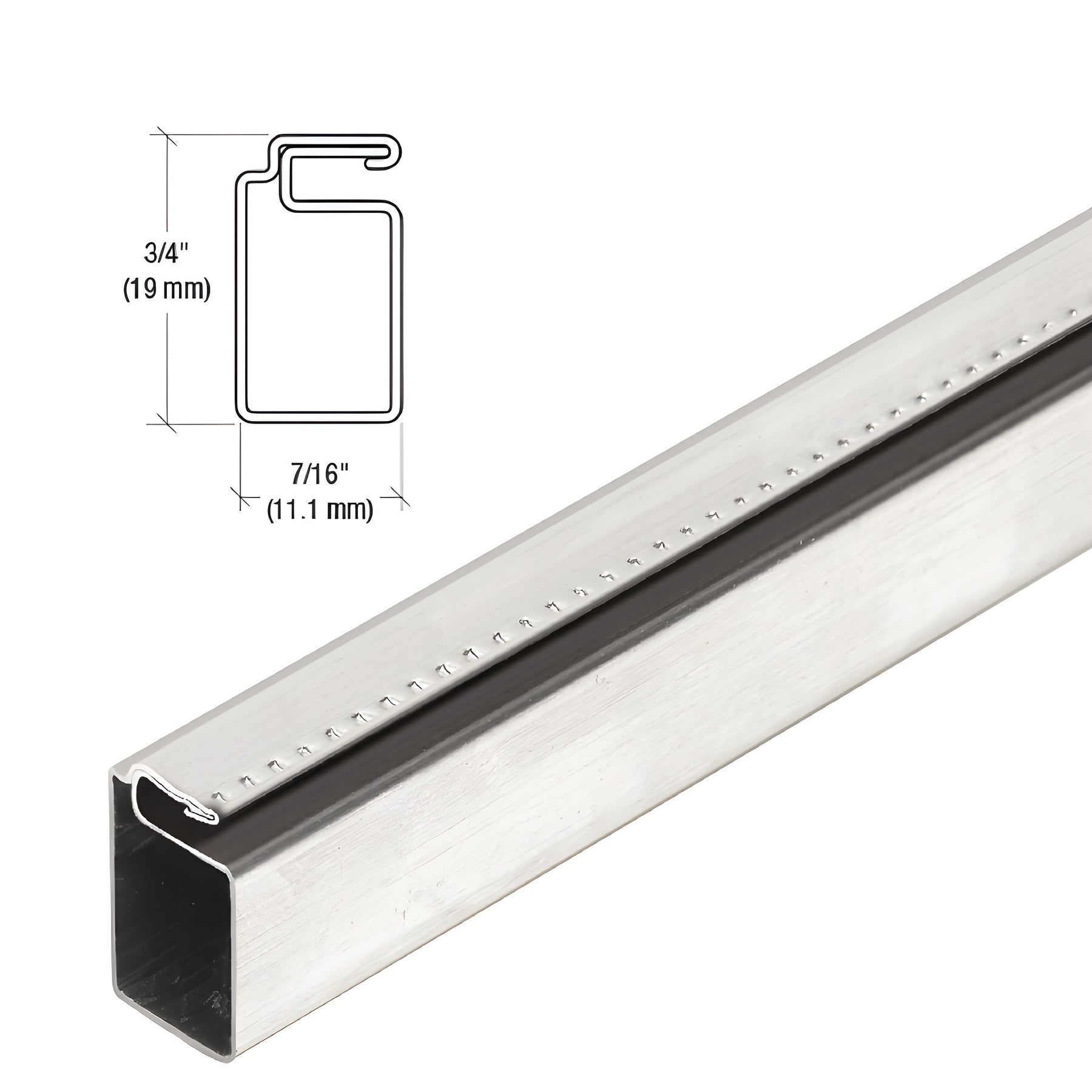

CRL 3/4" x 7/16" (19.05 x 11 mm) Screen Frame

is made of

mil thick roll formed aluminum. It has a knureld lip and is cambered (slightly bowed) to retain screen tension when installed. It will accept CRL .165" Spline. You can use either

Aluminum Corners or

Plastic Corners for mitered frame corners or

Series Square Cut Plastic Corners for a square cut frame application.

Material: Roll Formed Aluminum

Wall Thickness: .017" (.43 mm)

Uses Spline Size: .165" (4.2 mm)

Uses Corners: WSC127 or WSPC107 for Mitered Corners; SWS34716 for Square Cut Corners

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
