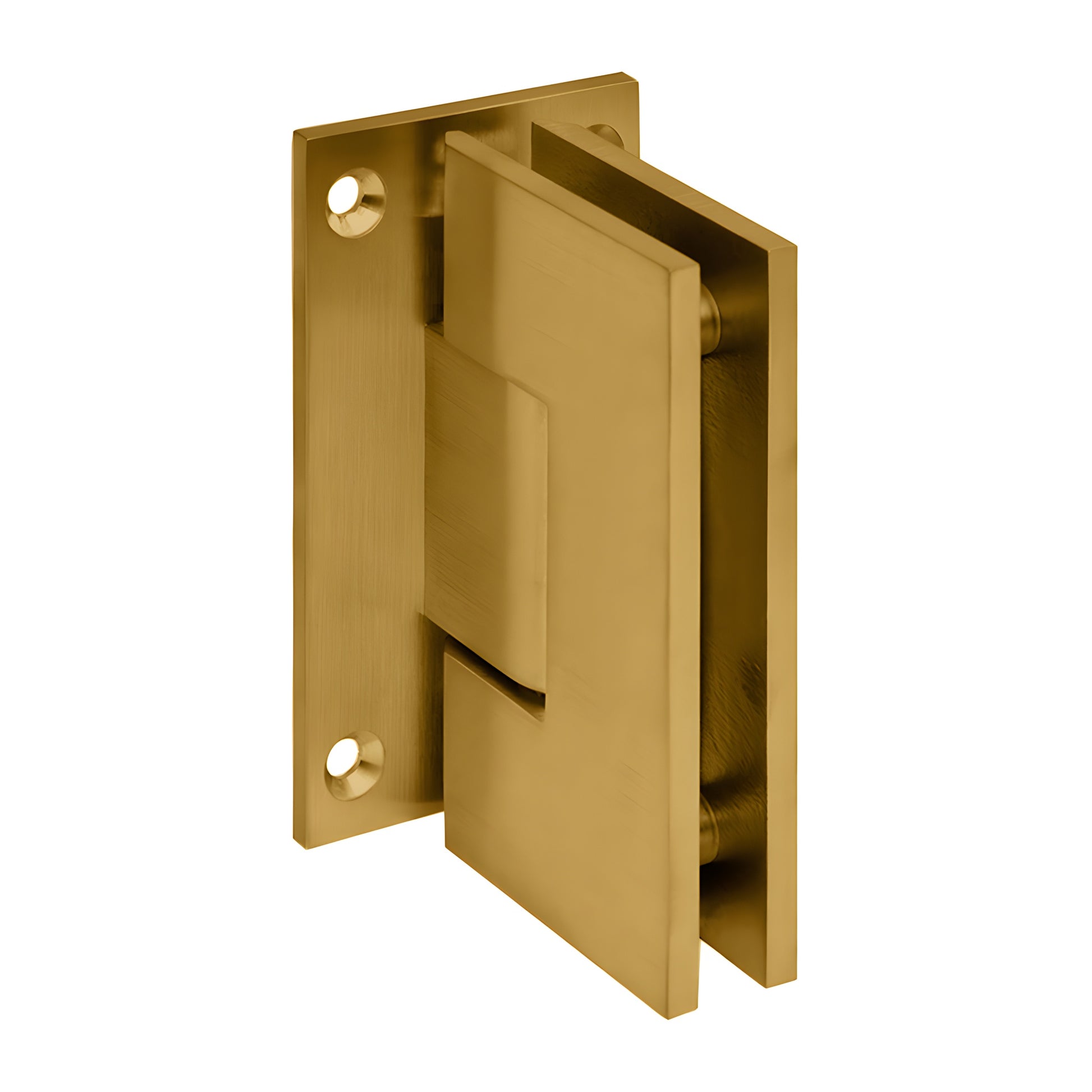

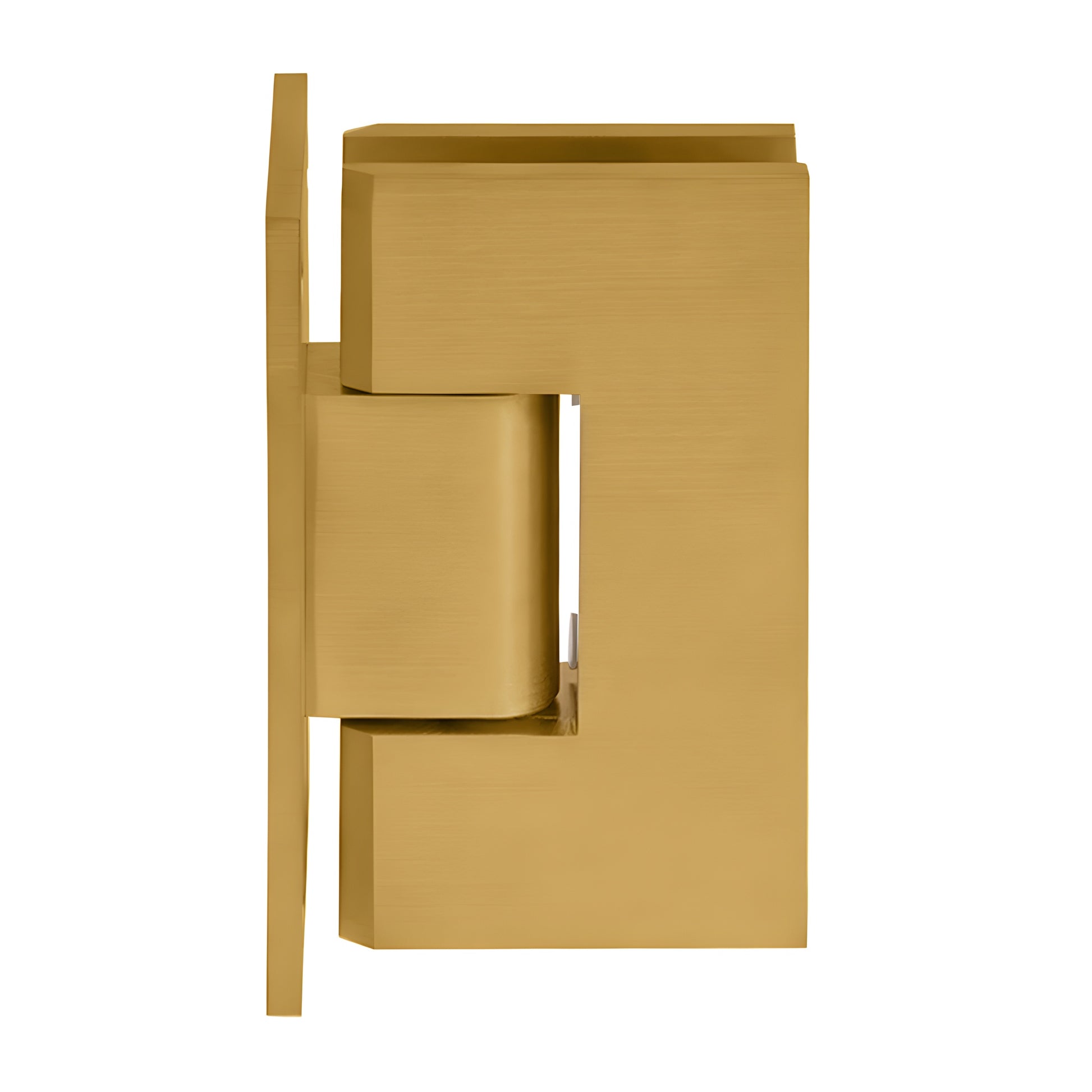

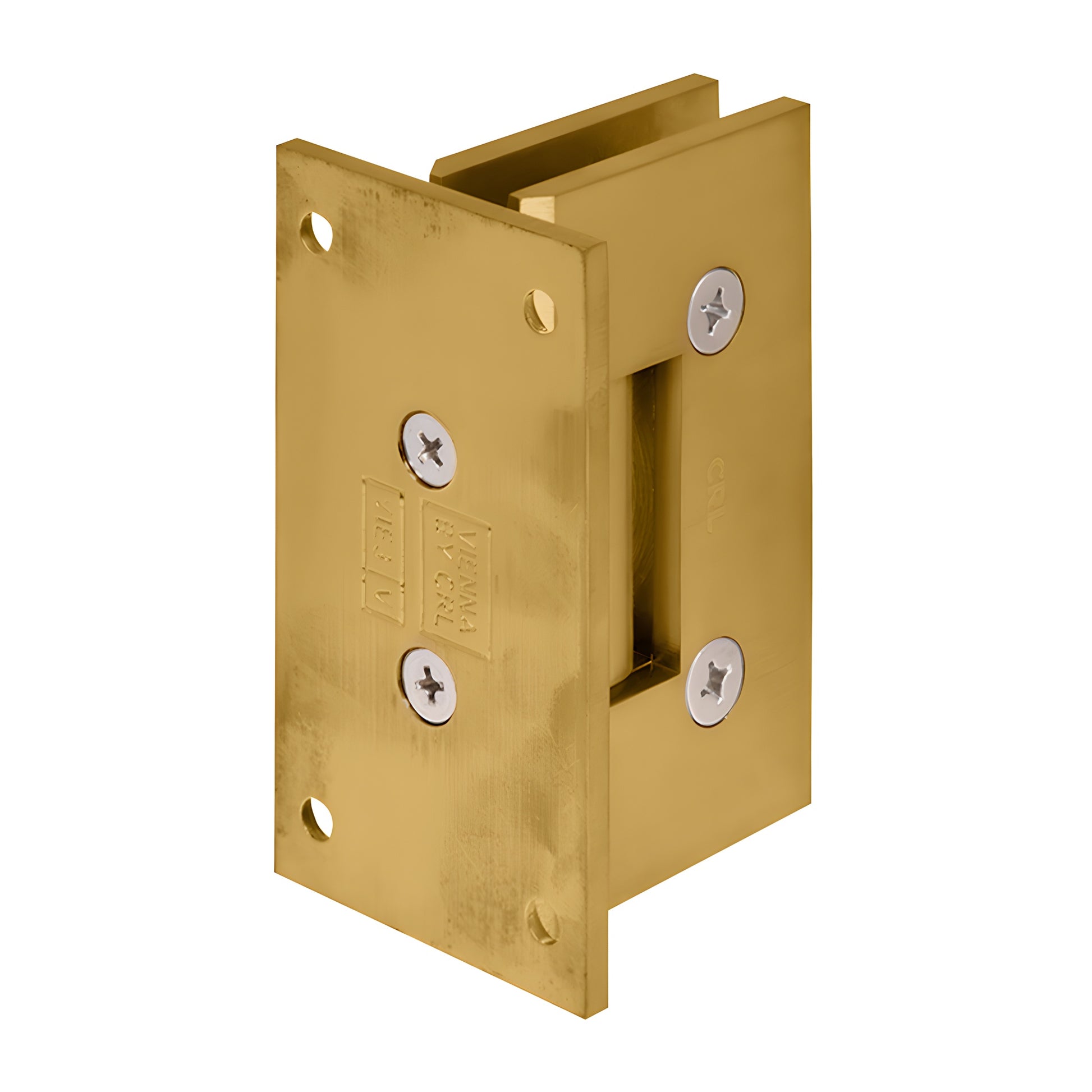

CRL Vienna 037 Modern Gold Wall-Mount Door Hinge Full Back Plate

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes; custom finishes on request
• 3-year warranty
• Wall-mount full back plate — standard model (factory set for standard closing position)
• Designed for monolithic tempered glass

CRL Vienna Hinges (SKU: V1E037MG) are engineered for wider, heavier shower doors where traditional hinges fall short. Two internal steel pins provide mounting template options: leave both pins in for compatibility with CRL "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular/square-corner cut-outs (may fit some competitive rectangular cut-outs).

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with 90° on one side and 85° on the other (5° tighter closure into the shower interior). Standard models are preset to 90°; pre-set models are set to 85°. Rotate the pin (do not flip) to change the activated side.

Custom Pivot Pins: Custom pivot pins up to 45° are available for off-angle installations when walls or door alignments require a non-standard closing angle.

Load Capacity & Door Size:

Using two hinges with 3/8"–1/2" glass: supports up to 110 lbs (50 kg) with maximum door width 36" (914 mm).

Using three hinges with 3/8"–1/2" glass: supports up to 140 lbs (63 kg) with maximum door width 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass

Construction: Solid brass

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel)

Includes: Gaskets, screws, and glass fabrication dimensions

Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and custom pivot pin angles are available—contact CRL Technical Sales, Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL
