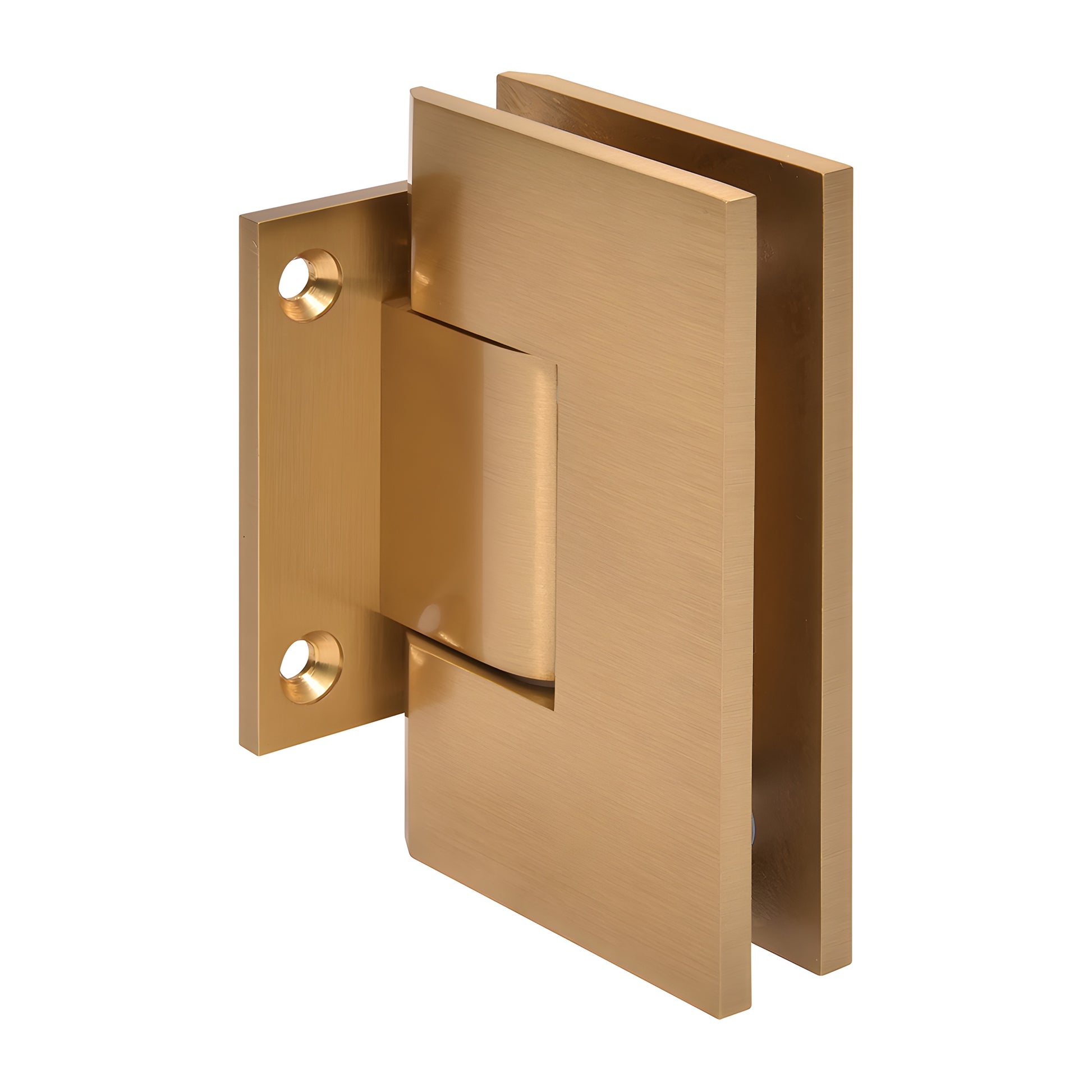

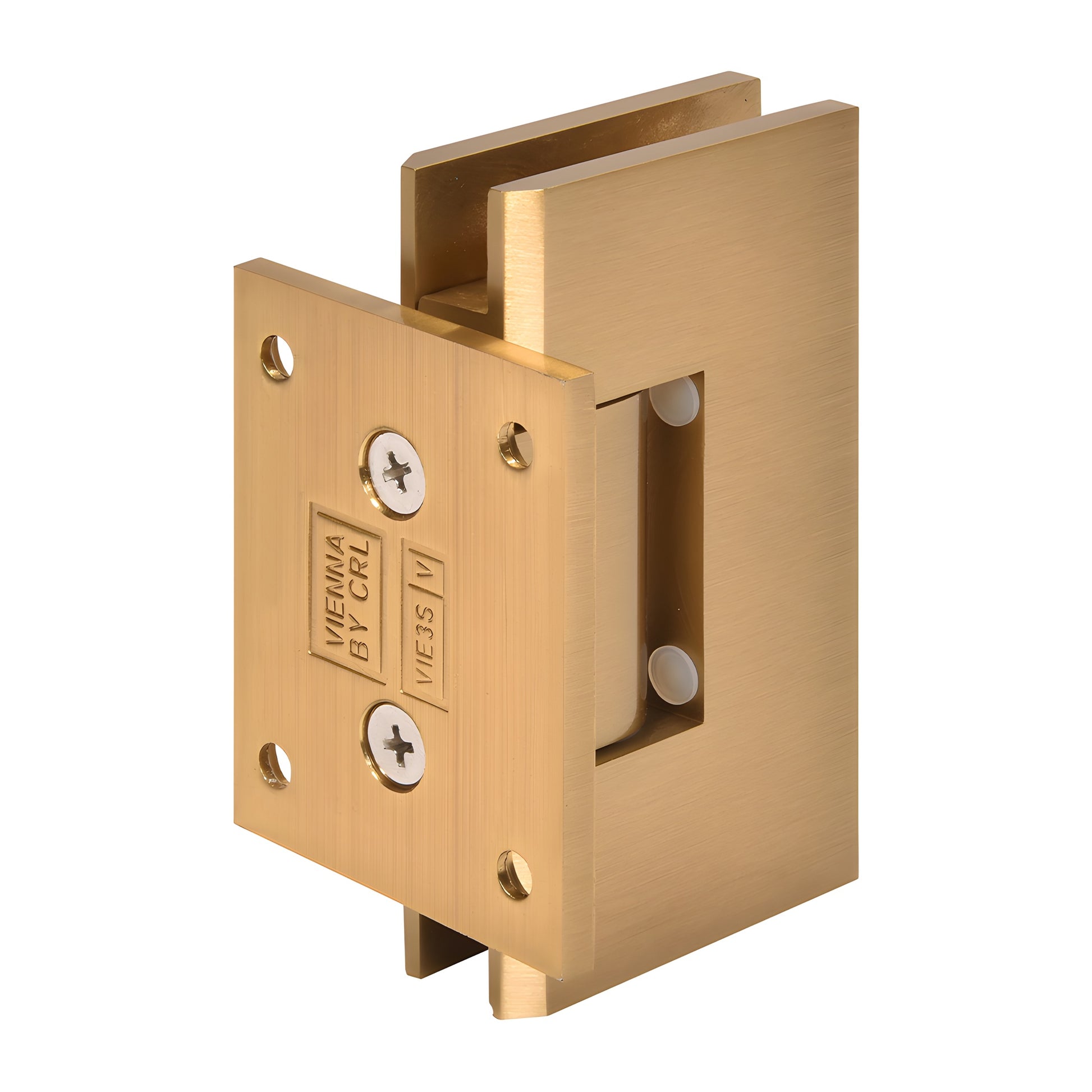

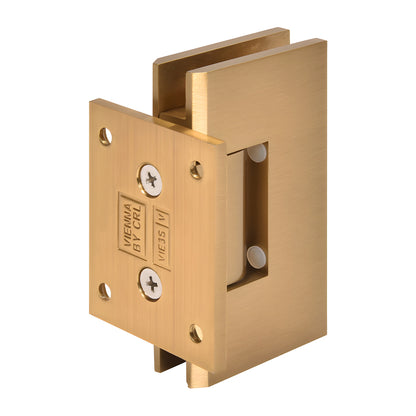

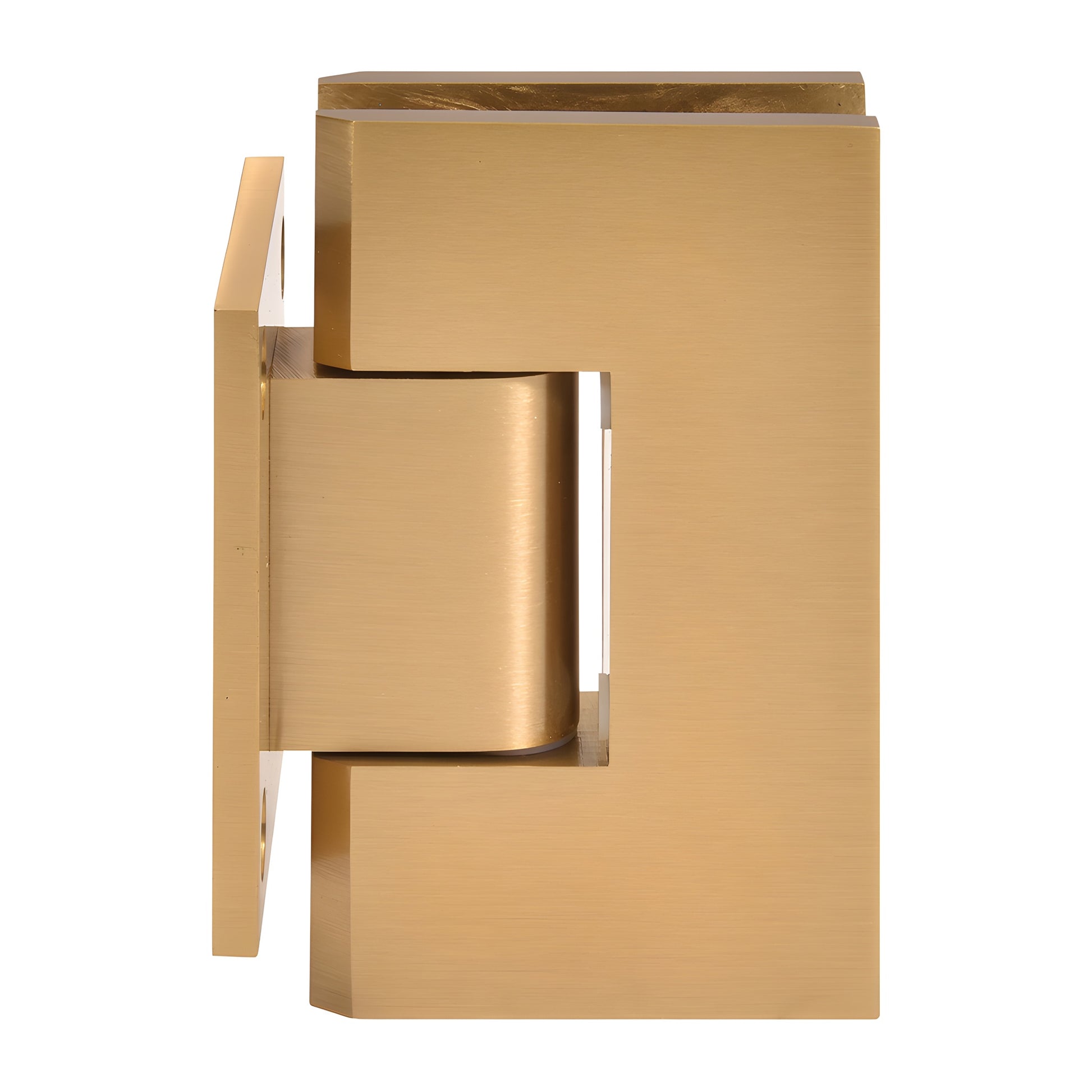

CRL Vienna 074 Modern Gold Wall-Mount Short Back Plate Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 year warranty
• Wall mount short back plate
• For use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E074MG) — heavy-duty shower door hinges engineered for wider, heavier tempered glass doors when standard hinges fail. Solid brass construction and two internal steel pins provide mounting flexibility: leave pins in for CRL "mouse-ears" cut-outs or remove them for CRL rectangular (square-corner) cut-outs and, in some cases, competitive rectangular cut-outs. Ideal long-tail keywords: Vienna shower door hinge, solid brass pivot hinge for tempered glass shower door, adjustable pivot hinge for off-angle walls.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with a 90° side (standard) and an 85° side (pre-set model) for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

Custom Pivot Pin: Specify a custom pivot pin angle (up to 45°) for off-angle installations or walls that do not meet the door at 90°.

Load Capacity & Door Width:
Two hinges with 3/8" (10 mm) glass: holds up to 100 lb (45 kg), max door width 34" (864 mm).
Two hinges with 1/2" (12 mm) glass: holds up to 100 lb (45 kg), max door width 32" (813 mm).
Three hinges with 3/8" (10 mm) glass: holds up to 130 lb (59 kg), max door width 34" (864 mm).
Three hinges with 1/2" (12 mm) glass: holds up to 130 lb (59 kg), max door width 32" (813 mm).

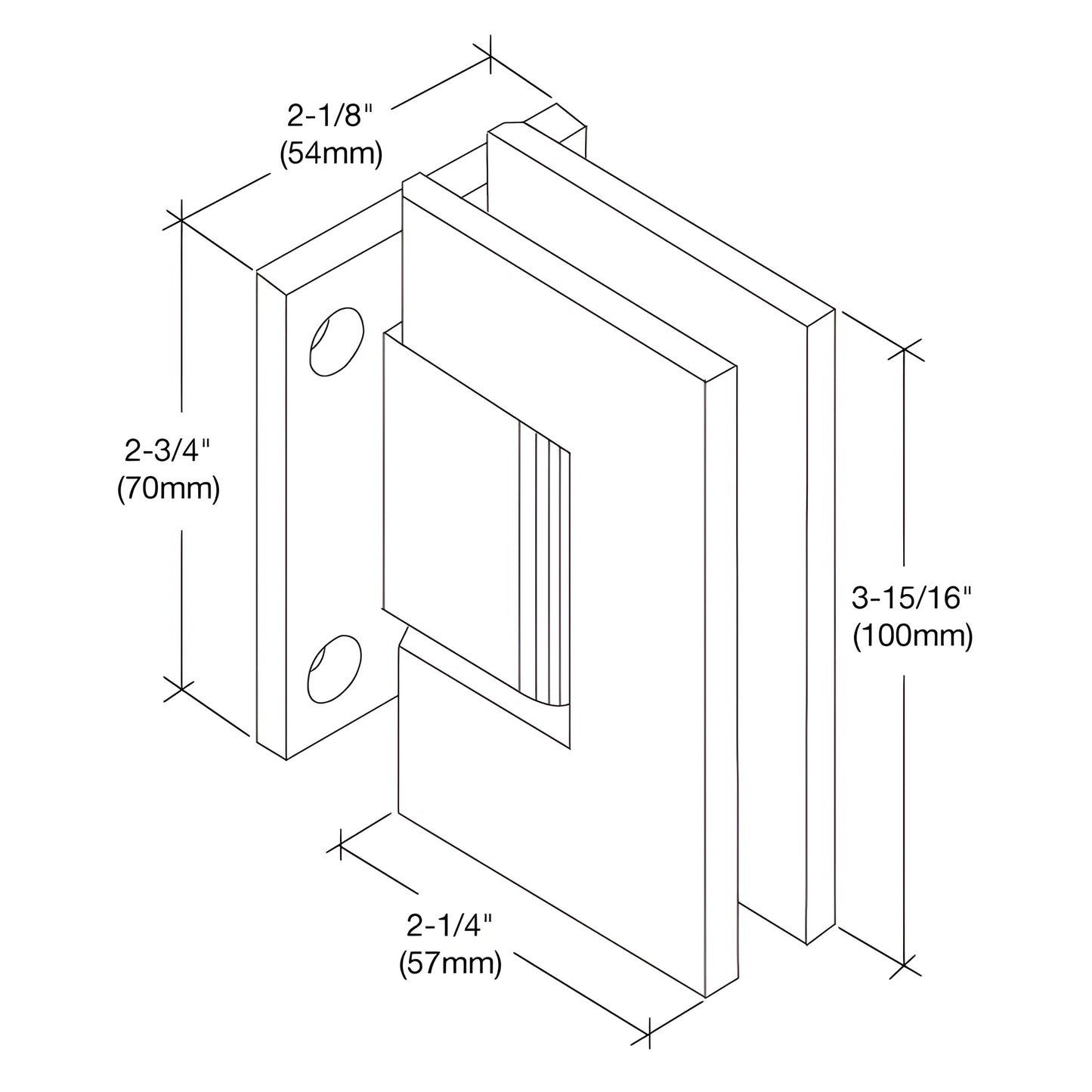

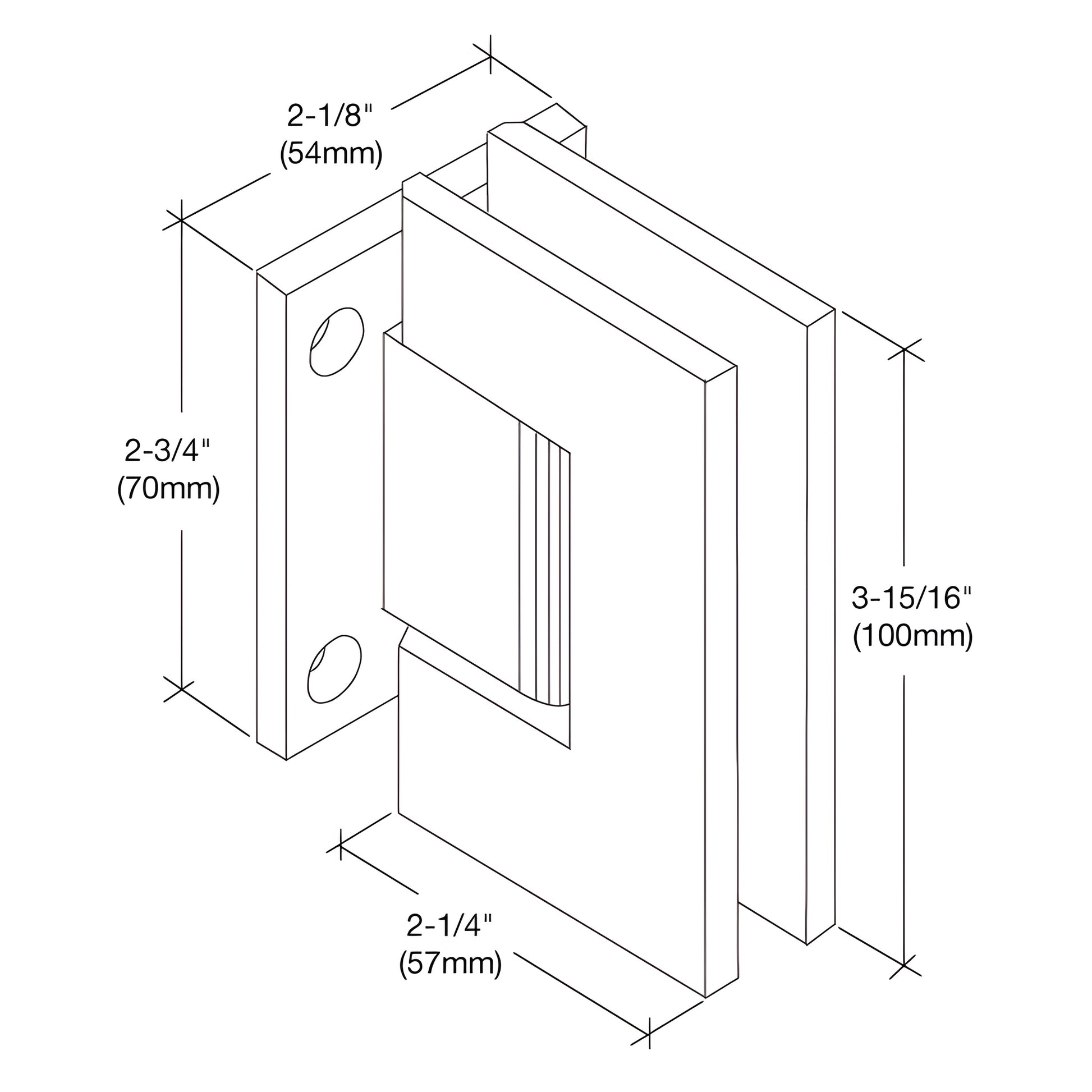

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required except V1E092 (which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL
