CRL Narrow Jamb 120 in Brushed Stainless Steel
Item# WJ12BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
13/16 in. (21 mm)
Width
1-3/4 in. (44 mm)
- Only 3/4" (19 mm) wide jambs—ideal for narrow-profile aluminum glazing
- No exposed fasteners for a clean, modern interior office front appearance
- Cladding available in five architectural finishes: satin or black bronze anodized, polished or brushed stainless steel, and polished brass

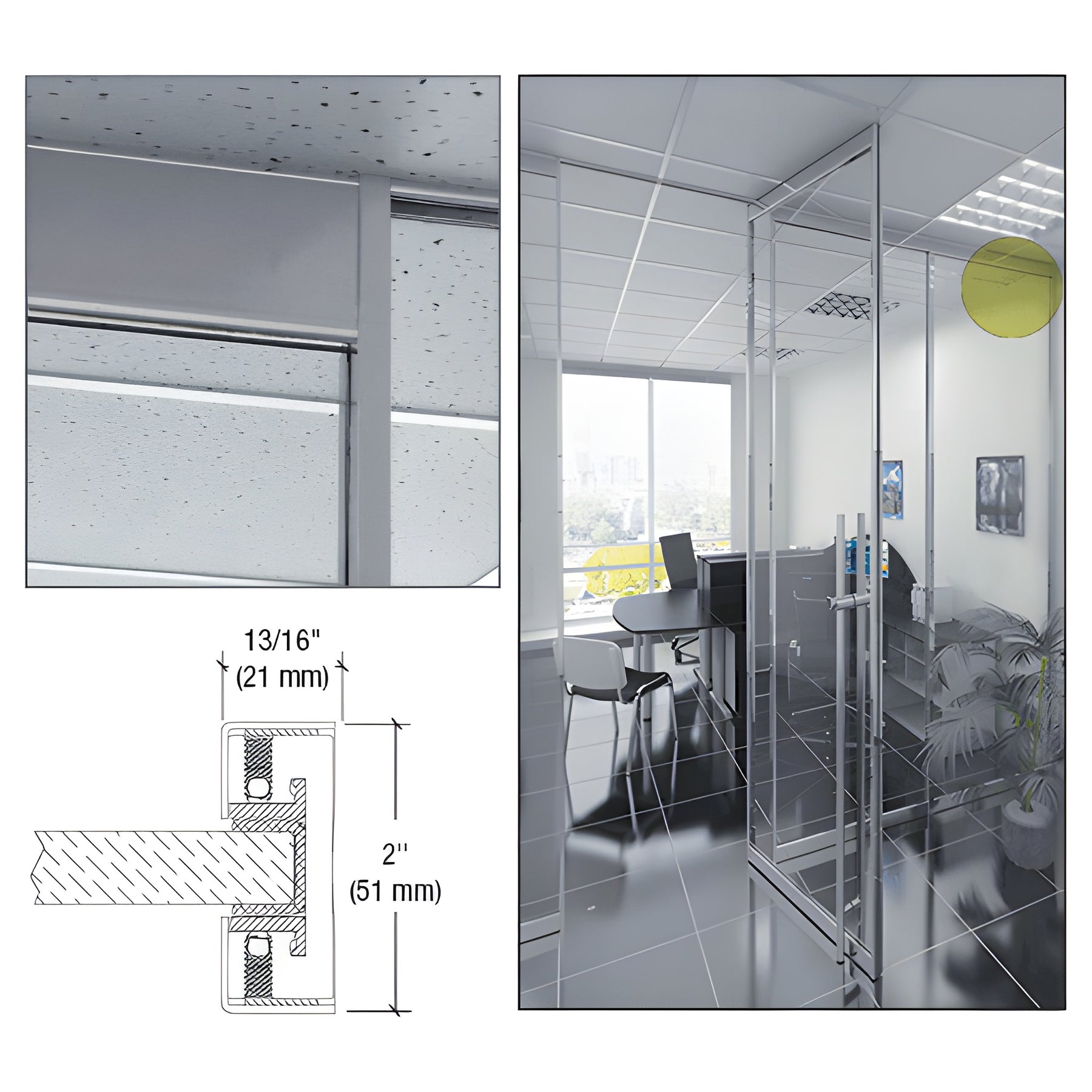

WJ12 (SKU: WJ12BS) mechanical clamping jambs and vertical mullions are engineered for interior office fronts using 1/2" (12 mm) fully tempered glass. These narrow-profile components integrate with SRS Sidelite Rails and complement DRS Door Rails and Vertical Weatherstiles to create a sleek, high-performance alternative to typical butt-glazed installations. The improved mechanical weatherstile design simplifies installation and delivers better performance values. WJ12 is stocked in 120" (3.05 m) lengths and can be special ordered in custom lengths to meet project requirements.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown represent the product or a close likeness. Colors may vary depending on your monitor and video card settings.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Ready to specify WJ12BS for your next interior glass office project? Contact CRL for pricing and lead times.
