• HR2DGMA aluminum mill-finish glass-mounted adjustable handrail bracket for 11 2"-2" tubing, includes mounting disc and screws.
1 1

CRL

CRL Newport Mill Finish Aluminum Glass-Mounted Handrail Bracket

CRL Newport Mill Finish Aluminum Glass-Mounted Handrail Bracket

$83.47 CAD
$83.47 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# HR2DGMA
Shipping Weight: 13.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Adjustable
Yes
Finish/Color
Mill
Material
Aluminum

Overview

  • Ready-to-Install
  • Available in Several Architectural Finishes
  • For 1-1/2" to 2" (38 to 50.8 mm) Diameter Hand Rail Tubing

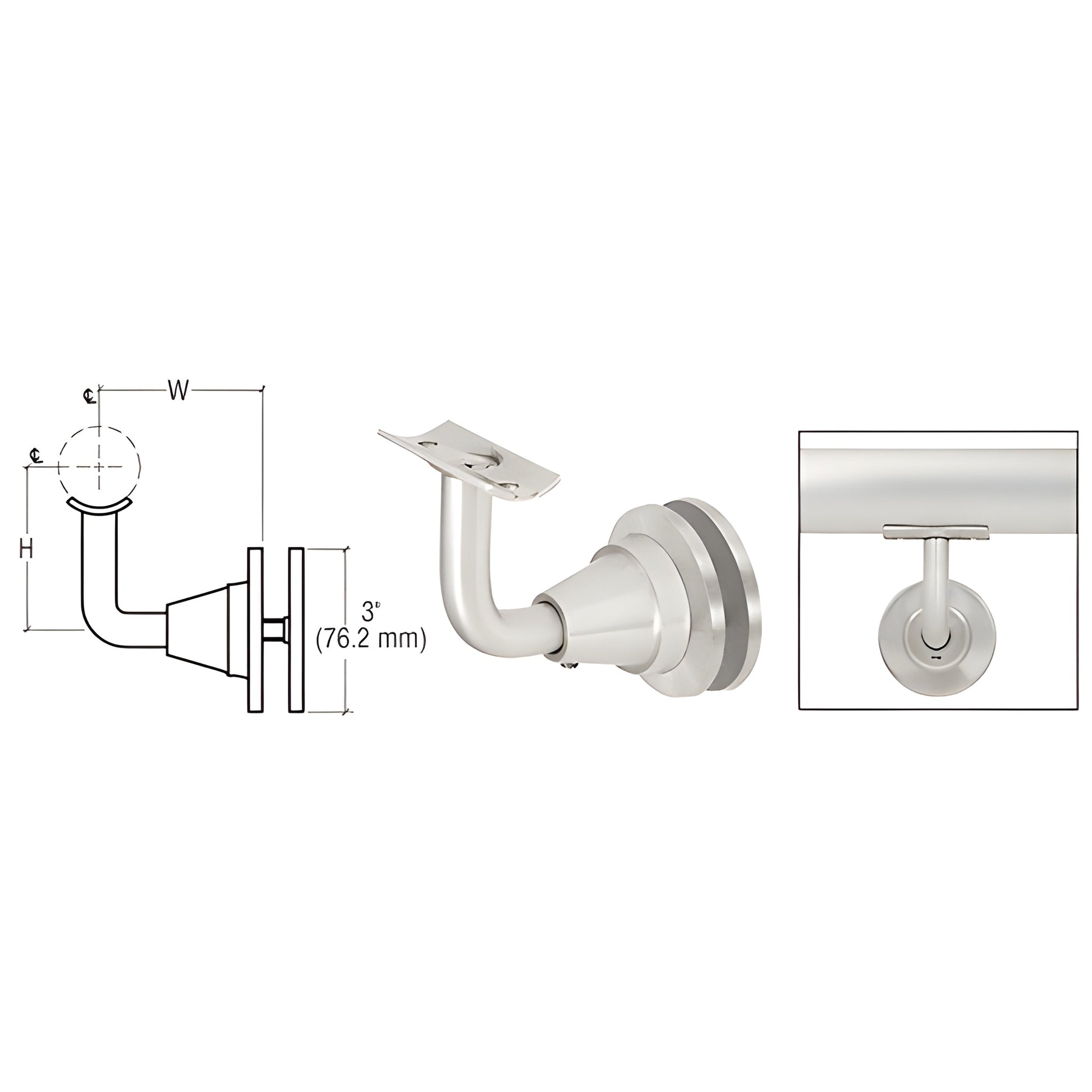

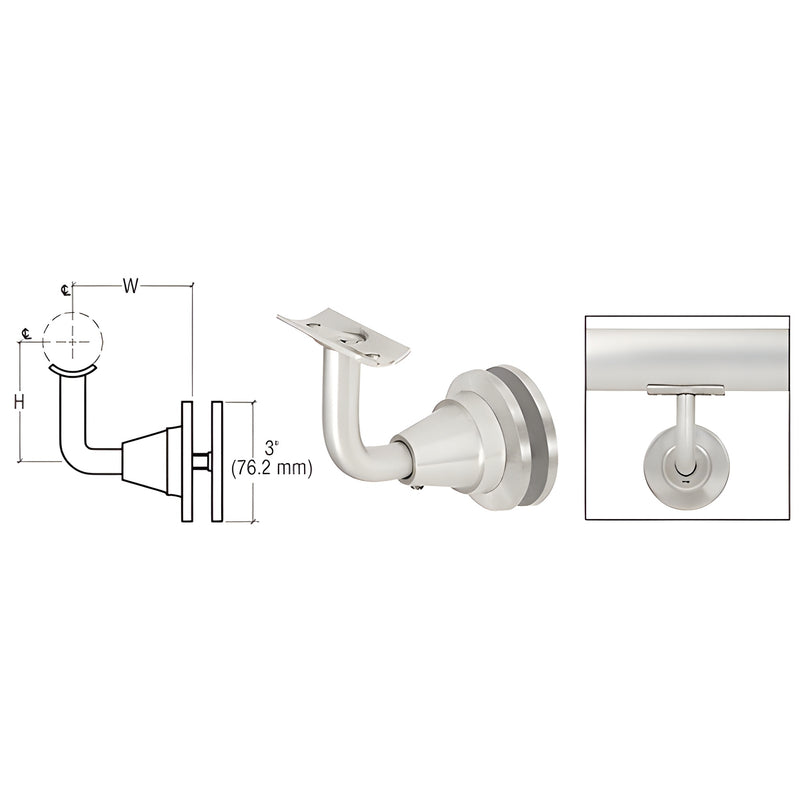

CRL Newport Series Glass Mounted Hand Rail Bracket (SKU: HR2DGMA) — adjustable glass-mounted bracket for 1-1/2" to 2" (38 to 50.8 mm) handrail tubing. In-and-out position, bar angle, and railing bracket are all adjustable. Each bracket is individually packed and includes attachment screws plus an outside disc for secure glass mounting. Ideal for commercial and residential glass stair and balcony handrail systems where a clean, architectural finish is required.


Installation Notes: Requires a 3/4" (19 mm) hole in glass. Centerline dimensions: 1-1/2" and 1.66" railing — 3" (76.2 mm); 1.9" and 2" railing — 3-1/4" (82.5 mm).


Product Warning: Verify hole size and glass specifications with your glazier before installation. Bracket finish appearance may vary by monitor.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Shop CRL Newport glass-mounted hand rail brackets now — order SKU HR2DGMA or contact CRL Customer Service for help with specifications and installation.
