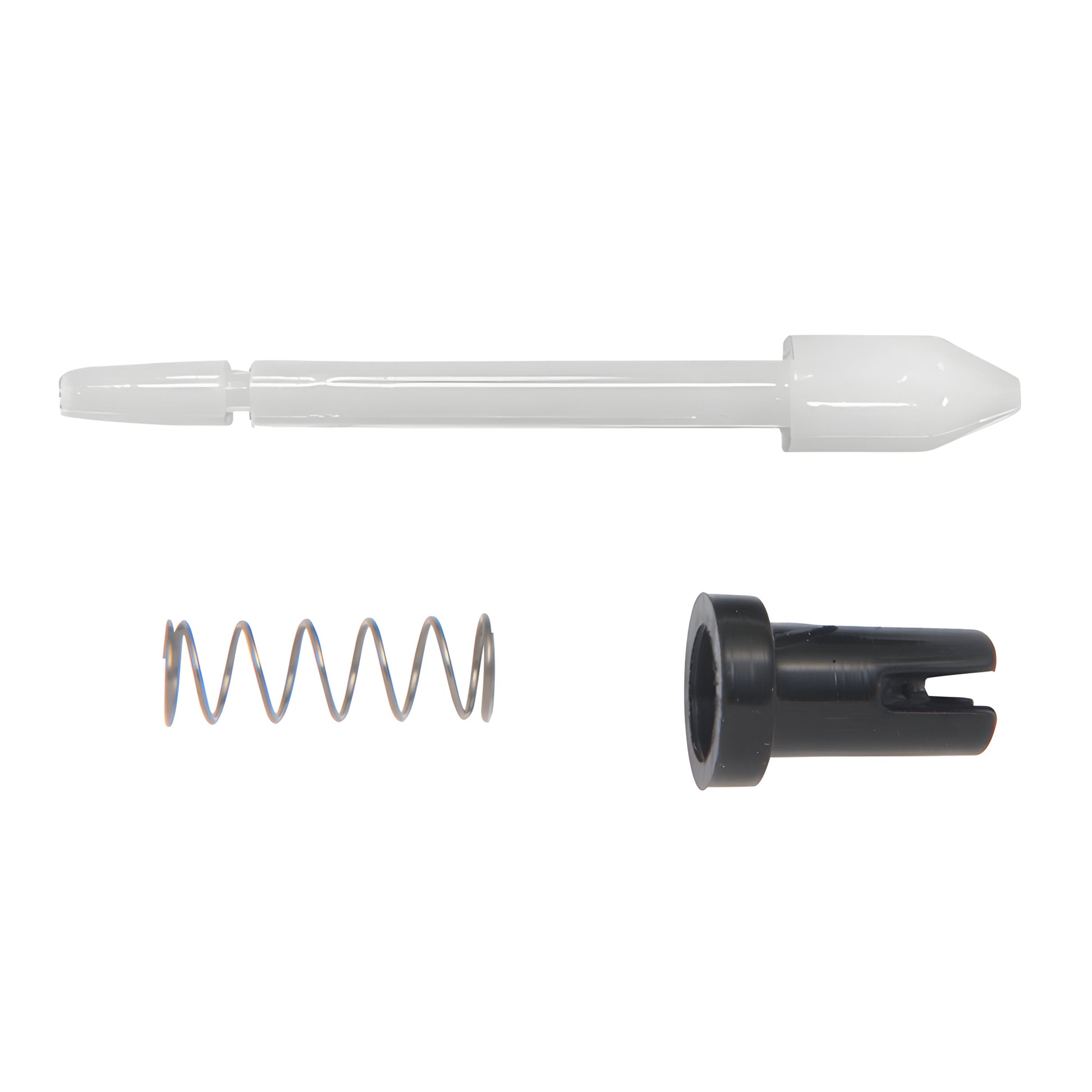

  • White nylon spring plunger, coil spring and black frame socket for window screen latch - WSC615BW
  • 000_WSC615BW.jpg
1 3

CRL

CRL White Nylon Plunger Latch w/ Black Cap, Fits 3/4" (3/8-7/16) Bulk

CRL White Nylon Plunger Latch w/ Black Cap, Fits 3/4" (3/8-7/16) Bulk

$0.93 CAD
$0.93 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Increments of 100Minimum of 100
Item# WSC615BW
Shipping Weight: 2.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 100
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Cap Length
7/16 in. (11 mm)
Pack Quantity
100
Plunger Latch For Frame Sizes
3/4 x 3/8, 7/16

Overview

  • Holds window screen into metal frame
  • White nylon plunger with black cap
  • Spring-loaded plunger for secure retention
  • 100 latches per bulk pack (SKU: WSC615BW)

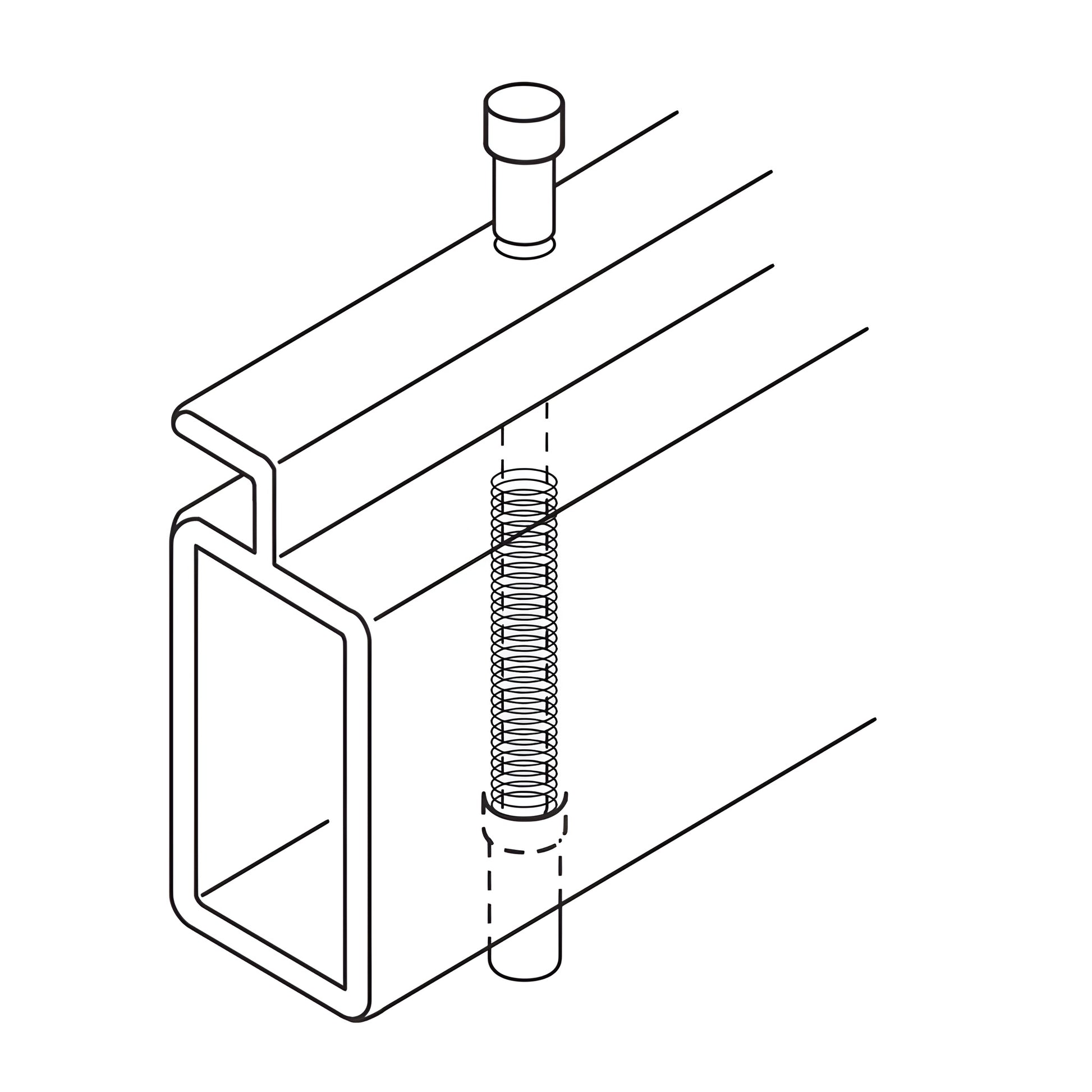

The Spring-Loaded CRL Nylon Plunger Latch securely holds 1/4" to 7/16" (6.3 to 11 mm) screens in metal window frames. The plunger installs into a 7/32" (5.6 mm) hole drilled into the screen frame using CRL Cat. No. 601732 for the large diameter hole, and a 1/8" (3.2 mm) hole using CRL Cat. No. 60118 on the opposite side of the frame. For fast, accurate alignment use the WST920 jig. Ideal for replacement and bulk projects requiring white spring-loaded nylon plunger latches. 100 latches per bulk pack.



NOTE: Use CRL Cat. No. WST905 Step Drill to install WSC615 plungers. Two drill bits, CRL Cat. No. 60118 and 601316 (1/8" and 3/16" diameter), are required to install the smaller-diameter WSC614 plungers.
