CRL Oil Dynamic Patch Fitting Hinge Body - Hold-Open No Backcheck
Item# H100E10NF
Shipping Weight: 3.011 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.011 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Adjustable Closing Speed
Yes
Height
2-3/16 in., 6-9/16 in. (56 mm, 167 mm)
Hold Open
Yes
Works With
H100ECBS
- Closing speed adjustable for precise self-closing action
- Swings in and out a full 90°, with positive stops at 0°, +90° and -90°
- Suitable for 8 to 13.52 mm toughened (tempered) glass
- Matching top patch fitting available — Cat. No. H100E20

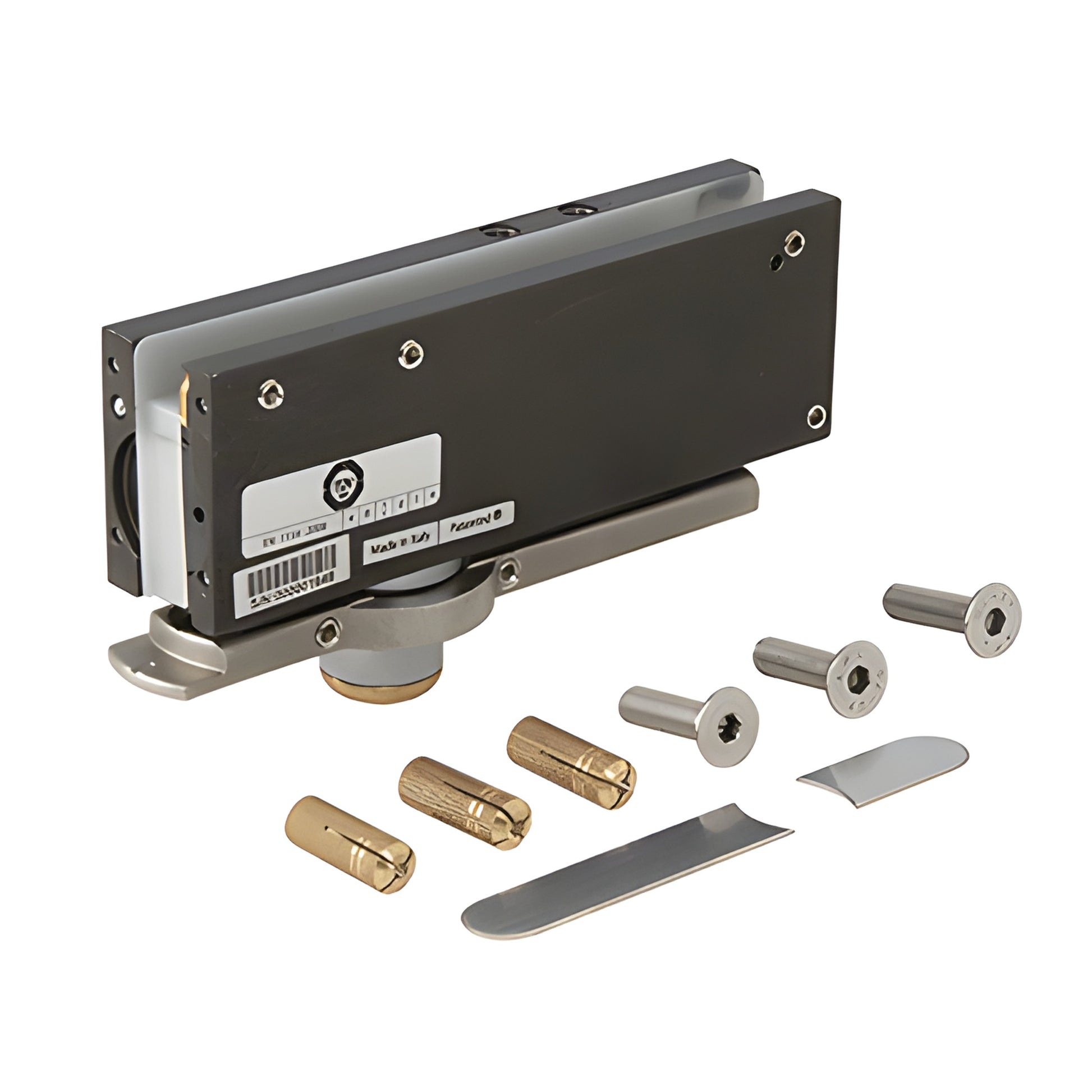

CRL Oil Dynamic Patch Fitting Door Hinge Body (SKU: H100E10NF) without back check. This oil-dynamic patch fitting is a self-closing hinge engineered for interior glass doors and frameless glass installations. Designed to install quickly with no floor box or overhead closing device required, it provides smooth, controlled closing for glass doors up to 1000 mm wide and 100 kg maximum weight. Ideal for commercial and residential toughened glass doors where a concealed, floorless patch fitting is required.
Available with three cladding finishes (purchased separately):
Cat. No. H100ECBS – Brushed Stainless Steel
Cat. No. H100ECPS – Polished Stainless Steel
Cat. No. H100ECSA – Satin Anodized
Most shipping weights are approximate. If exact weight or shipping costs are required to complete your order, please contact CRL Customer Service prior to ordering. Product images are representative; actual colors may vary by monitor.
Order the H100E10NF oil dynamic patch fitting for reliable, adjustable self-closing performance on 8–13.52 mm glass doors — contact us to buy or request a quote.
Installation Instructions
