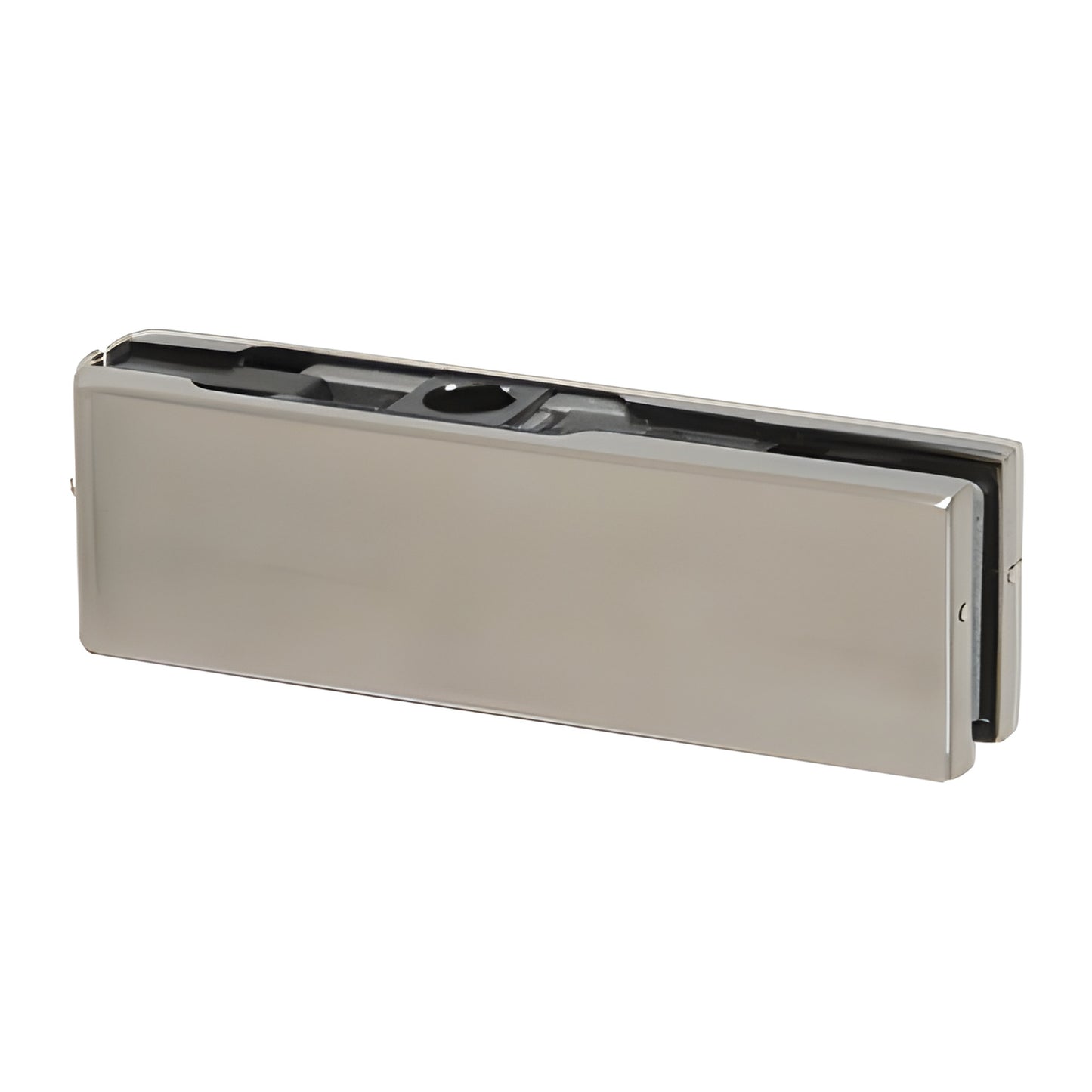

CRL Oil Dynamic Top Patch Hinge Body for Frameless Glass Door
CRL Oil Dynamic Top Patch Hinge Body for Frameless Glass Door
Regular price
$180.95 CAD
Regular price
Sale price
$180.95 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# H100E20
Shipping Weight: 1.66 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.66 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Closing Speed
Yes
Height
2-3/16 in., 6-9/16 in. (56 mm, 167 mm)
Works With
H100ECBS
Overview
- Door Patch Body Only (cladding purchased separately)
- Fits 8 mm to 13.52 mm toughened glass doors — gaskets included
- Slim-line design — 56 mm high
- For interior and exterior glass door applications
- Pivot setback: 2-9/16" (65 mm)
CRL Top Door Patch Fitting (SKU: H100E20) is a slim, durable patch fitting designed for glass doors. Gaskets are included to accommodate 8 mm to 13.52 mm toughened glass. Use with the CRL Oil Dynamic Patch Fitting Door Hinge (Cat. No. H100E10) for smooth, controlled operation — ideal for both interior and exterior glass installations where a low-profile look is required.
Installation notes: Requires a 12 mm top pivot pin (Cat. No. H100EP1V). Cladding sold separately — available finishes and catalog numbers:
- H100ECBS – Brushed Stainless Steel
- H100ECPS – Polished Stainless Steel
- H100ECSA – Satin Anodized
Key differentiators: slim 56 mm profile for minimal sightlines, gasket-ready for a wide range of toughened glass thicknesses, compatible with CRL Oil Dynamic hinge for smoother door action.
Order H100E20 or contact CRL Customer Service for exact shipping weight, finish availability, and installation support.
