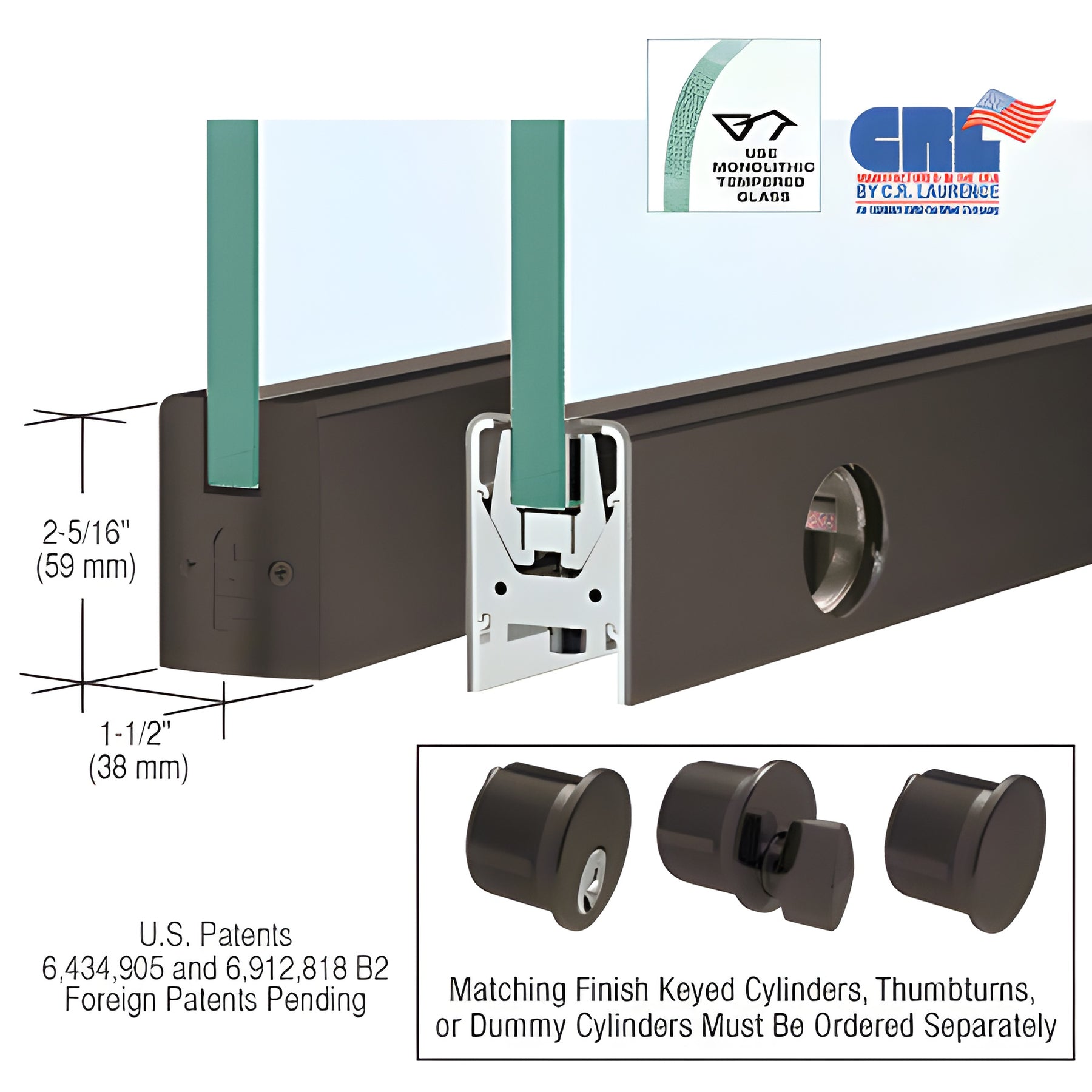

CRL Oil Rubbed Bronze 1/2" Glass Door Rail w/ Lock - Custom Length

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fast, secure installation)
• Low profile rails: 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

CRL Low Profile Door Rail measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with end caps, installation instructions, and adjustment wrenches—ready to install for fast glass door assembly.

NOTE: Actual product height: 2-5/16” (59 mm).

The Wedge-Lock® system not only secures the glass but also yields the fastest installation times among door rail systems. Experienced installers can prepare a door for installation in under ten minutes. CRL Wedge-Lock® Door Rails ship fully fabricated with end caps installed. After rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The adjustable door alignment system lets you shift the door 1/8" (3 mm) toward or away from the jamb without removing the door; this feature is standard on both top and bottom rails. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide, and the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned other than the American Standard Setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing resists shift and long-term misalignment (not made of two halves)
• Internal components remain in place during installation—no removal required
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

Finishes: CRL Wedge-Lock® Door Rails come in several standard finishes and can be quoted in custom finishes
