CRL Oil-Rubbed Bronze 1/2 Glass Square Low-Profile Door Rail, No Lock

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System
• Low profile rails are only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes — custom finishes available
• Available without locks
• Matching sidelite rails available

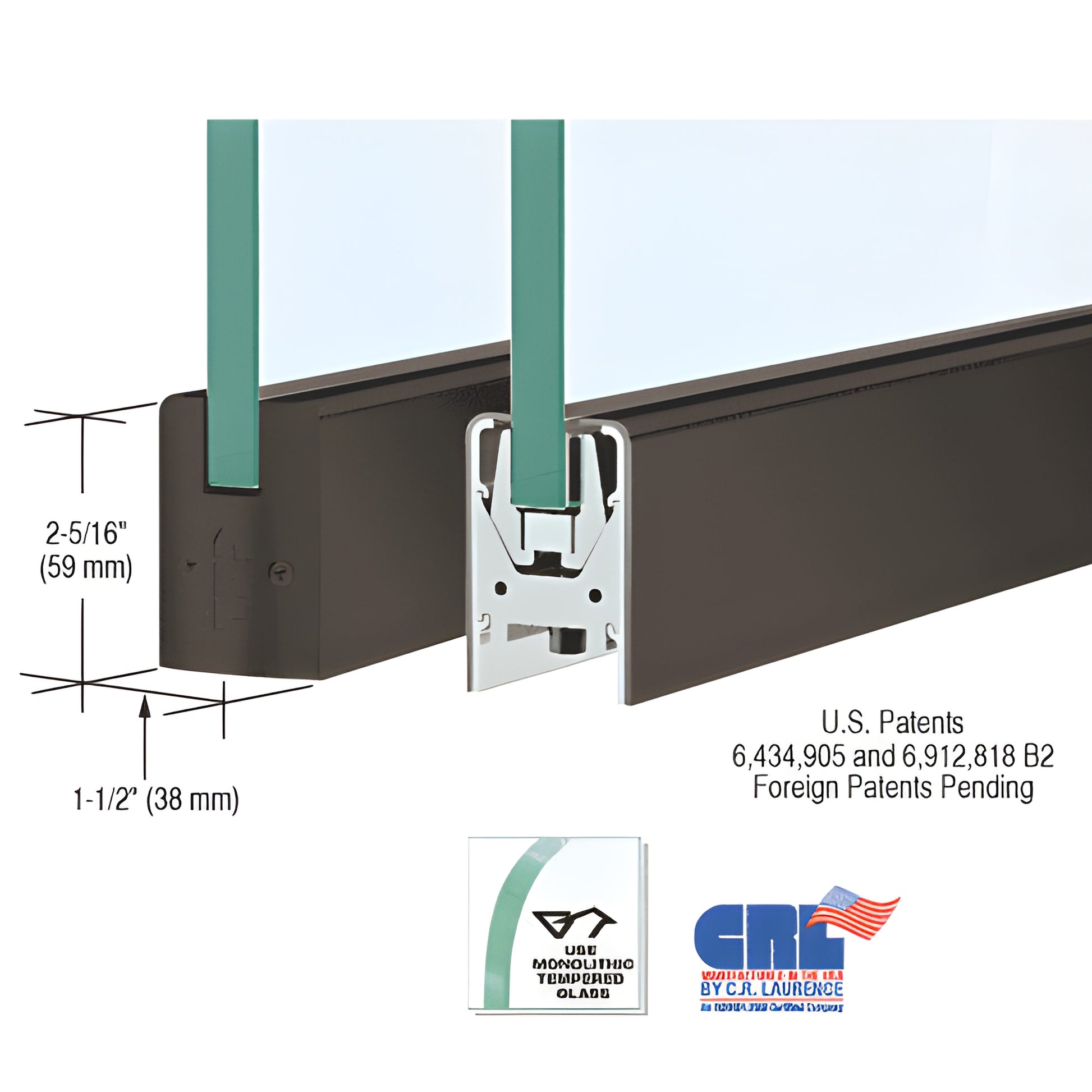

Our CRL Low Profile Door Rail (SKU: DR2S0RB12C) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with end caps, installation instructions, and adjustment wrenches — ready-to-install for commercial and architectural glass door projects.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers a secure attachment and the fastest installation time of any door rail system in the industry. Experienced installers can prepare a door for hanging in under ten minutes. Rails ship completely fabricated with end caps installed; after rail installation, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide.

The adjustable door alignment slide allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door — standard on both top and bottom rails. To adjust after installation, remove the end cap to access three socket head cap bolts: center bolt secures the slide; outer bolts provide the ±1/8" adjustment. The low-profile slide also permits pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other advantages of Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid, single-component housing resists shift and long-term misalignment
• Internal components remain assembled for faster installation
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms, pivots, keyed cylinders, thumbturns, and closer arms must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in multiple standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
