Product Details
- Shallow 1" (25.4 mm) Height
- Use Monolithic Tempered Glass
- Typically Used at the Bottom of Glass Panels
- Use with Silicone (Wet) or Glazing Gasket (Dry)
- Matching End Caps Sold Separately

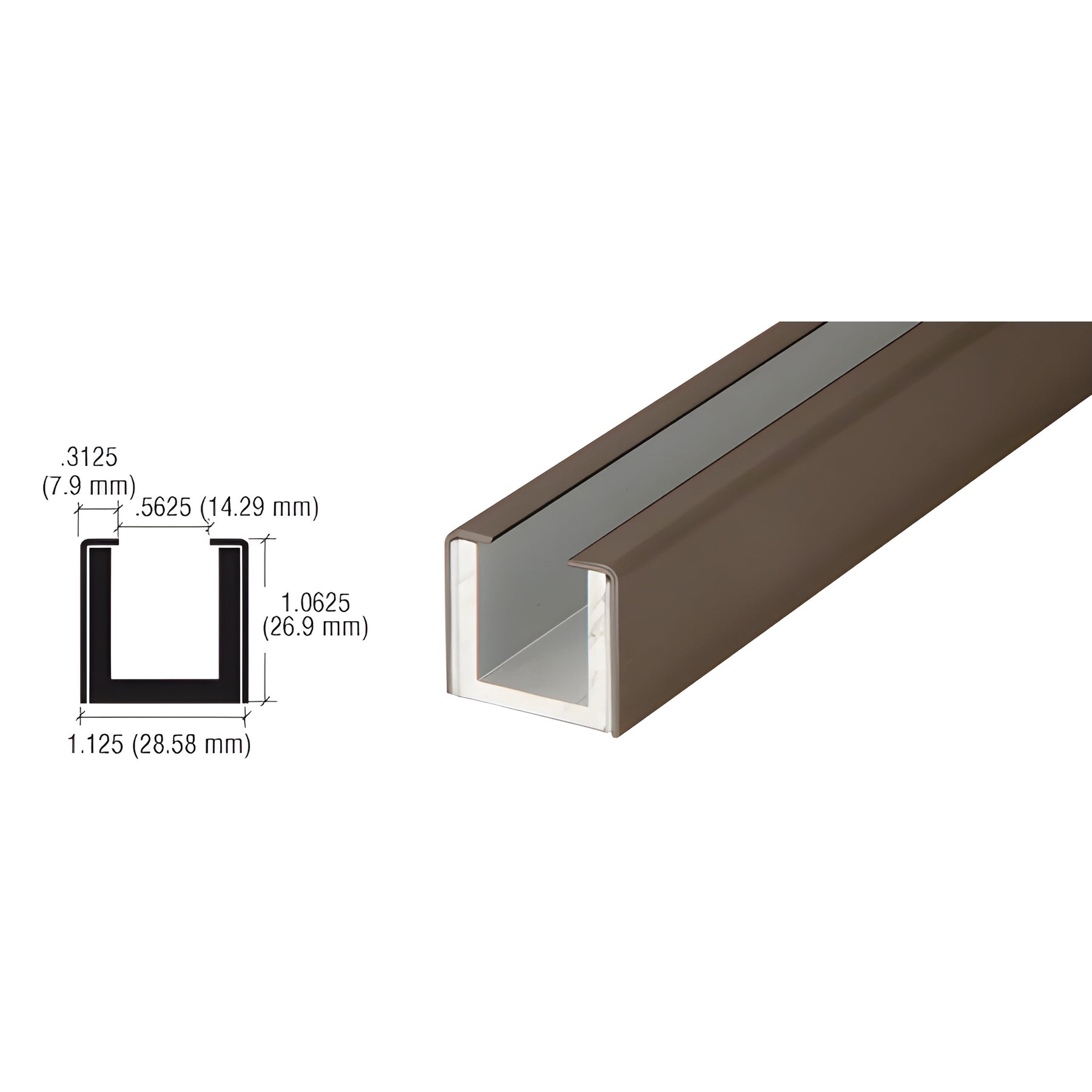

CRL Shallow and Deep Wet/Dry Glaze U-Channels provide the smallest profile U-Channel for glazing 3/8" or 1/2" (10 or 12 mm) glass. They are available in six standard finishes in both 120" and 240" (3.05 and 6.10 m) stock lengths.
Wet/Dry Glaze U-Channels provide the most economical way to glaze heavy glass. Using a Deep U-Channel on the top and the Shallow U-Channel on the bottom allows for the 'lift and drop' method of glazing. The glass can be secured with silicone sealant or our Top Load Roll-In Glazing Gasket.
For Cladded U-Channels, custom finishes, or custom lengths, contact CRL Technical Sales Department.
Product Warning:
PS, BS, PB, SB, ORB Finishes are all Cladded. Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze Finish are inspected at our facilities prior to packaging and shipping. Within two days of receipt of these products you are advised to open the package, remove all of the protective wrap from the product, then inspect the product thoroughly. You must report any damage or irregularity of the finish to CRL immediately. Please be advised that CRL will not be held liable for damages reported at a later date.
