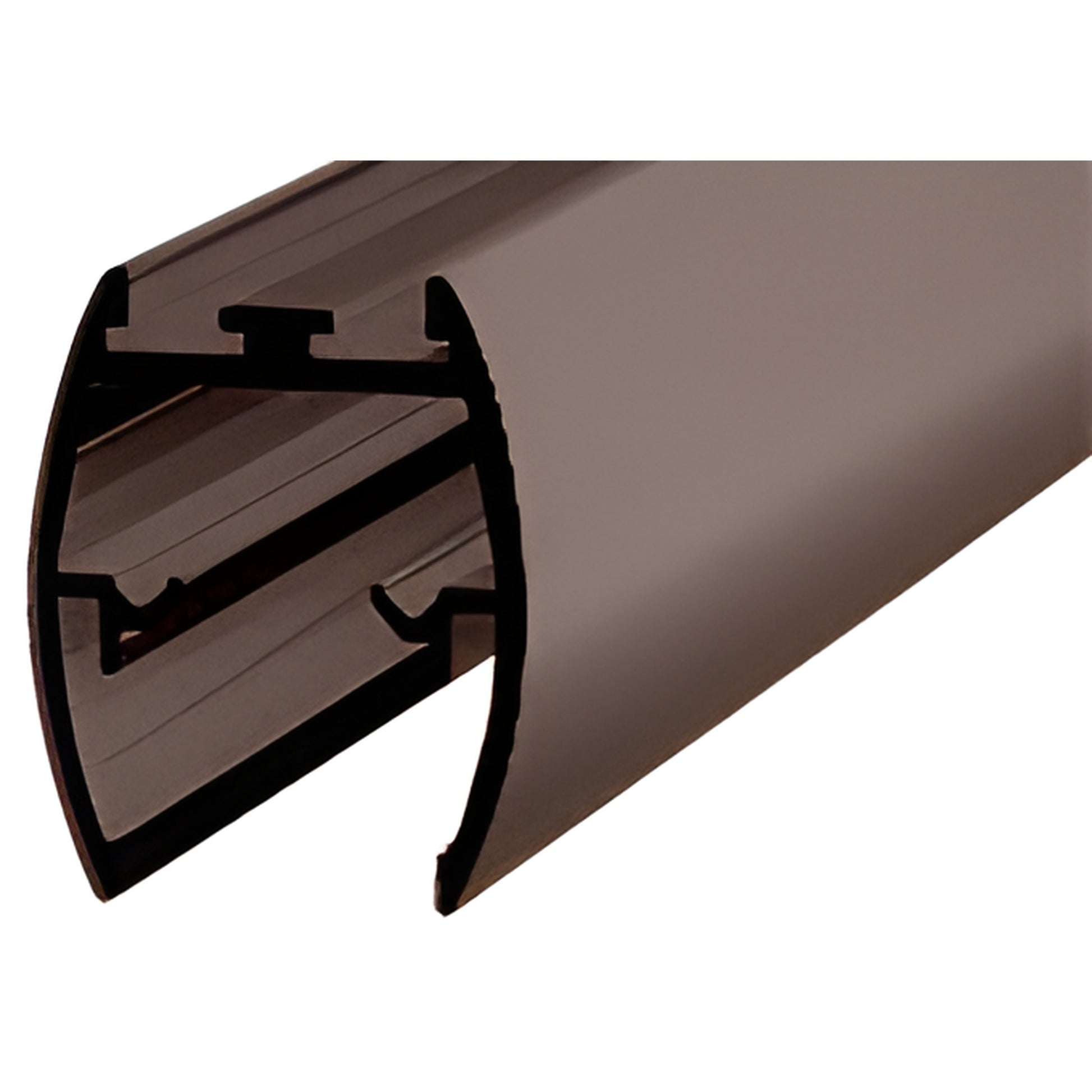

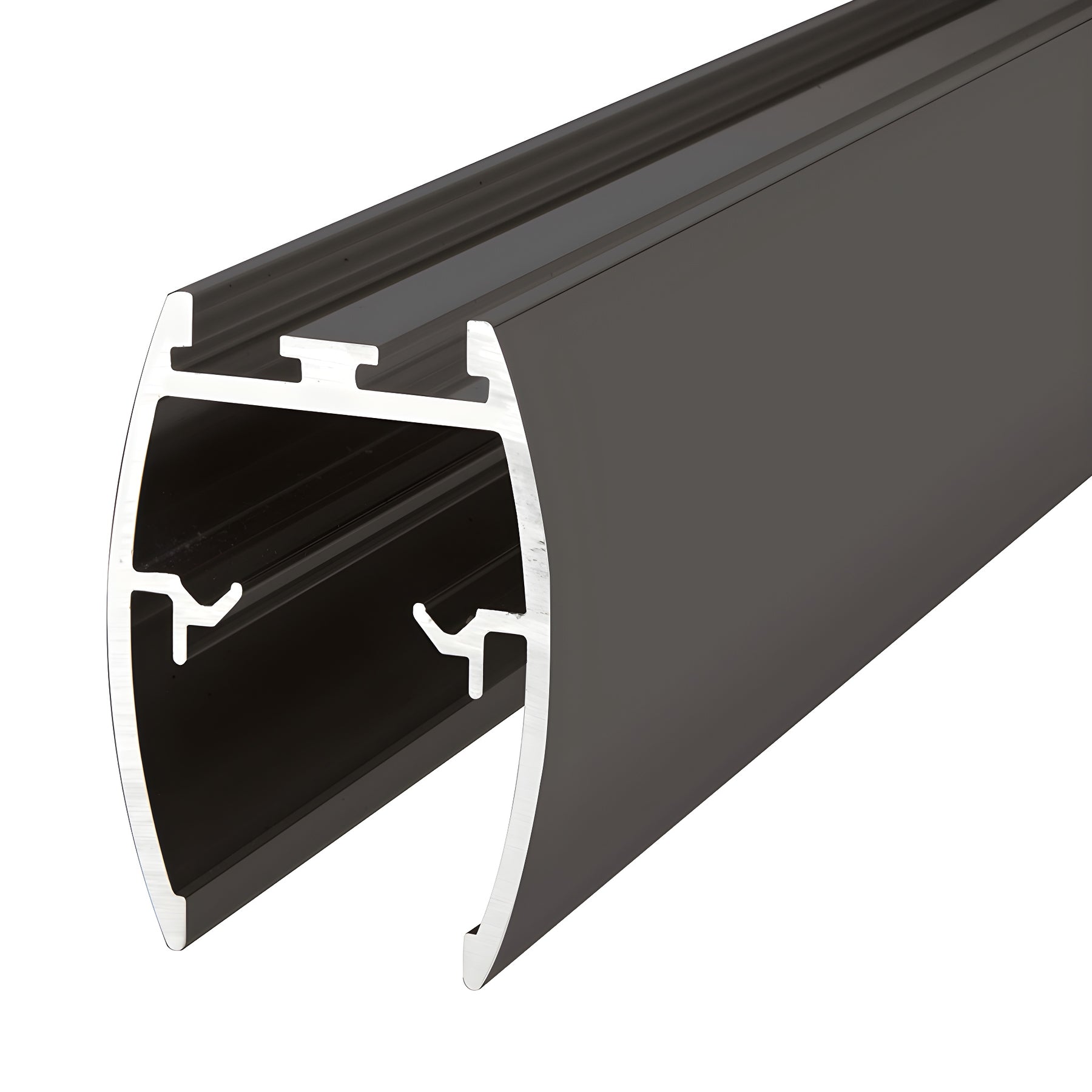

CRL 144-in Oil Rubbed Bronze Header for CK/DK Cottage Sliders

• Individual supplementary extrusions and hardware to convert frameless shower door kits into angled enclosures or wider inline units
• Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze to match our kits
• DIY-friendly components — or send us a drawing to customize a unit for you
• Designed for use with monolithic tempered glass

DK Cottage Series components (SKU: DK611440RB) are engineered to add versatility to CRL frameless sliding shower door kits. Use stock lengths of headers, header fillers, side jambs, bottom sills, sidelite sills, clear polycarbonate vertical jambs, top hangers, towel bars, knobs, and other accessories to build an angled enclosure or a wider inline sliding unit. Send a drawing with dimensions via email or fax and we’ll assemble a customized kit that includes everything except the glass and silicone. Installation instructions are included.

NOTE: All fixed glass panels must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – One 1/2" (12 mm) diameter hole; Top Hangers – Four 1/2" (12 mm) diameter holes (two per glass panel)

Ready to build your frameless shower enclosure? Contact us with your opening dimensions
