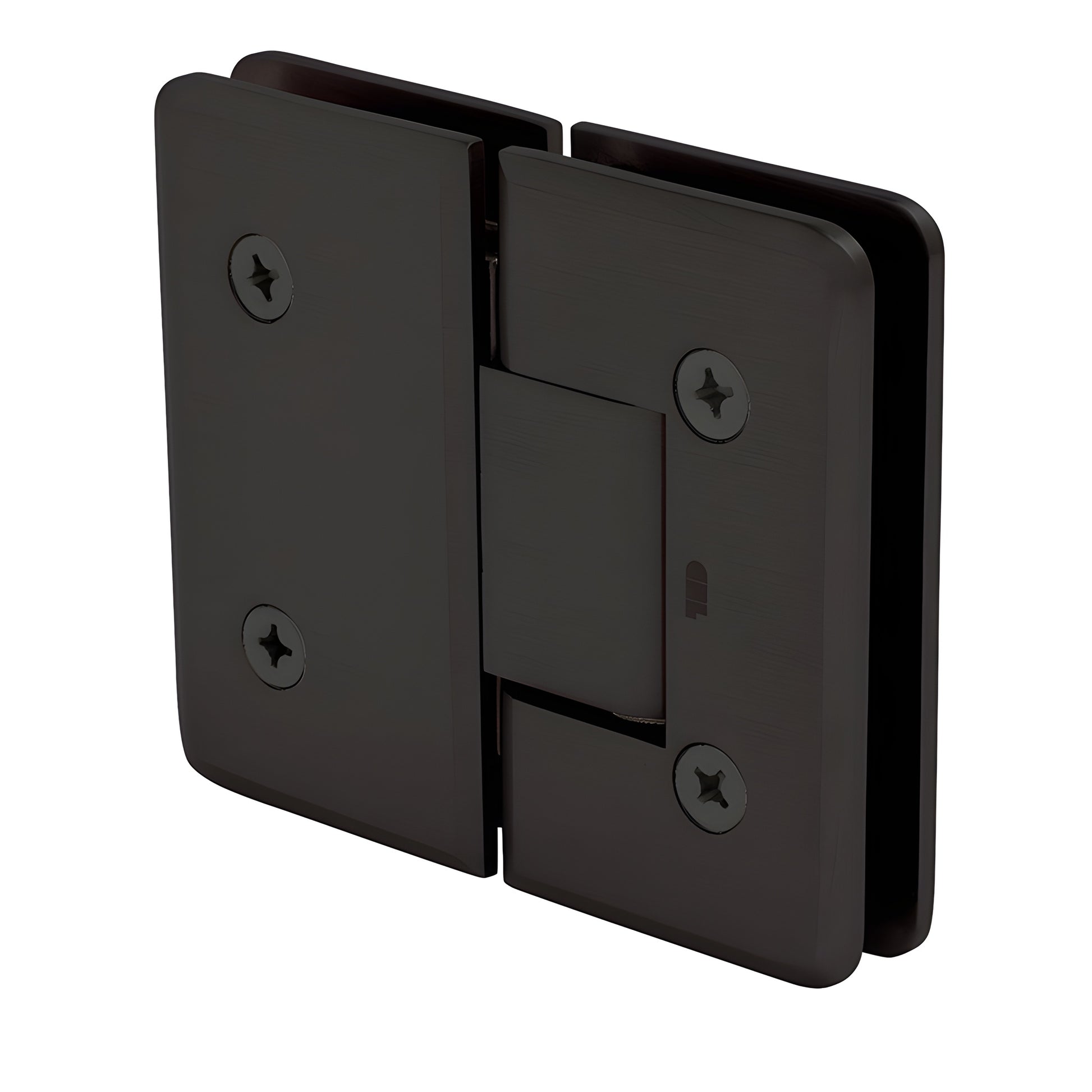

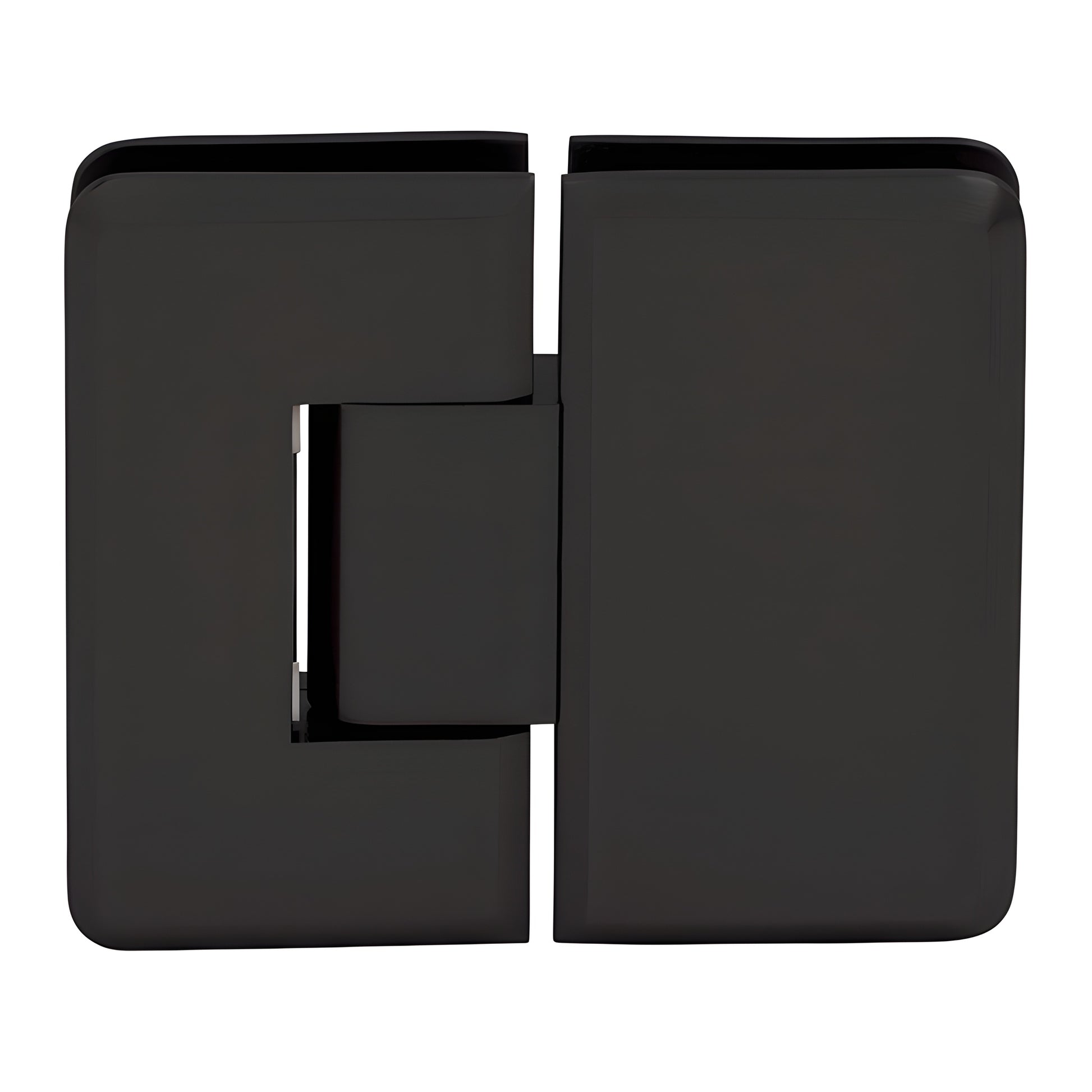

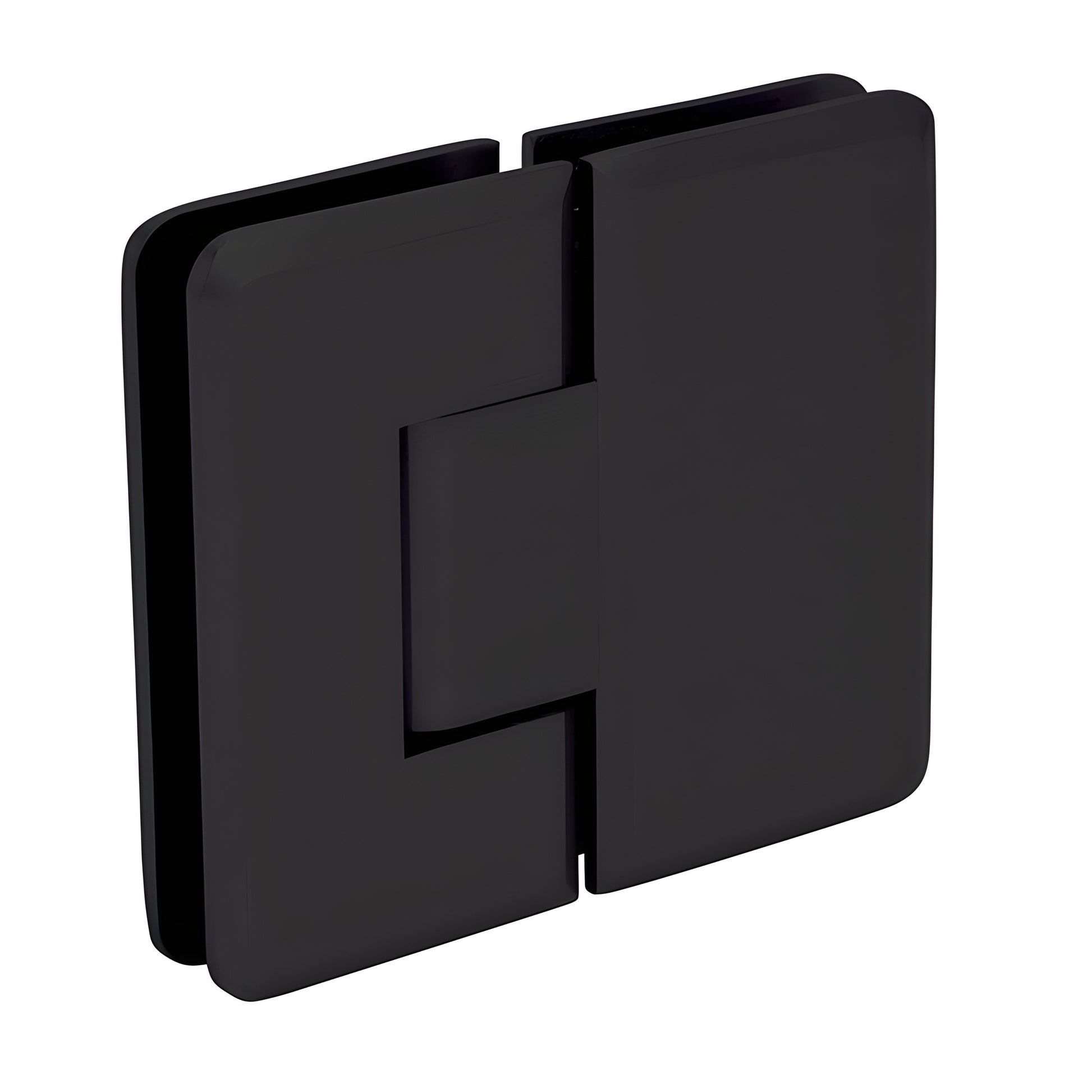

CRL Oil Rubbed Bronze 180° Glass-to-Glass Shower Hinge Positive-Close

• Special grooved internal pivot pin for precise, positive closing action
• Available as wall-mount and 180º glass-to-glass hinges for shower doors
• Stocked in four popular finishes; other custom finishes available by special order

The Positive Close Cologne Hinge (SKU: C0L7800RB) features a grooved internal pivot pin that delivers a precise, positive closing action—distinct from typical self-centering Cologne hinges. Ideal for glass shower doors and frameless shower enclosures, this hinge is stocked in four popular finishes and can be ordered in custom finishes on request.

Load Capacity
Using two hinges with 3/8" to 1/2" glass (10–12 mm): holds up to 110 lbs (50 kg) with maximum door width 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10–12 mm): holds up to 140 lbs (63 kg) with maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid brass—durable, corrosion-resistant shower hinge for wet environments
Hinge Swings: 90° inward and outward (bi-directional)
Closing Type: Positive closing to zero degrees (positive-close glass shower hinge)
Cut-Out Required
Includes: gaskets, Phillips screws, Allen screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department for finish options and lead times.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.

Shop the Positive Close Cologne Hinge (SKU: C0L7800RB) for a reliable, solid-brass glass shower door hinge with precise positive closing—contact CRL to order or request custom finishes.
