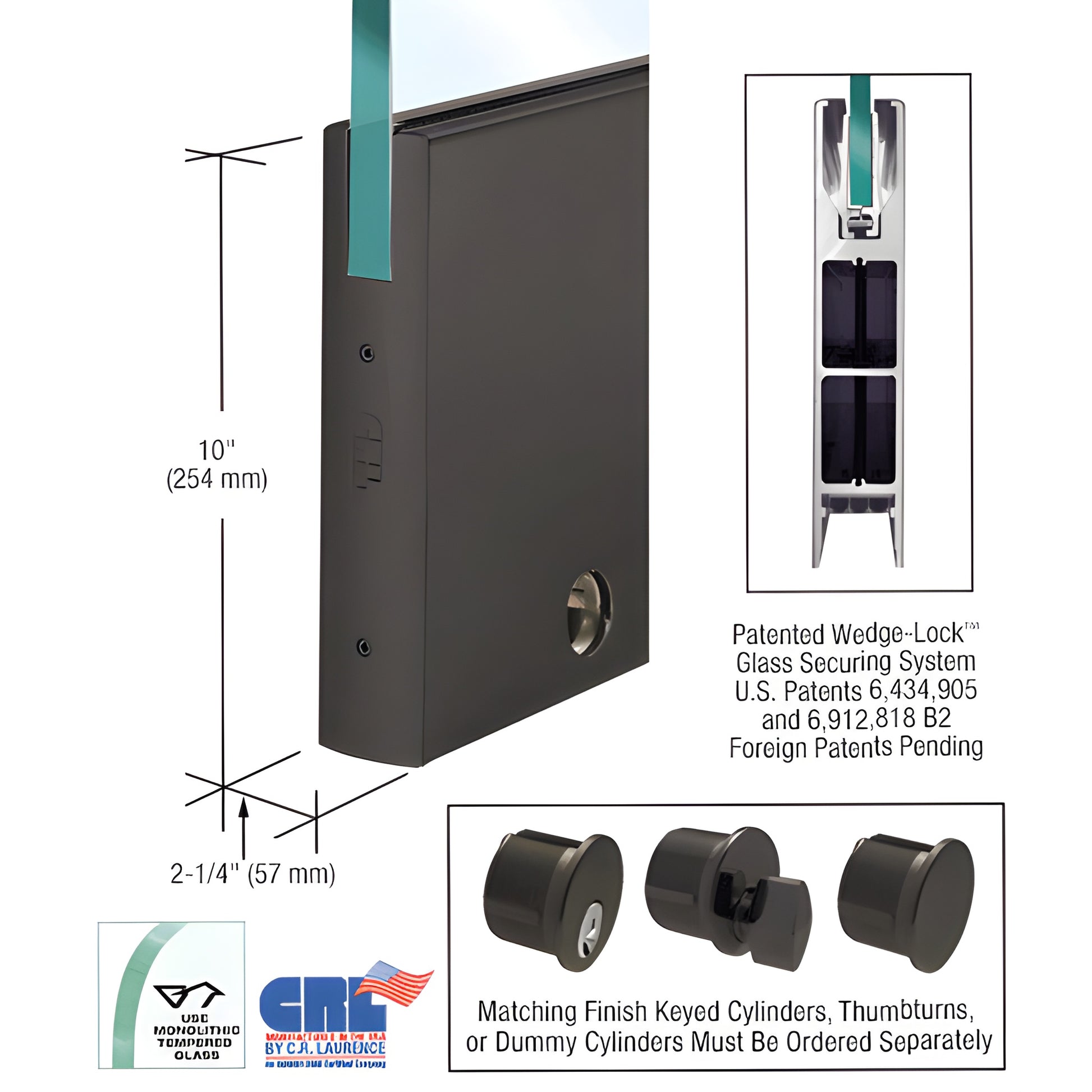

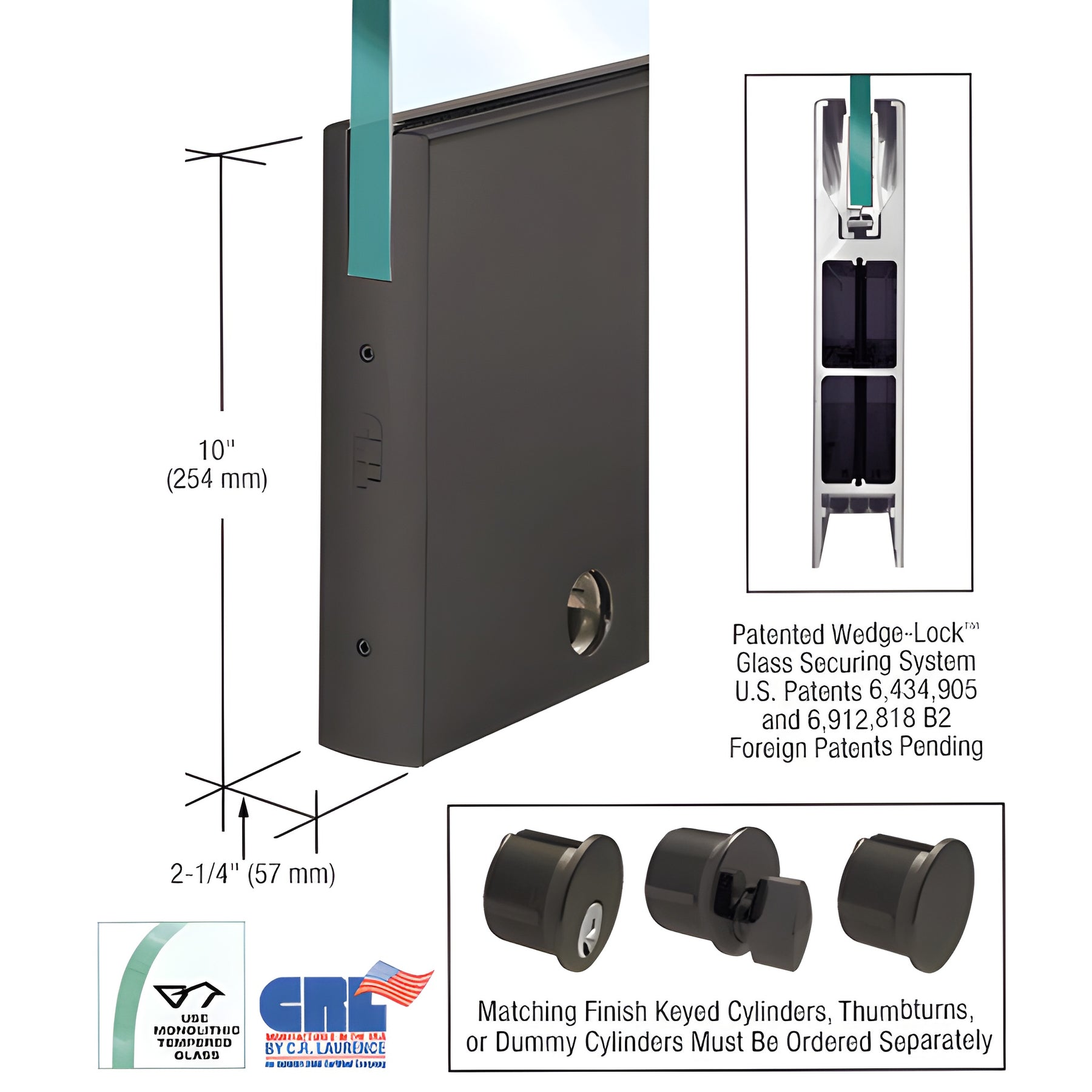

CRL Oil Rubbed Bronze 3/4" Glass Door Rail 10" w/ Lock, Custom Length

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (high-force, low-profile)
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10S0RB34CL), is a heavy-duty, fast-install rail engineered for frameless and storefront glass doors. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures the glass by applying downward wedge pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, the angled extrusions engage the rail groove and create high clamping force — for example, more than 900 lbs. in the 9" (228.6 mm) corner rail — delivering industry-leading glass retention for commercial glass door systems.

NOTE: Actual Product Height: 10" (254 mm)

Key user benefits:

• Fast installation: experienced installers can prepare a door in under ten minutes, reducing on-site labor for commercial glass door projects
• Completely fabricated and ready-to-install with End Caps installed
• Adjustable Door Alignment System (standard top and bottom) allows 1/8" (3 mm) in/out adjustment without removing the door
• Low-profile adjustable slide and movable pivots accommodate non-standard setbacks and out-of-square openings
• Durable single-component housing resists shifting; internal components remain in place during installation
• Glass securing pads designed for longevity in extreme environments

Installation and adjustment: after rail installation, attach door arm or pivot (not included) to the preassembled adjustable door alignment slide. To fine-tune the door, remove the End Cap to access the three socket head cap bolts (center bolt secures the slide; outer bolts adjust 1/8" (3 mm)).

Ordering and finishes:

• All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms and pivots must be ordered separately to meet job requirements
• Available in several standard architectural finishes; custom finishes and widths quoted on request
• Models with locks are supplied with the lock mechanism installed—matching keyed cylinders or thumbturns ordered separately
• End Caps included in stock lengths; specify total Door Rail length (including End Caps) for custom-length orders

Product Warning:
Products with Oil Rubbed Bronze finish are inspected prior to shipping
