CRL Oil-Rubbed Bronze 4" Tapered Rail for 1/2" Glass - Custom No-Lock

• Custom Length for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4T0RB12C) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). Designed for 1/2" (12 mm) monolithic tempered glass, the system secures glass by applying downward wedge pressure through two aluminum glass-retaining extrusions and a flat stainless steel bar tightened with socket head cap bolts. The angled extrusions engage an angled groove in the rail, producing very high clamping force (over 900 lbs. in the 9" corner rail), delivering superior glass retention and durability for commercial storefronts and architectural glass doors.

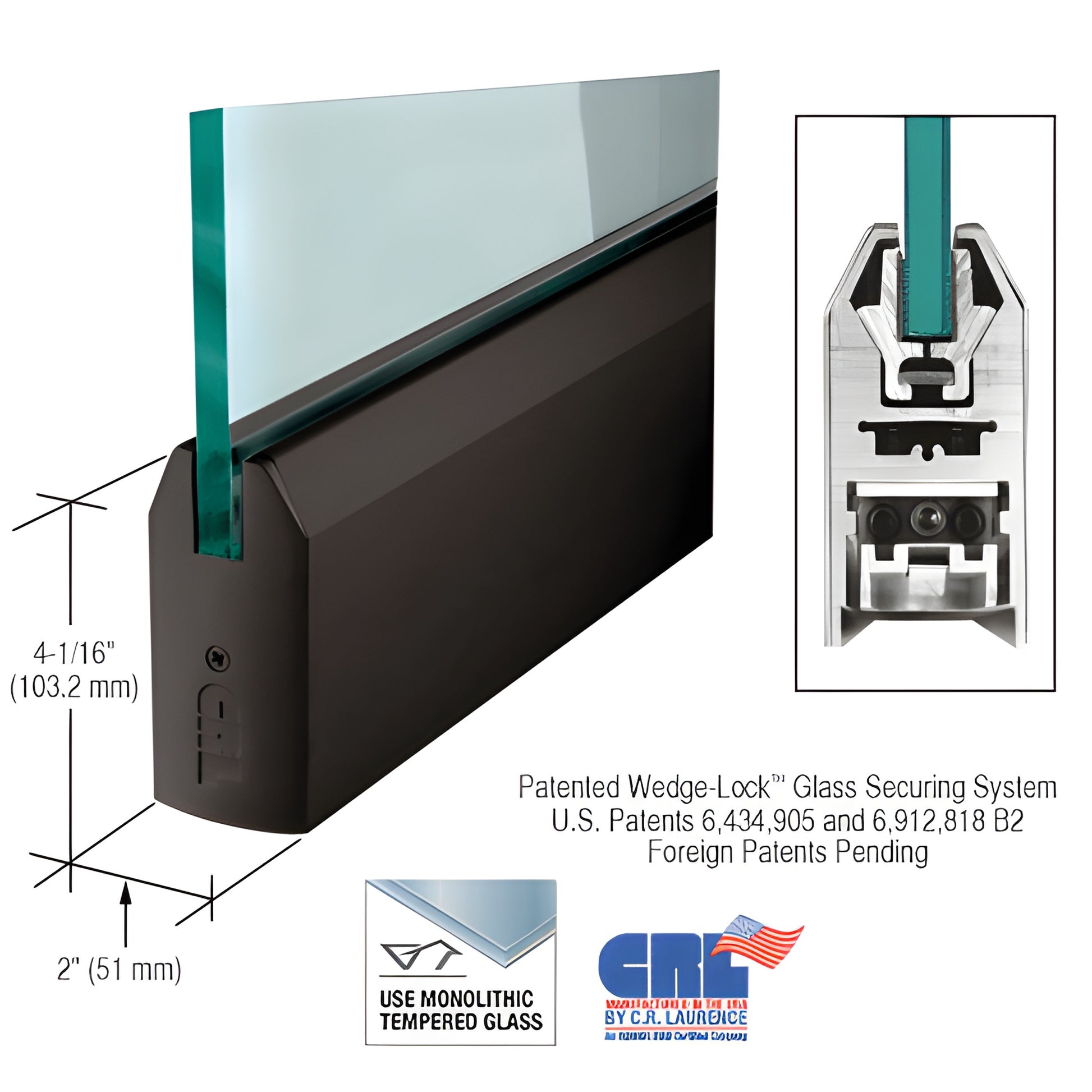

NOTE: Actual Product Height: 4-1/16" (103 mm)

The Wedge-Lock® system provides fast, repeatable installations—experienced installers can prepare a door in under ten minutes. Rails ship fully fabricated with End Caps installed; after rail installation attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The Adjustable Door Alignment System lets you move the door 1/8" (3.2 mm) toward or away from the jamb without removing the door—standard on both top and bottom rails.

To adjust after installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide, the two outer bolts provide the ±1/8" adjustment. The low-profile adjustable slide accommodates pivots positioned other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Key benefits and differentiators:

• Accepts 3/8" to 3/4" (10–19 mm) glass — ideal for tempered glass storefront and interior glass doors
• Rigid single-component housing resists shift and long-term adjustment drift
• Internal components remain in place during installation—no disassembly required
• Durable glass securing pads formulated for longevity in extreme environments
• Comes with built-in Jamb Alignment Block; arms and pivots sold separately to meet job requirements

Finishes, ordering & accessories:
CRL Wedge-Lock® Door Rails are available in several standard architectural finishes; custom finishes and widths available on request
