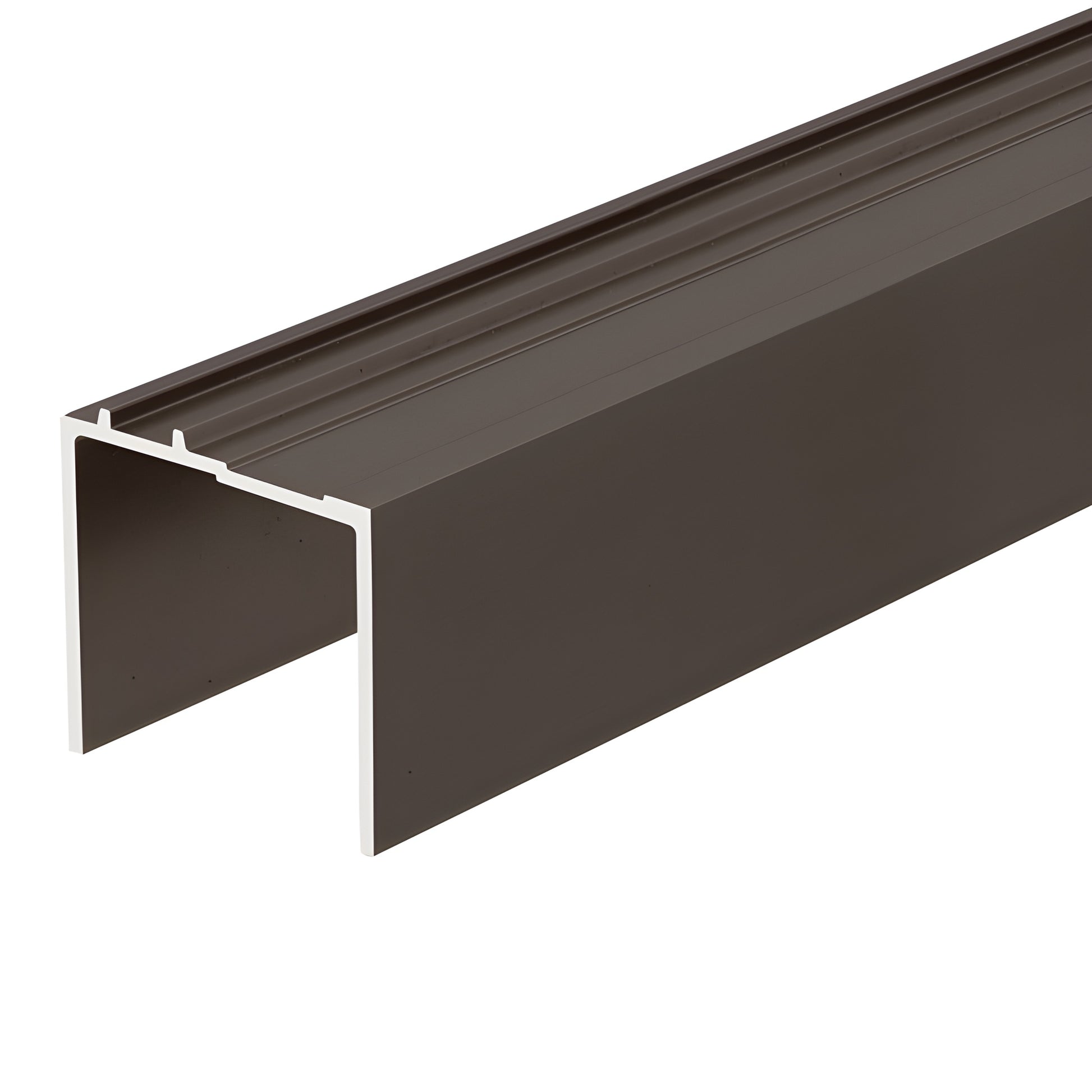

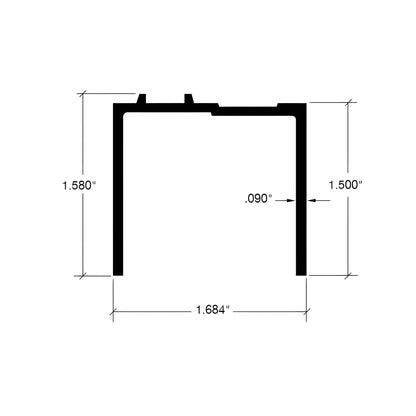

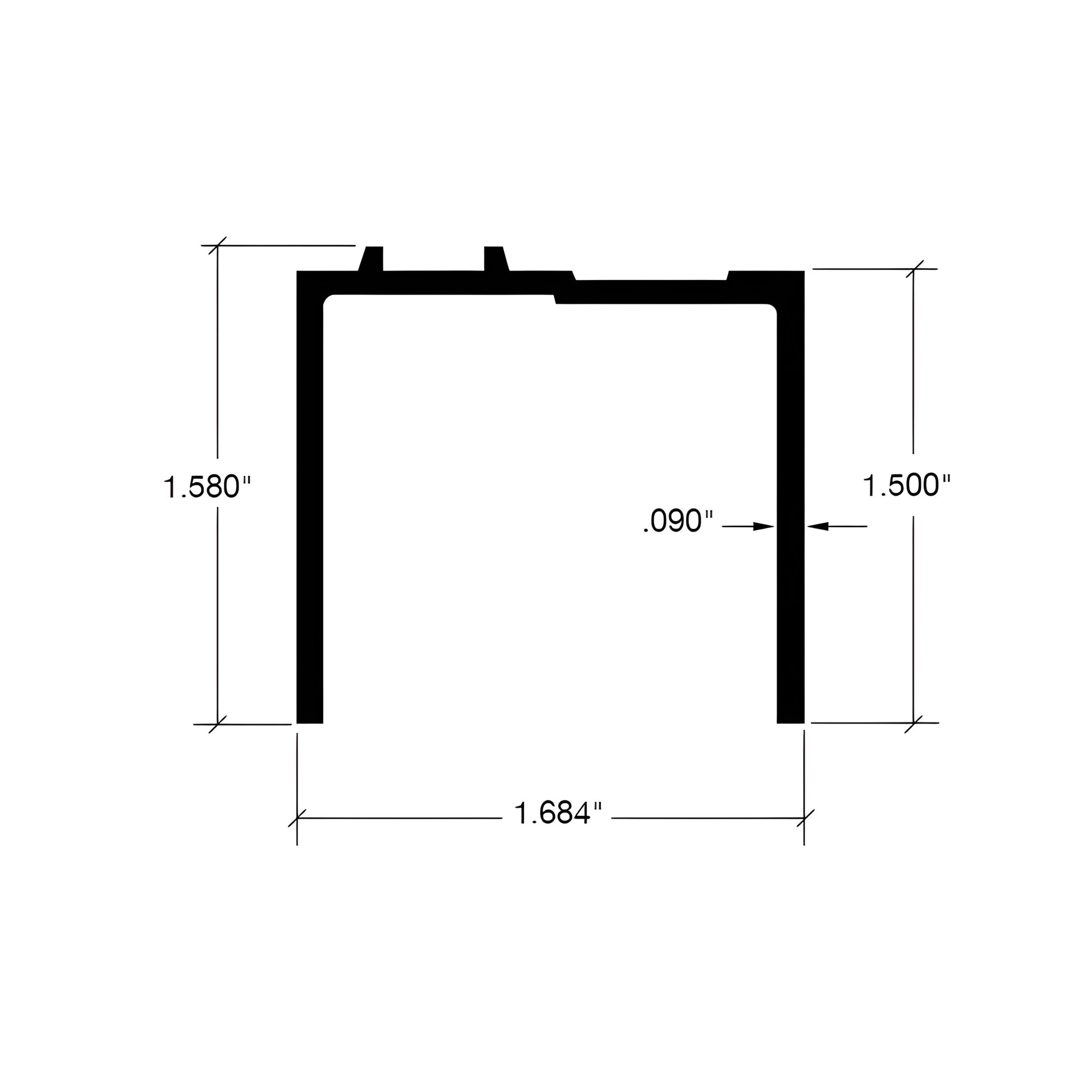

CRL 72" Oil-Rubbed Bronze Sill Spacer Extrusion - Replacement

• Field-fabricate on-site to fit your opening
• Use with monolithic tempered glass
• Bottom sill spacer can be tapered to level the bottom sill

CRL Tapered Sill Adapter for CK/DK Cottage and EK Suite Series Sliders (SKU: DK71720RB) adds versatile compatibility to frameless sliding shower door kits. Available accessory lengths include headers, header fillers, bottom sills, sidelite sills, side jambs, top hangers and related components to complete custom enclosures.

Use these components to build a custom frameless sliding shower enclosure or request a kit. Email or fax a drawing with dimensions of the shower opening and CRL will assemble a customized kit containing all required hardware and installation instructions (glass and silicone not included).

NOTE: All fixed glass panels must be 3/8" (10 mm) thick.

SPECIFICATIONS:

Material: Extrusions (aluminum); towel bar (brass tubing); knob (solid brass)

Glass Thickness: 1/4" or 3/8" (6 or 10 mm) — glass not included

Recommended Maximum Slider Sizes: 1/4" (6 mm) glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) glass: 72" W x 80" H (1.83 x 2.03 m)

Glass Fabrication: Towel bar — two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob — one 1/2" (12 mm) diameter hole; Top hangers — four 1/2" (12 mm) diameter holes (two per glass panel)

Need help designing a frameless sliding shower enclosure with a tapered sill adapter? Contact us with your opening dimensions for a custom kit and quote.
