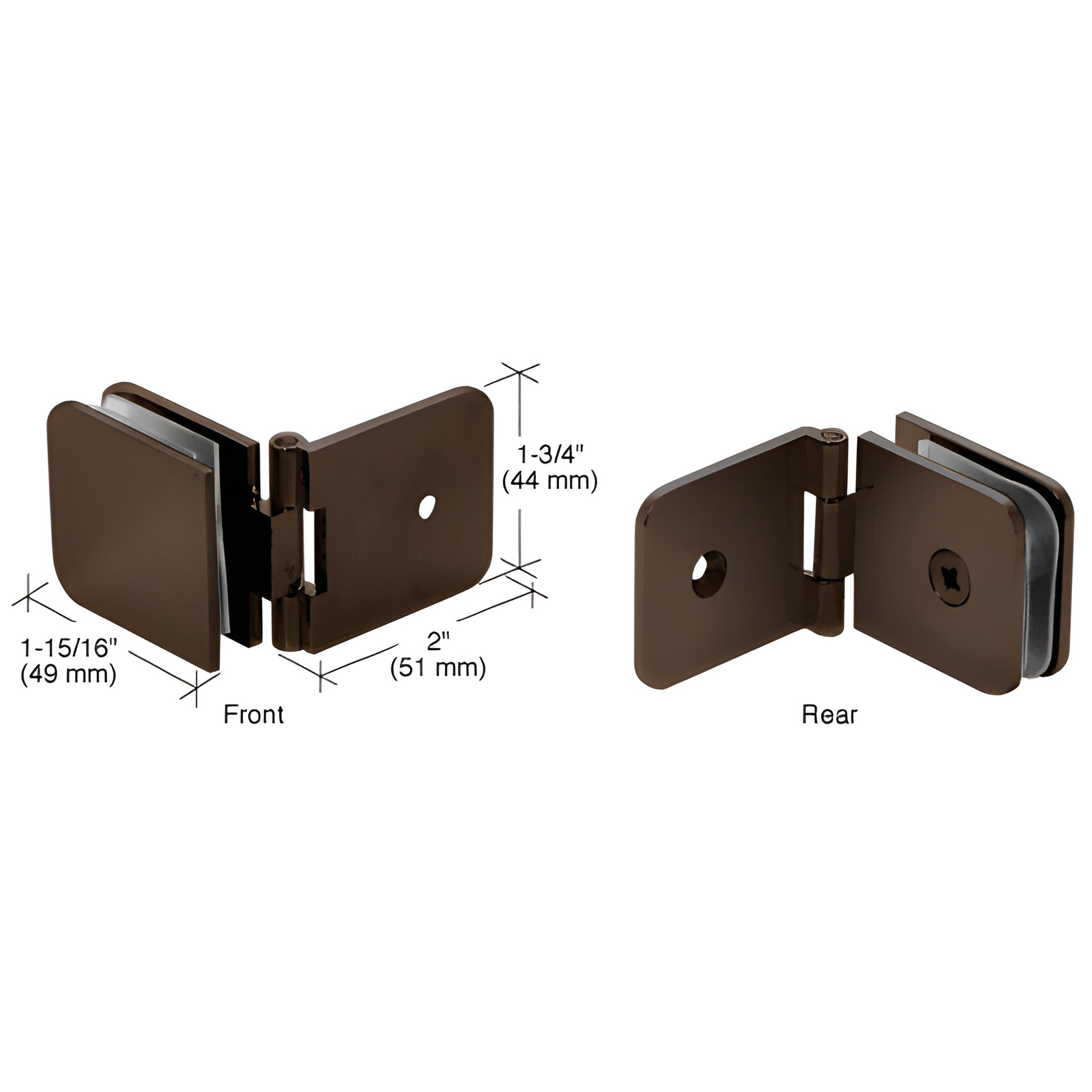

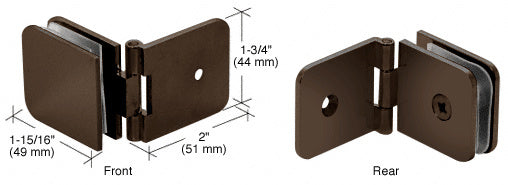

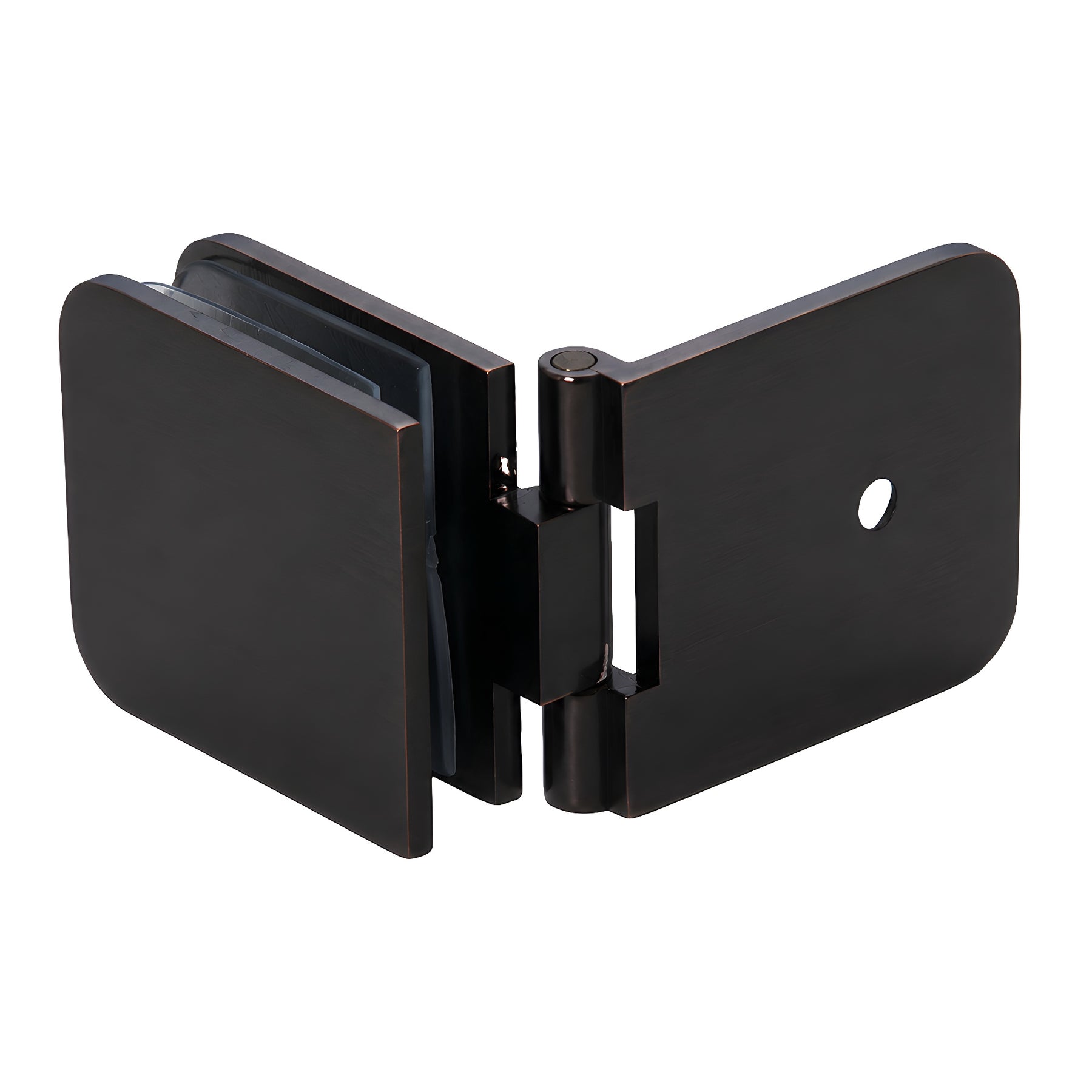

CRL Oil Rubbed Bronze Adjustable Wall Mount Glass Clamp

• Solid Brass Clamps are Adjustable for Non-Standard Angles
• For 5/16" to 1/2" (8 to 12 mm) Glass
• Two Models Available; Glass-to-Wall, and Glass-to-Glass
• Several Popular Finishes to Choose
• Use Monolithic Tempered Glass

CRL Adjustable Wall Mount Clamps mount directly to the wall, ceiling or floor to secure vertical fixed glass panels at any angle. Clearance between the glass and surface is 5/32" to 3/16" (4 to 5 mm). Clear silicone can be used to provide a clean, water resistant seal.


Our Solid Brass Wall Mount and Glass-to-Glass Adjustable Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean-looking alternative when a wall is not at 90º to the fixed panel, or the glass-to-glass application is not a standard angle. This range of Glass Clamps can accommodate 5/16" to 1/2" (8 to 12 mm) glass. Custom finishes are available.

NOTE: You may contact the CRL Shower Door Technical Staff for location of hole drilled in glass, due to numerous possible angles.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 7/8" (22 mm) Each Panel
Includes: Clear Gaskets and Mounting Screw
Extra Gaskets: Cat. No. UCG77 for use with 5/16" (8 mm) glass.
