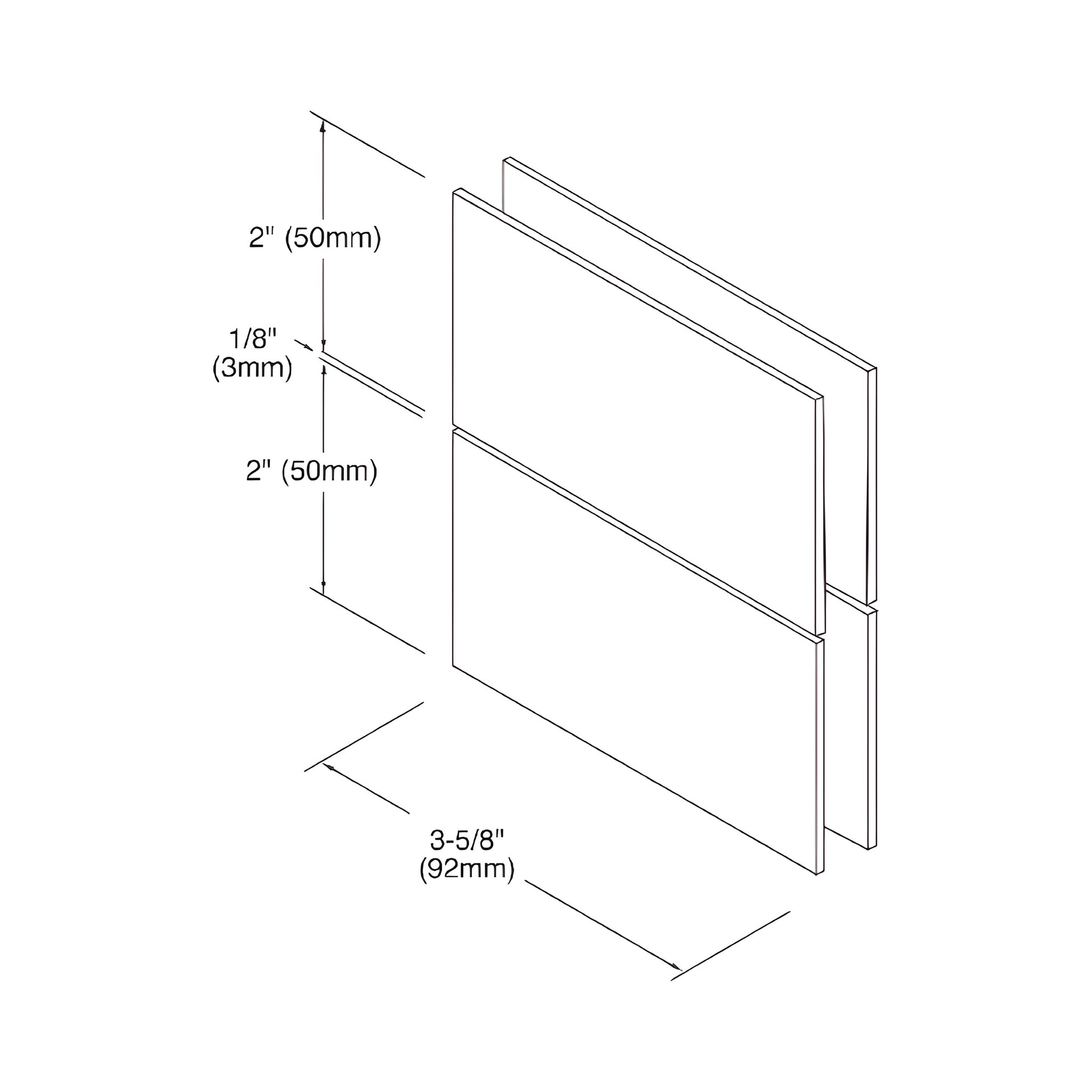

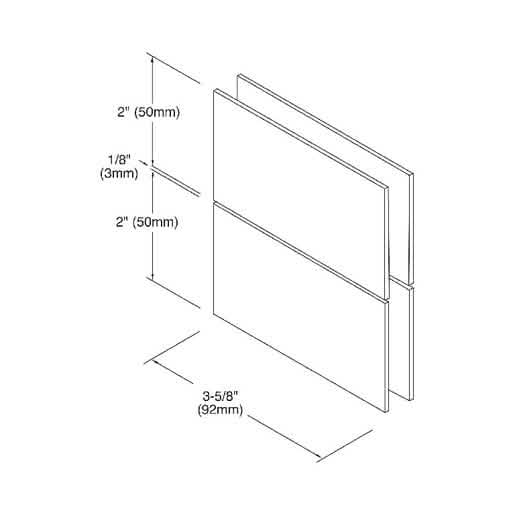

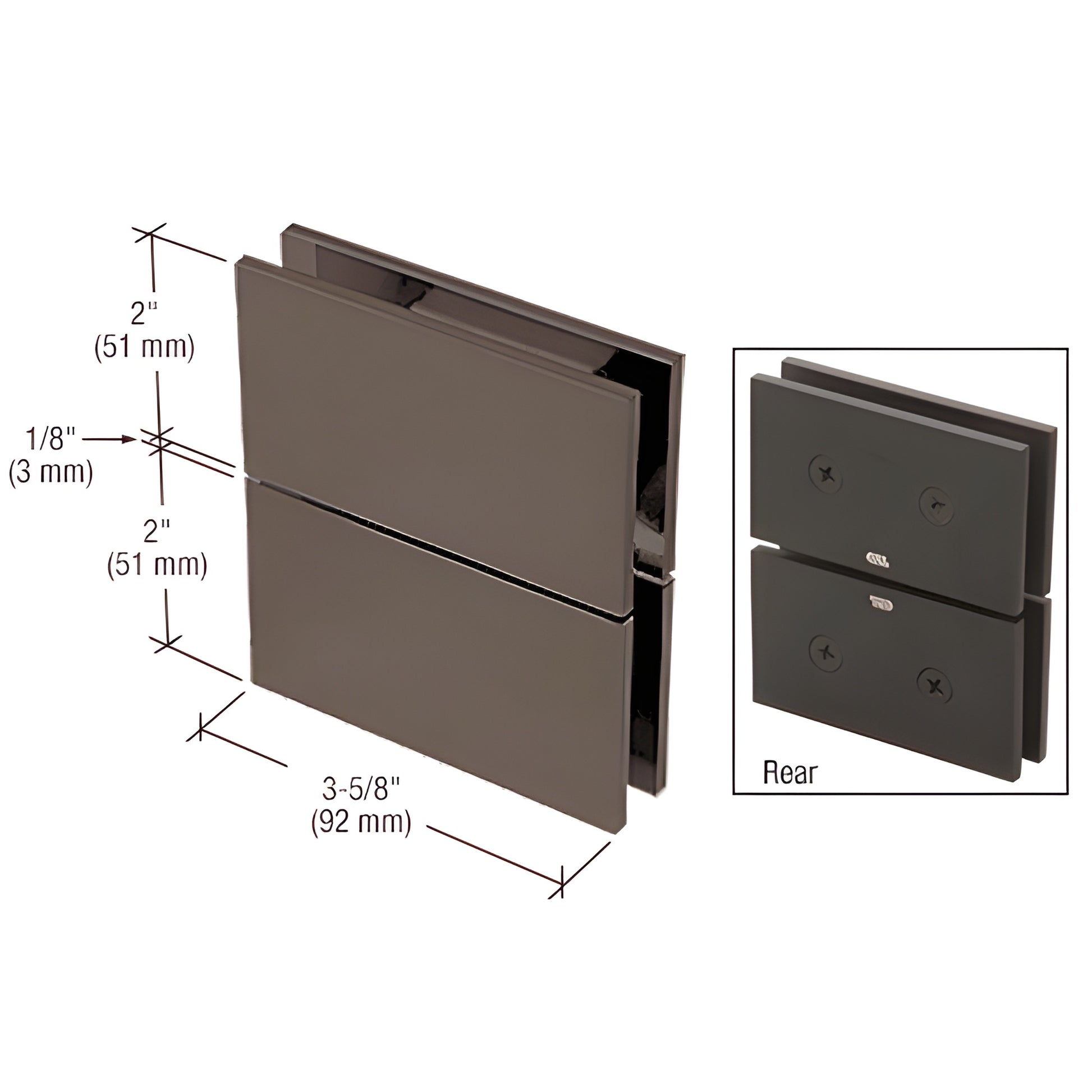

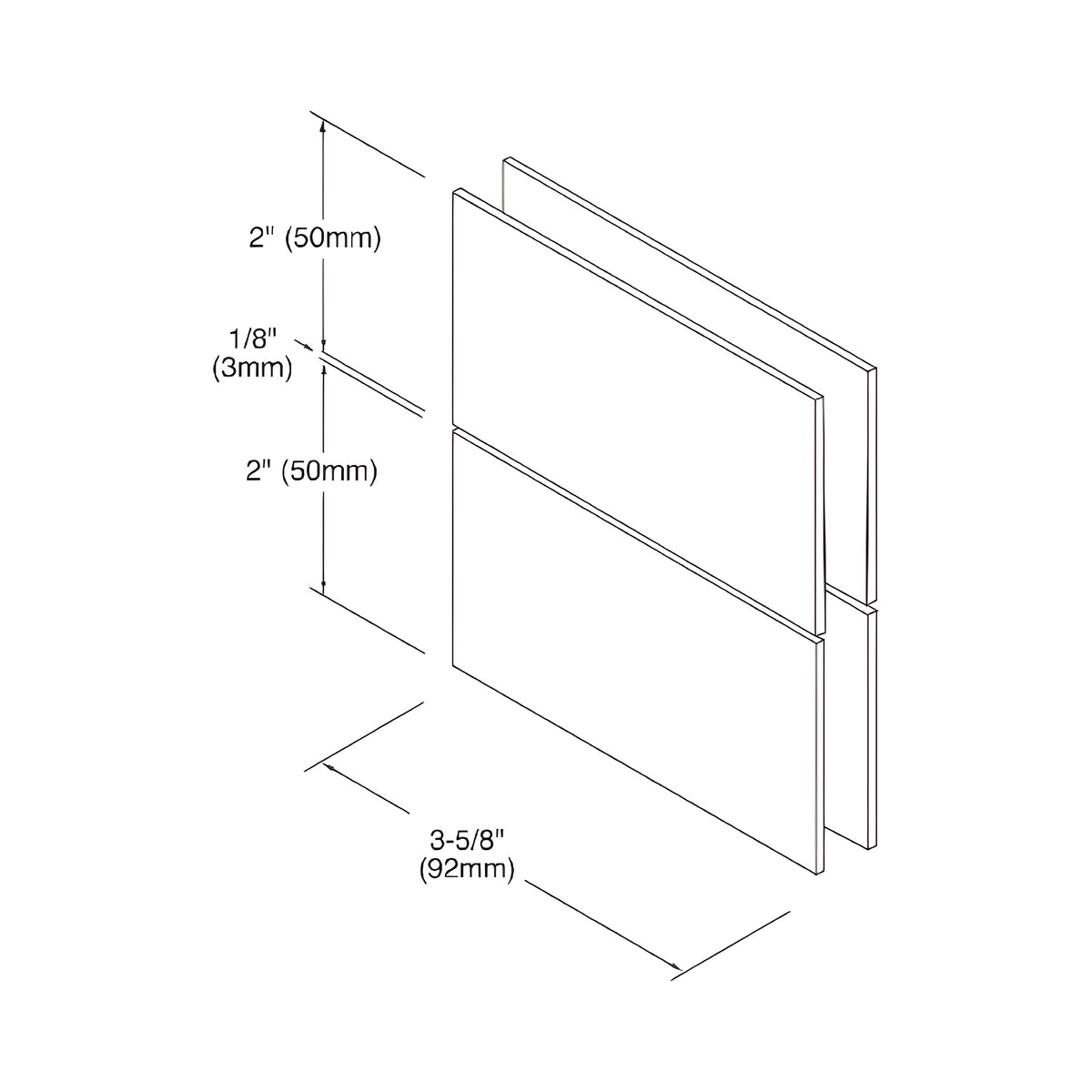

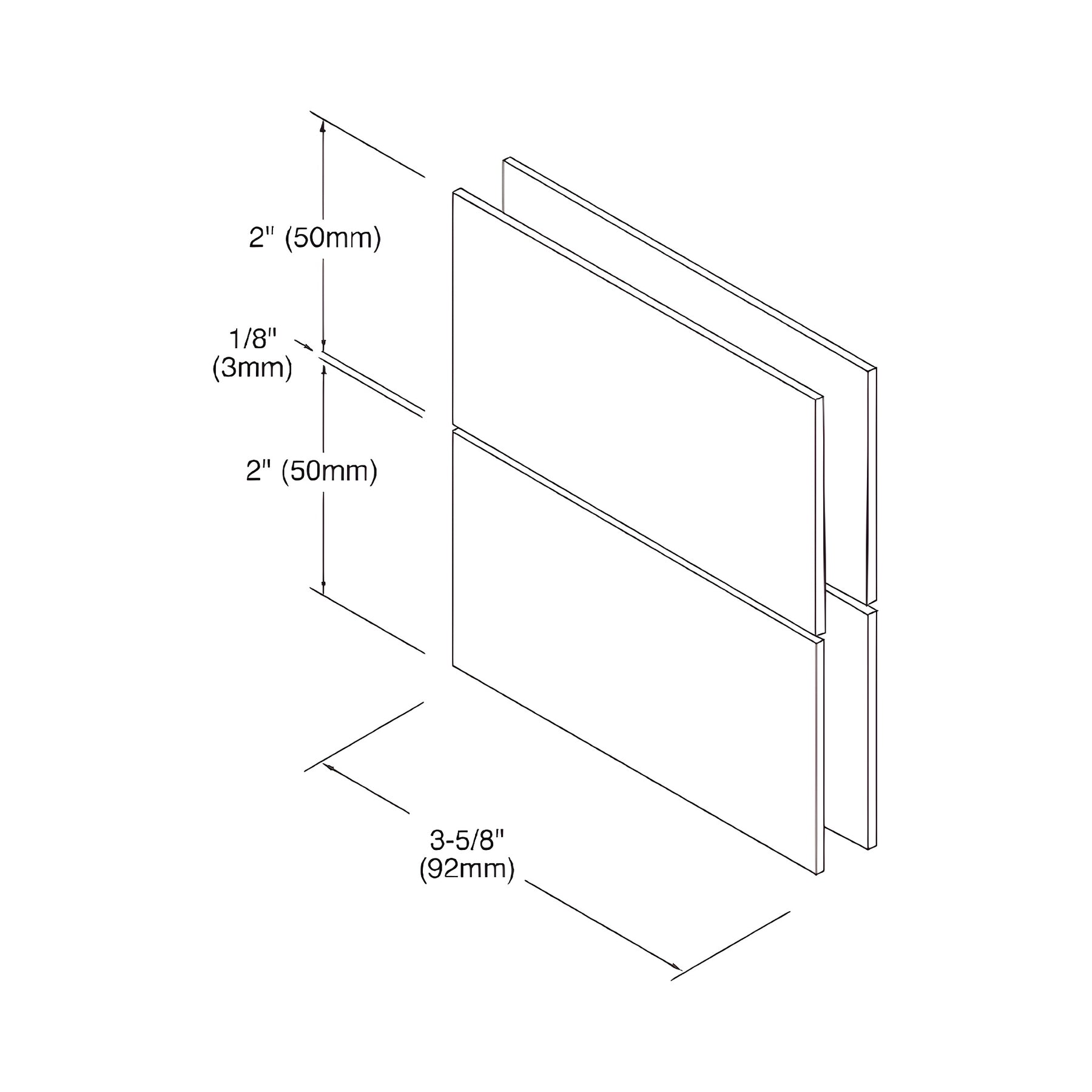

CRL Cardiff Oil-Rubbed Bronze Glass-to-Glass Shower Door Hinge

• Glass-to-Fixed Transom Mount — ideal for frameless shower enclosures
• Available in several beautiful finishes
• 3 Year Warranty
• Designed for use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application options for frameless shower doors. Pivot hinges transfer most weight to the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Cardiff Series is self-centering with four internal springs for maximum retention strength and full-rotation hinge swings. Optional 5º pre-set pivot pin sets are available to adjust the closing position; these may be installed before or retrofitted after installation. The Cardiff Series is compatible with the Deluxe Header System for enclosures that do not extend to the ceiling.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) — sold as a set of two (top and bottom). Not included with hinge purchase.

Performance using two hinges: With 5/16" or 3/8" glass (8 or 10 mm), two hinges will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design maximizes visible glass and reduces required cut-outs compared to standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass for durable, corrosion-resistant performance in shower environments
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patented: Patent No. 5,297,313

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge — cut-out dimensions may not match other brands.
