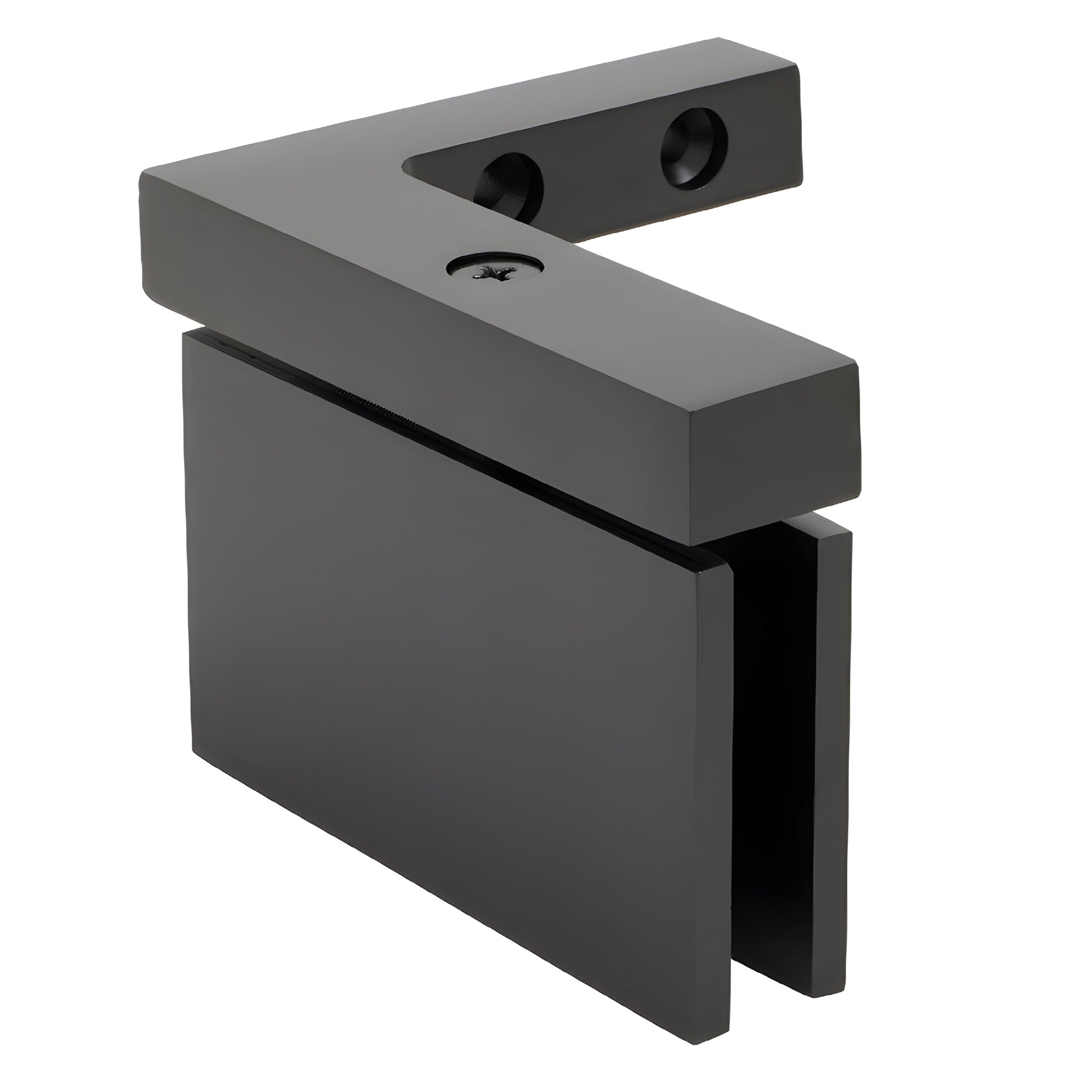

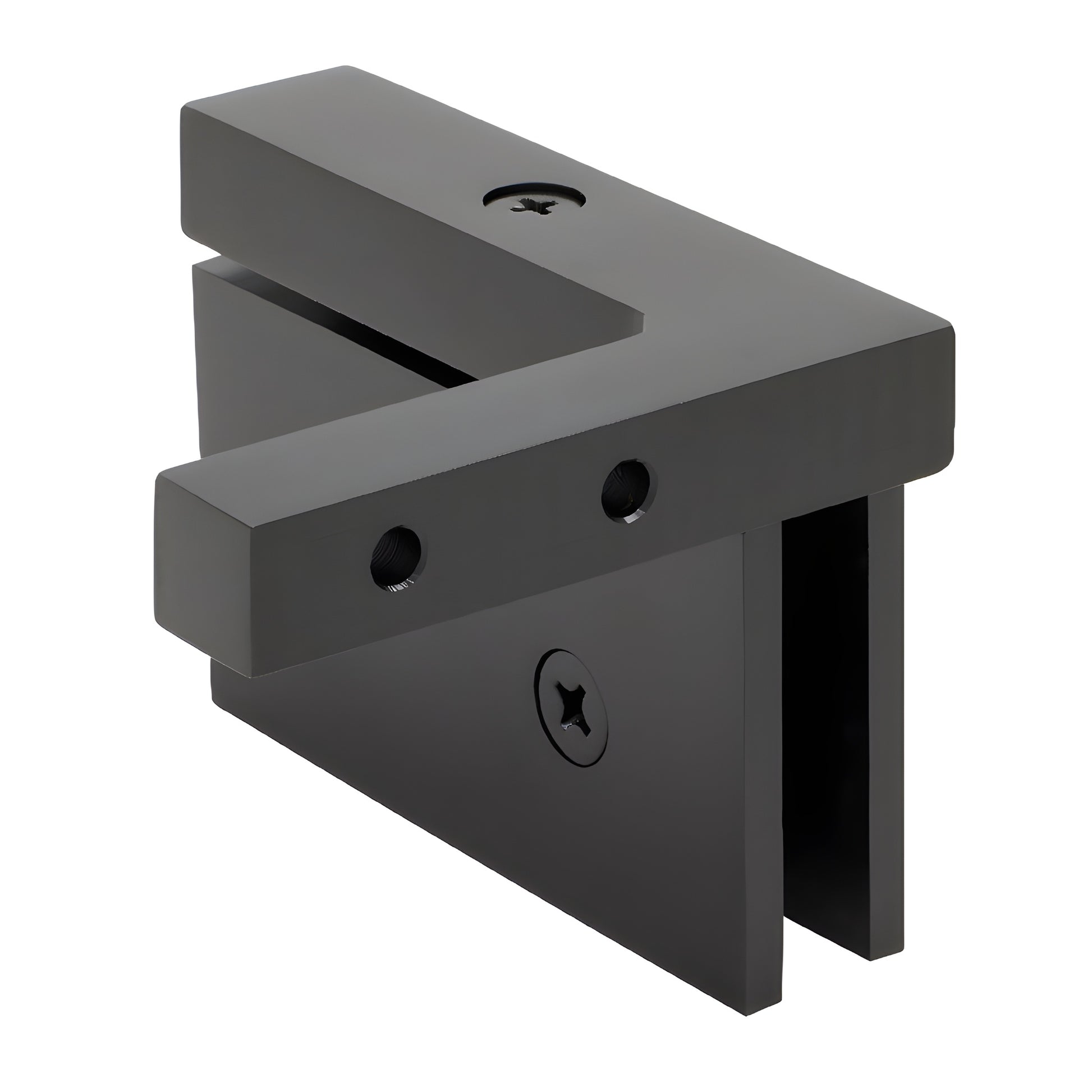

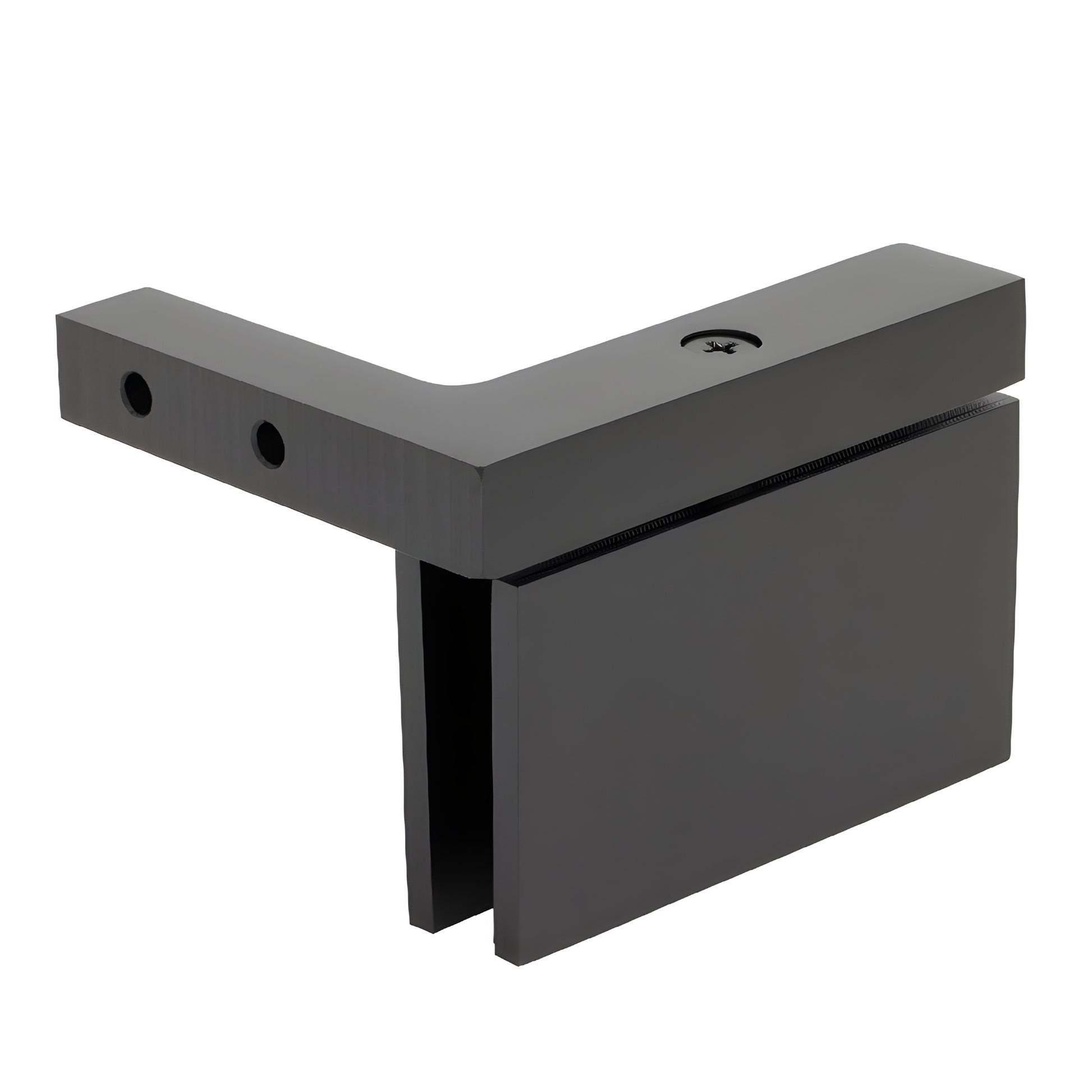

CRL Cardiff Left-Hand Mount Oil-Rubbed Bronze Door Hinge

• Offset Bracket Wall Mount — left-hand mount when viewed from outside the shower (SKU: CAR05L0RB)
• Available in several beautiful finishes
• 3 Year Warranty
• Designed for monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application possibilities for shower door pivot hardware. These solid brass pivot hinges are self-centering with four springs for maximum retention strength and carry most of the door weight on the bottom—ideal for inset installations that provide clearance for towel bars and other projections. The Cardiff Series is compatible with CRL’s Deluxe Header System for partial-height enclosures. Optional 5º pre-set pivot pin sets (sold separately) let you alter the door closing position by 5º and can be installed before or after mounting.

Using two hinges: With 5/16" or 3/8" glass (8 or 10 mm), two hinges will support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

NOTE: Optional 5º Pivot Pin Set for Cardiff, Prima, Rondo, and Shell Series is sold as a set of two (top and bottom) and is not included with hinge purchase.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
