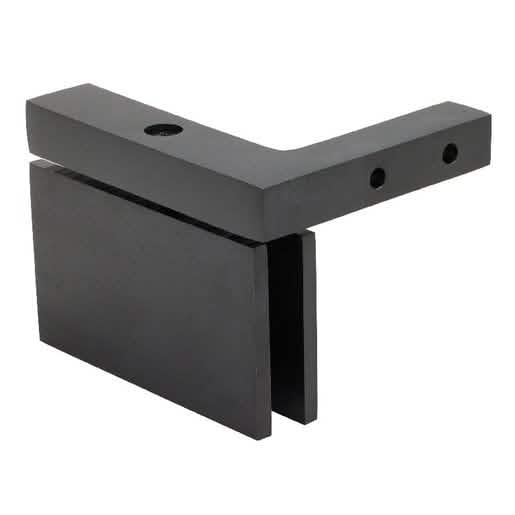

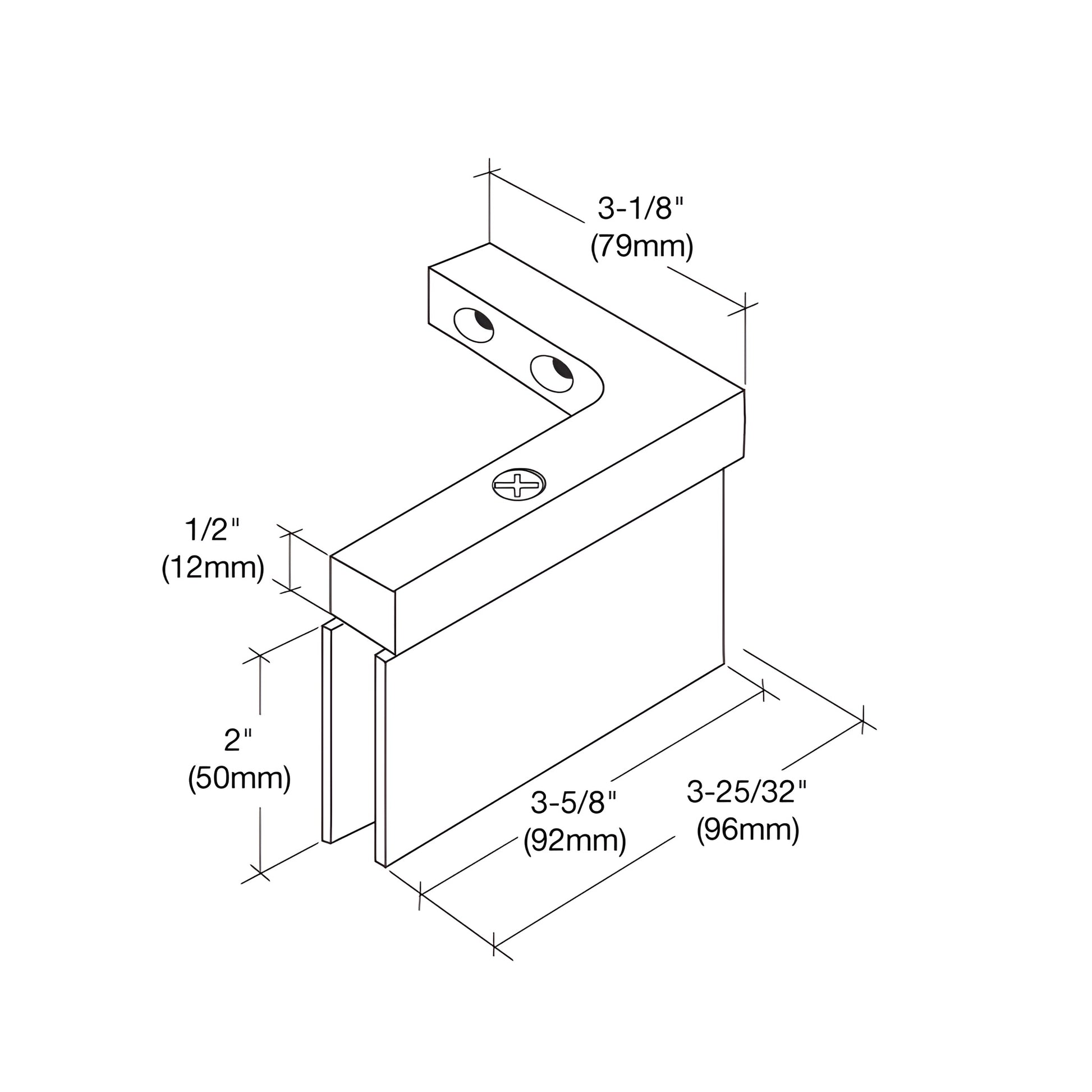

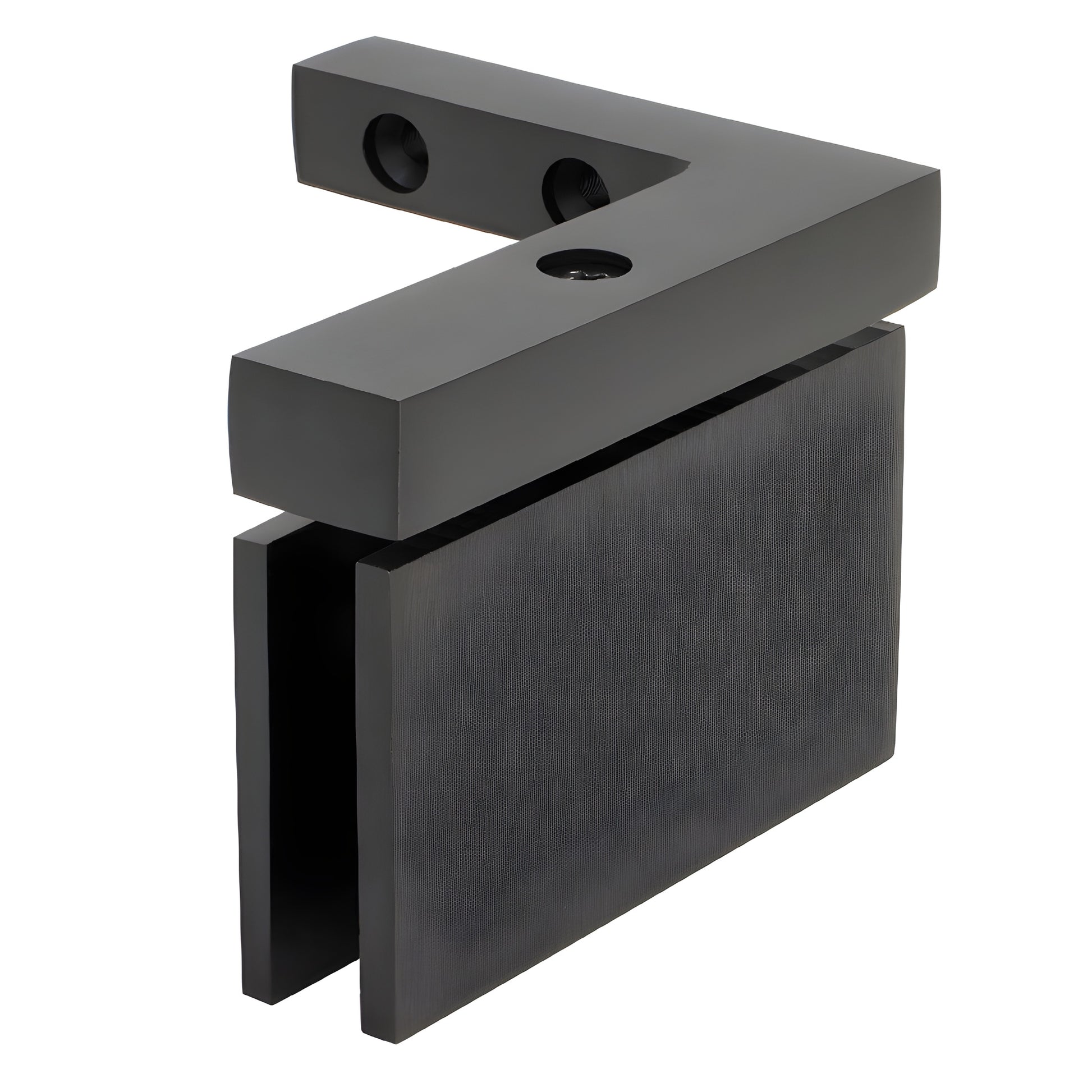

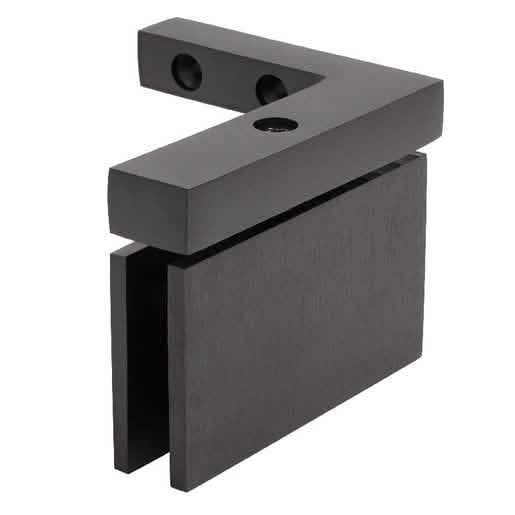

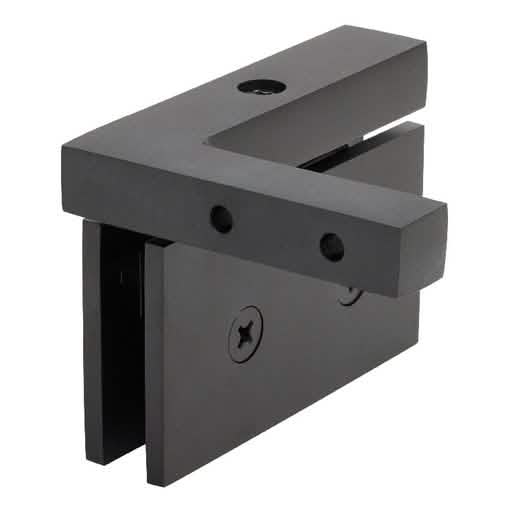

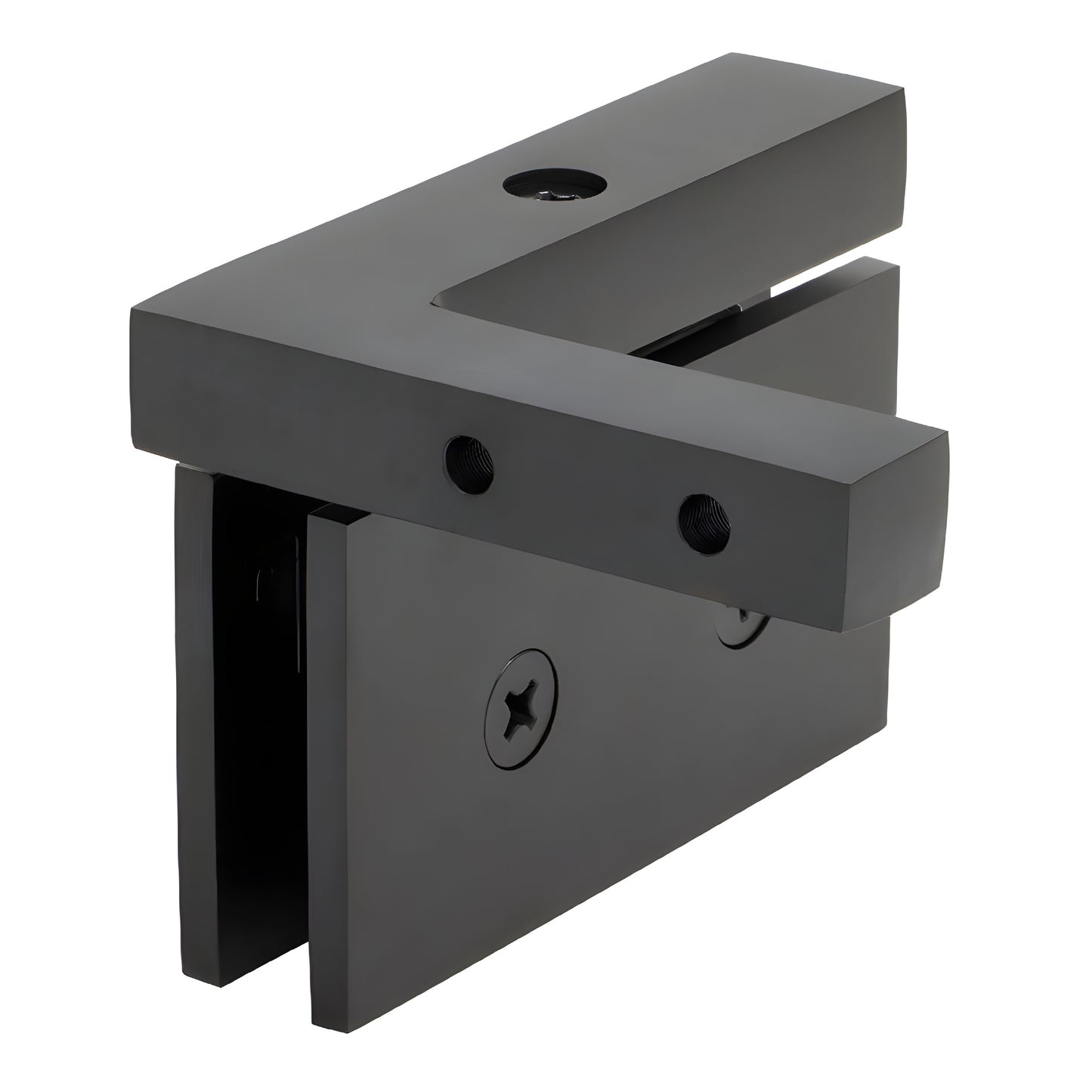

CRL Cardiff Series Oil-Rubbed Bronze Right-Hand Door Hinge

• Offset Bracket Wall Mount (Right hand mount when viewed from outside of shower)
• Available in several beautiful finishes
• 3 Year Warranty
• Use monolithic tempered glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges (SKU: CAR05R0RB) are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application options for residential and hotel shower enclosures. These brass pivot hinges carry most of the door weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections — a practical solution for frameless shower doors and custom glass shower installations. Cardiff hinges are self-centering with four springs for maximum retention strength and full rotation hinge swing. They are adaptable to CRL’s Deluxe Header System for partial-height enclosures.

Optional 5° Pre-Set Pivot Pin Set: Available separately to alter the closing position by 5°. Pivot pins can be installed before or retrofitted after hinge installation. Sold as a set of two (top and bottom); not included with hinge purchase.

Using two hinges: With 5/16" or 3/8" glass (8 or 10 mm), two hinges support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass and reduces the number of cut-outs compared to standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the included template — CRL cut-out dimensions may not match other brands.
