CRL
CRL Cologne 037 Oil-Rubbed Bronze Shower Door Hinge & Handle Set
Item# C0LS30RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Edge Profile
Beveled
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Maximum Door Width
36 in. (914 mm)
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Cologne
- Hinges for 5/16" to 1/2" (8 to 12 mm) glass — compatible with monolithic tempered shower glass
- Available in our most popular finishes for coordinating bathroom hardware
- All components packaged together in an easy-to-order shower hinge and handle set

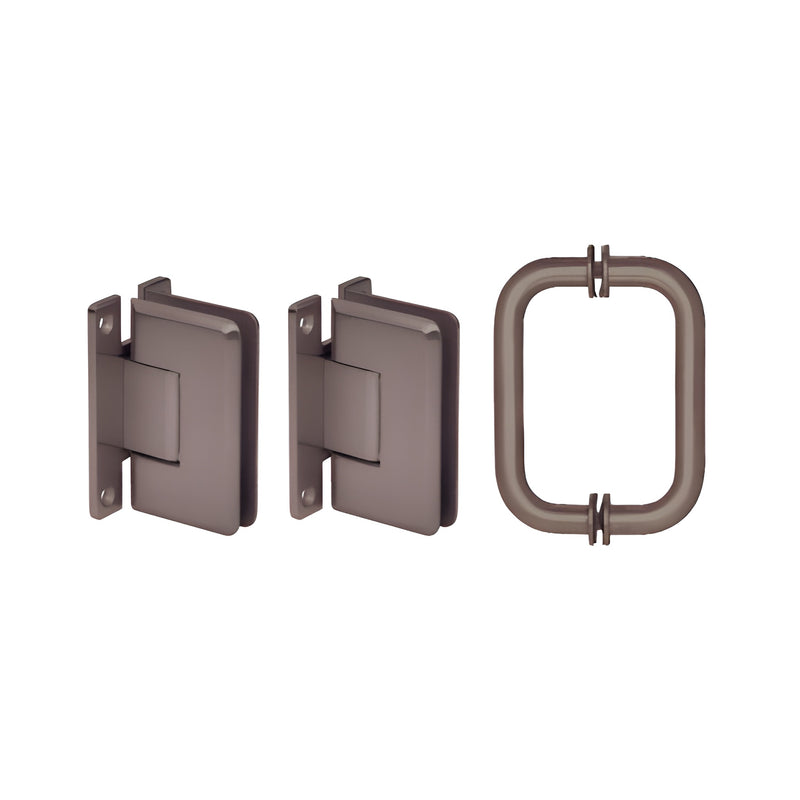

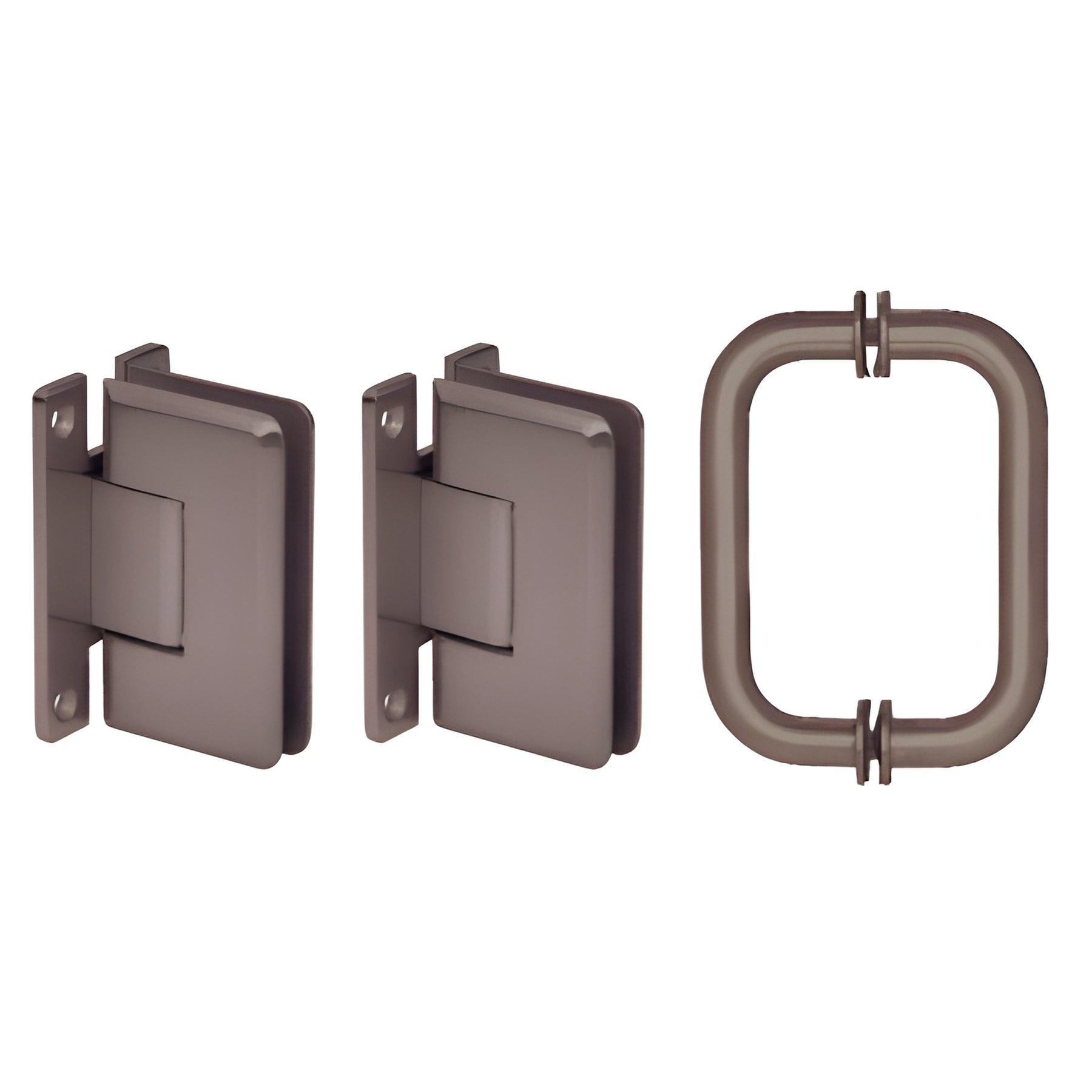

- Set contains two C0L037 wall-mount hinges and one BM6X6 pull handle set with metal washers
This ready-to-install shower hinge set (SKU C0LS30RB) combines two popular wall-mount hinges and a best-selling pull handle for a coordinated, easy ordering solution. Ideal for residential and hotel shower enclosures using monolithic tempered glass, the set streamlines installation and finish matching.
Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor settings.
Order SKU C0LS30RB now to get a matched shower hinge and pull handle kit for 8–12 mm tempered glass installations.
