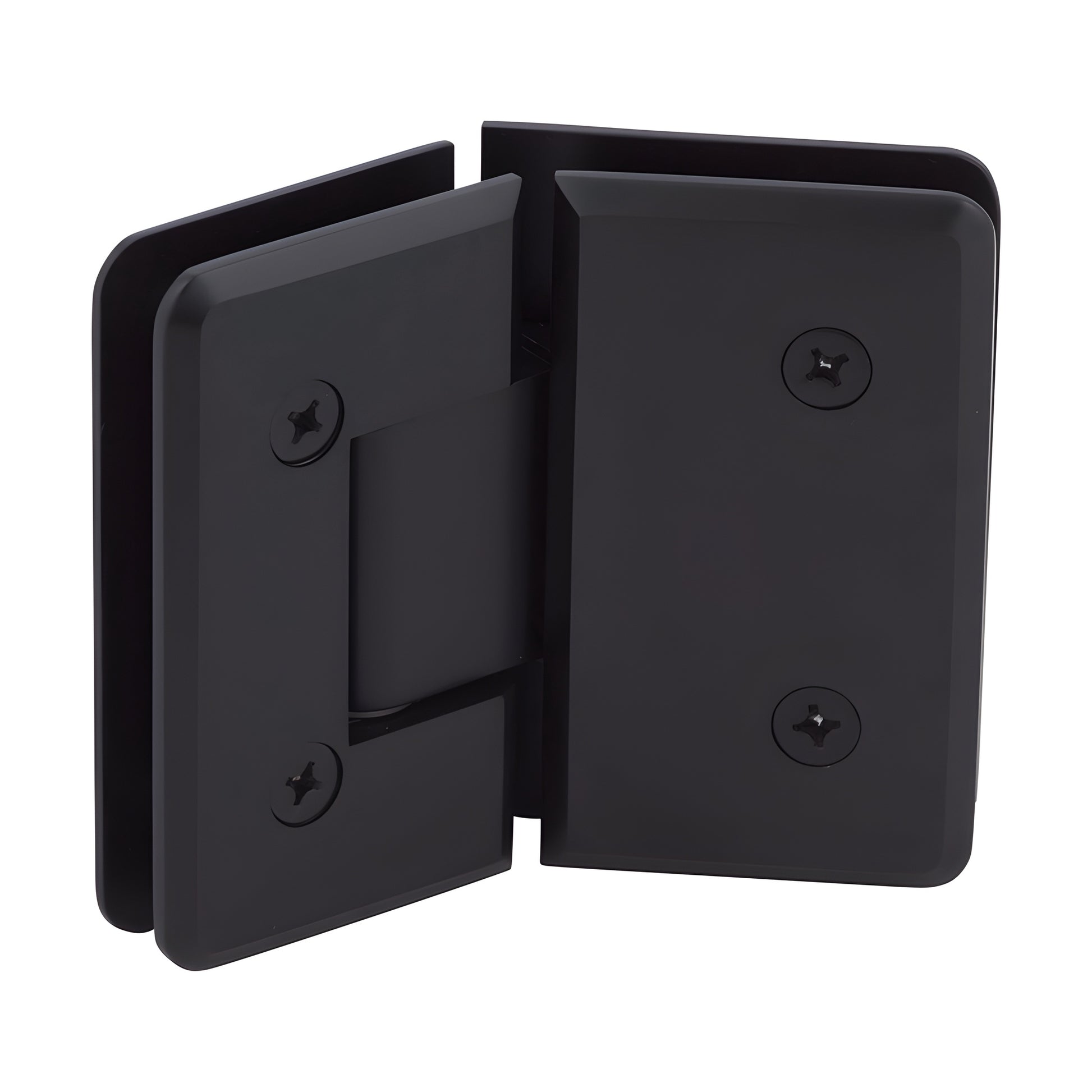

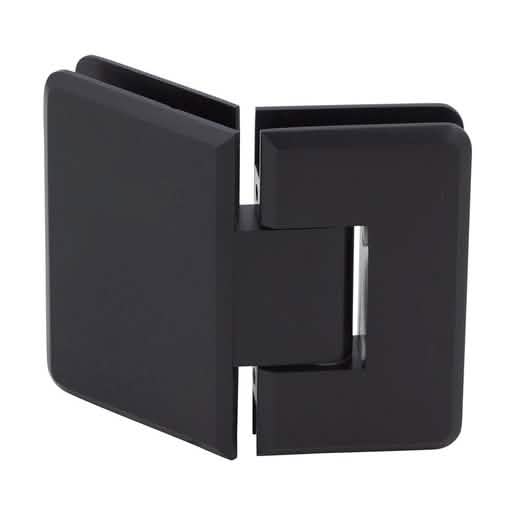

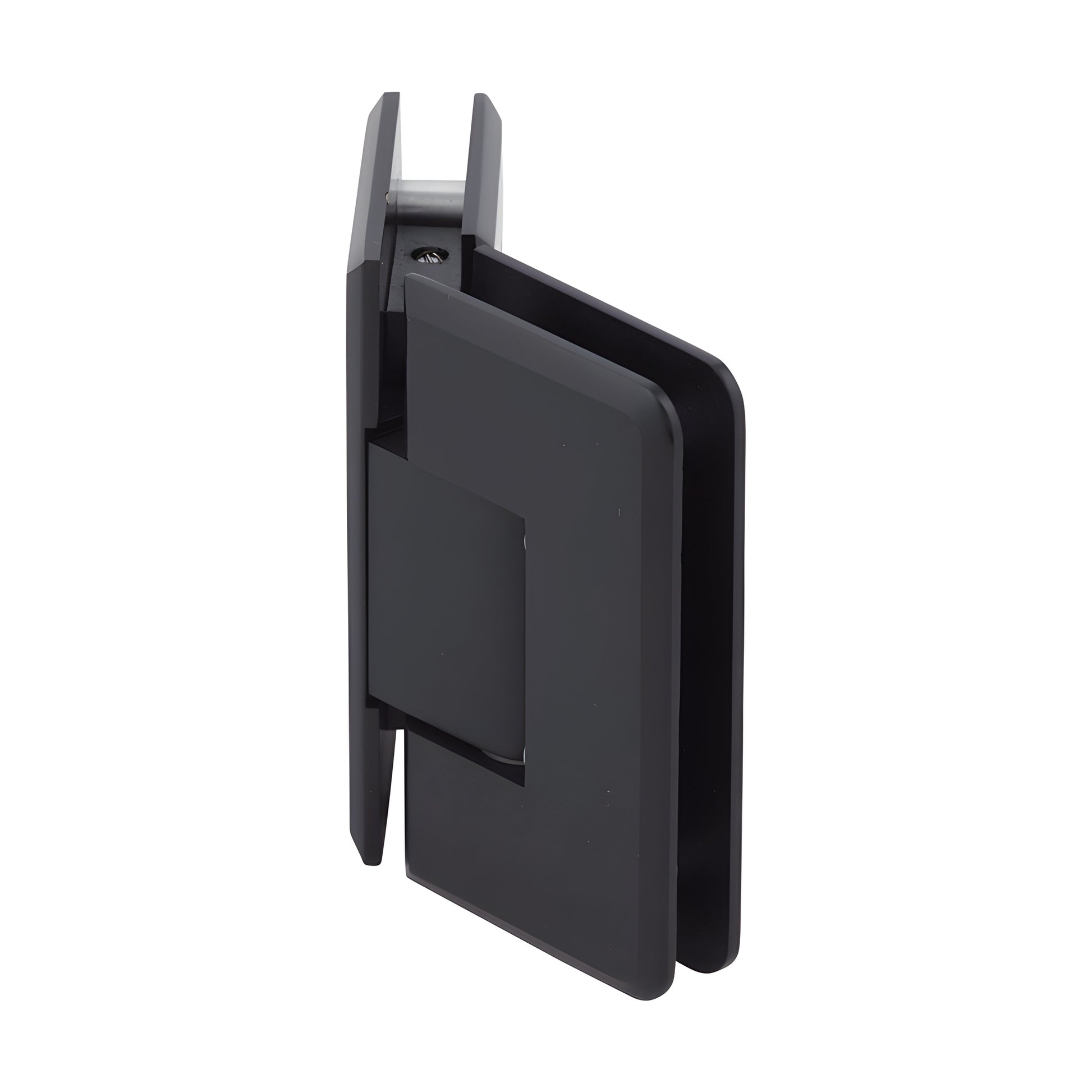

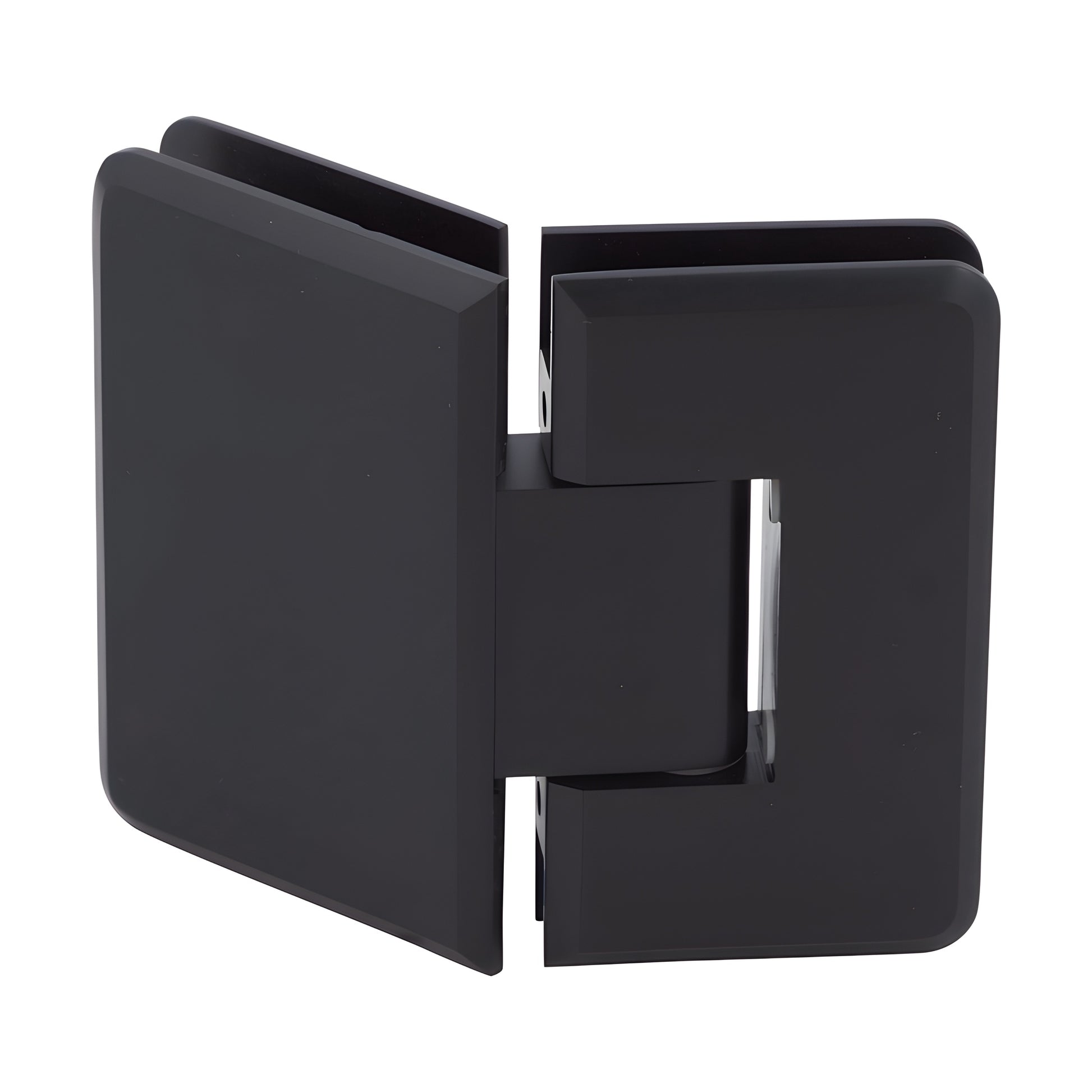

CRL Cologne 045 Oil Rubbed Bronze 135° Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 135º glass-to-glass applications
• Use with monolithic tempered safety glass

CRL Cologne Hinges deliver a sleek, premium alternative to Vienna hinges with radius corners and beveled edges. Built from solid brass for durability, Cologne Hinges are engineered for wider, heavier shower doors that standard hinges cannot support. Two internal steel pins provide mounting flexibility: leave both pins installed for CRL "mouse‑ears" cut-outs (safety for mouse‑ears), or remove them for increased adjustability to fit CRL rectangular, square‑cornered cut-outs and, in some cases, competitive rectangular cut-outs. SKU: C0L0450RB.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with 90º engaged; pre-set models ship with 85º for a 5º tighter closure into the shower interior. Rotate the pin (do not flip) to change the setting.

CUSTOM PIVOT PIN: Custom pivot pins are available to match off‑angle installations (specify required angle up to 45º) when the standard 5º adjustment is insufficient.

Capacity: Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg) for door widths up to 36" (914 mm). Using three hinges: supports up to 140 lbs (63 kg) for door widths up to 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out (centering action)
Closing Type: Self-centering when within 15º of the closed position
Cut-Out Required: Except C0L092 — which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available upon request via the CRL Technical Sales Department. These hinges are ideal search queries: "shower door hinge for tempered glass", "heavy duty brass shower hinge 3/8 to 1/2 inch", and "adjustable pivot shower hinge SKU C0L0450RB".
