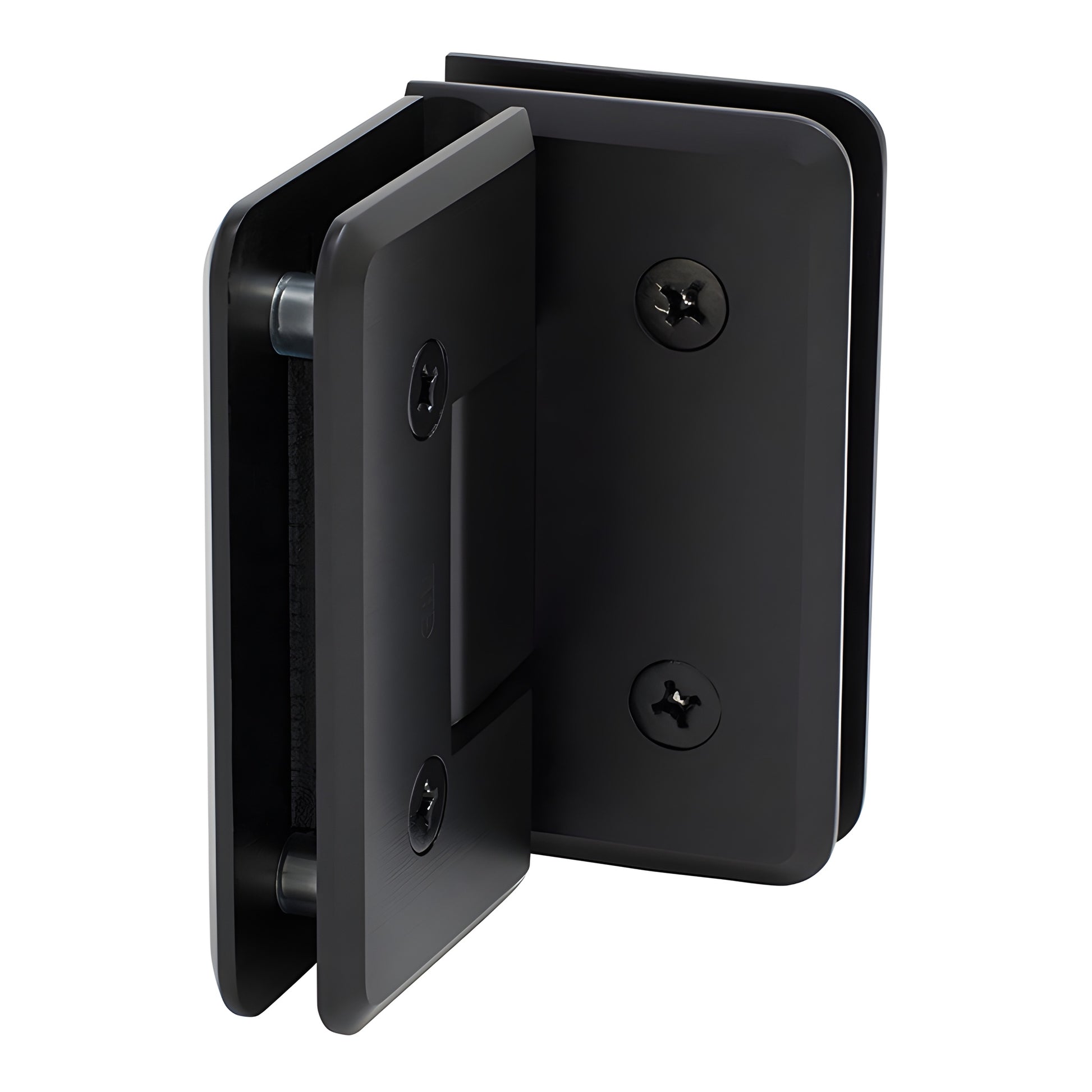

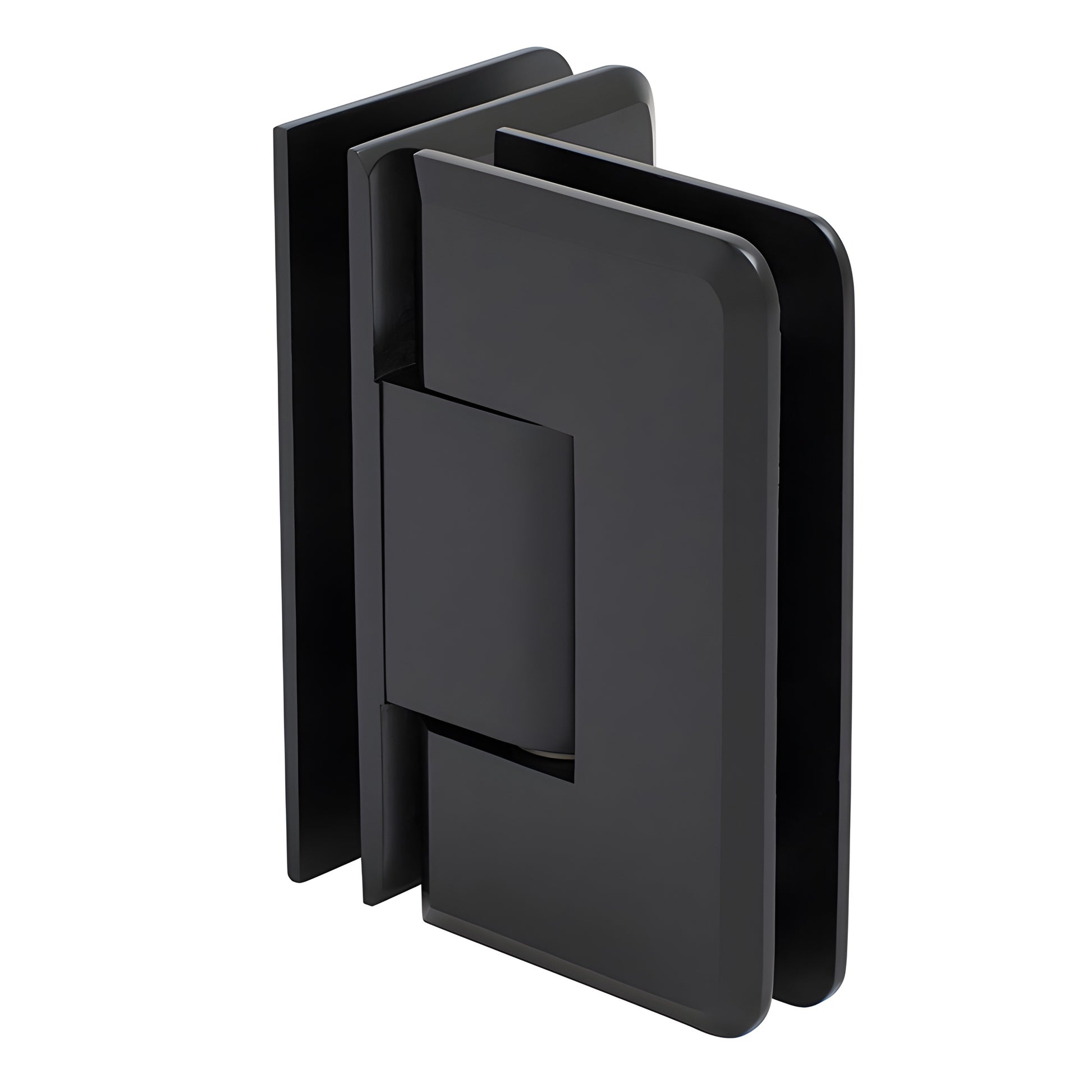

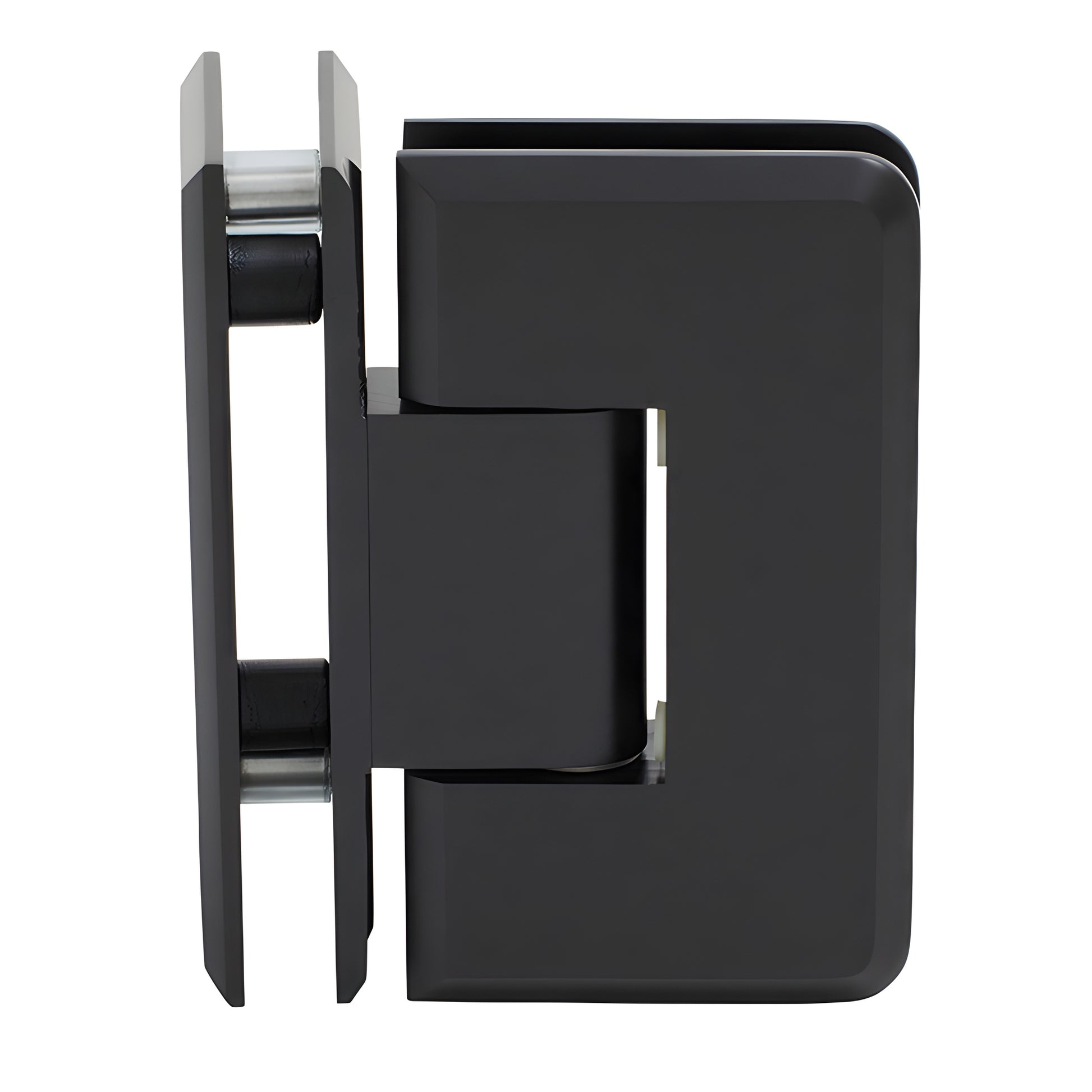

CRL Cologne 092 Oil-Rubbed Bronze 90° Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 90º Glass-to-Glass
• Use Monolithic Tempered Glass

CRL Cologne Hinges (SKU: C0L0920RB) — premium glass shower door hinge engineered for wider, heavier doors. Similar to Vienna hinges but with radius corners and beveled edges for a sleek, modern look. Built as a solid brass shower door hinge with internal steel pins for flexible mounting and enhanced strength.

Key Differentiators

• Radius corners + beveled edges for refined aesthetics
• Internal dual steel pins allow use with CRL "mouse-ears" or rectangular cut-outs
• Reversible Pivot Pin (90º standard / 85º preset option) for adjustable closing action
• Custom Pivot Pins available up to 45º for off-angle wall installations

Mounting & Load Capacity

• Two-hinge installation (3/8"–1/2" glass): supports up to 110 lbs (50 kg); max door width 36" (914 mm)
• Three-hinge installation (3/8"–1/2" glass): supports up to 140 lbs (63 kg); max door width 36" (914 mm)

STANDARD REVERSIBLE PIVOT PIN: One side marked 90º and the opposite marked 85º. Standard models ship with 90º active; Pre-Set models ship at 85º. Rotate (do not flip) the pin to change the active angle.

CUSTOM PIVOT PIN: Specify custom angles up to 45º to accommodate non-90º wall/door conditions when the standard 5º adjustment is insufficient.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Except C0L092 which requires cut-out for door plus two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request through the CRL Technical Sales Department.

Product Warning:

CRL shower door hinges are intended for residential or hotel shower use only. For alternative applications, obtain approval from CRL Shower Door Technical Sales.
