- Top Loading Gasket
- Fits 3/8" and 1/2" Glass
- Available in Several Beautiful Finishes
This

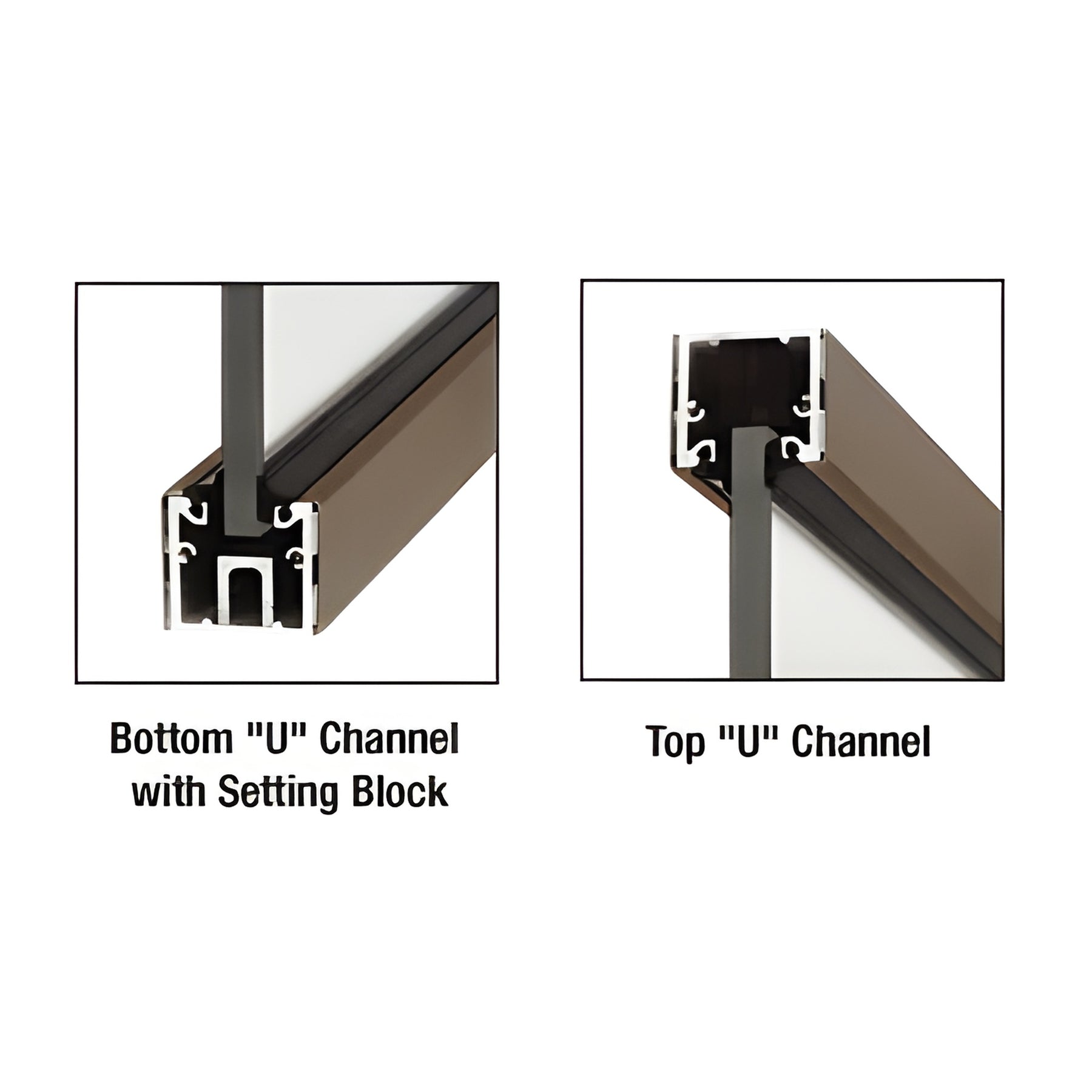

CRL U-Channel with Roll-In Top Load Gasket
was designed to be used with 3/8" or 1/2" (10 or 12 mm) glass in conjunction with our Patch Hardware, or our Header for Overhead Door Closers with Fixed Sidelites and even our Door Rail System. The design allows it to be surface or recess mounted, with the Top Load Gasketing securing the glass. This multi-functional extrusion comes in five different finishes, and has a family of accessories that facilitate different installations.
The 4" (102 mm) long

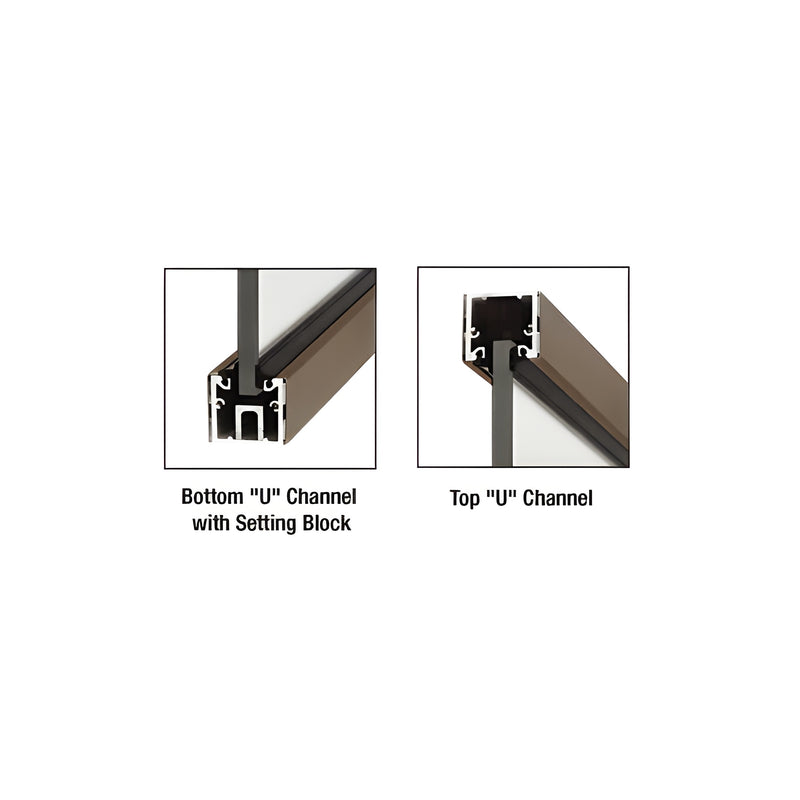

Aluminum Setting Blocks with Neoprene
on the top provide a rigid glass support in the Bottom Channel. They are the proper height to provide 9/16" (14.3 mm) glass coverage in both the Top and Bottom Channels when glazed with the "lift and drop method.
Roll-In Top Load Gasketing
for 3/8" or 1/2" (10 or 12 mm) glass is sold separately in 100' or 500' rolls. End Caps in matching finishes are also available.
Product Warning
Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze Finish are inspected at our facilities prior to packaging and shipping. Within two days of receipt of these products you are advised to open the package, remove all of the protective wrap from the product, then inspect the product thoroughly. You must report any damage or irregularity of the finish to CRL immediately. Please be advised that CRL will not be held liable for damages reported at a later date.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
