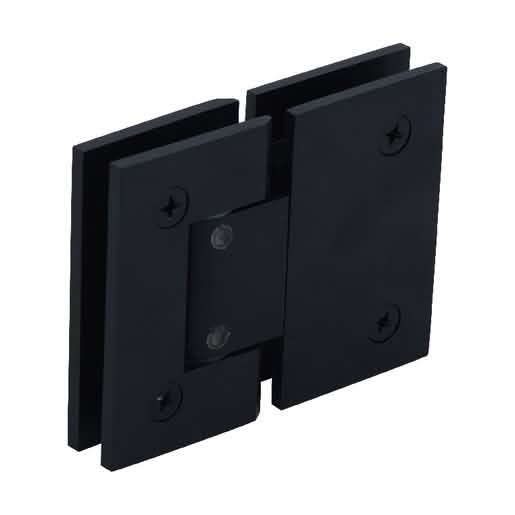

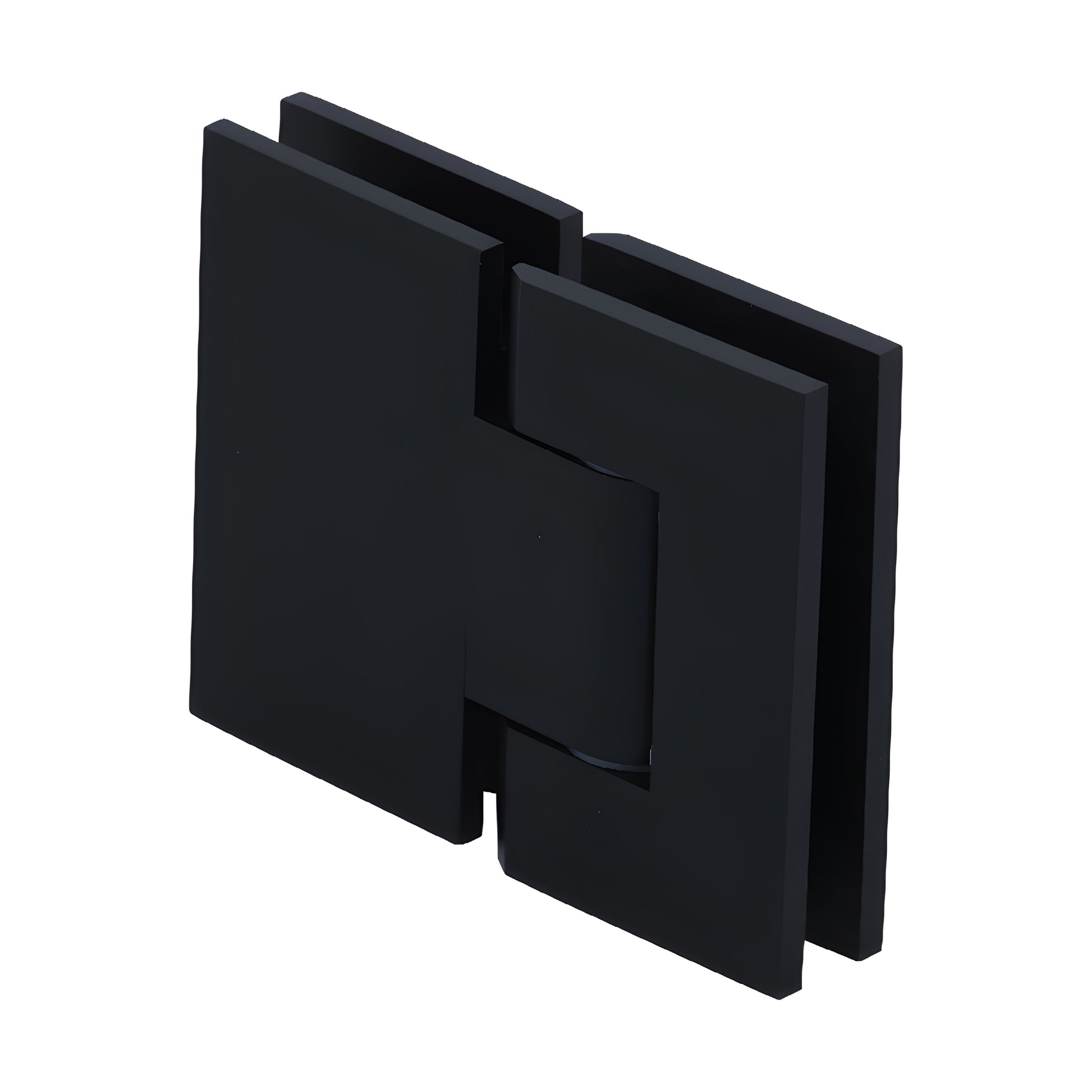

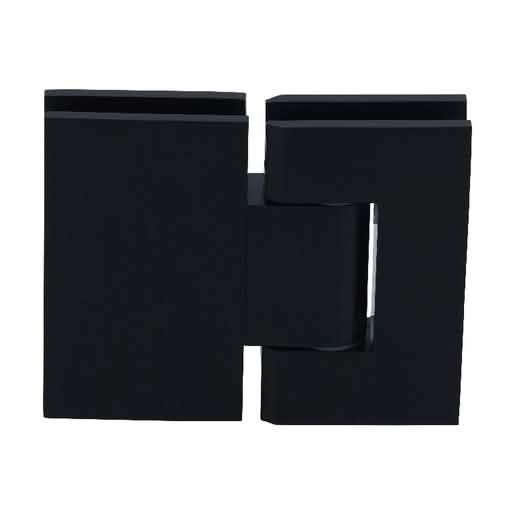

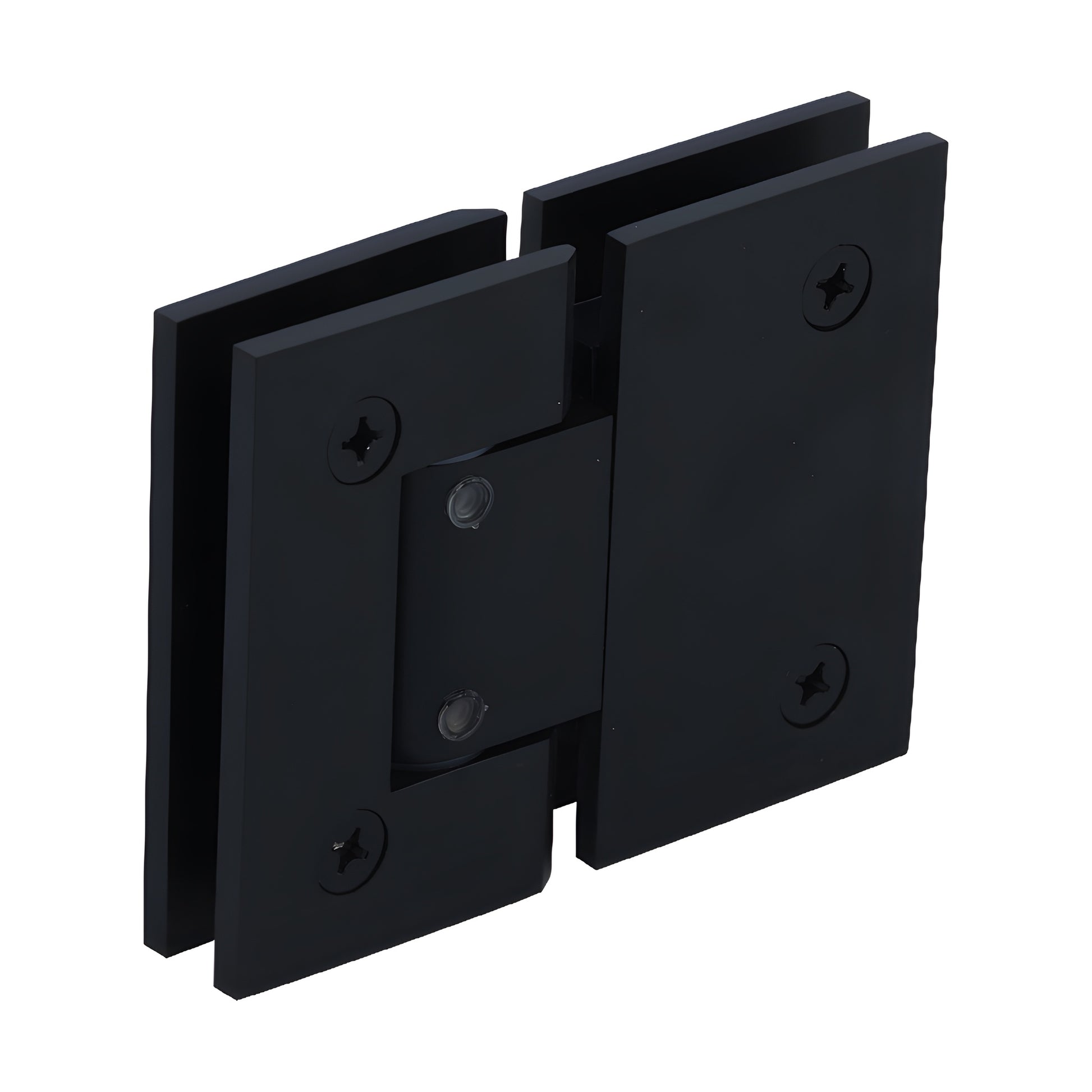

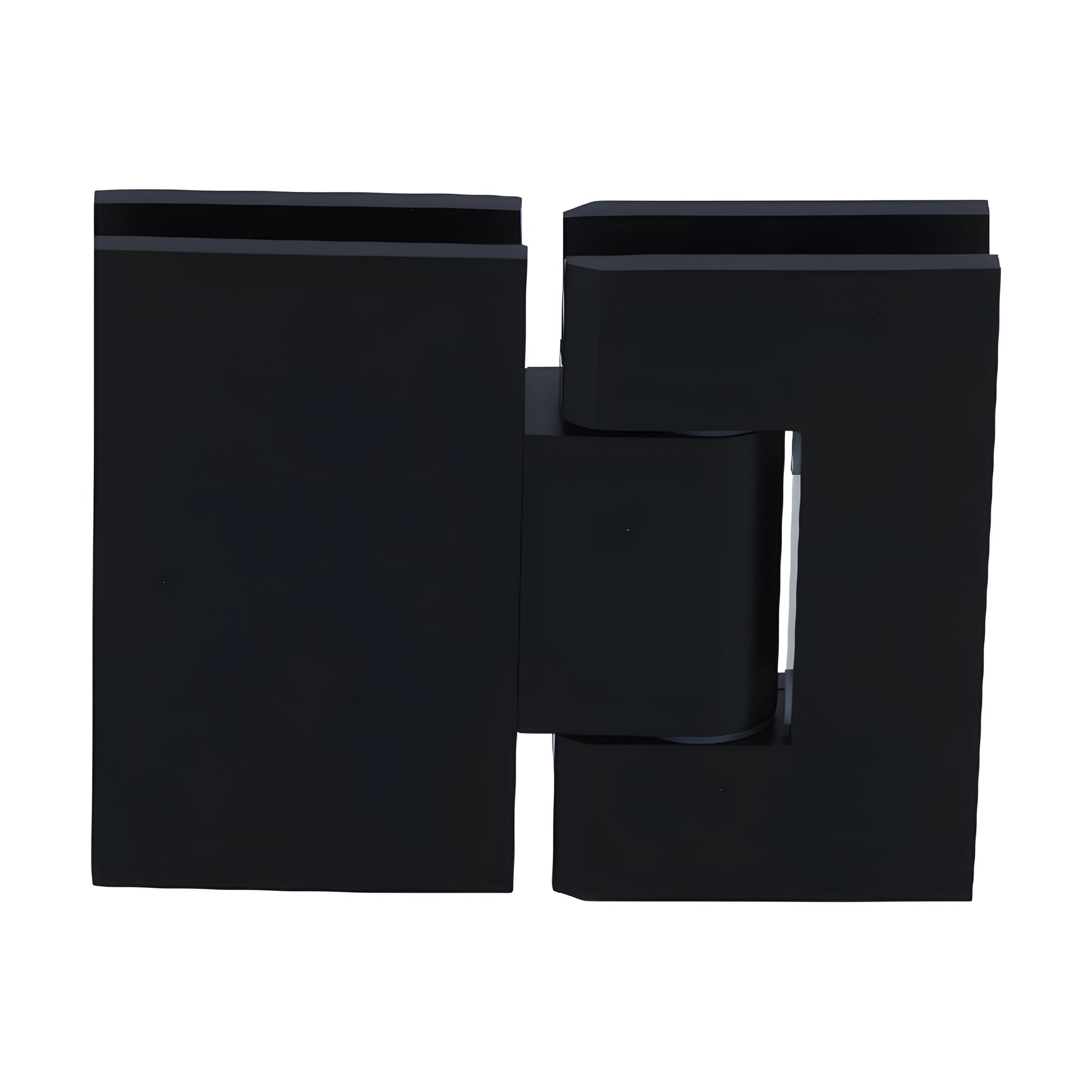

CRL Oil Rubbed Bronze Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

CRL Oil Rubbed Bronze Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

$202.52 CAD
$202.52 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# GEN3800RB
Shipping Weight: 2.61 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

5 Degree Pre-Set NoYes
EdgeProfile Square
Finish/ColorOil Rubbed Bronze
Glass To Glass Angle180

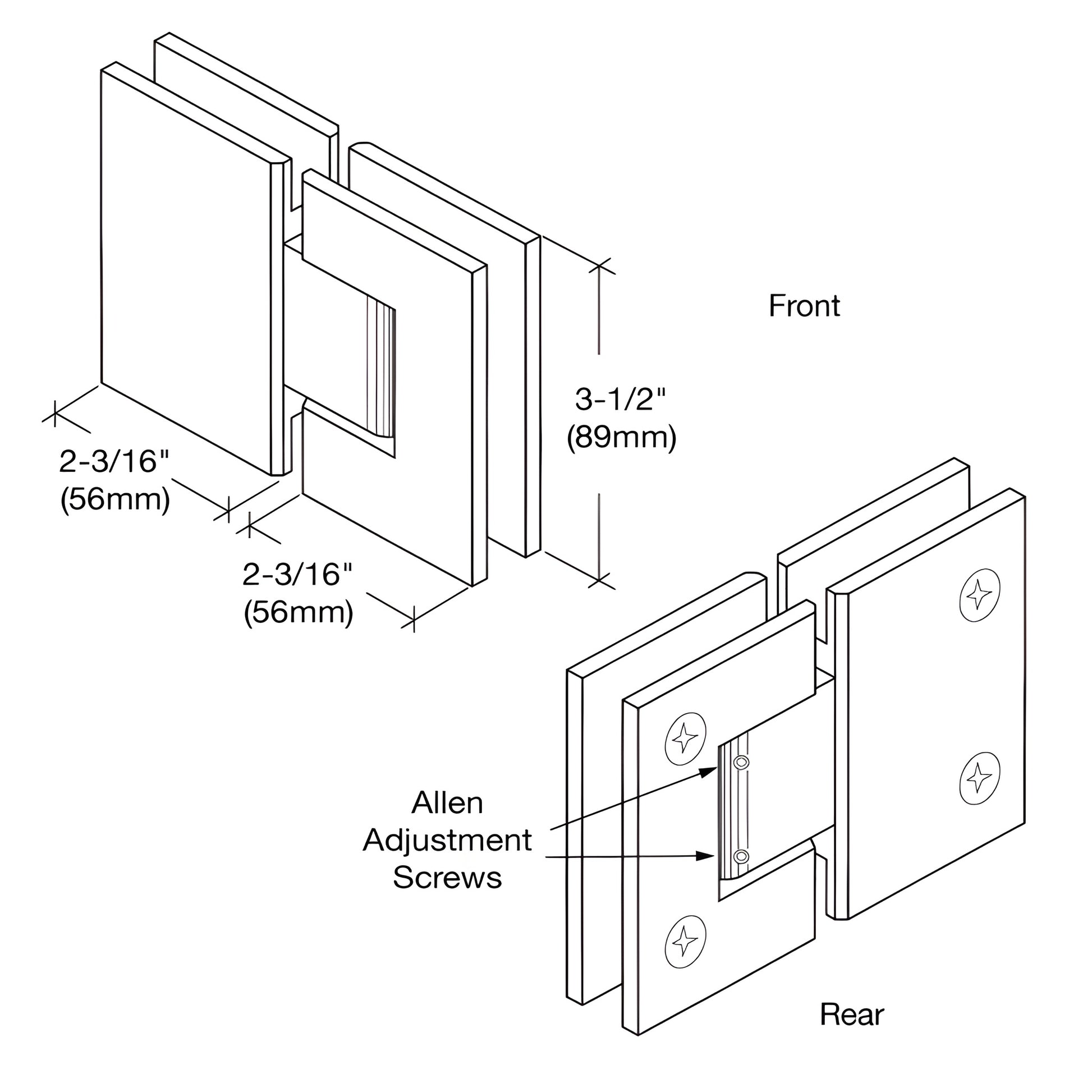

Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)
Height 3-1/2 in.(89 mm)
MaterialBrass
Maximum Door Weight - 2 Hinges 80 lbs.(36.3 kg)
Maximum Door Weight - 3 Hinges 120 lbs.(54.4 kg)
Maximum Door Width -2 Hinges 28
Maximum Door Width -3 Hinges 32
MountingType Glass To Glass
Self-Centering YesGeneva
Width - Door Portion 2-3/16 in.(56 mm)
Width - Sidelite Portion2-3/16

Overview

The CRL Adjustable Geneva Series elevates the popular Geneva Hinge with enhanced adjustability, offering angles up to 90 degrees without removing the door.
This innovative hinge, available in various stunning finishes, ensures a seamless installation with a three-year warranty.
Designed for use with monolithic tempered glass, it supports up to 80 lbs with two hinges and up to 120 lbs with three hinges, accommodating glass thicknesses of 5/16" to 1/2".
Ideal for residential or hotel showers, the hinge boasts self-centering capabilities and comes with necessary installation hardware, while custom finishes can be requested for tailored aesthetics.
Contact CRL for technical support and ensure proper template use for optimal installation.
