CRL

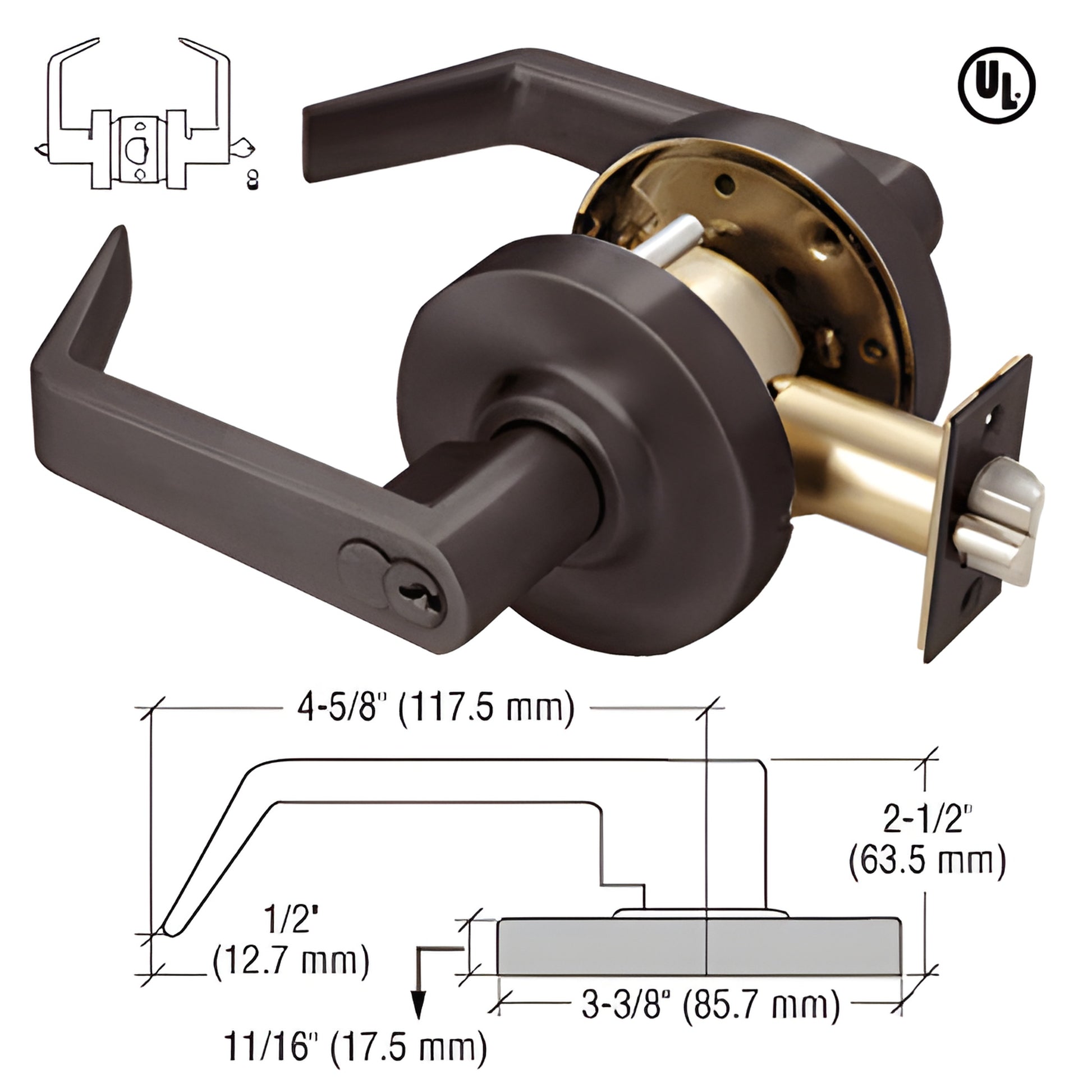

CRL Oil-Rubbed Bronze Grade 1 Commercial Entrance Lever Lockset, 7-Pin SFIC

CRL Oil-Rubbed Bronze Grade 1 Commercial Entrance Lever Lockset, 7-Pin SFIC

Regular price $226.54 CAD
Regular price Sale price $226.54 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# D62ENT0RB
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Oil Rubbed Bronze
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes

Overview

  • 7-Pin SFIC Keyway (Small Format Interchangeable Core)
  • Clutch Feature — Grade 1 (anti-torque protection)
  • ANSI A156.2 Grade 1 and Grade 2
  • 3-Year Warranty
  • UL Listed, 3-hour fire rating

These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible. The Grade 1 clutch feature disengages the outer lever when the latch is locked to prevent latch failure from excessive torque attempts. Ideal for commercial doors requiring high-security lever locksets with SFIC or Schlage® C keyways.

These locksets are UL Listed with a 3-hour fire rating and fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset. Available with a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike.

Entrance function: Push-button on the inside locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. Inside lever always allows free egress.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are of the actual item or a close representation; colors may vary by monitor.

SKU: D62ENT0RB

Buy now for a commercial-grade, fire-rated lever lockset with SFIC 7-pin security.
