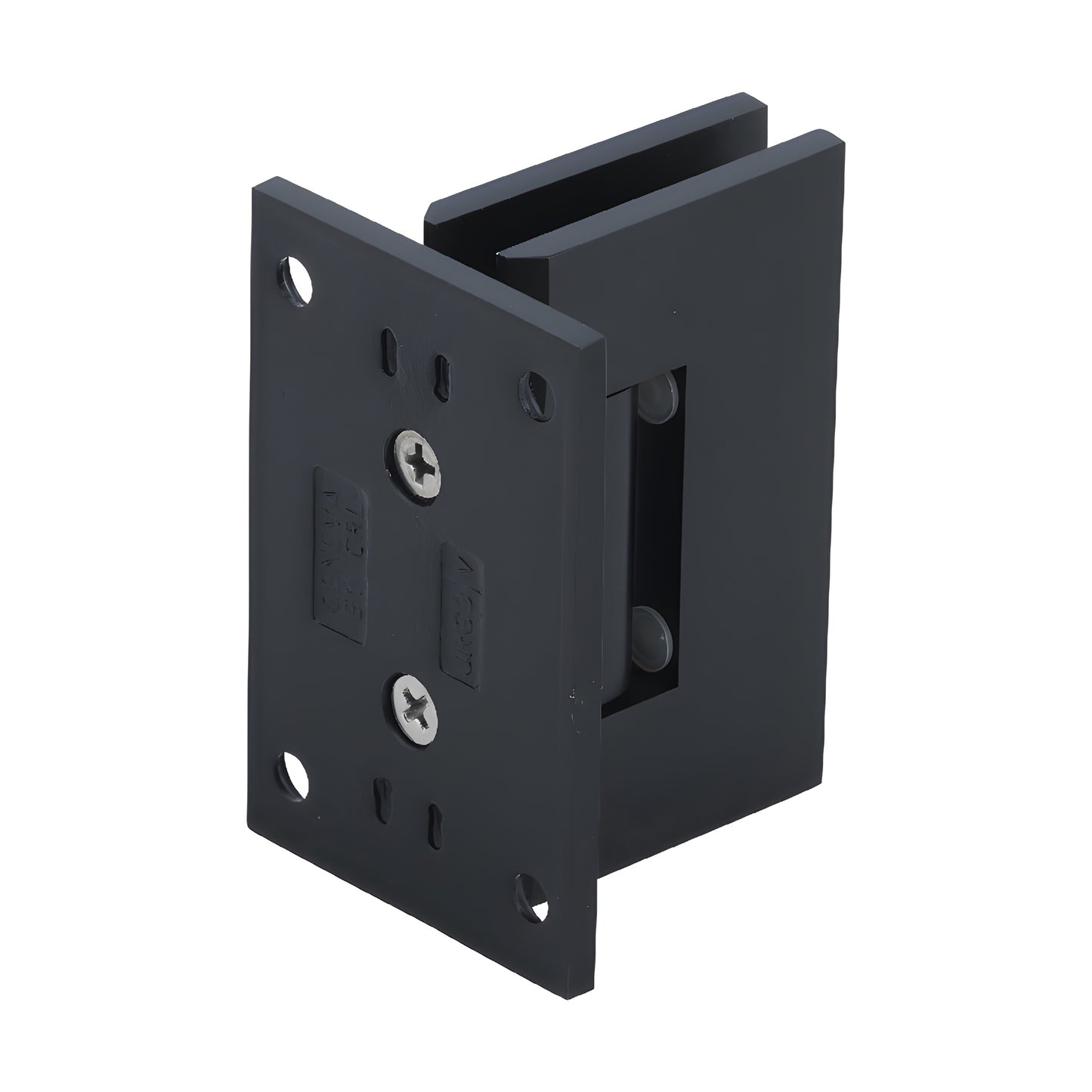

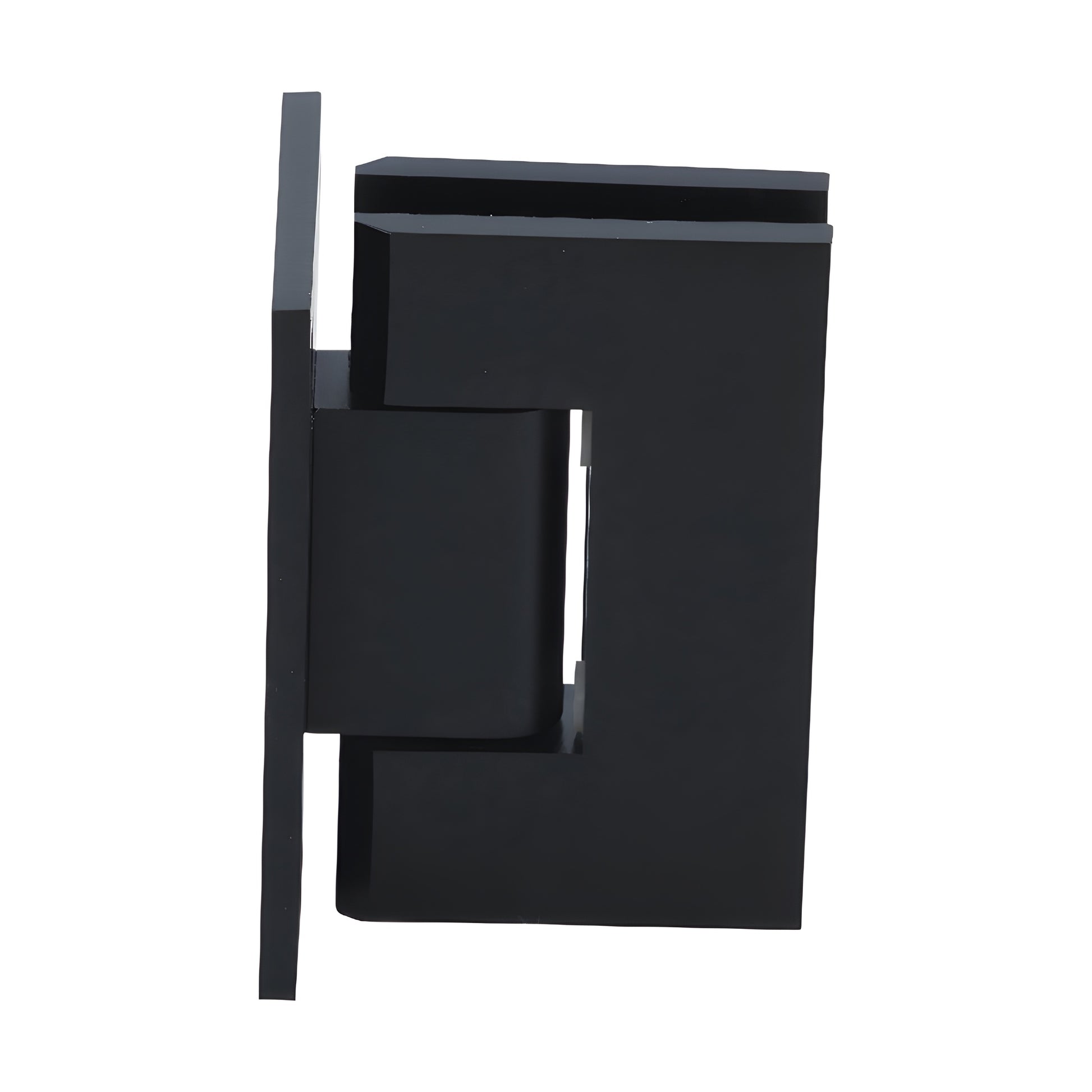

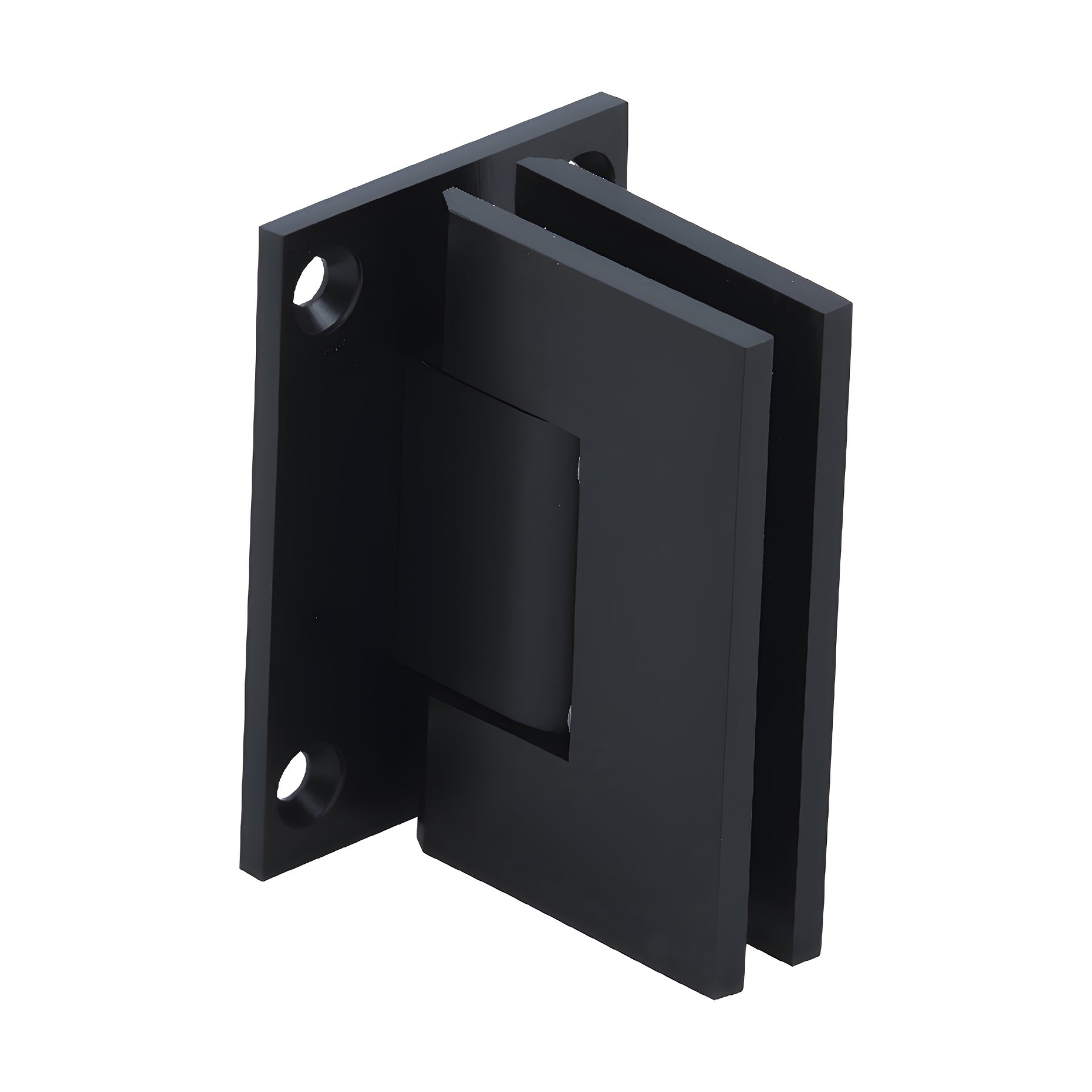

CRL Oil Rubbed Bronze Geneva 037 Wall-Mount Backplate Door Hinge

• Our Most Popular Hinge Series for 1/4" to 5/16" (6 to 8 mm) Thick Glass
• Wall-Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
• Self-Centering with Reversible 5° Pivot Pin
• Available in Several Beautiful Finishes (up to 12 stock finishes)
• 3 Year Warranty
• Use Monolithic Tempered Safety Glass

The same elegant European design that made the Geneva Series popular is available in a smaller, versatile model: the Junior Geneva (SKU: JRG0370RB). Designed for 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass, this solid brass wall-mount shower door hinge suits residential and hotel shower enclosures. Choose from three wall-mount styles or 90°, 135°, and 180° glass-to-glass configurations. The hinge is self-centering and includes a reversible pivot pin to enable a tighter 5° door closure when needed—ideal for precise shower door alignment.

Standard Reversible Pivot Pin: Each Junior Geneva hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Rotate the pin (do not flip) to engage the 5° tighter closing position for improved seal and fit.

Custom Pivot Pins: For off-angle installations, custom pivot pins are available up to 45° to accommodate walls that don’t meet the door at 90°.

Load Ratings:

• Using two hinges (6–8 mm glass): holds up to 62 lbs (28 kg); maximum door width 28" (711 mm).
• Using three hinges (6–8 mm glass): holds up to 92 lbs (42 kg); maximum door width 32" (813 mm).

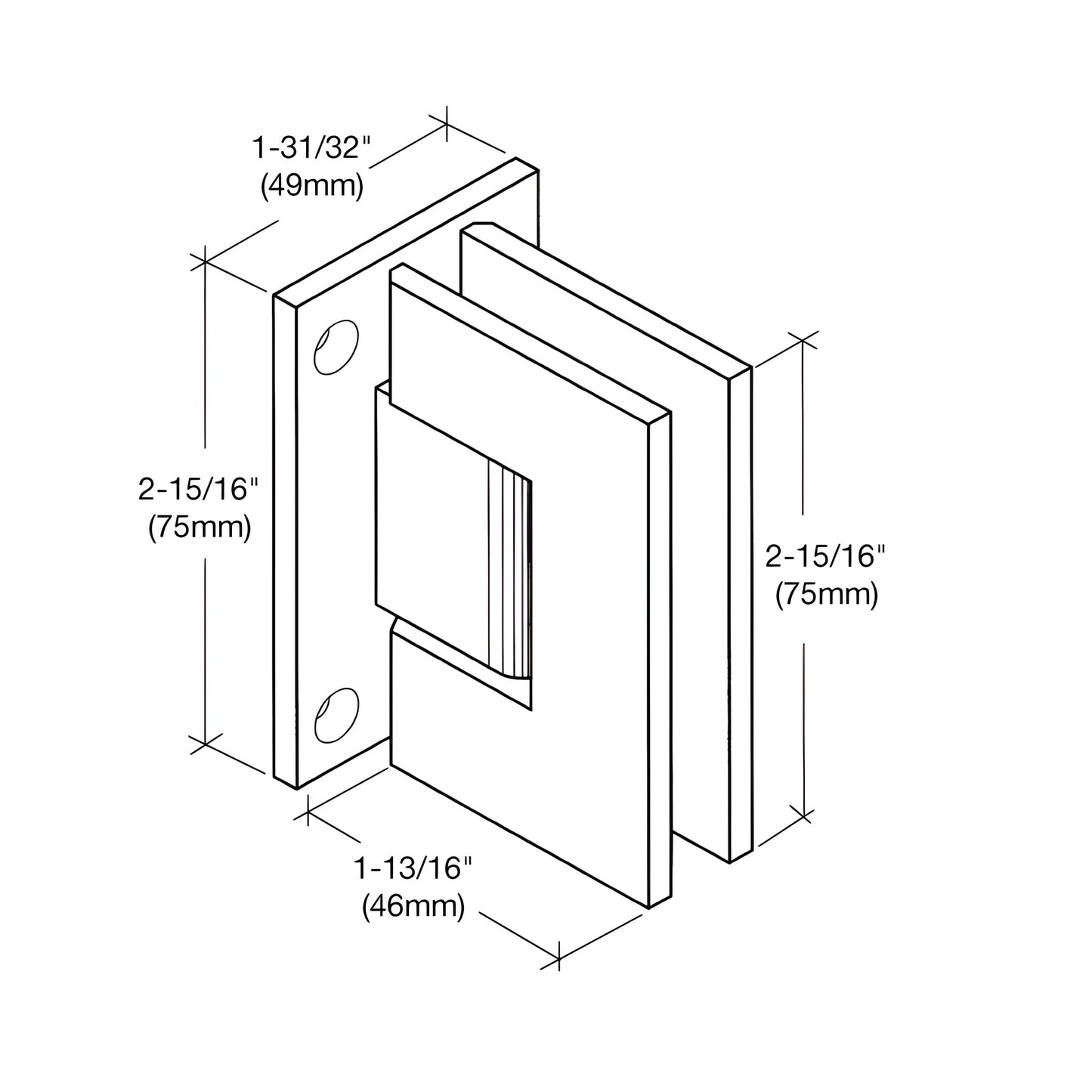

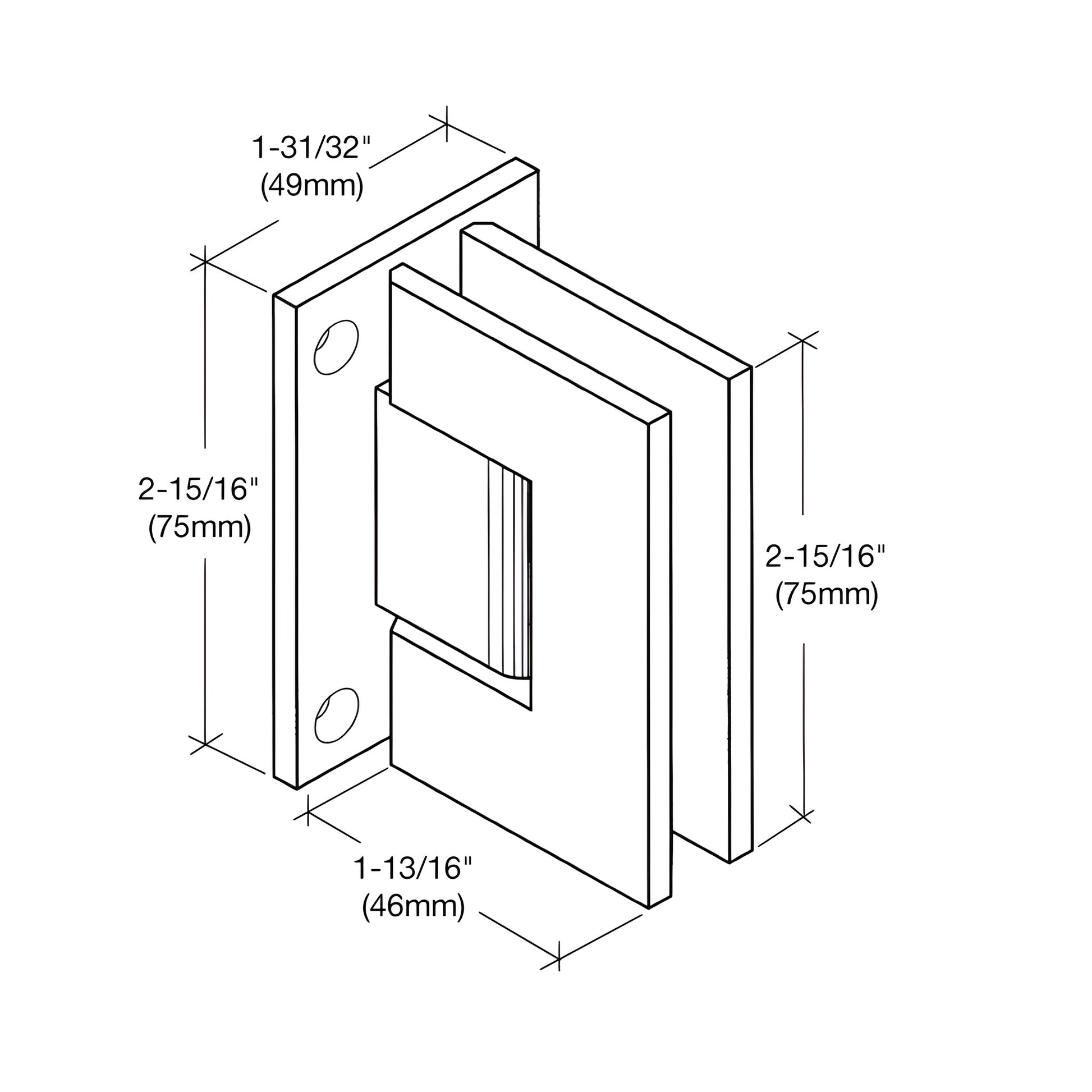

Specifications:

• Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass
• Special Features: Choice of Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter closure. All models include a reversible 5° pivot pin.
• Construction: Solid brass
• Hinge Swings: 90° in and 90° out
• Closing Type: Self-centering within 15° of closed position
• Includes: Gaskets, screws, and glass fabrication dimensions
• Cut-Out: Template required — use only the template included with this hinge (cut-out dimensions may differ from other brands)

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department.
