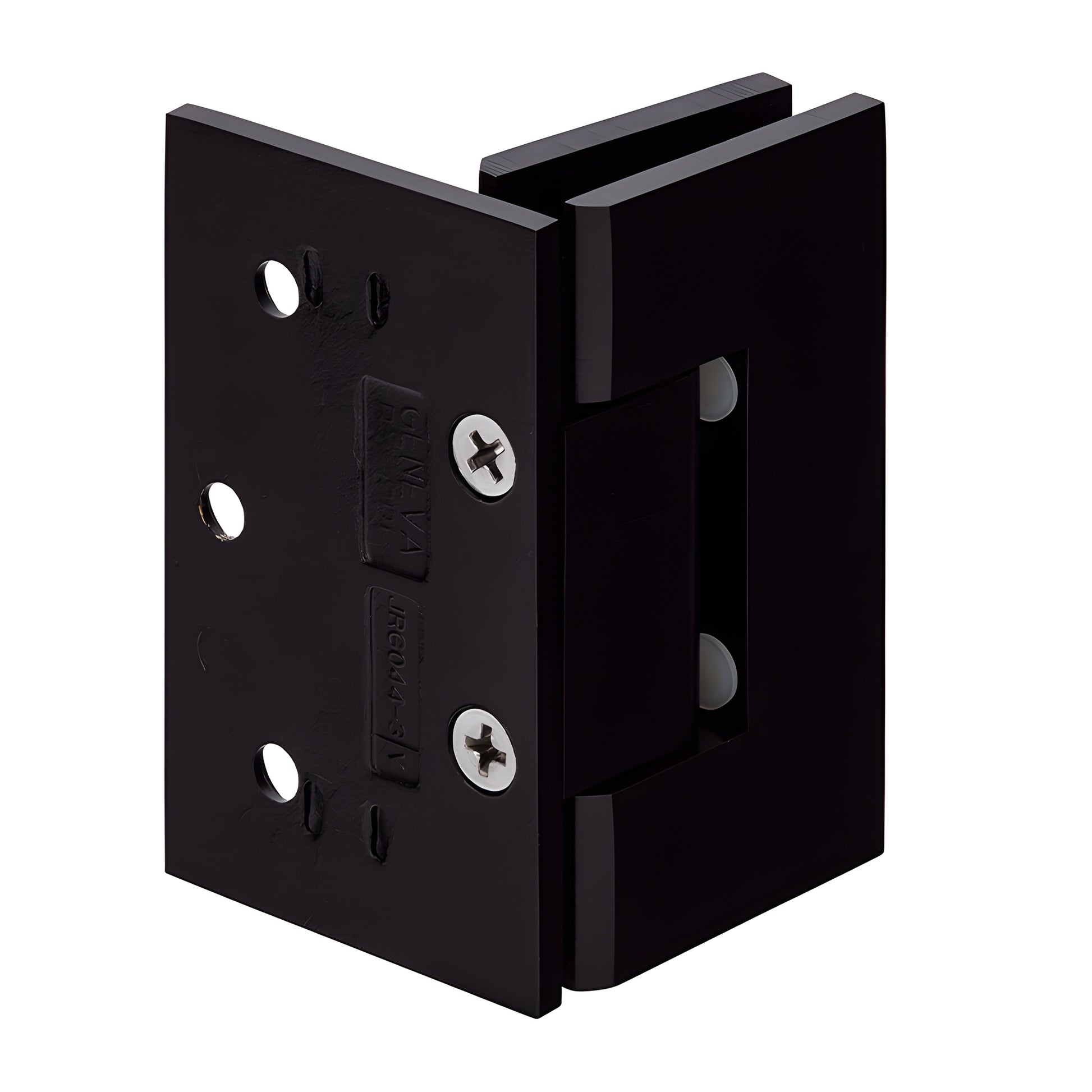

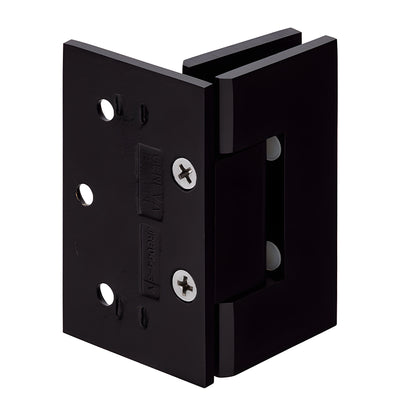

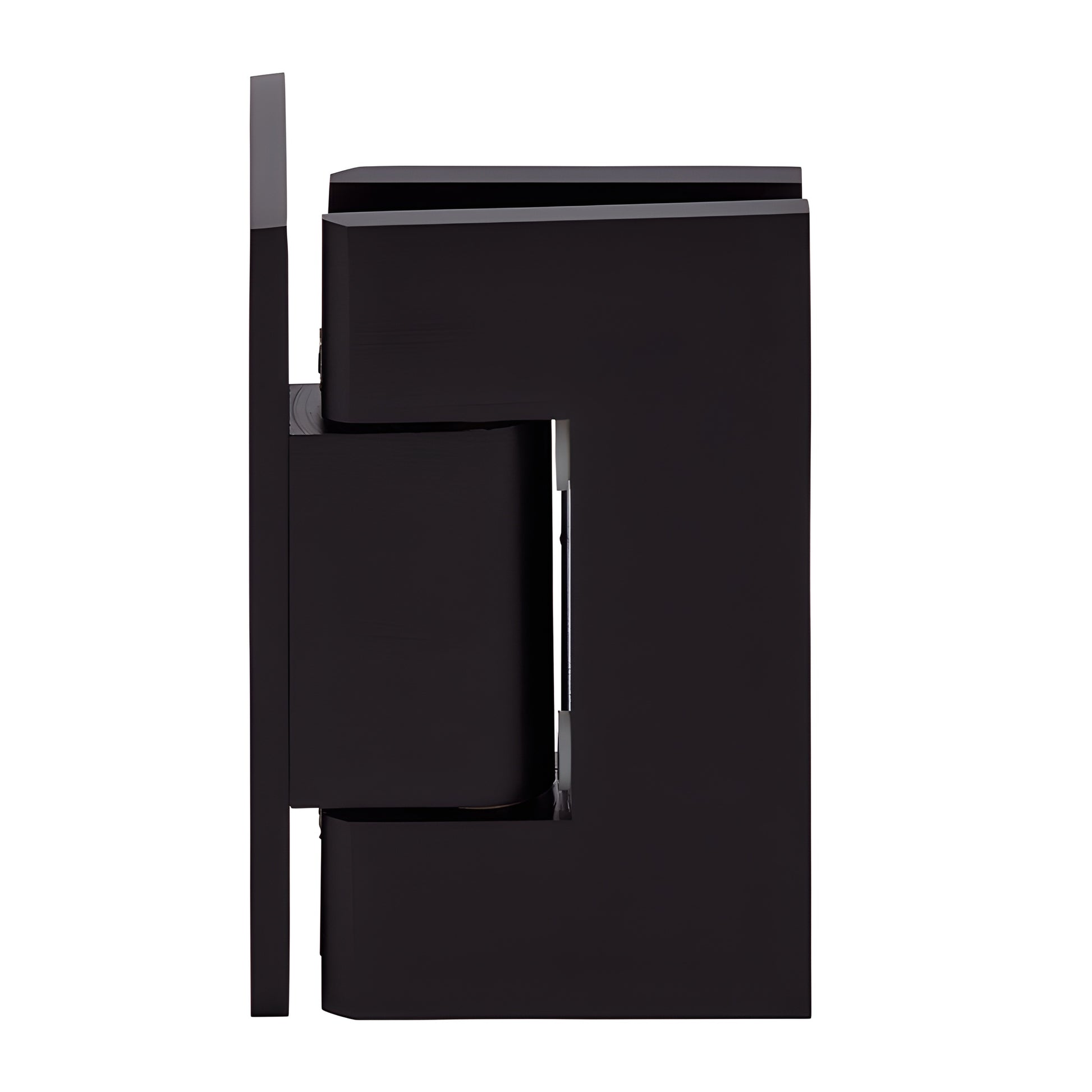

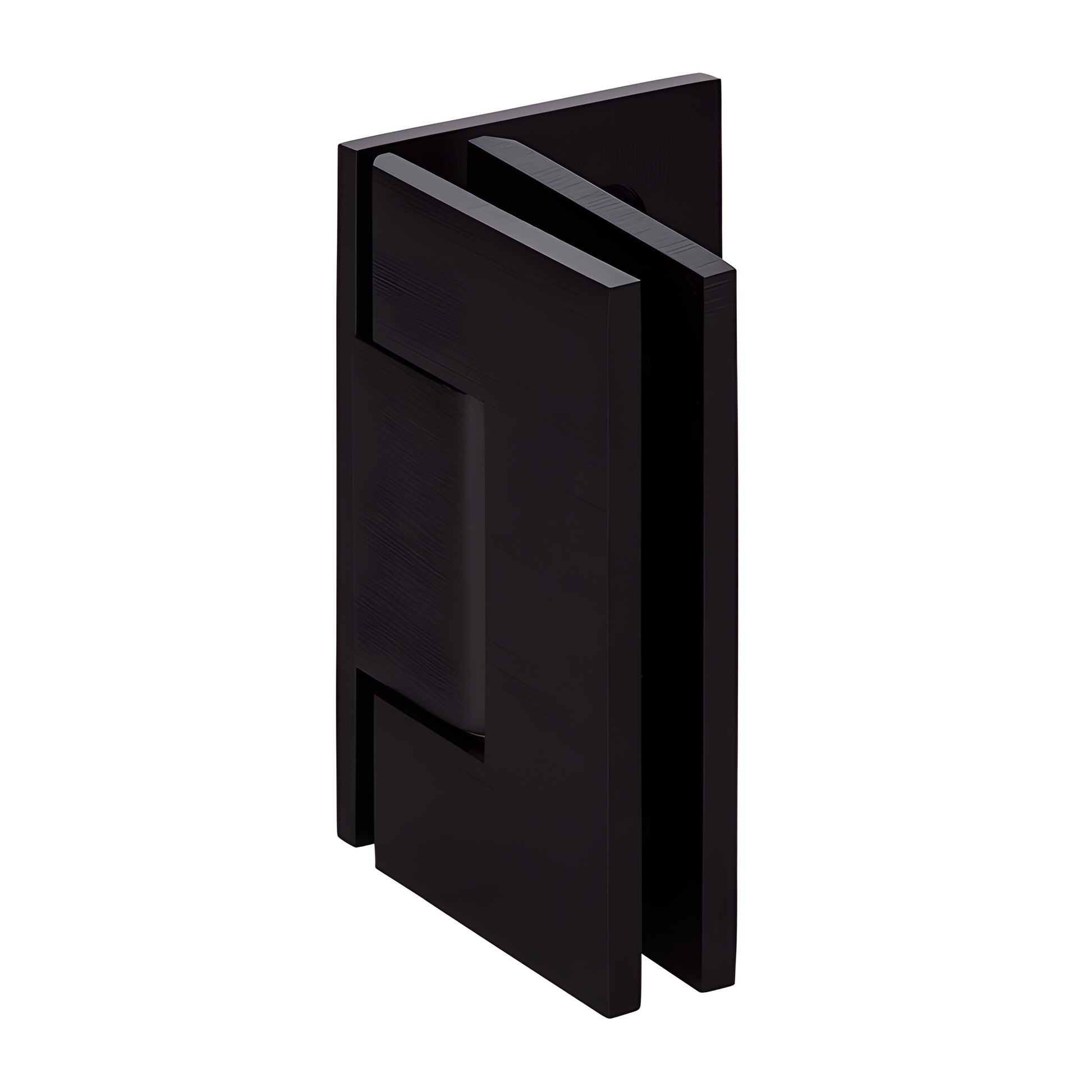

CRL Junior Geneva 044 Oil-Rubbed Bronze Wall-Mount Offset Door Hinge

• Wall mount offset back plate for a clean sight line from the shower exterior
• Self-centering with reversible 5° pivot pin for tighter door closure
• Fits 1/4" (6 mm) to 5/16" (8 mm) monolithic tempered glass
• Solid brass construction in multiple durable finishes (up to 12 stock finishes)
• 3-year warranty

The same elegant European design as our Geneva Series in a smaller, more versatile form — the Junior Geneva (SKU: JRG0440RB). Designed for frameless shower doors, this solid brass hinge supports 6–8 mm tempered safety glass and is available in wall-mount and glass-to-glass styles (90°, 135°, 180°). Key differentiators include the offset back plate for a clean exterior sight line and a reversible pivot pin that permits an optional 5° tighter closure for secure, water-resistant sealing.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Rotate the pin (do not flip) to engage the 85° side and achieve 5° additional inward closure.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment is insufficient.

LOAD CAPACITY:

Using two hinges with 6–8 mm glass: holds up to 62 lb (28 kg); maximum door width 28" (711 mm).

Using three hinges with 6–8 mm glass: holds up to 92 lb (42 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass

Special Features: Choice of standard model (0°) or 5° pre-set model; all include a reversible 5° pivot pin for tighter closure

Construction: Solid brass

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering within 15° of closed position

Cut-Out Required — Includes: Gaskets, screws, and glass fabrication dimensions

PRODUCT WARNING:

Designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this
