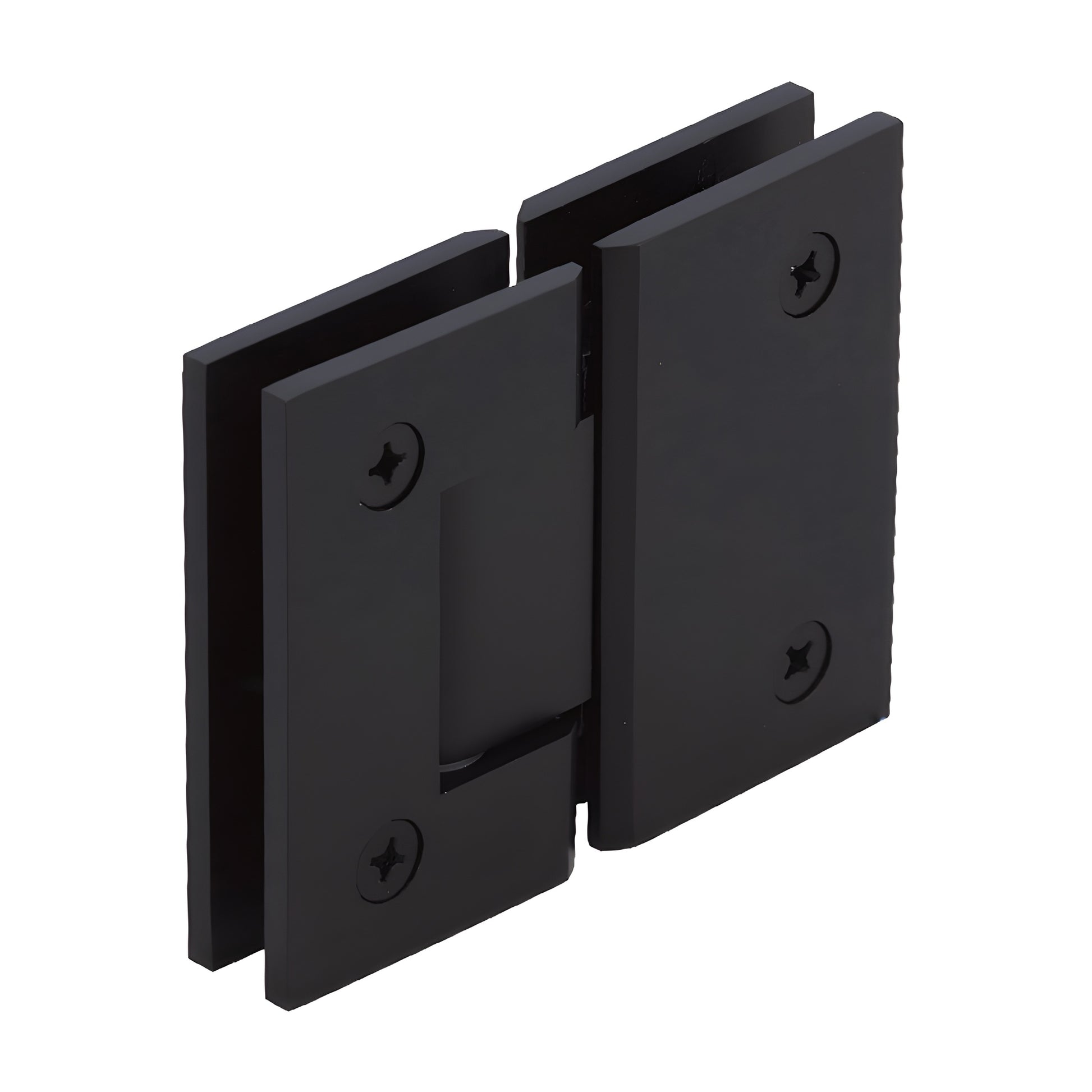

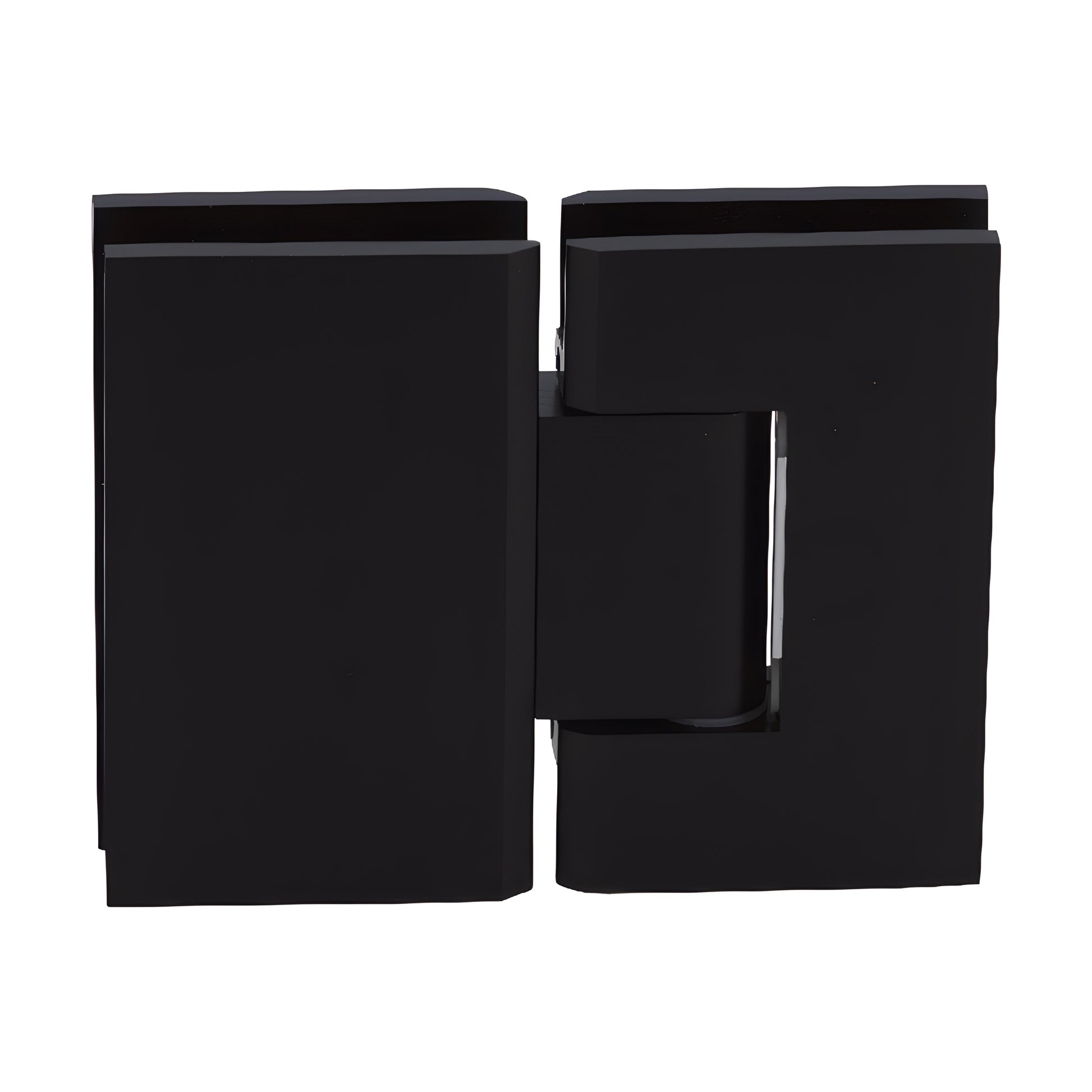

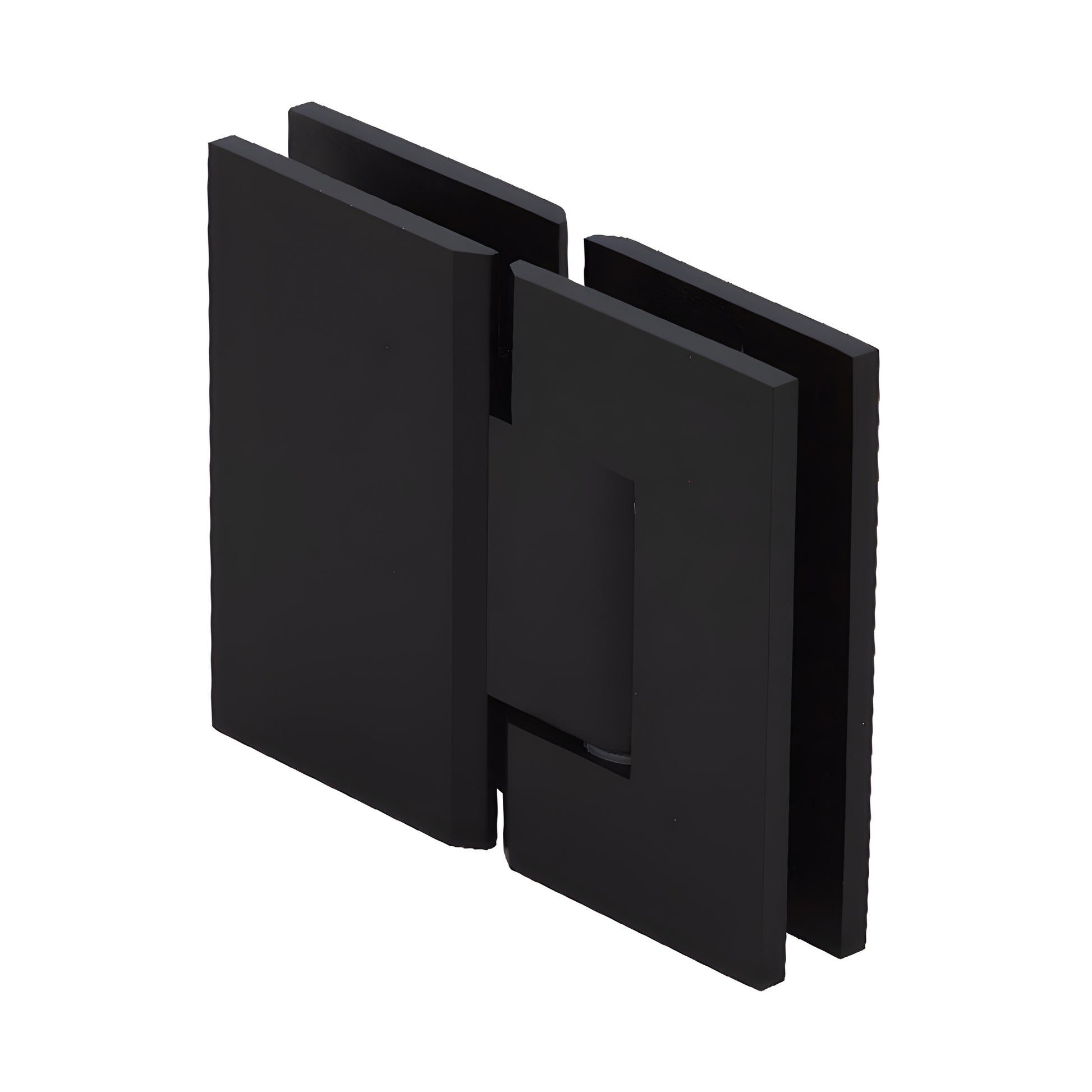

CRL Junior Geneva 180° Oil-Rubbed Bronze Glass-to-Glass Shower Hinge

• 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
• Self-Centering with Reversible 5 Degrees Pivot Pin
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

The same elegant European design of the Geneva Series is available in a compact Junior Geneva model (SKU: JRG1800RB) for flexible shower-door installations. Designed for 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass, the Junior Geneva is constructed from solid brass and ships factory-set in the standard closing position. It’s ideal as a 180° glass-to-glass shower hinge and is available in multiple stock finishes.

STANDARD REVERSIBLE PIVOT PIN: Each Junior Geneva hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Rotate the pin (do not flip) to engage a 5° tighter door closure—useful for achieving a snug seal into the shower interior.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° option does not achieve the required door position.

LOAD CAPACITY: Using two hinges with 1/4" to 5/16" glass (6–8 mm), the hinge supports up to 62 lbs (28 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 92 lbs (42 kg) with a maximum width of 32" (813 mm).

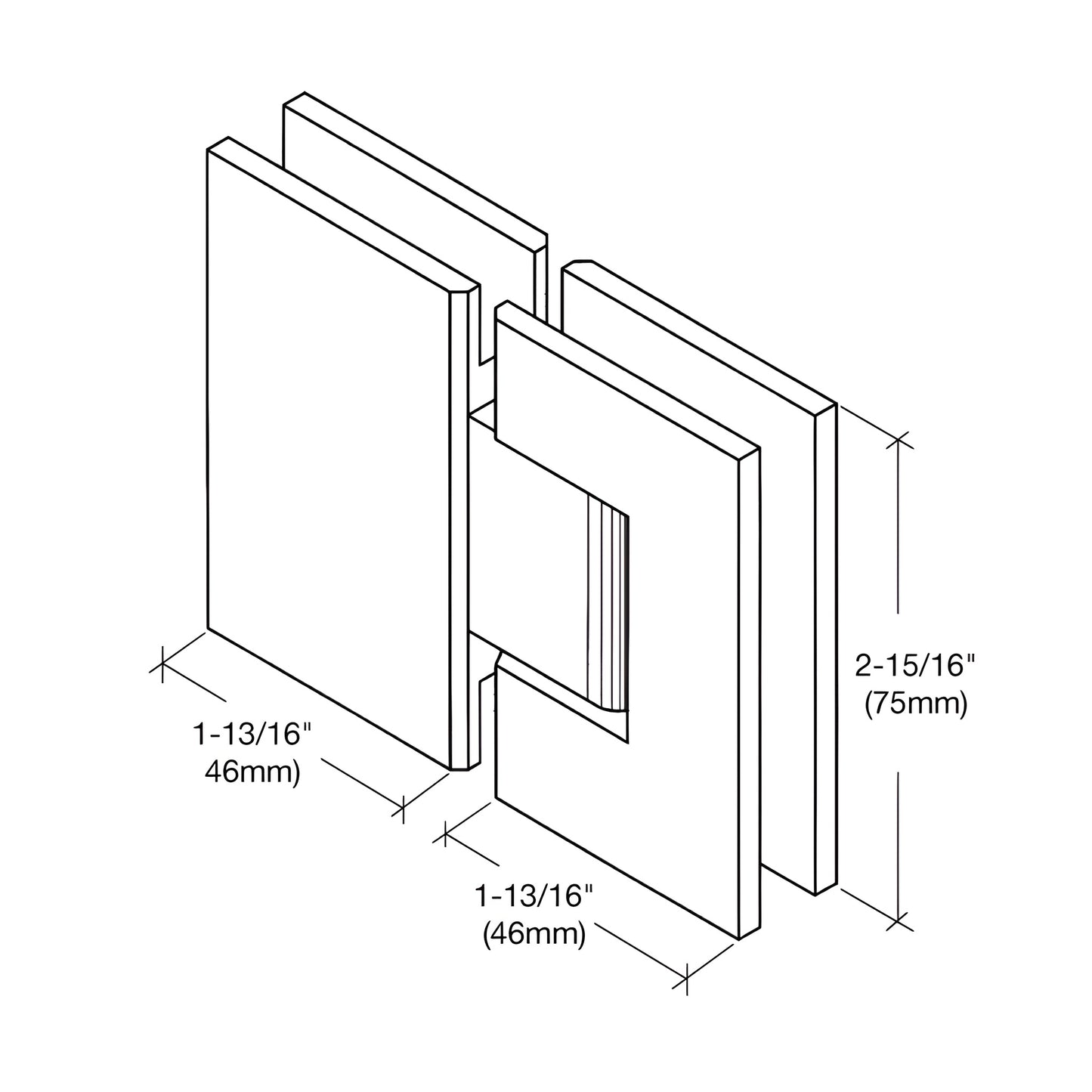

SPECIFICATIONS:

• Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass
• Special Features: Factory-set Standard Model (0°) or 5° Pre-Set Model available; reversible 5° pivot pin for tighter closure
• Construction: Solid brass
• Hinge Swings: 90° in and 90° out
• Closing Type: Self-centering within 15° of closed position
• Includes: Gaskets, screws, and glass fabrication dimensions
• Cut-Out Required

PRODUCT WARNING:

CRL shower door hinges are intended for residential or hotel shower use. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
