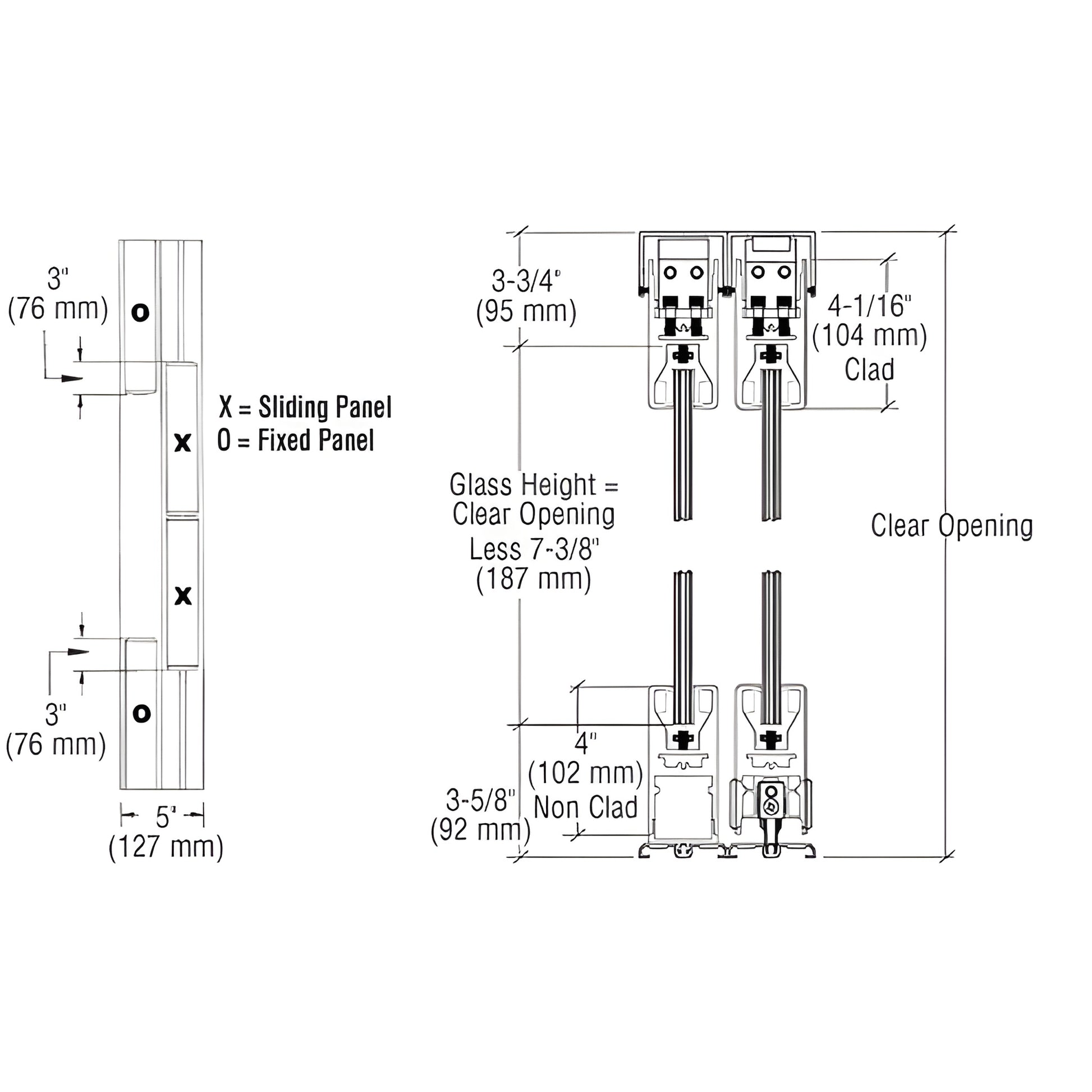

• Technical CAD diagram of CRL SDR bottom-rolling sliding door system, 4" square rails, oil-rubbed bronze, SKU 4SDR4F0RB
1 1

CRL

CRL OXXO Oil Rubbed Bronze Sliding Door Hardware Kit - 4" Square Rail

CRL OXXO Oil Rubbed Bronze Sliding Door Hardware Kit - 4" Square Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR4F0RB
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Oil Rubbed Bronze
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
59 in. (1499 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

CRL SDR Bottom Rolling Sliding Door System — bottom rolling sliding door system with 4" (102 mm) square rails top and bottom. Uses the patented Wedge-Lock® Glass Securing System for reliable, low-profile glass retention. DR4S Series door rails are custom fabricated for both door and fixed panels and can be supplied with or without locks in the bottom rail.

  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lbs. (106 kg)

Available finishes: Seven architectural finishes (including Oil Rubbed Bronze).

Product Warning:
Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze Finish are inspected prior to shipping. Within two days of receipt, open the package, remove protective wrap, and inspect the finish. Report any damage or irregularity to CRL immediately — CRL will not be liable for finish damage reported after this period.

Most shipping weights are approximate and unverified. If exact weight (and shipping costs) are required to complete your order, request this from CRL Customer Service before submitting your order. Product images are actual or close representations; colors may vary by monitor and settings.

SKU: 4SDR4F0RB

Order the CRL SDR bottom rolling sliding door system with 4" square rails for durable, customizable glass door solutions — contact CRL Customer Service to get started.
