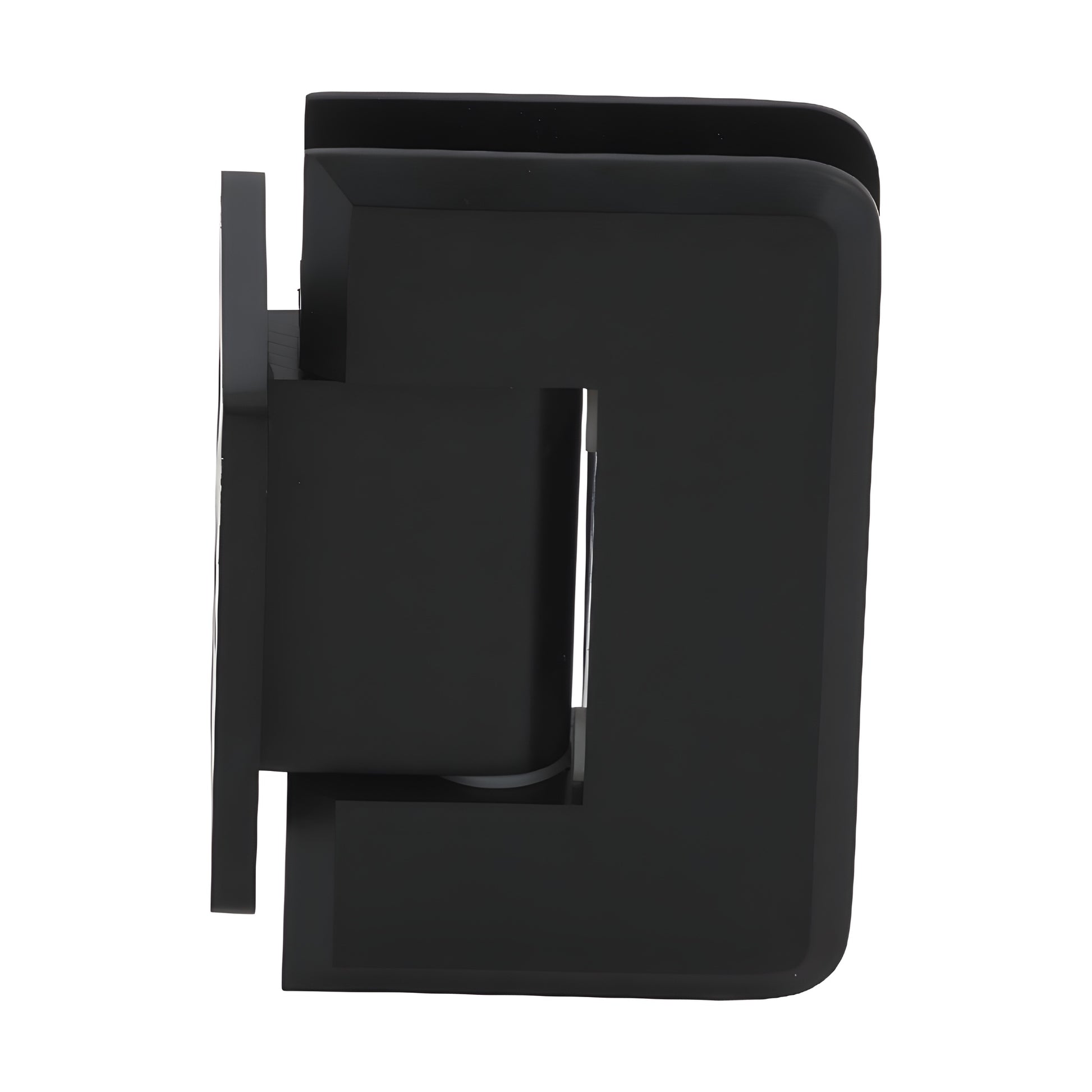

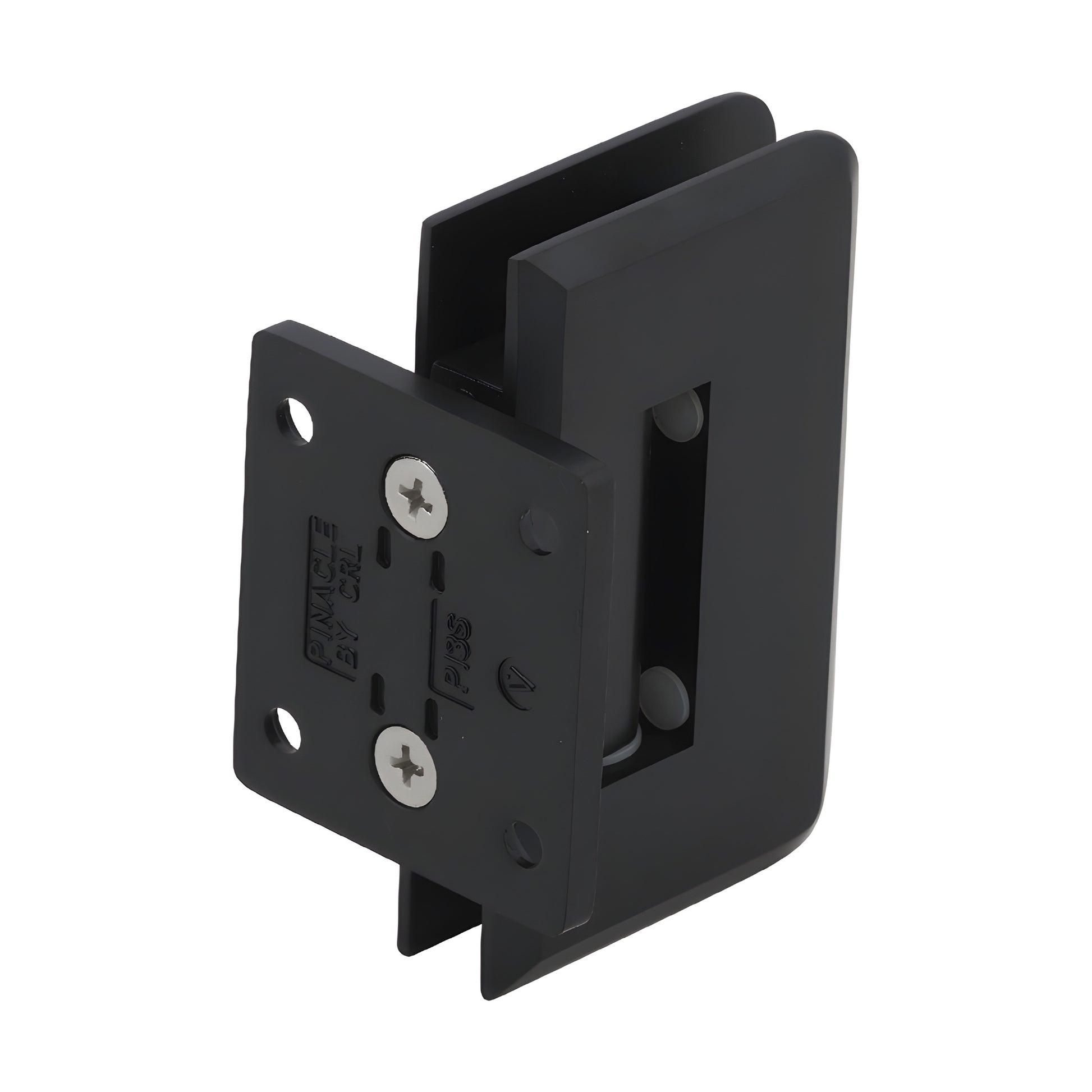

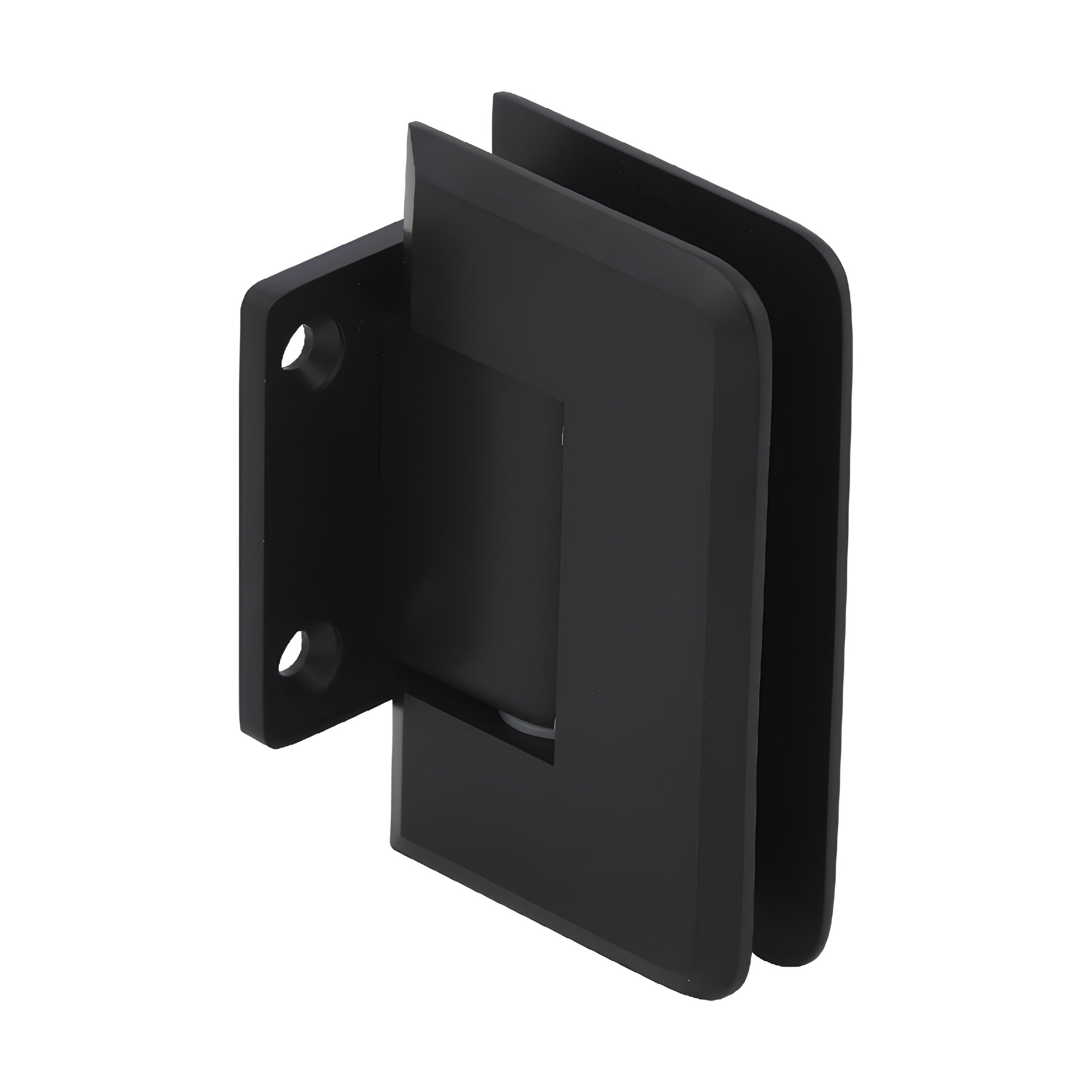

CRL Pinnacle 074 Oil-Rubbed Bronze Wall-Mount Short-Back Plate Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall mount short back plate standard model (factory set for standard closing position)
• For use with monolithic tempered glass

The CRL Pinnacle Hinge (SKU: P1N0740RB) is a radius-corner, beveled-edge alternative to the Geneva Series—designed for a sleek, modern look. Engineered for tempered safety glass, Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) glass and are self-centering when within 15° of the closed position. Constructed from solid brass with stainless steel plunger tips, pins, and springs, these brass shower hinges provide durable, reliable door closure and long service life. The Pinnacle includes the reversible 5° pivot pin found in our Geneva, Cathedral, Roman, Ultimate, and Elite Series; a custom pivot pin (up to 45°) is available for off-angle installations—ideal for irregular walls or non-90° conditions.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle hinge includes a reversible pivot pin with a 90° side and an 85° side (5° tighter closure). Standard models ship with the 90° side activated; pre-set models ship with the 85° side activated. Rotate the pin (do not flip) to change settings.

CUSTOM PIVOT PIN: Specify a custom pivot angle up to 45° for off-angle installations when the standard 5° adjustment is insufficient.

Capacity & Door Size:

• Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm)
• Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm)

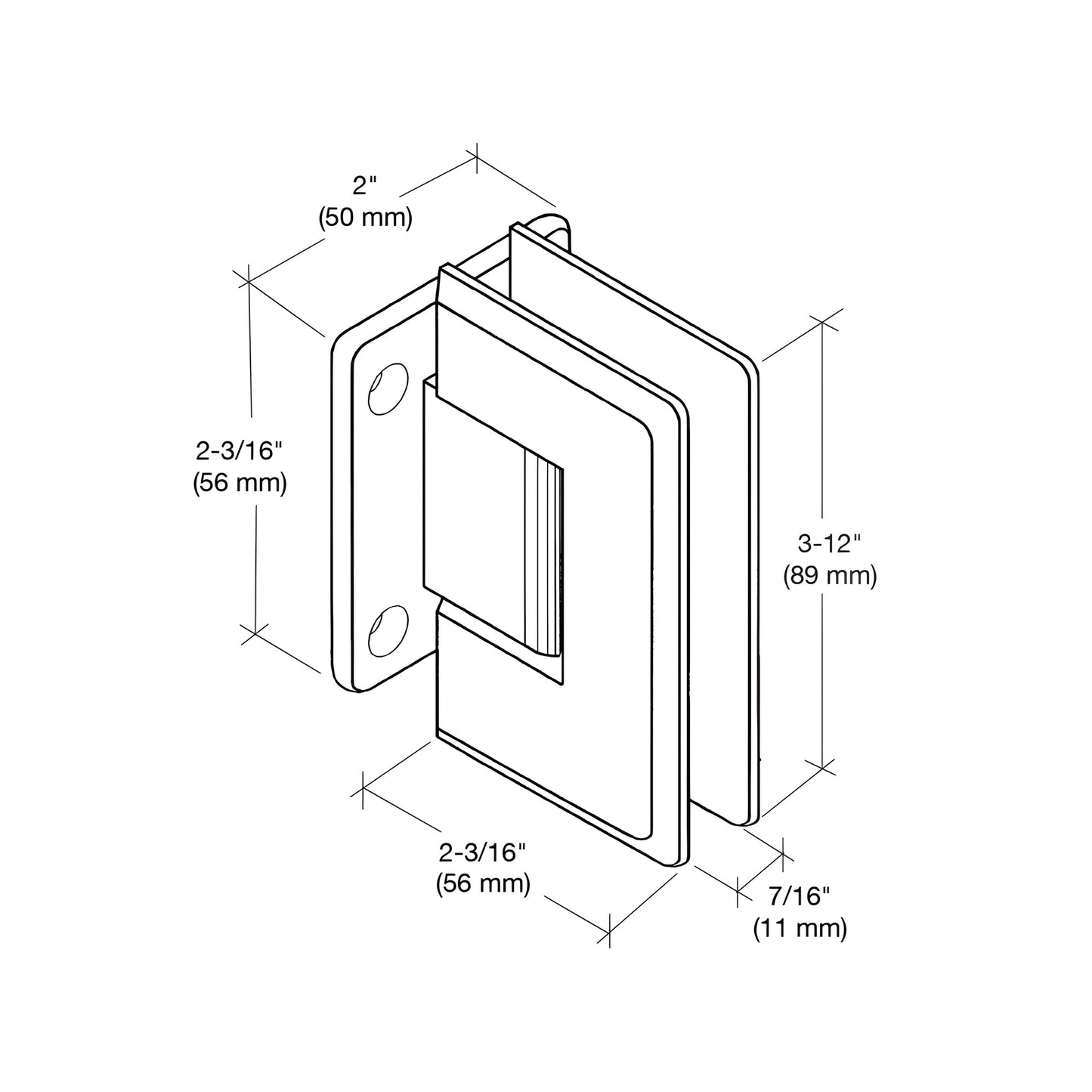

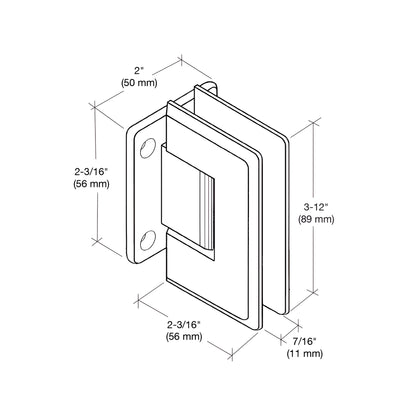

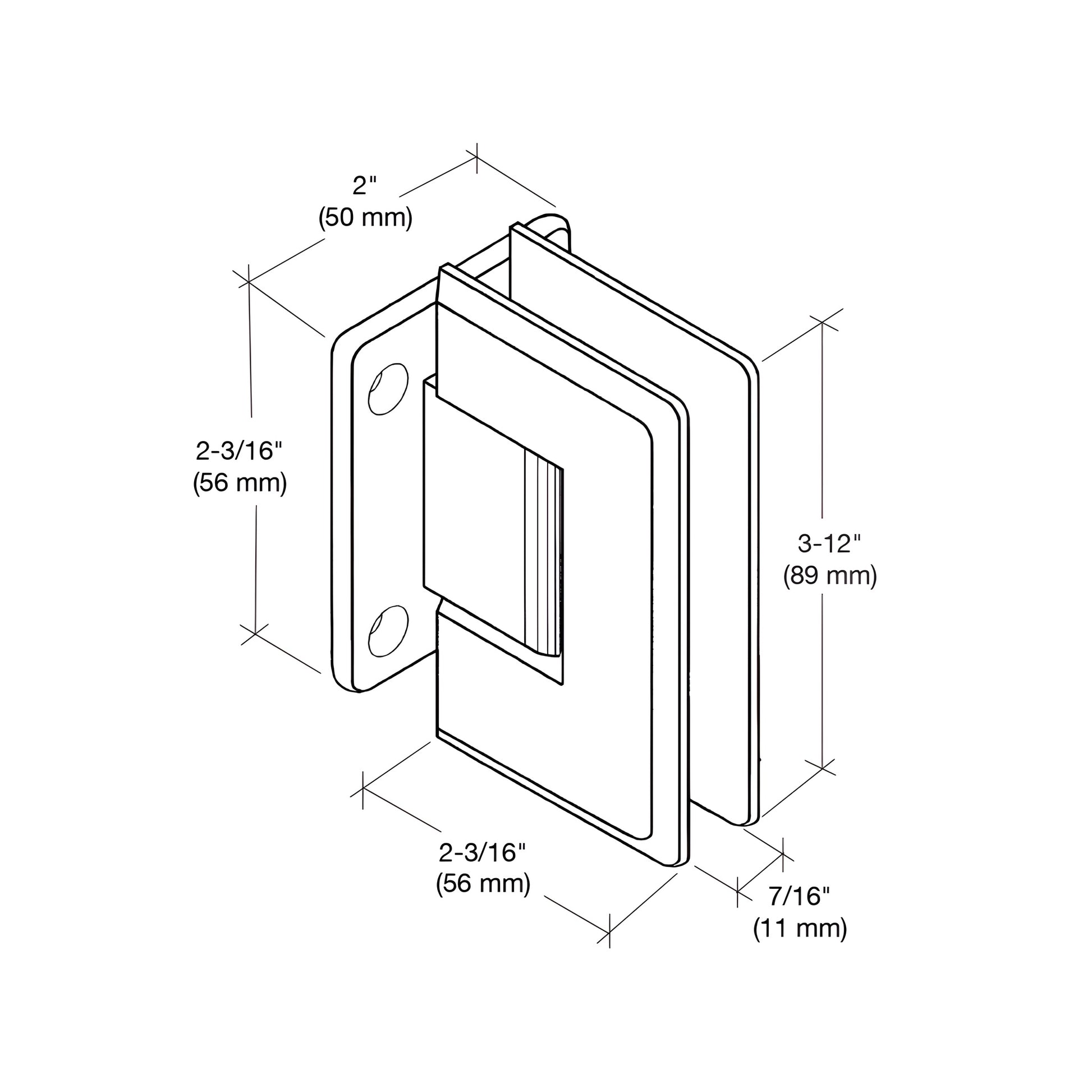

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Wall mount hinges and 180° glass-to-glass hinge available as Standard Model (factory set at standard closing position) or 5° Pre-Set Model for tighter closure into the shower interior

Construction: Solid brass

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required
