Product Details

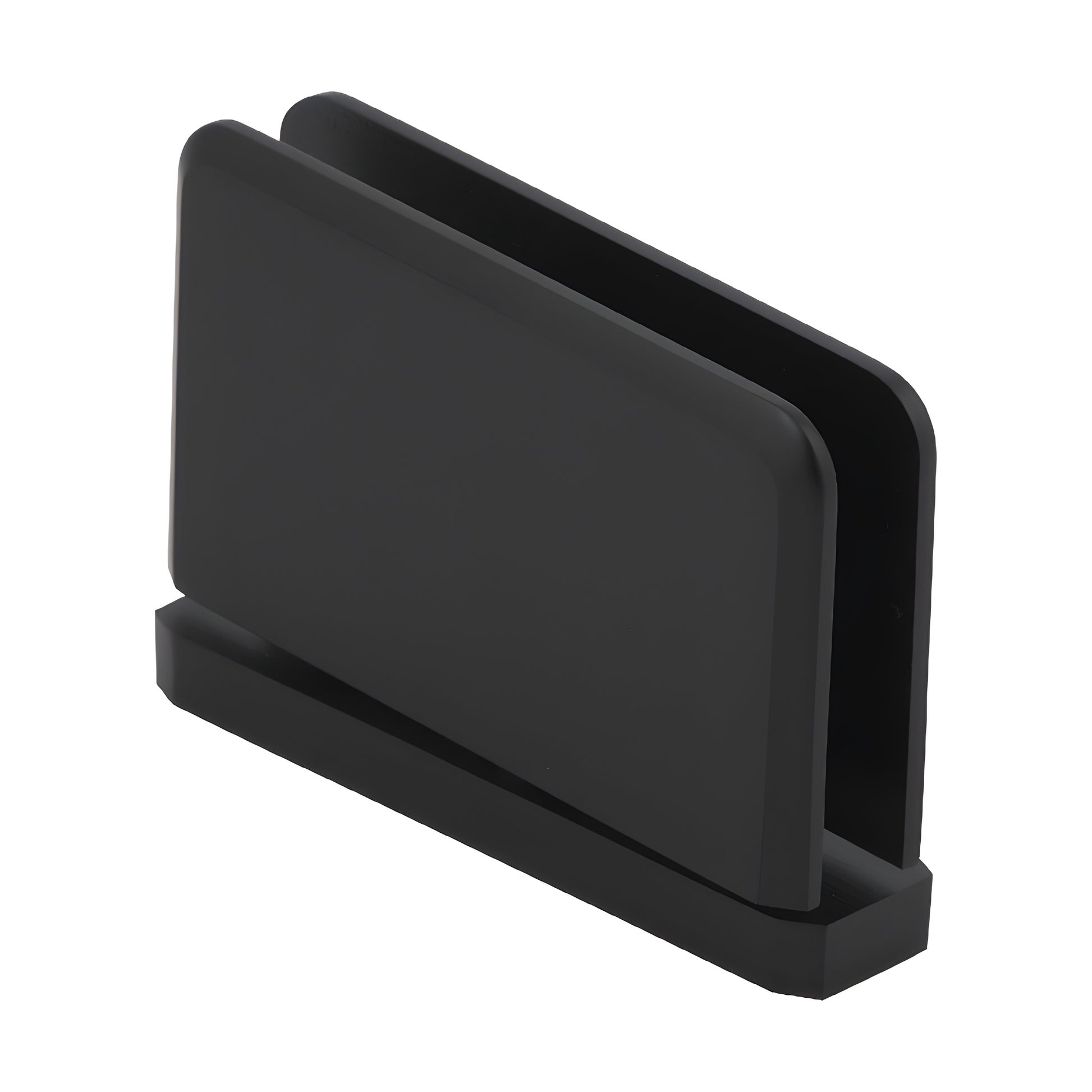

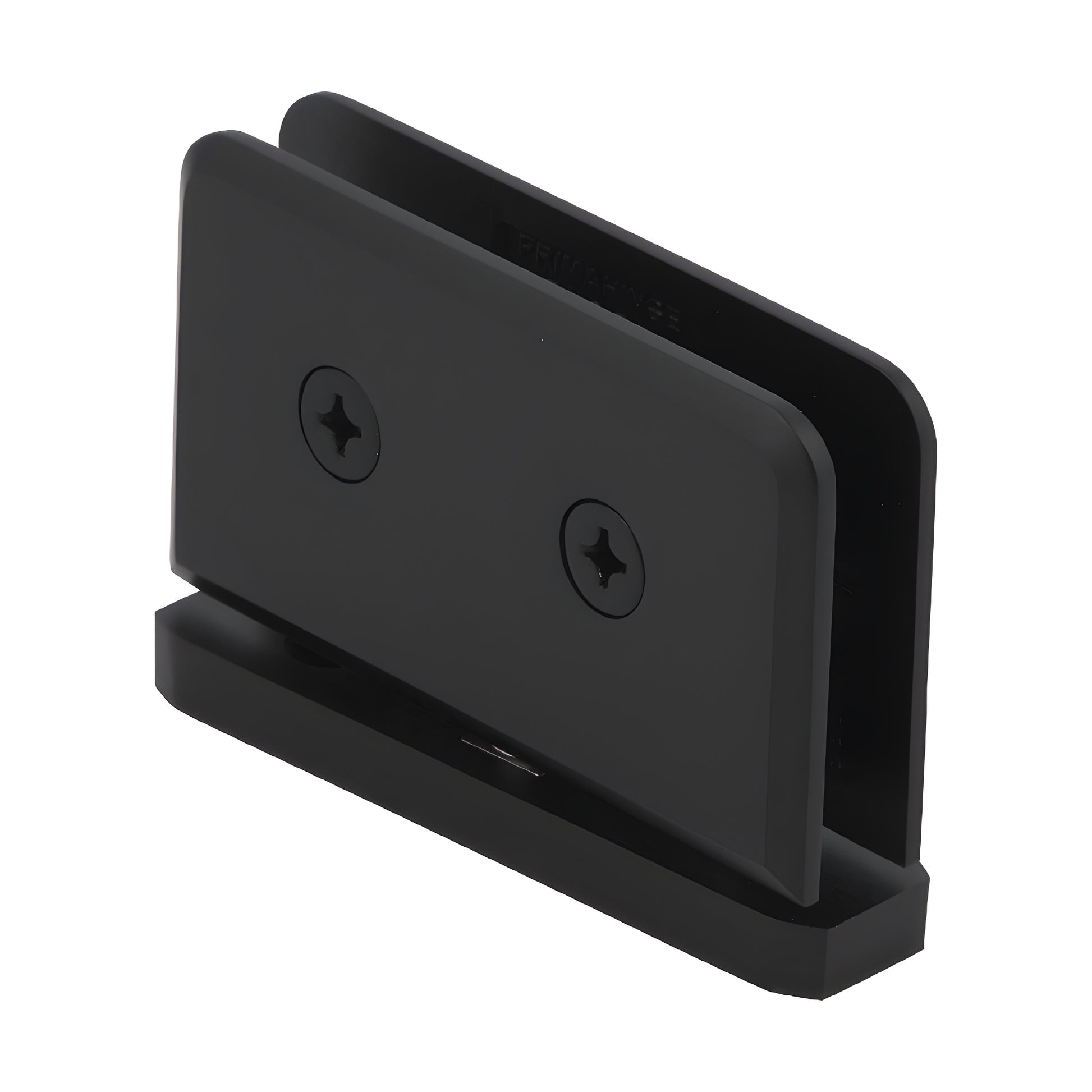

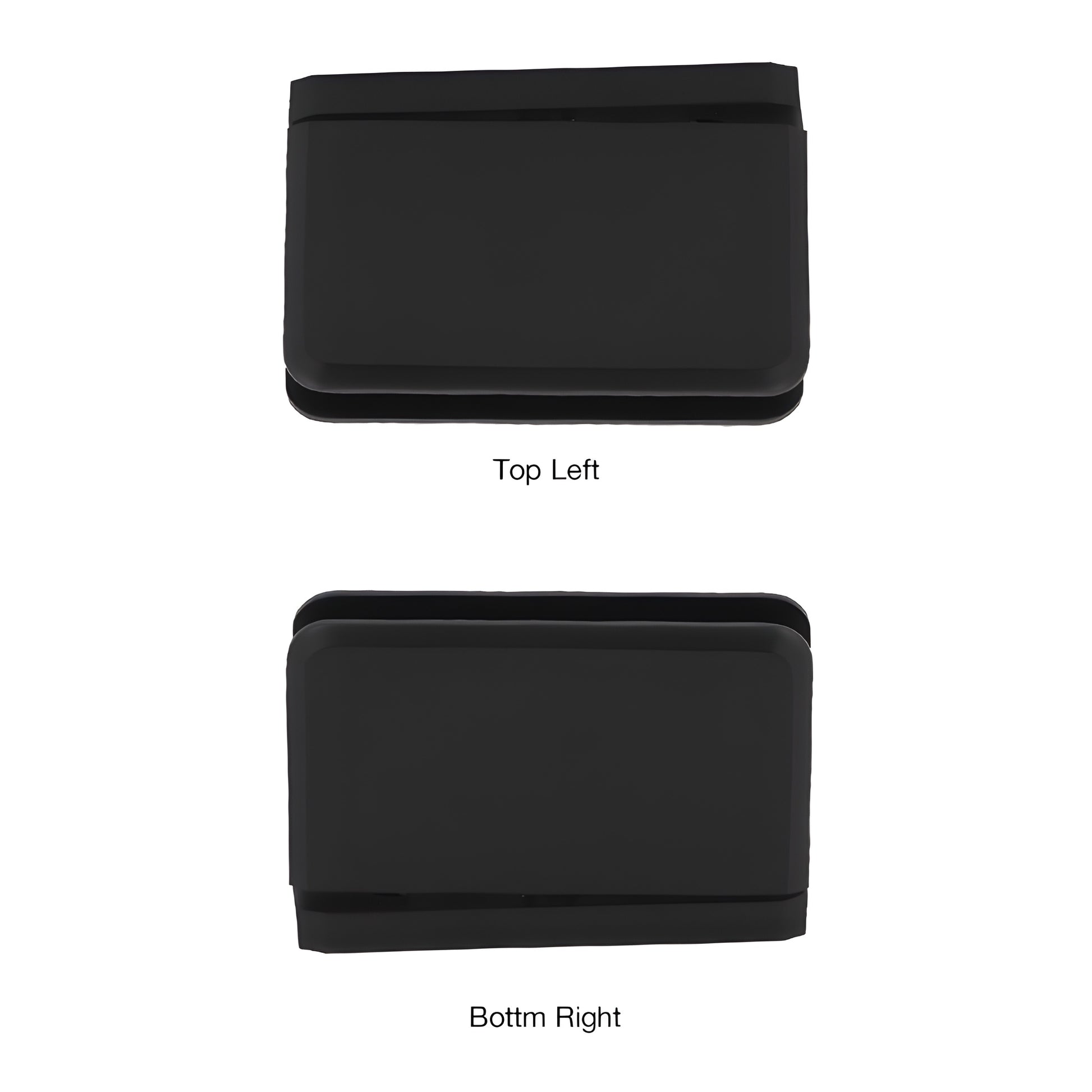

- Number One Pivot Pin Model for Mounting at Top Left or Bottom Right of Door (Viewed from Outside)
- Pre-Set 5 Degree Pin for Tighter Door Closure
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
CRL Prima 5 degree Pre-Set Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) thick tempered safety glass. All door installations using these 5° pre-set hinges will require the use of both, the #1 Pin & the #2 Pin hinges per opening, one for the top and the other for the bottom. The #1 Pivot Pin Model is to be used at the top left or bottom right of the door. The #2 Pivot Pin Model is to be used at the top right or bottom left of the door. They can then be positioned with the options described herein. The 5 degree Pivot Pins allow the door to close 5 degree further into the shower enclosure. This is especially helpful when closing the door tightly against a strike jamb. These hinges may be mounted floor and ceiling, or into our Deluxe Header System.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

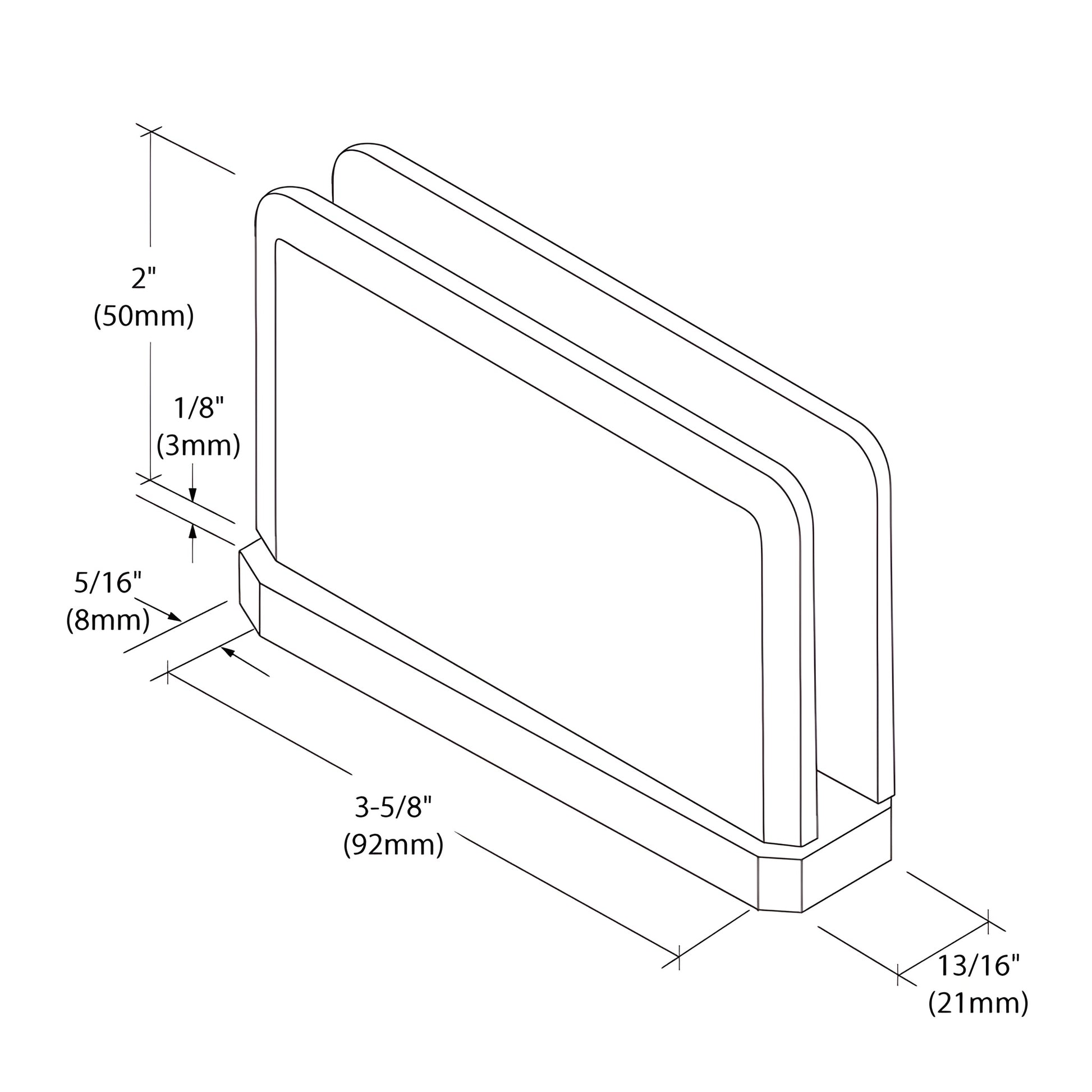

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Contains Pre-Set 5 degree Pivot Pin, which allows the door to close 5 degree further into the shower enclosure (see Ordering Tip*).
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
*ORDERING TIP: When ordering Prima 5 degree Pre-Set Hinges, you should order one each of the Number One Pivot Pin Model, and one each of the Number Two Pivot Pin Model per door.
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
