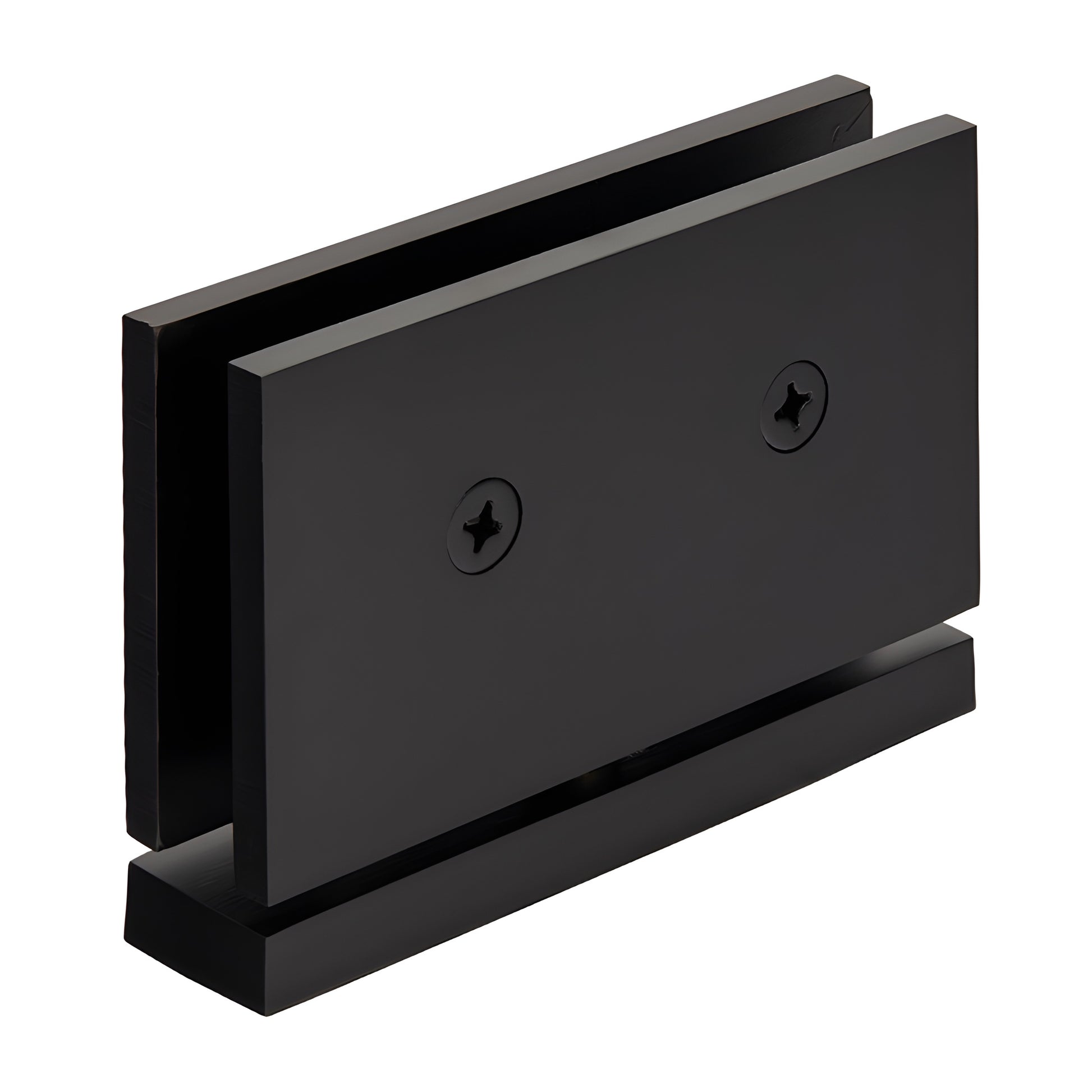

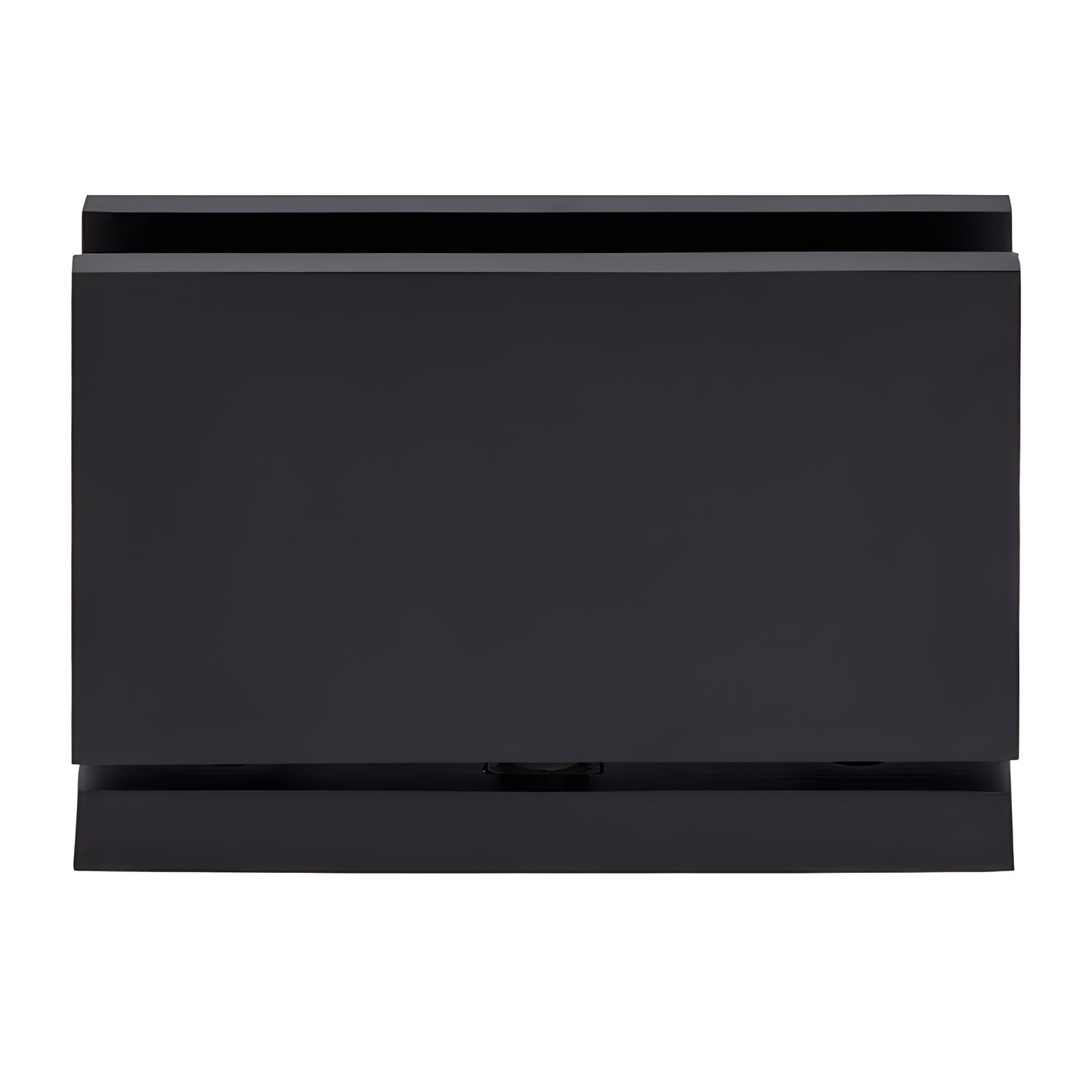

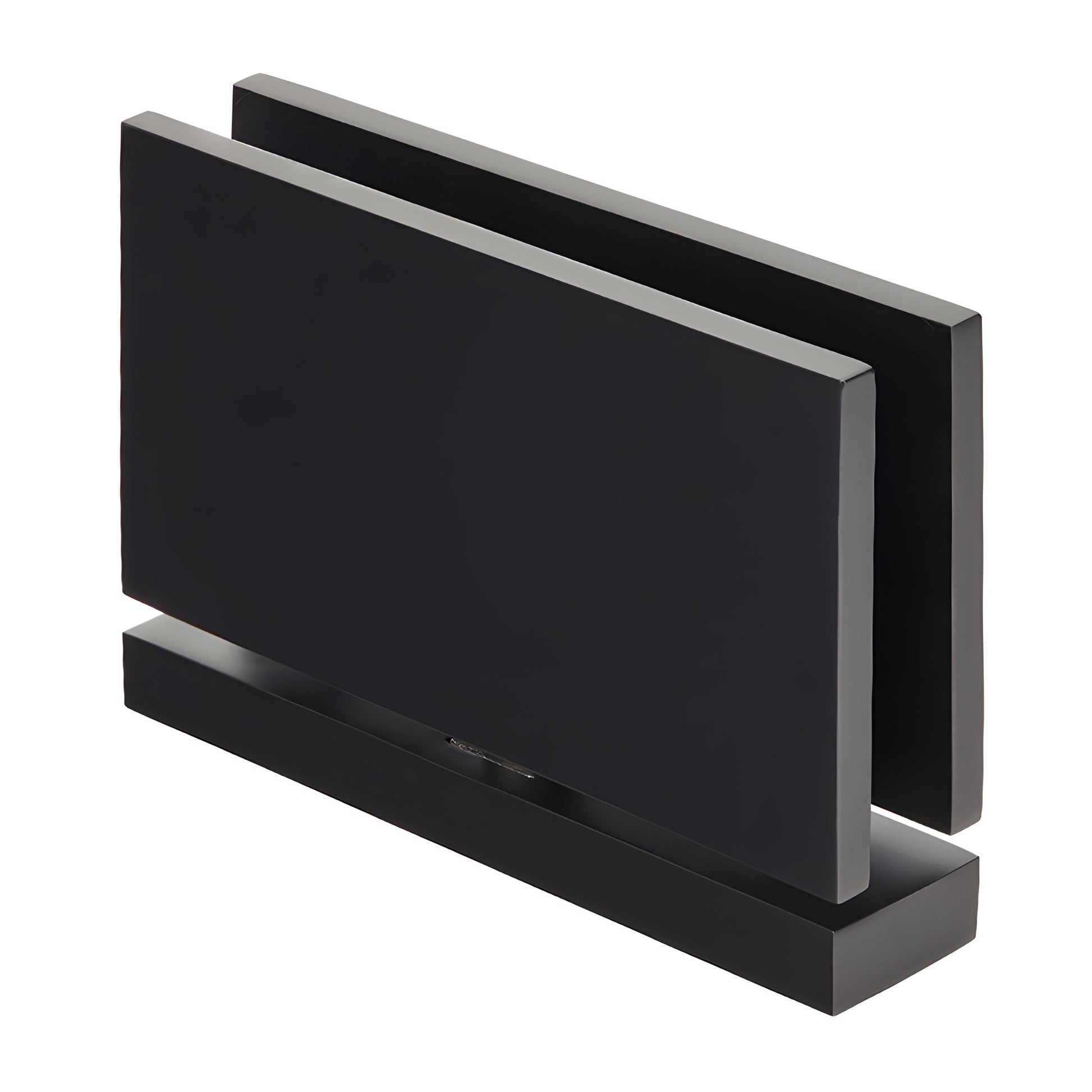

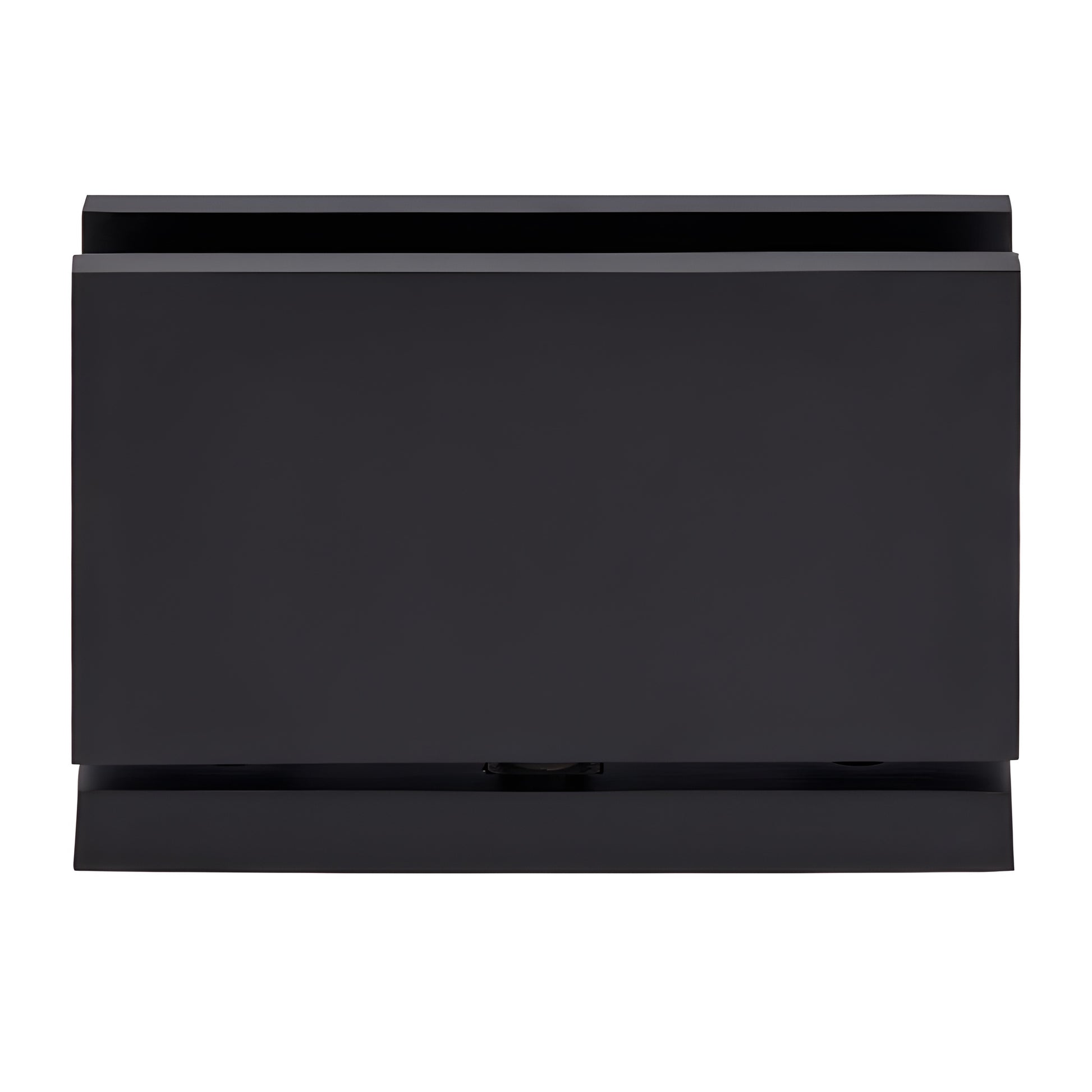

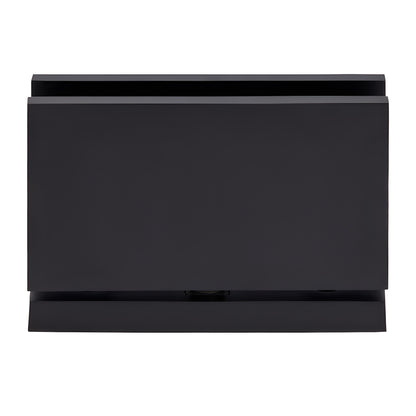

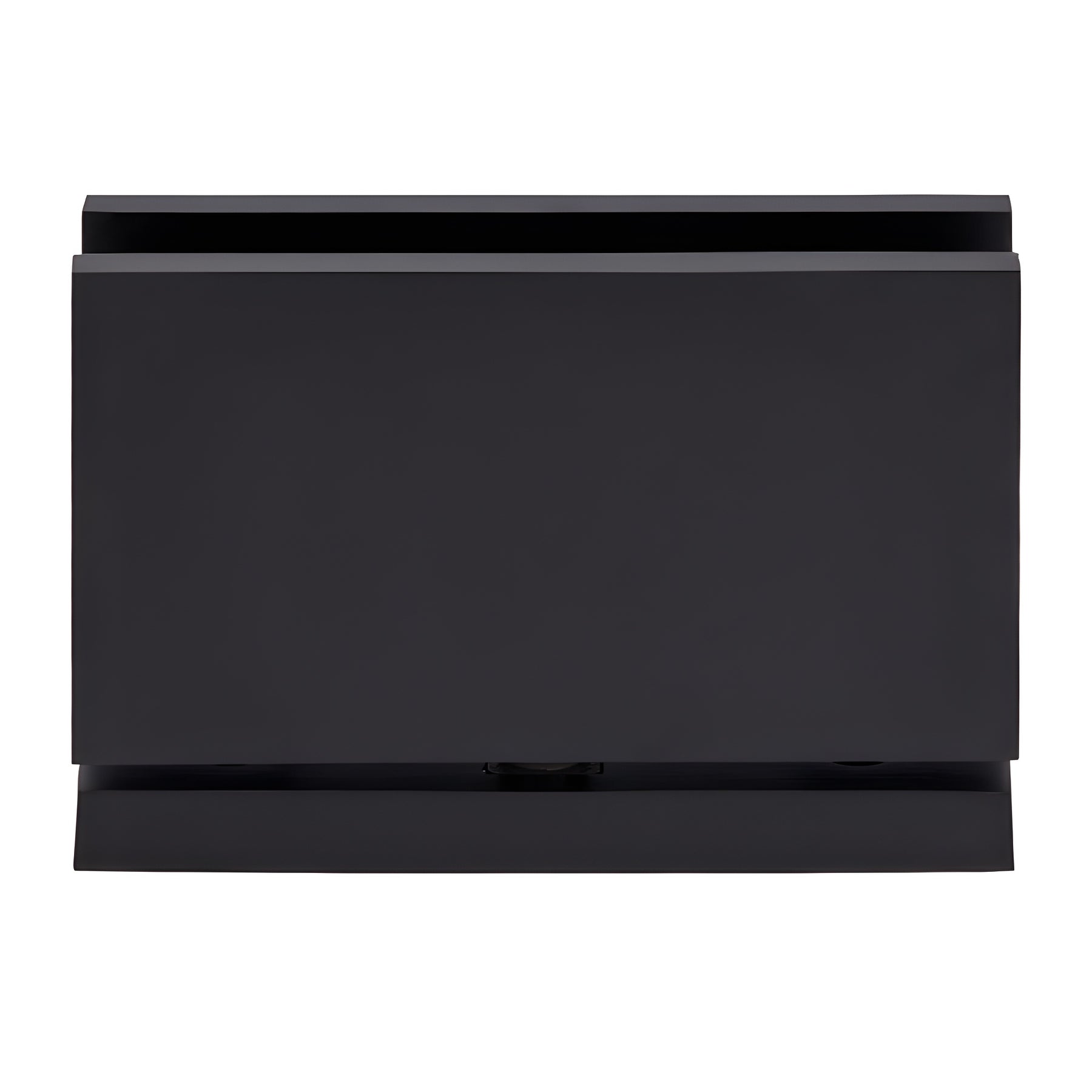

CRL Oil Rubbed Bronze Senior Cardiff Shower Door Hinge

• Top or Bottom Mount (Can be adapted to Deluxe Header Kit)
• Larger version of the Cardiff Series to accommodate 1/2" (12 mm) thick tempered glass
• Square corners for a sharp, traditional look
• Designed for monolithic tempered glass shower doors
• Adaptable to CRL Deluxe Header System (uses SRHAB01 Adapter Block — sold separately)
• Stocked in many popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges — SKU: SRCAR010RB are engineered for 1/2" (12 mm) tempered safety glass and built to handle residential and hotel shower applications. These top-and-bottom pivot hinges concentrate the majority of door weight on the bottom hinge and can be inset from the door edge to provide clearance for towel bars and other projections — a practical solution for frameless glass shower doors and retrofit installations.

Senior Cardiff hinges are self-centering with four internal springs for strong retention. They adapt to the CRL Deluxe Header System using the Senior Adapter Block (SRHAB01 — order separately), or they can be floor-and-ceiling mounted for full-height doors. NOTE: SRHAB01 is required when converting to the Deluxe Header System.

Performance: Using two hinges with 1/2" (12 mm) glass, the pair supports up to 145 lbs (66 kg) with a maximum door width of 36" (914 mm).

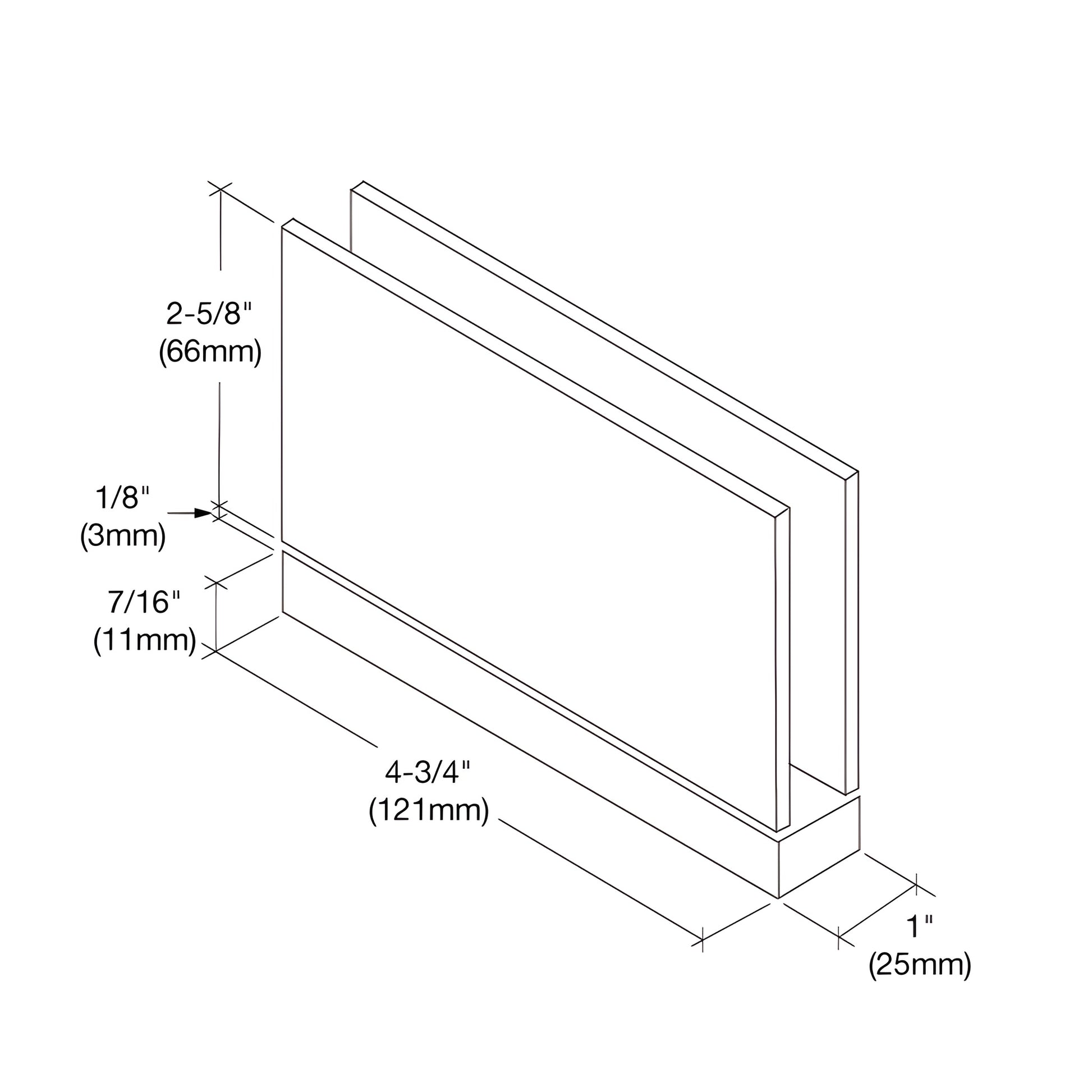

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) tempered safety glass
Special Features: Top-and-bottom mounting exposes more glass for a cleaner frameless look and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Optional tighter-close pivot pins: For a 5° tighter closer use SRP1VP1N (sold separately) — sold as a set (one top, one bottom).

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. Use for other purposes requires approval from the CR
