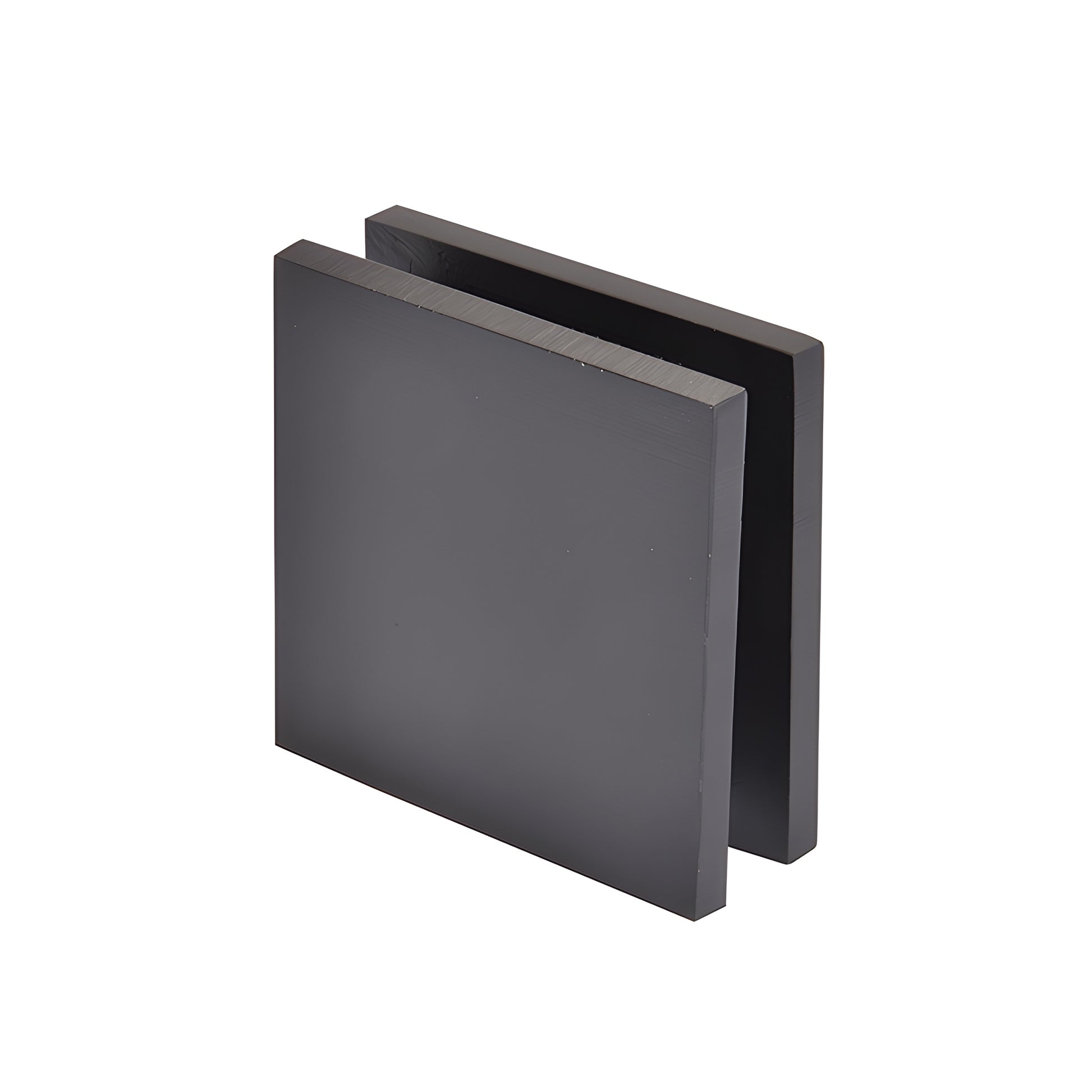

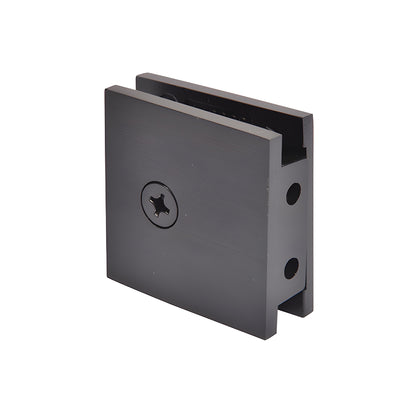

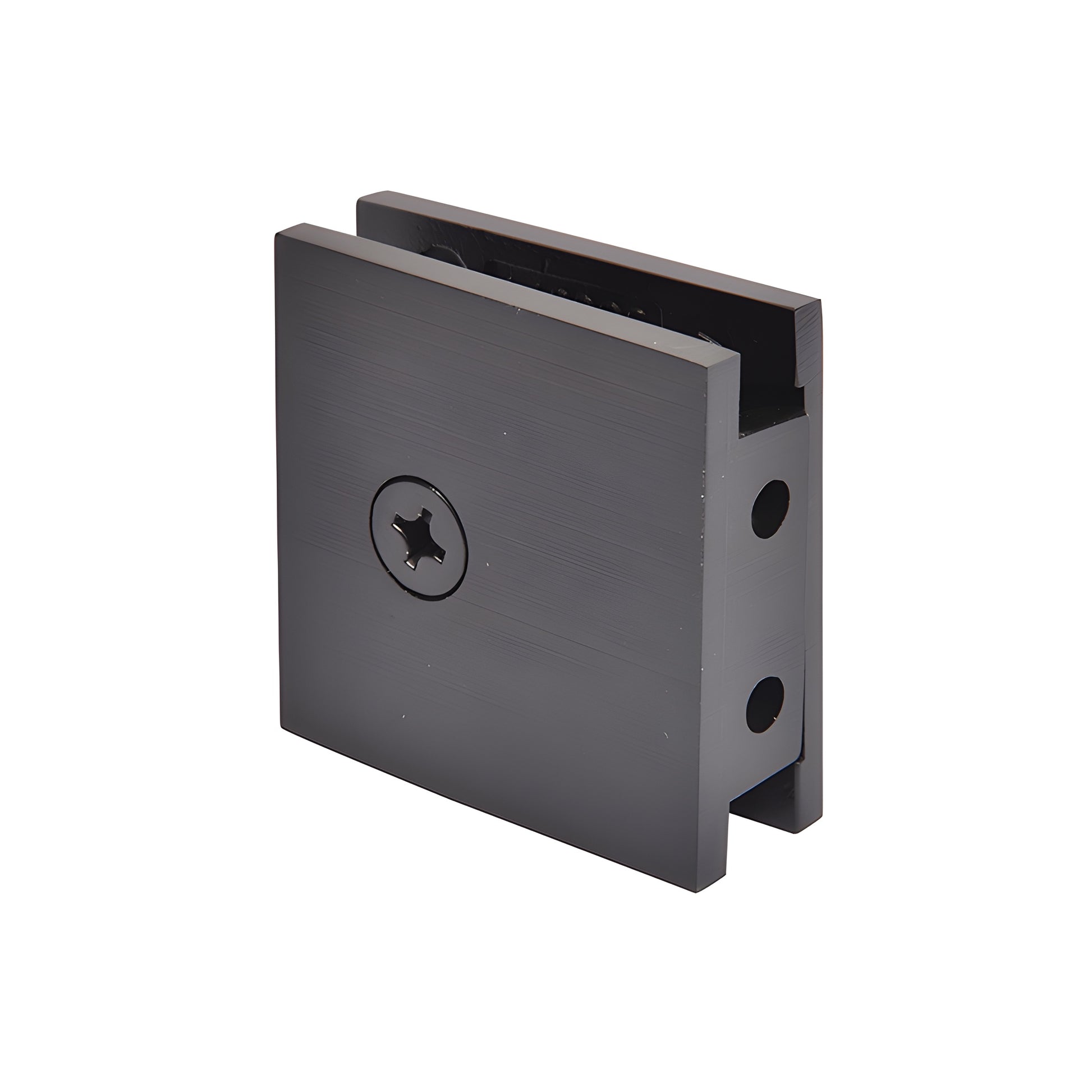

CRL Oil Rubbed Bronze Square Glass U-Clamp for Notch-in Fixed Panel
CRL Oil Rubbed Bronze Square Glass U-Clamp for Notch-in Fixed Panel
Regular price
$22.75 CAD
Regular price
Sale price
$22.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGCU10RB
Shipping Weight: 8.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

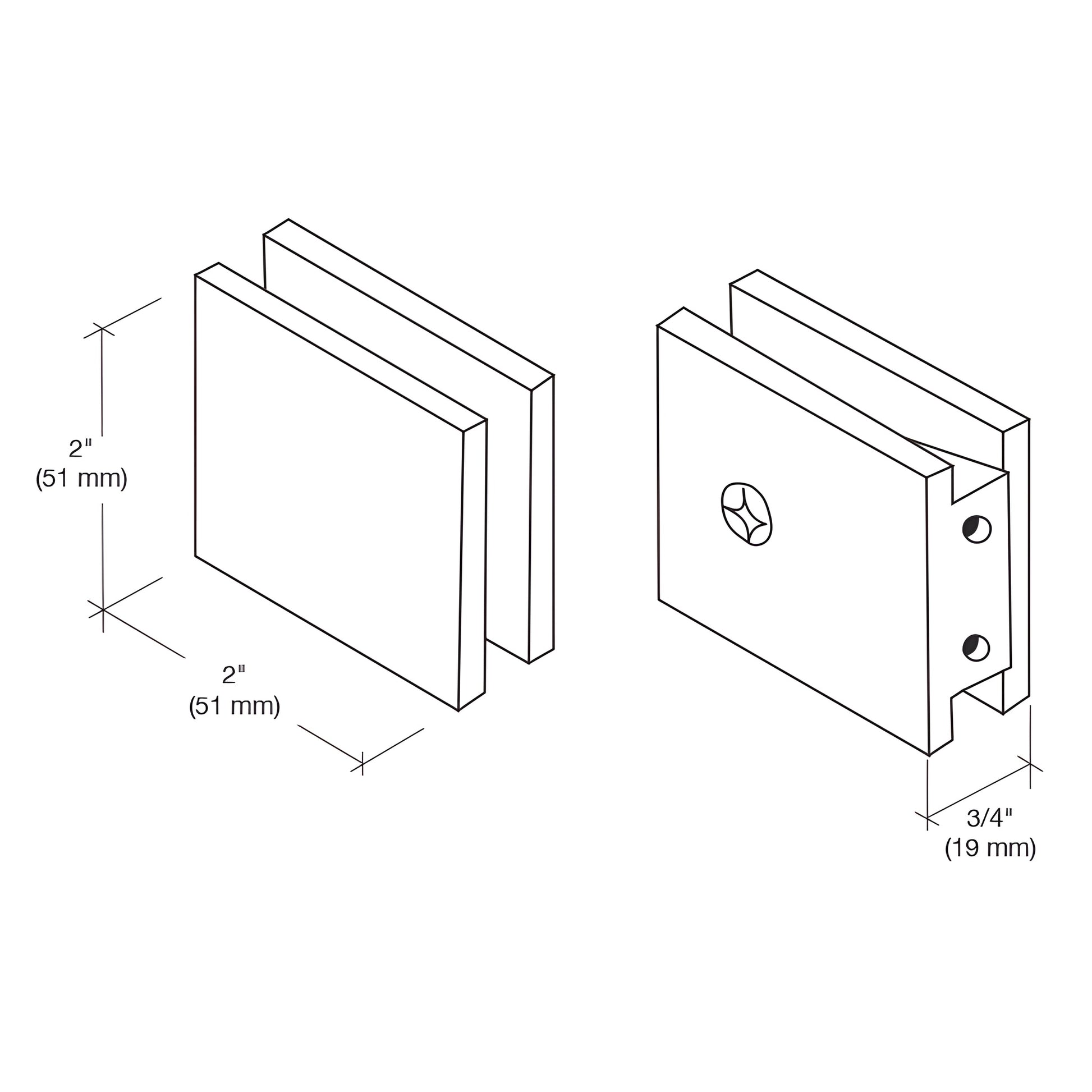

Description
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Secures fixed glass panels for frameless shower enclosures
- Solid brass construction for corrosion resistance
- Notch-in-glass style—great alternative to U-channel for an all‑glass look
- Glass fabrication: notch required in panel
- Use with monolithic tempered glass
CRL Square Wall Mount Clamp (Notch-in-Glass Style) — SKU: SGCU10RB mounts directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Use clear silicone to create a clean, water-tight seal for frameless shower installations.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires a notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
