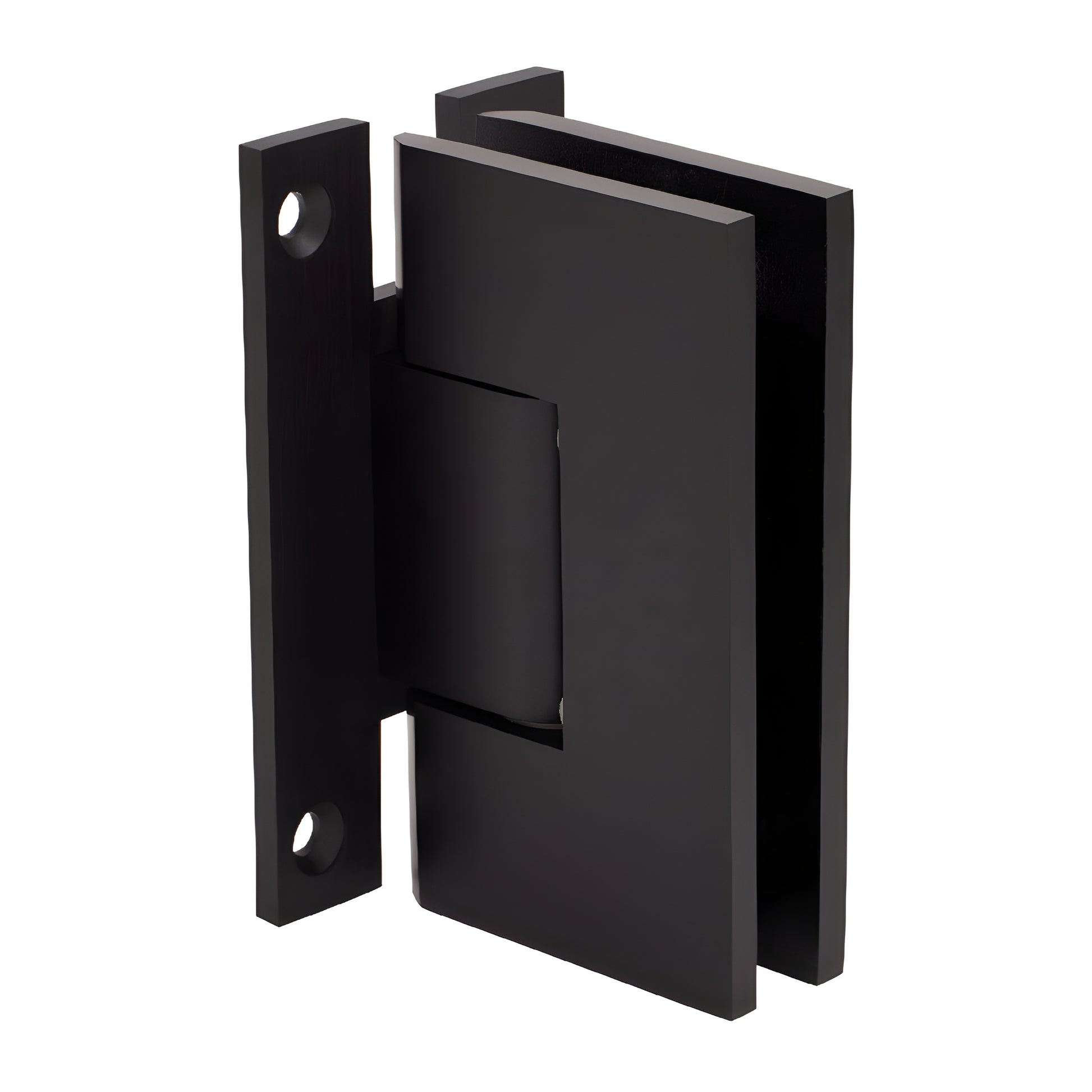

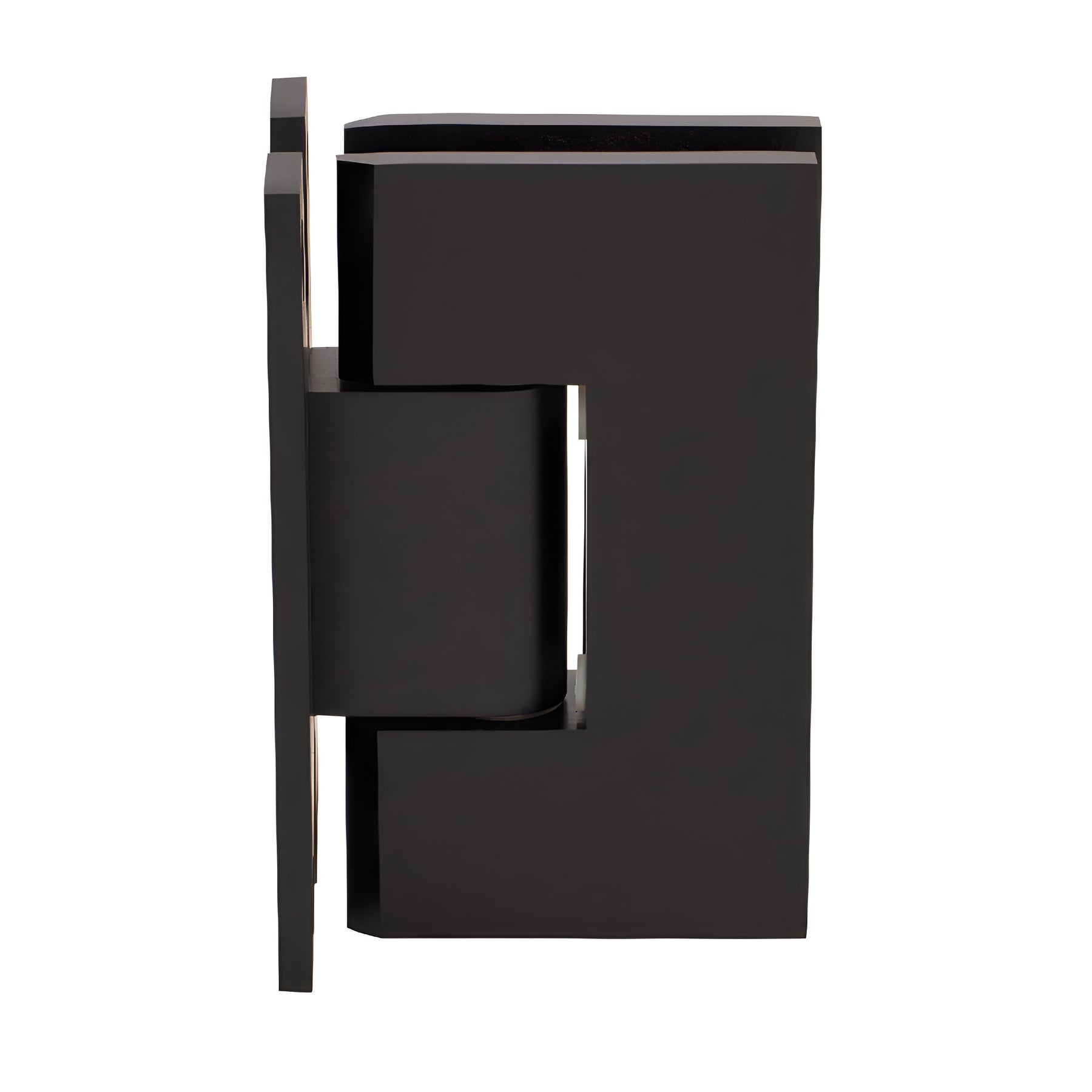

CRL Vienna 037 Oil-Rubbed Bronze Wall-Mount H-Back Plate Hinge
CRL Vienna 037 Oil-Rubbed Bronze Wall-Mount H-Back Plate Hinge
Regular price
$128.84 CAD
Regular price
Sale price
$128.84 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1EH0370RB
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
'H'
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (12 mm)
Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Maximum Door Width
36 in. (914 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-1/4 in. (57 mm)
Overview

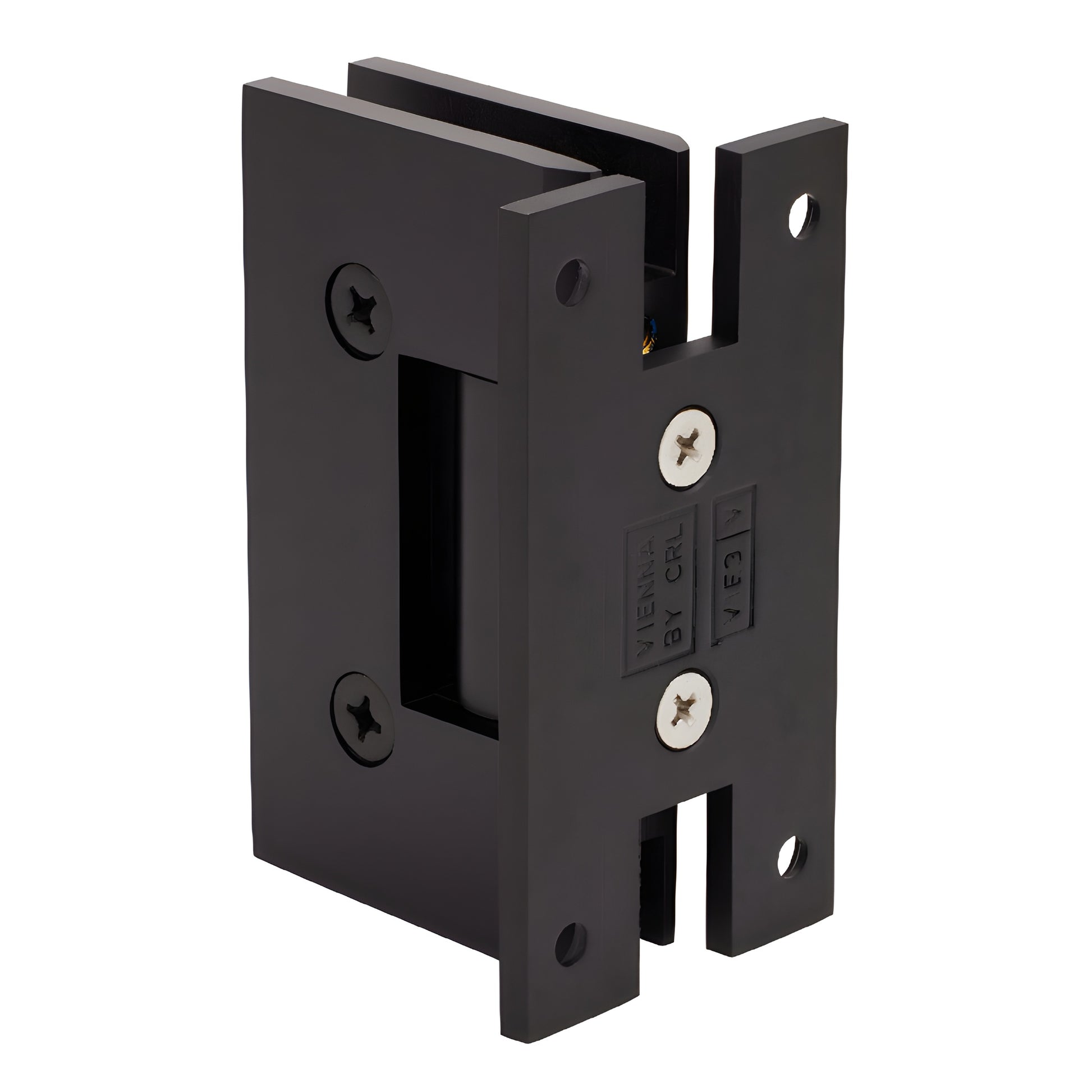

- New H‑shaped wall plate for tighter glass-to-wall clearance
- Same Vienna quality and craftsmanship—updated mounting hardware
- Contemporary square design for modern frameless glass doors
The Vienna line (SKU: V1EH0370RB) now features an H‑shaped wall mounting plate that lets installers position glass closer to the wall for reduced clearance and cleaner sightlines. Ideal for frameless shower doors and glass partitions, this square, contemporary design preserves Vienna's proven durability while offering a refreshed aesthetic and greater installation flexibility.
Ready to upgrade to the Vienna H‑plate for tighter glass installation? Contact CRL or add SKU V1EH0370RB to your cart.
