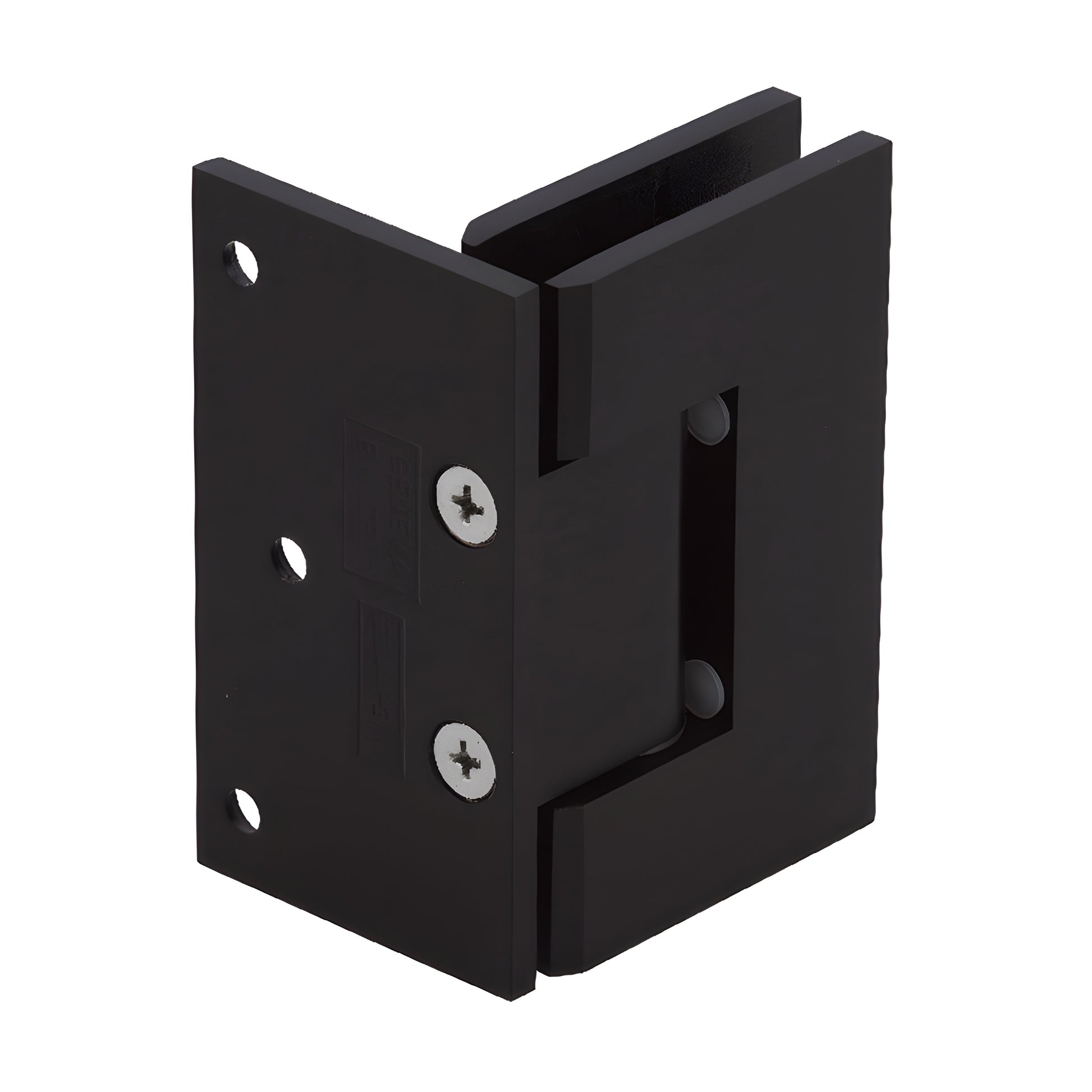

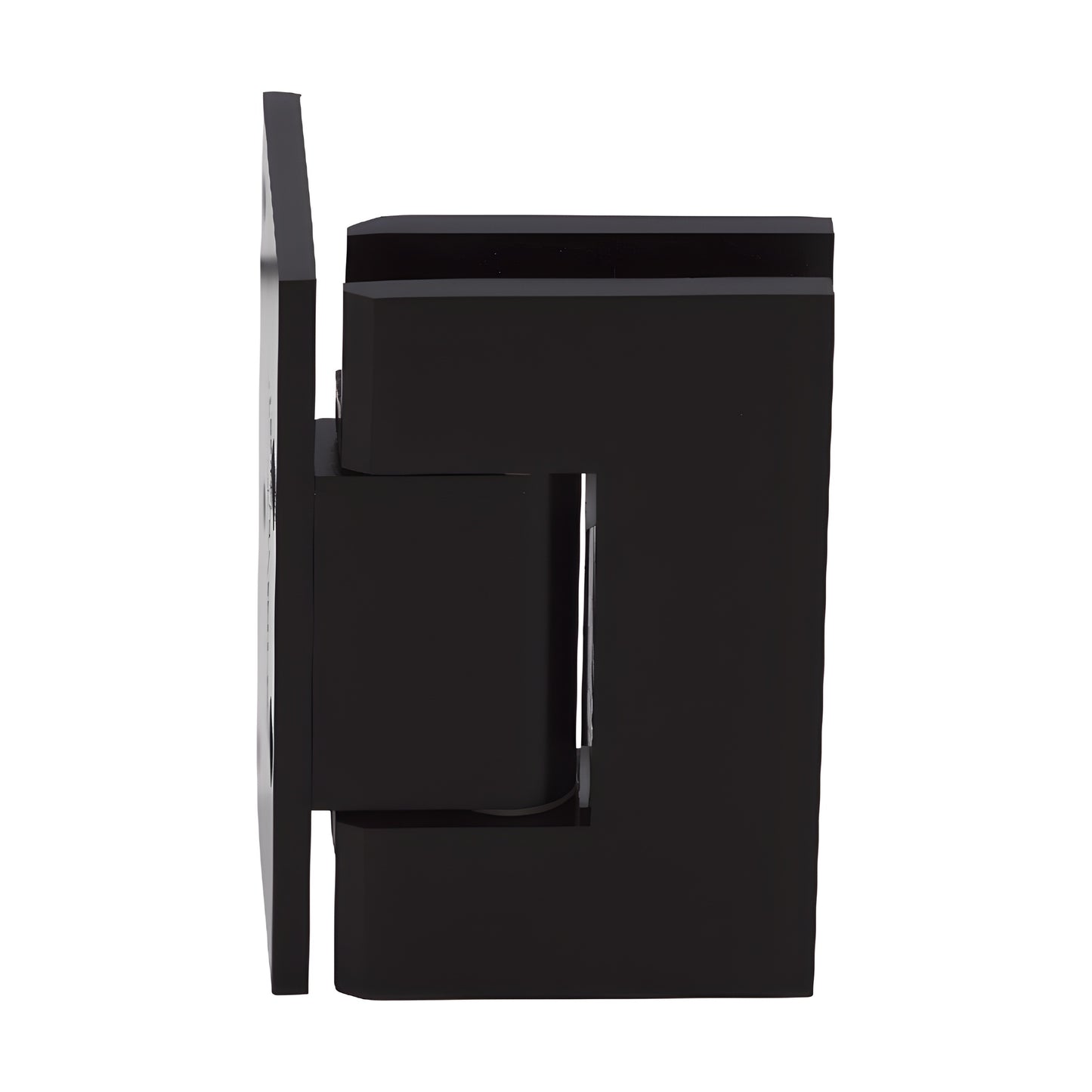

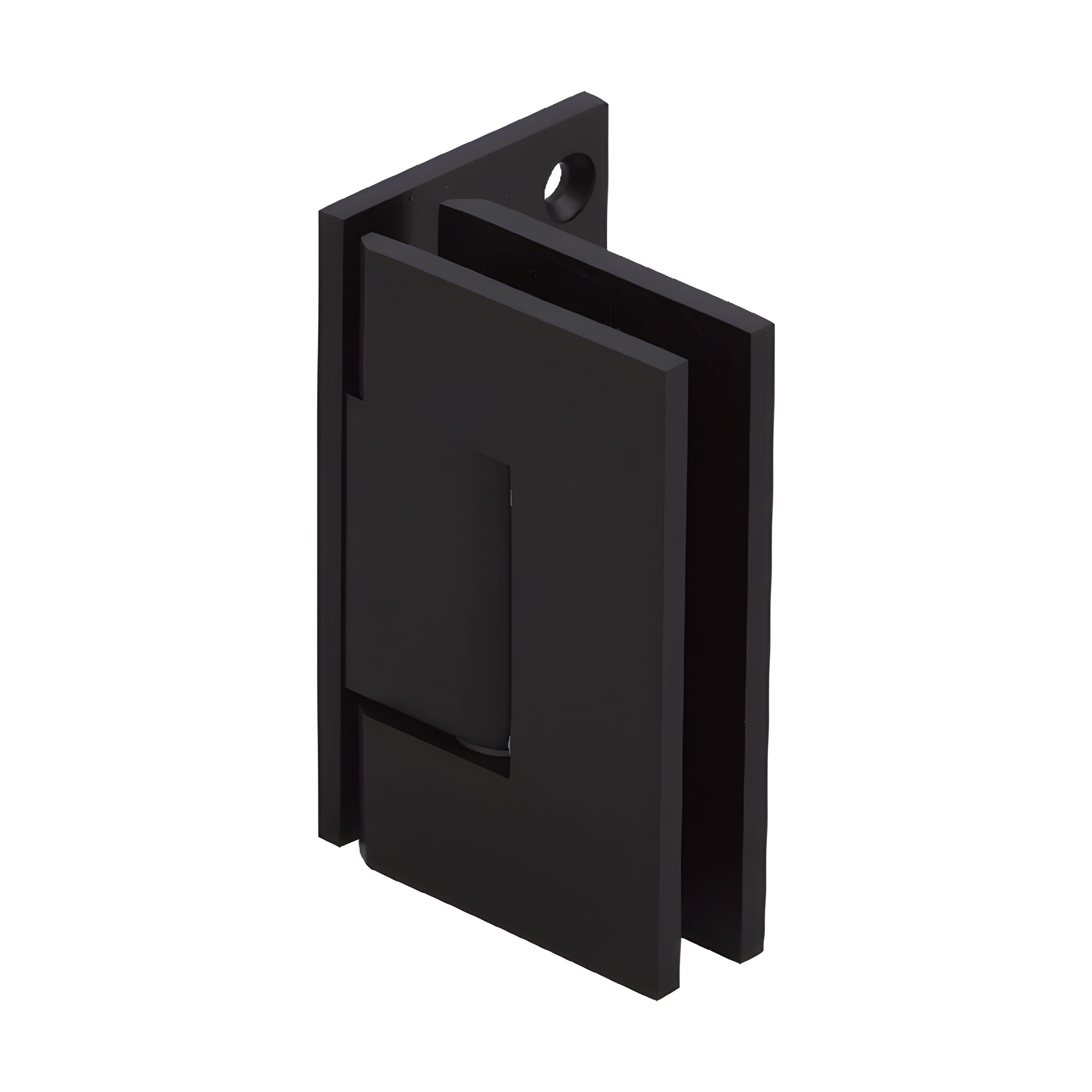

CRL Vienna 044 Oil-Rubbed Bronze Wall Mount Offset Backplate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 Year Warranty
• Wall-mount offset back plate on standard model
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E0440RB) are engineered for wider, heavier shower doors where conventional hinges fall short. Dual internal steel pins provide mounting flexibility: leave both pins in place to use CRL "mouse-ears" cut-outs for added safety, or remove the pins for enhanced adjustability and compatibility with CRL rectangular square-corner cut-outs — and in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin with two settings: 90° (standard) and 85° (pre-set option for a 5° tighter closure into the shower interior). Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify angles up to 45° when needed).

Load Capacity & Door Width:
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and technical assistance are available — contact CRL Technical Sales, Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out dimensions
